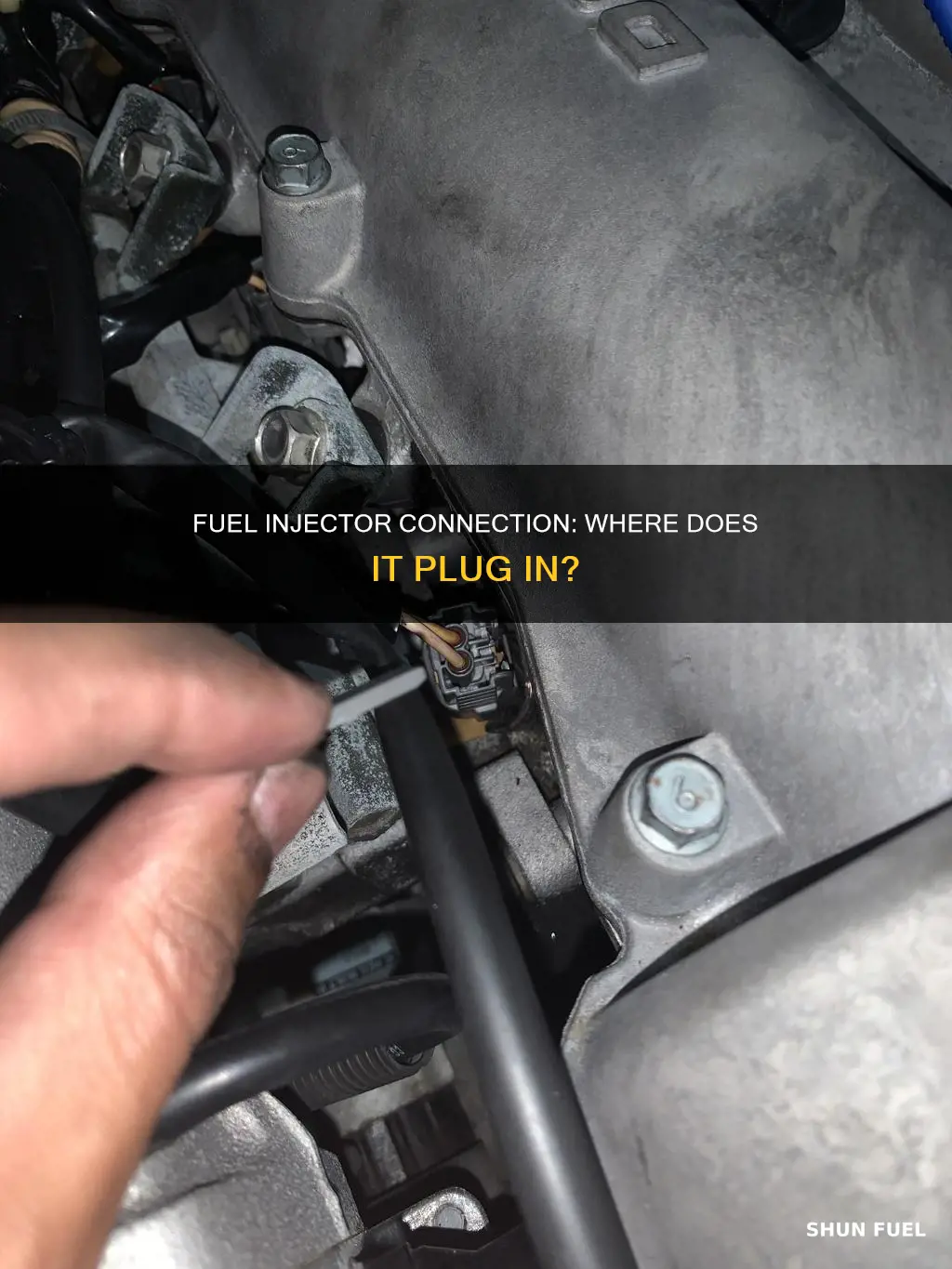

Fuel injectors are a critical component of modern engines, delivering fuel for combustion. They are connected to the engine's combustion chamber, where the chemical energy in the fuel is converted into power for the vehicle. The injector's precise placement can vary, with some located in the inlet manifold or throttle body, while others are positioned to spray directly at the intake valve of each cylinder. The fuel injector's role is to atomize the fuel, creating a fine mist that burns efficiently when ignited, resulting in improved engine performance and reduced emissions.
| Characteristics | Values |
|---|---|
| Location of fuel injector | Combustion chamber, inlet manifold or throttle body |
| Type of injection | Continuous or intermittent |
| Continuous injection | Fuel flows at all times from the fuel injectors, but at a variable flow rate |
| Intermittent injection | Sequential, batched, simultaneous, or cylinder-individual |
| Sequential injection | Injection is timed to coincide with each cylinder's intake stroke |
| Batched injection | Fuel is injected to the cylinders in groups, without precise synchronization to any particular cylinder's intake stroke |
| Simultaneous injection | Fuel is injected at the same time to all the cylinders |
| Cylinder-individual injection | The engine control unit can adjust the injection for each cylinder individually |
| Multi-point injection | Injects fuel into the intake ports just upstream of each cylinder's intake valve |
| Cold-starting | A choke on the dash or a microprocessor control unit brings a special cold-start injector into operation, which injects extra fuel to create a richer mixture |
| Carburettor | Carburettors were replaced by fuel injectors to meet stricter emissions requirements |
Explore related products
What You'll Learn
Fuel injector types
Fuel injectors are an essential component of modern engines, and their design has been refined over the years to achieve maximum efficiency and performance. The injector is located in the combustion chamber, inlet manifold, or throttle body, and it performs the final stage of delivering fuel into the engine. The type of fuel injection system used depends on various factors, including the shape of cylinders and pistons, port and spark plug locations, and the engine's RPMs. Here are some of the most common types of fuel injectors:
Single-Point Fuel Injection
Single-point fuel injection is the oldest and simplest form of fuel injection. It replaces the carburettor with one or two fuel injector nozzles in the throttle body, which is the throat of the engine's air intake manifold. This type of injection is called Throttle Body Injection (TBI) and was commonly used as a stepping stone to more complex multipoint systems. While TBI provides better fuel metering than carburettors, it is not as precise as newer systems.
Multi-Point Fuel Injection (MPFI)
Multi-Point Fuel Injection is a more advanced system that dedicates a separate injector nozzle to each cylinder, positioned just outside its intake port. This design ensures that the fuel is almost entirely drawn into the cylinder, resulting in a more precise air-fuel ratio and improved engine performance. MPFI is also known as "Port Injection" because the injectors spray fuel directly into the intake ports of the cylinders.
Sequential Fuel Injection (SPFI)
Sequential Fuel Injection, also known as Sequential Port Fuel Injection, is a type of multiport injection that triggers each injector nozzle independently. The fuel is sprayed immediately before or as the intake valve opens, resulting in improved efficiency and emissions. SPFI is a more advanced version of basic MPFI, which sprays fuel simultaneously in all cylinders or in groups.
Direct Fuel Injection (DI)
Direct Fuel Injection is a system where the injector is placed inside the cylinder, bypassing the intake valve or manifold. This method is commonly used in diesel engines but has also found a place in petrol engines, known as GDI (Gasoline Direct Injection). DI offers maximum fuel economy as all the fuel is directly injected into the cylinder, reducing the potential for fuel condensation. It also improves power and CNG fuel efficiency.
Common-Rail Injection
The common-rail injection system is the most common type of injection system in modern automotive engines. In this system, fuel from the tank is supplied to a common header (accumulator) and then sent through tubing to the injectors, which inject it into the combustion chambers. The accumulator maintains pressure and returns excess fuel to the tank. Common-rail systems can be air-guided or spray-guided and are known for their precision and ability to handle high fuel pressures.
Fuel Injector Coverage: Understanding Your Powertrain Warranty
You may want to see also
Explore related products
Fuel injection systems
There are two main functional principles of mixture formation systems for internal combustion engines: internal and external. External mixture formation is called a manifold injection system, which can be multi-point (or port) or single-point (or throttle body) injection. Internal mixture formation systems can be direct or indirect injection, with common-rail injection being the most common type of direct injection.
Direct injection means that the fuel is injected directly into the main combustion chamber of each cylinder, where it mixes with air. This can be achieved with a conventional helix-controlled injection pump, unit injectors, or a common-rail injection system. The latter is the most common system in modern automotive engines. In a common-rail system, fuel from the fuel tank is supplied to a common header (accumulator) and then sent through tubing to the injectors, which inject it into the combustion chambers.
Indirect injection, on the other hand, involves injecting fuel into a specially shaped pre-combustion chamber with a narrow passage connecting it to the cylinder head. Only air is drawn into the cylinder, and the atomized fuel is injected at the end of the compression stroke. All modern petrol injection systems use indirect injection.
The earliest fuel injection systems were mechanical, but since the 1980s, electronic systems have been used to control the metering of fuel. Mechanical systems have now been largely superseded by electronic fuel injection (EFI) due to the increasing reliability and decreasing costs of electronic control systems.
Understanding Fuel Injector Ohm Testing in Subarus
You may want to see also
Explore related products
Fuel injector location
Fuel injectors are a primary component of modern engines, helping to reduce carbon emissions and fuel consumption. They are located in the combustion chamber, inlet manifold, or throttle body.
In diesel engines, fuel injectors are located in the combustion chamber, where they inject fuel directly. This is known as direct injection. The injector consists of a solenoid, a nozzle, and a needle within the injector body. When the piston moves upwards, an electrical signal is sent to the solenoid, causing the injector needle to lift, allowing high-pressure fuel to flow through the nozzle and into the combustion chamber. This process is known as actuation. The high-pressure fuel mixes with the air in the chamber, and due to the elevated temperature, the mixture auto-ignites, creating power and driving the engine's pistons.
In petrol-engined cars, fuel injectors use indirect injection, where the fuel is injected into the inlet manifold by an injector. There is either a separate injector for each cylinder or one or two injectors into the inlet manifold. The fuel-air mixture is then sucked into the engine. This is known as manifold injection.
The fuel injector is effectively a spray nozzle that performs the final stage in the delivery of fuel into the engine. Sensors monitor the mass of air entering the engine, and the ECU (Engine Control Unit) uses this information to fine-tune the fuel consumption and delivery. The ECU controls the pulse width, or the amount of time the fuel injector stays open, to ensure efficient combustion.
Fuel injectors can be located under the foam in the valley of the engine, and are secured to the cylinder head by bolts.
Testing Fuel Injectors: Ohm Measurement Techniques
You may want to see also
Explore related products
Fuel injection process
Fuel injection is the process of introducing fuel into an internal combustion engine, usually an automotive engine, via a fuel injector. This process is used in both compression-ignition engines (e.g. diesel engines) and spark-ignition engines (i.e. petrol or gasoline engines).
The fuel injector is a valve that sprays pressurised fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or throttle body. The fuel injector performs the final stage in the delivery of fuel into the engine. It is supplied with pressurised fuel by the fuel pump in the car and is capable of opening and closing many times per second. When the injector is energised, an electromagnet moves a plunger that opens the valve, allowing the pressurised fuel to squirt out through a tiny nozzle. The nozzle atomises the fuel, creating a fine mist that can burn easily. The amount of fuel supplied to the engine is determined by the length of time the fuel injector stays open, known as the pulse width, which is controlled by the engine control unit (ECU).
There are two main types of fuel injection systems: continuous injection and intermittent injection. In a continuous injection system, fuel flows at all times from the fuel injectors, but at a variable flow rate. The amount of fuel sprayed is controlled by a mechanical or electrical control unit. In an intermittent injection system, fuel is delivered in bursts, timed to coincide with each cylinder's intake stroke. This can be further categorised into sequential injection, batched injection, simultaneous injection, and cylinder-individual injection.
The use of fuel injection systems provides several benefits over traditional carburettor systems, including lower fuel consumption, increased power, and reduced emissions. Fuel injection systems also allow for more precise control of the air-to-fuel ratio, which is important for the effective operation of catalytic converters.
Removing Fuel Injectors from a 1991 Jetta: Step-by-Step Guide
You may want to see also
Explore related products
Fuel injector maintenance
Fuel injectors are an essential component of an internal combustion engine, delivering fuel to the combustion chamber. They are located in the combustion chamber, inlet manifold, or throttle body, and their proper functioning is critical for engine performance and fuel efficiency.
Over time, fuel injectors can become clogged with carbon deposits, affecting the air-fuel mixture and leading to rough idling, stalling, increased fuel consumption, and reduced engine performance. Therefore, regular maintenance and cleaning of fuel injectors are necessary to ensure optimal engine performance and prevent further complications.
There are several methods for cleaning fuel injectors. One approach involves removing the injectors from the engine, allowing for a thorough cleaning to eliminate any gunk or buildup. This method provides direct access to the injectors and ensures a comprehensive cleaning.
Another technique for cleaning fuel injectors is by using a fuel injection cleaning kit or additives. These kits typically include a pressurized canister that is hooked up to the fuel line, along with a high-powered cleaner that replaces the fuel. The canister is filled with a cleaning solvent, and a compressed air line is attached. The air pressure is then set to match the normal fuel pump pressure. This method can effectively clean the injectors without the need for removal.
Additionally, there are commercial fuel injector cleaning products available, such as Chevron Techron or Gummout fuel system cleaner, which can be poured directly into the gas tank. These products are more affordable and easily accessible but may be less effective due to dilution.
It is important to consult a trusted mechanic or automotive specialist to diagnose any issues accurately and recommend the most suitable cleaning method for your vehicle's specific needs. Regular maintenance and prompt attention to any signs of injector problems can help extend the life of your engine and improve its overall performance.
Removing Fuel Injectors from a 2003 Chevy Malibu
You may want to see also
Frequently asked questions
The fuel injector is located in the combustion chamber, inlet manifold or throttle body.
Fuel injectors are electronically controlled valves that deliver pressurised fuel into the engine. The injector is energised by an electromagnet that opens the valve, allowing the pressurised fuel to be released through a nozzle.
Fuel injectors enable an engine to generate maximum power while minimising fuel consumption and reducing pollution. The latest technology helps to reduce carbon emissions by delivering accurate fuel quantities with optimised air mixing.
