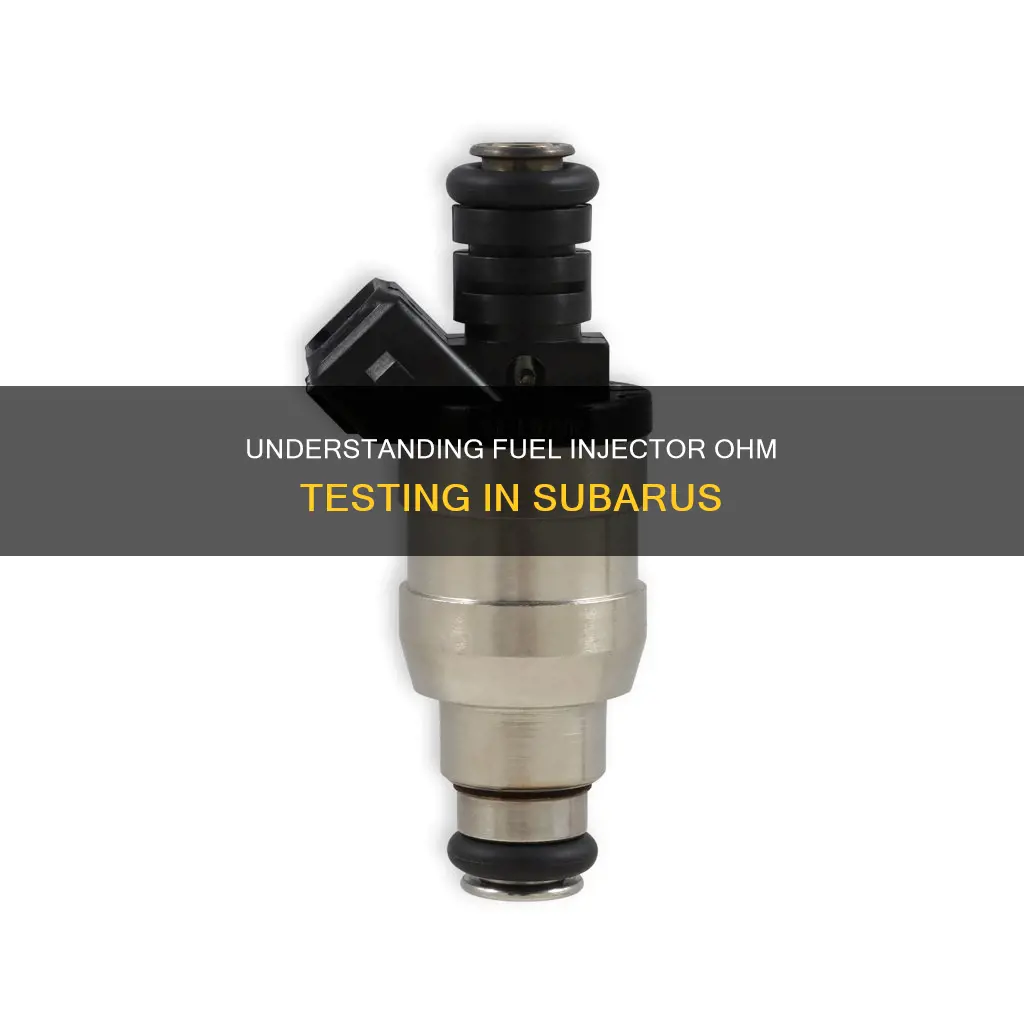

Fuel injectors are a type of solenoid that delivers fuel under pressure to the engine. They are designed to improve fuel economy and overall performance. Over time, fuel injectors can wear out or become clogged, causing engine problems such as misfires. To check the ohms on a Subaru fuel injector, you will need to turn the car on and set up a DVOM to measure DC voltage. You will then touch the negative lead of the DVOM to a ground source and remove the injector wiring harness. Finally, set the DVOM to measure ohms. High impedance injectors typically range from 12 to 17 ohms, while low impedance injectors are found on high-performance cars and have a much lower resistance, typically around 2-5 ohms.
| Characteristics | Values |
|---|---|
| Step 1 | Turn the car on. Turn the key to the second (ON) position for this test. You want battery power flowing, but don’t want the engine running. |
| Step 2 | Set up DVOM to measure DC voltage. Use the lowest range possible if the meter doesn’t auto-range. |
| Step 3 | Touch the negative lead of the DVOM to a ground source. |
| Step 4 | Remove the injector wiring harness. |
| Step 5 | Set DVOM to measure ohms. |
| High Impedance Injectors | 12 to 17 ohms |
| Low Impedance Injectors | 2 to 5 ohms |
| Injector Wiring Harness Readings | Around 12 volts |
Explore related products
What You'll Learn
High impedance injectors are usually 12-17 ohms
Injector impedance is a measure of the degree of ease with which a circuit processes the current when a direct voltage runs across it. It is measured in ohms. Injector impedance depends on a wide range of elements, predominantly electricity qualities like inductance, reactance, capacitance, and resistance.
Most injectors fall into two categories: low and high impedance. High impedance injectors are the most common type found in cars today. They have a coil resistance ranging from 8 to 16 ohms, with some sources giving a range of 12 to 17 ohms. High impedance injectors are used in most street applications and are a highly cost-effective solution. They are also more widely used than any other injector because their drive circuitry is straightforward and utilizes a saturated driver circuit. High impedance injectors can send 11-12 amps of current, and a low amp lowers the injector's temperature, making it highly reliable. This is one of the main reasons high impedance injector design is more commonly used for OEM applications.
Low impedance injectors, on the other hand, have a coil resistance of 4 ohms or lower. They are typically found on high-performance or large injectors. They have a more complex driver circuitry referred to as a peak-and-hold system, which is more expensive. In a traditional peak-and-hold system, the main driver enables a time-sensitive and high current to turn the low impedance in an instant. Subsequently, the current is reduced to a lower value to ensure the injector is open. On average, it takes 4 amps to open the injector, and once it is open, the current can decrease to 0.75 amps.
It is important to ensure that your fuel injectors are receiving the correct voltage. Faulty fuel injectors can affect fuel economy and cause a misfire. To check the ohms on a Subaru fuel injector, first turn the car on. You want battery power flowing, but don't want the engine running. Set up a DVOM to measure DC voltage and touch the negative lead of the DVOM to a ground source. Remove the injector wiring harness and set the DVOM to measure ohms.
Fuel Injector Scaling: Calculating the Right Flow Rate
You may want to see also
Explore related products
Low impedance injectors are found on high-performance cars and are 2-5 ohms
Low impedance injectors are commonly found in high-performance cars, with a typical resistance of 2-5 ohms. They are also found in larger injectors, which require more current to open the injector and keep it open. This is achieved through a peak-and-hold driver, which regulates the current to the injector.
Low impedance injectors have a faster response time due to the higher current, which is important at higher RPMs and duty cycles. They also have more "headroom", meaning they can supply more fuel than a high-impedance injector of the same size before going static. This is particularly important when near the limit of the injector's capacity.
The impedance of an injector can be determined by measuring the resistance across the two electrical terminals of the injector with a volt or ohm meter. The correct resistance for your injectors can be found by searching online or in your vehicle's repair guide.
It is important to ensure that your fuel injectors are functioning correctly, as they can affect fuel economy and cause engine misfires if they are faulty.
When to Use Liqui Moly Fuel Injector Cleaner
You may want to see also
Explore related products
Injectors should be within 0.5 ohms of each other
When checking the ohms on a Subaru fuel injector, it is important to ensure that all injectors are within 0.5 ohms of each other. This means that the injectors should have a resistance that is within half an ohm of each other. This step is crucial to ensure that the injectors are functioning optimally and that there is no major difference in their performance.
To check the ohms on a Subaru fuel injector, follow these steps:
- Ensure that the key is off. Power is not required for this test.
- Remove the injector wiring harness. There may be a slide lock that needs to be moved before pressing down on the tabs to remove the wiring harness.
- Set the DVOM to measure ohms.
- Repeat this process with all injectors to ensure they are within the specified range of each other.
It is important to note that high impedance injectors typically found in modern cars range from 12 to 17 ohms, while low impedance injectors found in high-performance and larger injectors have lower resistance, usually around 2-5 ohms.
If you encounter any difficulties during the testing process or require further assistance, it is recommended to consult a certified technician or mechanic. They can provide professional guidance and ensure that your fuel injectors are functioning correctly.
Backhoe Maintenance: Replacing Fuel Injectors for Optimal Performance
You may want to see also
Explore related products
Faulty injectors can cause engine misfires
There are several ways to identify a faulty injector. One way is to use a screwdriver to listen for a clicking sound, which indicates that the injector is getting fuel. If there is no clicking sound, the injector may be stuck or have bad wiring. Another method is to swap the suspected faulty injector with another injector and observe if the problem moves to a different cylinder. If the problem persists in the same cylinder, it is likely not due to a faulty injector.
To check the ohms on a Subaru fuel injector, follow these steps:
- Ensure the car key is in the "off" position. Power is not needed for this test.
- Remove the injector wiring harness.
- Set a digital volt-ohm meter (DVOM) to measure ohms.
- Repeat this process for all injectors, ensuring they all have a resistance within half an ohm of each other. A significant deviation from this range may indicate a faulty injector.
It is important to note that the correct resistance range for your injectors may vary, so it is recommended to refer to your vehicle's repair guide or search online for specific values. Additionally, some engines have plastic panels that need to be removed before accessing the injectors. These panels are typically secured by bolts and can be removed with a basic socket set, including an extension.
Fuel Injector Maintenance: Mini Cooper Edition
You may want to see also
Explore related products
Injectors can be tested with a DVOM
High impedance injectors are the most common type found in modern cars, with a range of 12 to 17 ohms. Low impedance injectors, on the other hand, are found in high-performance and larger injectors, typically ranging from 2 to 5 ohms. It is important to note that injectors should have a resistance within half an ohm of each other, and any significant deviation may indicate an issue with the injector's firing.
Additionally, it is recommended to repeat the test with all injectors to ensure consistent results. By searching online or referring to the vehicle's repair guide, you can find the correct resistance values for your specific injectors. This process allows for the identification of any potential issues with the injectors, such as wear or clogging, which can impact the engine's performance.
It is worth noting that some engines may have plastic panels that need to be removed to access the injectors. These panels can usually be detached using a basic socket set, including an extension. Furthermore, it is important to ensure that the injectors are receiving the correct amount of power and that they do not have excessive resistance, as this can lead to problems even if the voltage is correct.
Building a Fuel Injector Flow Bench: DIY Guide
You may want to see also
Frequently asked questions
You can check the ohms on a Subaru fuel injector by following these steps:
- Turn the car on. Turn the key to the second (ON) position.
- Set up DVOM to measure DC voltage.
- Touch the negative lead of the DVOM to a ground source.
- Set DVOM to measure ohms.
- Repeat with all injectors. They should all have a resistance within half an ohm of each other.
High-impedance injectors are the most common type found in modern cars, with a range of 12 to 17 ohms. Low-impedance injectors are found on high-performance and larger injectors, with a much lower resistance of 2-5 ohms.
Different ohm readings could indicate a problem with the fuel injector. Possible causes include a dead short, a faulty common driver chip for injectors and BPV, or a faulty ECU.
