Rajan Wilcox
Fuel injectors are an essential component of modern car engines, with all cars sold in the United States now featuring fuel injection systems. Fuel injectors are responsible for spraying fuel into the engine's cylinders, ensuring optimal combustion. The injectors are mounted in the intake manifold, spraying fuel directly at the intake valves. The fuel is supplied to the injectors via a pipe called the fuel rail, which provides pressurised fuel. The injectors can be controlled either mechanically or electronically, with the electronic control unit determining the duration the injector stays open.
| Characteristics | Values |
|---|---|
| Location | Fuel injectors are mounted in the intake manifold |
| Function | Spray fuel directly at the intake valves |
| Fuel supply | Fuel is supplied to the injectors by a pipe called the fuel rail |
| Control | The engine control unit (ECU) controls the amount of fuel sprayed |
| Sensors | The ECU uses sensors such as the mass airflow sensor, oxygen sensor, and throttle position sensor to monitor engine conditions and adjust the fuel rate |
| Types | Mechanical or electronic injectors |
| Injection type | Continuous injection or timed injection (pulsed injection) |
| Fuel delivery | Multi-point fuel injection or single-point injection |
Explore related products
What You'll Learn
Fuel injector systems in modern cars
Fuel injection systems have been installed in every new car sold in the United States since the mid-1990s. The 1990 Subaru Justy was the last car sold in the US without a fuel injector. Fuel injection has been around since the 1950s and was first used in diesel engines.
The basic principle behind fuel injection is that fuel is delivered to the injector from the fuel tank by a pump, often at high pressure. An electrical solenoid within the fuel injector receives a signal from the engine control unit (ECU) that causes it to open a valve for a precise duration. The ECU is equipped with a variety of sensors that provide data on the engine's operating conditions, such as the mass airflow sensor, oxygen sensor, and throttle position sensor. This allows the ECU to adjust the air-to-fuel ratio in real-time, which is crucial for the effective operation of catalytic converters and meeting emissions requirements.
There are four basic types of modern fuel injection: single-point, multi-port, sequential, and direct injection. Single-point injection, also known as throttle body injection (TBI), is a low-cost option that mixes fuel with air before entering the intake manifold. Multi-port injection, or port injection, injects fuel into the intake ports just upstream of each cylinder's intake valve, typically using multiple fuel injectors. Sequential multi-port fuel injection allows for quicker responses to sudden driver changes, as the system only needs to wait until the next intake valve opens.
Direct injection is the most common system in modern automotive engines, where fuel is sprayed directly into the cylinder or combustion chamber. This can be achieved with a conventional helix-controlled injection pump, unit injectors, or a common-rail injection system. In a common-rail system, fuel is supplied to a common header (accumulator) and then sent through tubing to the injectors, which inject it into the combustion chambers. The accumulator maintains pressure and returns excess fuel to the fuel tank.
The Intricacies of Diesel Fuel Injectors Spray Timing
You may want to see also
Explore related products
How fuel gets into the engine cylinder
Fuel is essential to the engine and is a vital element in the combustion process, which converts it to energy to propel your vehicle. It is mixed with air, ignited, and eventually converted to exhaust. The fuel injector is a key component in this process.

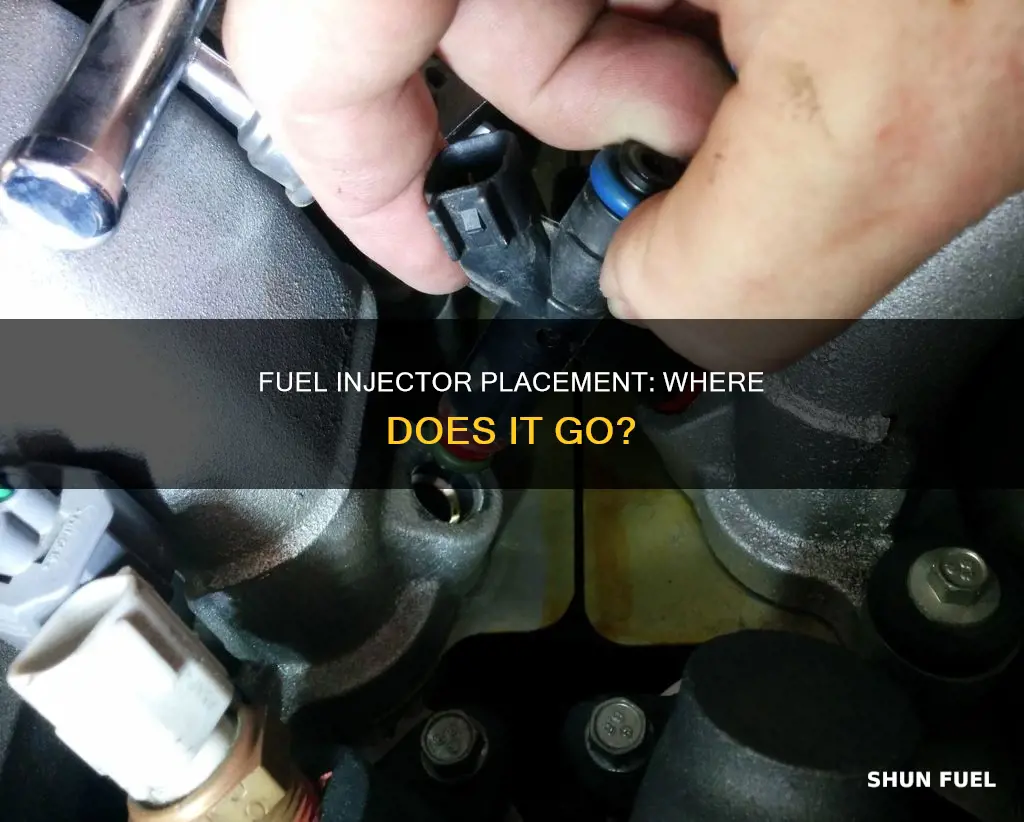

Fuel injectors are mounted in the intake manifold so that they spray fuel directly at the intake valves. A pipe called the fuel rail supplies pressurised fuel to all of the injectors. The injectors are screwed, nozzle-first, into either the inlet manifold or the cylinder head. They are angled so that the spray of fuel is directed towards the inlet valve. The injectors are of two types, depending on the injection system. The first system uses continuous injection, where the fuel is squirted into the inlet port all the time the engine is running. The second popular system is timed injection (pulsed injection), where the fuel is delivered in bursts to coincide with the induction stroke of the cylinder.
The amount of fuel injected is controlled by a flap valve located in the engine's air intake. The flap sits beneath the control unit and rises and falls in response to airflow. As you open the throttle, the 'suck' from the cylinders increases the airflow and the flap rises. This alters the position of a shuttle valve within the metering control unit to allow more fuel to be squirted into the cylinders. From the metering unit, the fuel is delivered to each of the injectors in turn. The fuel then squirts out into the inlet port in the cylinder head.
The engine control unit (ECU) is equipped with a lot of sensors to provide the right amount of fuel. For instance, the mass airflow sensor tells the ECU the mass of air entering the engine, and the oxygen sensor monitors the amount of oxygen in the exhaust so the ECU can determine how rich or lean the fuel mixture is and make adjustments accordingly.
Fuel Injector Options for the 2003 Harley 88 Twin Cam
You may want to see also
Explore related products
Multi-port fuel injection
Fuel injectors are mounted in the intake manifold so that they spray fuel directly at the intake valves. Multi-port fuel injection (MFI) systems are one of the types of fuel injection systems that have been adopted to meet stricter emissions requirements. They are also known as sequential port fuel injection (SPFI) or timed injection. In MFI systems, the fuel injectors can either all open at the same time or each one can open just before the intake valve for its cylinder opens (sequential multi-port fuel injection). The latter allows the system to respond more quickly to sudden changes by the driver.
MFI systems have several advantages over the original Sequential Central Port Injection (SCPI) system. These include port fuel delivery, high reliability, better hot starts, reduced vapor emissions, and faster prime on hot restarts. They also have improved spray injector nozzle designs, which reduce deposit buildup that can cause clogs, and enhanced pressure control at low recirculation rates.
GM’s Vortec engines come with an SCPI system. The multi-port fuel injector is also available for the GM V8 and V6 4.3L engine.
MFI systems have been widely used since the 1980s, with electronic fuel injectors first being used in European cars. All cars sold in the United States now have fuel injection systems, with the 1990 Subaru Justy being the last car to have a carburetor.
Cleaning Fuel Injectors in a 2003 Ford Crown Victoria
You may want to see also
Explore related products
Throttle body fuel injection
Fuel injectors are mounted in the intake manifold, where they spray fuel directly at the intake valves. Fuel is supplied to the injectors via a pipe called the fuel rail. The engine control unit (ECU) is equipped with sensors that monitor the mass of air entering the engine, the amount of oxygen in the exhaust, and the throttle valve position, among other factors, to determine the correct amount of fuel to inject.
Throttle body injection (TBI) served as a transition between carburetion and multiport fuel injection. It is considered a step up from carburetors and was widely used in the late 1980s and early 1990s, especially in General Motors (GM) pickups. TBI systems can be used to upgrade an engine's fuel system from a carburetor using fuel injection conversion kits.
Compared to multiport injection or direct injection, TBI differs in that the fuel is in the throttle body rather than the cylinders or head. This means that the fuel is mixed with air before entering the intake manifold, rather than being injected directly into the cylinders. TBI systems provide a more responsive drive, as they can quickly adjust the fuel rate based on changes in throttle valve position.
Removing Fuel Injectors from a 50hp Four-Stroke Mercury Engine
You may want to see also
Explore related products
Replacing a fuel injector
Fuel injectors are mounted in the intake manifold, where they spray fuel directly at the intake valves. A fuel rail supplies pressurised fuel to all the injectors. The engine control unit (ECU) uses input from a range of sensors to ensure the correct amount of fuel is supplied.
There are several reasons why you might need to replace a fuel injector. Firstly, external leaks. Although uncommon, any raw fuel that leaks from a fuel injector is a fire hazard, and that injector should be replaced immediately. If a fuel injector becomes clogged with debris or carbon deposits that can't be cleaned, it will need to be replaced. Symptoms of a clogged injector include a rough idle, misfire, poor fuel efficiency, and trouble starting the engine. A raw fuel smell in the engine oil can also indicate a fuel injector that's stuck partially open or weak, and the fuel is washing down into the crankcase.
If you're an accomplished DIYer, you can replace a fuel injector yourself. However, if you're uncertain, it's best to seek professional help. Before starting, check your vehicle's manual for specific instructions and any parts that need to be removed. You'll need an assortment of common wrenches, a socket and ratchet set, a fuel line disconnect tool, screwdrivers, pliers, and protective safety equipment, including gloves and eye protection. It's also important to relieve the fuel pressure before beginning work to prevent unexpected fuel spray. This can be done by pressing a valve on the fuel line or pulling the fuel pump relay and cranking the engine for a few seconds. Always work in a clean area to prevent dirt and debris from contaminating your new fuel injector and fuel system.
It's possible to replace only one bad injector, but there's a good chance the others are in a similar condition. It's often recommended to change them all at the same time to avoid repeating the job. Before replacing the injector, it's worth trying some troubleshooting steps to identify the issue. For example, swapping spark plugs and ignition coils between cylinders to see if the problem follows.
Fuel Injectors in the S2000: How Many and Why?
You may want to see also
Frequently asked questions
The fuel is fired into either the inlet manifold or the inlet port via an injector.
A fuel injector sprays fuel into the combustion chamber of an engine. The fuel is pumped from the gas tank and pushed into the fuel injector, which sprays the gasoline in a fine mist.
Fuel injectors are designed to deliver fuel into the engine's cylinders at the precise moment and in the correct quantity, ensuring optimal combustion. They are controlled either mechanically or electronically.
