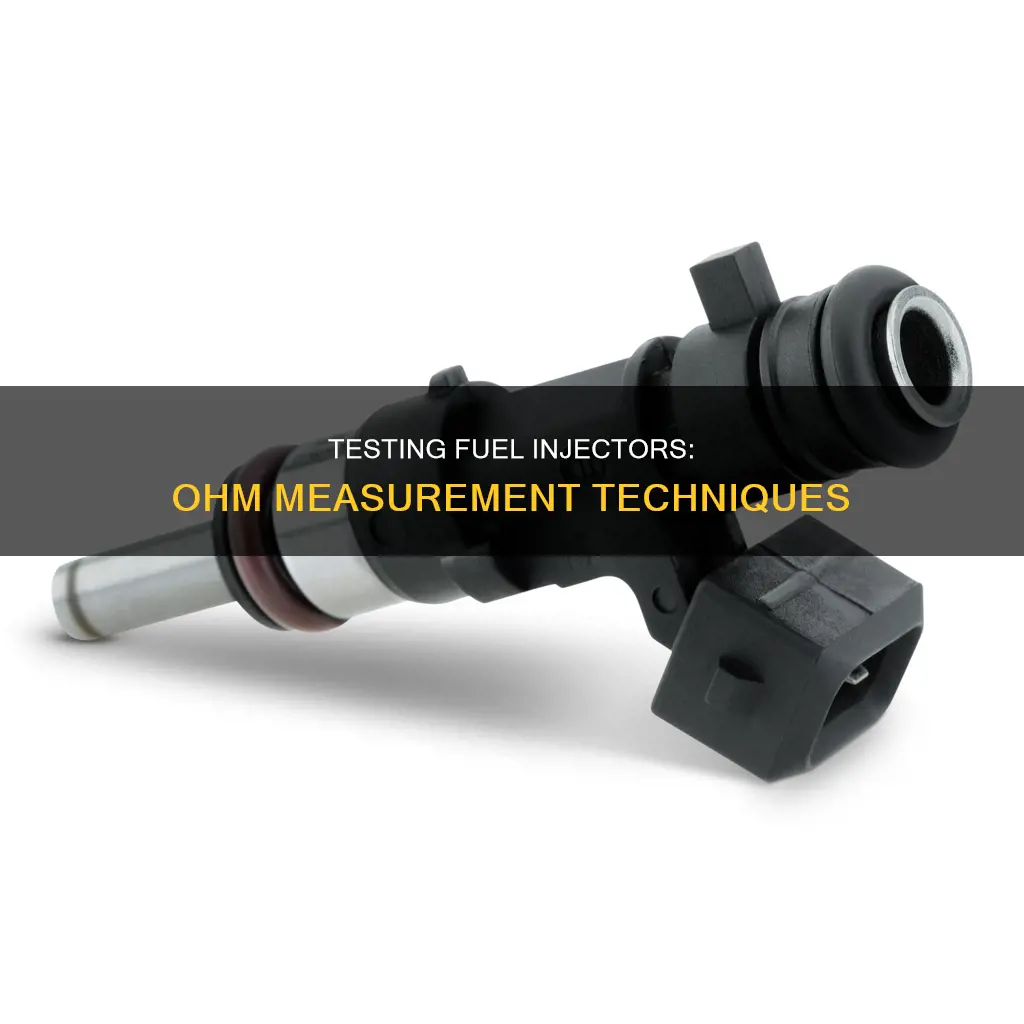

Fuel injectors are simple devices that have been used in vehicles since the late 1960s. They consist of a coil of wire, a spring, and a pintle valve. Despite their simplicity, diagnosing injector-related problems can be challenging even for experienced technicians. One common issue is a dirty injector, which can be identified through an injector resistance test. This test can be performed using an ohm meter, which measures resistance and voltage. However, it's important to note that resistance measurements can only indicate gross failures, and a more conclusive test involves measuring inductance and coil Q with an impedance bridge. To check the ohms on fuel injectors, you need to isolate each injector and put the ohm meter across the leads. If the ohm meter measures infinity, it indicates an open circuit and a faulty injector coil.
| Characteristics | Values |
|---|---|
| How to check ohms | Use an ohm meter to measure resistance |
| How to use an ohm meter | Isolate each injector, then put the ohm meter across each set of leads |
| What the ohm meter reading means | A reading of infinity means an open circuit and a bad injector coil |
| Other ways to test injectors | Pull them off and install on a test bench with high-pressure fuel to test for leakage and spray pattern |
| How to check for leaking injectors | Put the truck in neutral, bring RPMs to redline for a few seconds, then let off |
| How to check for worn injectors | Take the RPM up to 3000 and let it settle for 15 seconds, then watch the RPMs as they wind down. If there are periodic hangs on the drop, the injectors are worn |
| How to check for dirty injectors | Perform an injector resistance test |
| What the injector resistance test reading means | A reading of less than 10 ohms may mean the injector needs to be replaced |
Explore related products
What You'll Learn
How to test fuel injectors for normal ohms
To test fuel injectors for normal ohms, you will need to use an ohm meter or a multimeter. This will allow you to measure the resistance of the fuel injectors. Before you begin, ensure that the engine is up to operating temperature.
Firstly, isolate each injector and put the ohm meter across each set of leads. If the ohm meter measures infinity, this indicates an open circuit, and the coil in the injector is faulty. If the internal parts of the injector are worn or leaking, the injector will test well with an ohm meter if the coil is in good condition.
To test for leaks, you can put the truck in neutral, bring the RPMs to the redline for a few seconds, and then release. Alternatively, you can pull the injectors off and install them on a test bench to supply high-pressure fuel, power the injectors, and test fire them while looking for leaks and spray patterns.
It is important to note that the exact numbers will vary depending on the vehicle. For example, one source suggests that the resistance should be 10 ohms or higher, while another states that the resistance should be about 16 ohms. If the resistance measurements are below the teens, it is recommended to replace or recondition the injectors.
Additionally, an injector balance test can be performed by a technician to determine if all the injectors are delivering approximately equal amounts of fuel. If they are not, cleaning or replacement may be necessary.
When to Use Fuel Injector Cleaner: A Guide
You may want to see also
Explore related products
What to do if a fuel injector shows no resistance reading
If a fuel injector shows no resistance reading, there are a few things you can try to troubleshoot the issue.
First, check if the injector is still clicking when the engine starts. If the injector is clicking and the engine runs smoothly over 1500 RPM, the issue may be related to the resistance reading. It is suggested to clean the pins on the injector with a precision screwdriver, scraping away any corrosion. The harness connector may also need to be checked to ensure it is making proper contact. If the injector is not clicking, it may be dead and need to be replaced.
Next, determine if the resistance reading is "nothing" as in 0 Ohms or if the meter is not working. If the meter is not working, try testing from another point down the line at another connector. You can also check the battery in your meter to ensure it is not dead. If the resistance reading is 0 Ohms, this could indicate a bad injector.
If you are still experiencing issues, it is recommended to consult a professional technician to diagnose and address the problem. They may suggest an injector balance test to determine if all the injectors are delivering equal amounts of fuel. If not, the injectors may need cleaning or replacement. Additionally, they may suggest measuring the inductance and coil "Q" with an impedance bridge to get a more conclusive test result.
Diagnosing Dirty Fuel Injectors: What You Need to Know
You may want to see also
Explore related products
How to clean a fuel injector
To check the ohms on your fuel injectors, you will need to use an ohm meter or a multimeter. This will allow you to measure the coil resistance of the injectors. Injectors can short, develop shorted turns, or an open circuit, and in any of these cases, the injector will need to be replaced. The resistance of the coils should be within about plus or minus 10% of each other. For example, if one vehicle's injectors measured about 12 ohms, and another injector in the same vehicle measured 8 ohms, the latter likely has shorted turns and needs replacement.
To clean a fuel injector, you can use a commercial injector cleaner, but be aware that some of these can cause the insulation to be washed off the windings of the injector, causing a low resistance or a short. If you are unsure about which cleaner to use, it is best to consult a technician.
To clean the fuel injectors, you can either run the cleaner through the injectors or, if you have removed the injectors, you can put them in a test bench where you can supply high-pressure fuel, power the injectors, and test fire them, looking for leakage and spray pattern.
If you are experiencing issues with your fuel injectors, it is important to first diagnose the problem. This can be done by performing a fuel pressure test or a cylinder balance test. If the issue is with the fuel injectors, you may need to clean or replace them.
It is also possible to test for leaking injectors by putting your truck in neutral and bringing the RPMs to the redline for a few seconds and then letting off. If you get periodic hangs on the drop, this is an indication that your injectors are worn.
Fuel Injector Sizing: Calculating the Right Fit
You may want to see also
Explore related products
How to check for a bad crystal solenoid
Solenoids are small but essential components that generate mechanical motion, which is crucial for operating various applications. Testing solenoids is critical to avoid potential issues that may cause system failures or safety hazards. Here is a step-by-step guide on how to check for a bad crystal solenoid:
Step 1: Locate the Solenoid
Finding the solenoid within an application depends on the system's complexity, the accessibility of components, and familiarity with the layout. The solenoid is typically a cylindrical device, often with wires coming out of it.
Step 2: Ensure Safety
Turn off any power to the solenoid and disconnect it from the circuit to avoid electrical hazards. Wear protective equipment, such as insulated gloves and safety goggles, to protect against shock hazards from live voltage.
Step 3: Check Manufacturer's Specifications
Refer to the manufacturer's manual or datasheet to determine the solenoid's specific terminals, voltage, and current ratings. Check if the solenoid operates on AC or DC voltage.
Step 4: Prepare Testing Equipment
You can test the solenoid using a multimeter or a battery. For a multimeter test, turn on the device and set it to ohms (Ω) to measure resistance. If using a battery, ensure it matches the solenoid's voltage rating and is fully charged.
Step 5: Connect to Power Source
If using a multimeter, locate the solenoid's terminals, which typically include a peculiar-looking ground connection and two other terminals to be tested. Place the multimeter probes in contact with these terminals. If using a battery, connect it to the solenoid using insulated jumper wires with alligator clips.
Step 6: Observe Results
For a multimeter test, an 'OL' reading (infinite resistance) signifies an incomplete circuit within the solenoid, indicating a bad coil or wire. A voltage test ensures the solenoid receives the correct voltage. If using a battery, observe if the solenoid activates correctly when power is applied.
Step 7: Check for Mechanical Issues
If the electrical test indicates no issues, proceed to check for mechanical problems. Open the sprinkler valve and inspect the spring-loaded plunger and diaphragm for any damage or obstruction.
Step 8: Clean or Replace as Needed
If debris or wear and tear are causing issues, clean or flush the solenoid and valve with water. If the problem persists or the solenoid is stuck, it may need to be replaced.
By following these steps, you can thoroughly check for a bad crystal solenoid and ensure its proper functioning, safety, and efficiency.
Remanufactured Fuel Injectors: Reliable or Risky?
You may want to see also
Explore related products
How to check fuel injectors for leakage
Fuel injectors are simple devices that consist of a coil of wire, a spring, and a pintle valve. Over time, they can become clogged or start to leak. This can cause a range of issues, including rough idling, hard cold starts, flooding on hot starts, and poor gas mileage.
To check fuel injectors for leakage, you can start by performing an ohm test. This will verify that the injectors are electrically capable of working. To do this, you will need to use an ohm meter, also known as a multimeter, to measure the resistance of each injector. Make sure the car is turned off and follow the instructions in your ohm meter's manual to set it to the correct mode and range. Disconnect an injector and place the two prongs of the ohm meter to each prong of the injector. A good injector should have a resistance reading of between 11 and 14 ohms. If the reading is 0 ohms, the injector is likely bad. If the reading is higher than expected, there may be an issue with the coil.
It is important to note that the ohm test only provides an indication of electrical functionality and does not guarantee that the injectors are not leaking. For a more conclusive test, you can measure the inductance and coil "Q" with an impedance bridge. This type of test can detect issues with the coil that an ohm meter may not pick up.
If you suspect that your fuel injectors are leaking, but they test fine with an ohm meter, you may need to perform additional tests. One method is to pull the injectors off and install them on a test bench where you can supply high-pressure fuel, power the injectors, and test fire them while looking for leakage and spray pattern. Alternatively, you can put the truck in neutral, bring the RPMs to the redline for a few seconds, and then let off. If you notice periodic hangs during the drop, it may indicate that the injectors are worn or leaking.
In some cases, fuel injectors may need to be cleaned or replaced due to dirt, fuel contamination, or high mileage. Commercial injector cleaners can be used, but it is important to be cautious as some cleaners can cause the insulation to be washed off the windings, resulting in low resistance or a short.
Balancing Fuel Injectors: Achieving Optimal Performance in Simple Steps
You may want to see also
Frequently asked questions
You can use an ohm meter to measure the resistance of your fuel injectors. Disconnect an injector and put the meter's two prongs on each prong of the injector you're testing. If the ohm meter measures infinity, this means there's an open circuit and the coil in the injector is bad.
The exact numbers will vary with the vehicle. However, a range of 10 ohms or over is often cited as the minimum resistance. If the resistance gets down below the teens, you should either get new injectors or have yours reconditioned.
Put the truck in neutral and bring the RPMs to redline for a few seconds and let off. If you have leaking injectors, the pressure will drop over time.
Resistance measurements can only show gross failures of the coil in the injector. A more conclusive test is to measure the inductance and coil "Q" with an impedance bridge.
