Fuel injectors are electronically controlled valves that spray pressurised fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or throttle body. The spray pattern of the fuel injector is critical for clean combustion and good engine performance. The shape and direction of the spray pattern can vary depending on the type of engine and the specific fuel injection system used. Some common types of fuel injection systems include continuous injection, timed injection, and common-rail injection. The fuel injector ensures that the fuel is atomized and mixes with the air in the combustion chamber, resulting in efficient combustion and improved engine performance.
| Characteristics | Values |
|---|---|
| Fuel Injector Spray Pattern | Symmetrical or asymmetrical |
| Fuel Injector Type | Mechanical or electronic |
| Fuel Injection System | Continuous or intermittent |
| Fuel Injection Method | Spray nozzle or fuel pump |
| Fuel Type | Gasoline or diesel |
| Fuel Delivery | Port injection or direct injection |
| Fuel Injector Location | Combustion chamber, inlet manifold, or throttle body |
| Fuel Injector Control | Solenoid or piezo-electric |
| Fuel Pressure | Varies, typically between 20-50 PSI |
| Fuel Injector Cleaning | Ultrasonic cleaning or fuel injection cleaning solution |
Explore related products
What You'll Learn
Injector spray pattern
The spray pattern of a fuel injector is critical for clean combustion and good engine performance. The shape and direction of the spray pattern can vary depending on the type of injector and the specific engine design. Here is an overview of injector spray patterns:
The earliest and most common design, used from the 1970s through the 1980s, is the tapered pintle design. This type of injector has a tapered pintle with a mushroom-shaped tip, causing the spray to diverge as it exits the injector. A plate with a single hole below the pintle creates a very narrow spray pattern.
Another type of injector spray pattern is the two-hole design, which can be used to direct the spray towards the back of a single or double intake valve system. These spray patterns can take the form of a narrow or wide "V" and can be angled differently. Some injectors with this spray pattern may also have a bent spray pattern that does not spray straight down.
A newer style injector features an extended tip that sprays in a "V" pattern bent 25 degrees off-axis. This type of injector is known as a throttle body injector (TBI) and is located where the carburettor used to be. The TBI has to spray fuel in a wider pattern to facilitate better mixing with the air.
In addition to these patterns, there are other factors that can influence the spray pattern of a fuel injector. For example, the fuel injection system must be able to inject a small amount of fuel during the first phase and provide highly atomised fuel during the second phase to promote intensive mixing. Newer fuel injection systems can achieve pressures exceeding 1500 bar, resulting in finer atomisation and more complete penetration of the air in the combustion chamber.

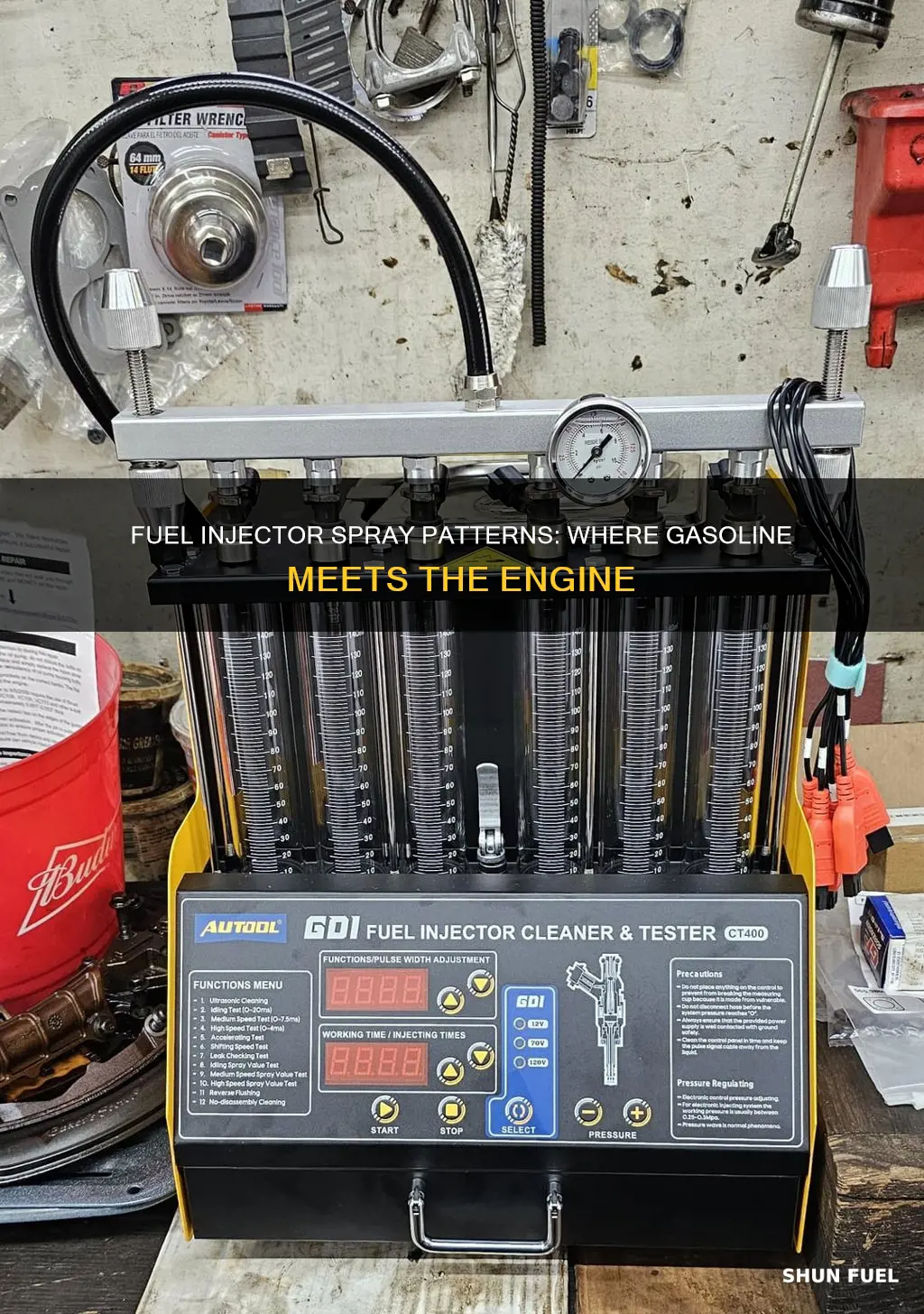

To ensure proper injector performance, it is necessary to test and clean them. The most effective way to do this is to remove the injectors from the engine and conduct bench tests for release pressure, spray pattern, and leakage. A consistent spray pattern and equal release pressures between injectors are desirable.
Clean Fuel Injectors with AC Delco: A Step-by-Step Guide
You may want to see also
Explore related products
Injector cleanliness
Fuel injectors are electronically controlled valves (solenoids) that are supplied with pressurised fuel from the fuel pump. They open and close very quickly (many times a second) to control the amount of fuel delivered. The fuel injector sprays fuel directly at the intake valves and is mounted on a "fuel rail" which supplies a precise fuel pressure to each injector.
A dirty injector can distort or deflect the spray pattern, causing a lean spot in the combustion chamber that can lead to misfire, pre-ignition, or detonation. It doesn't take much restriction in an injector to affect the fuel mixture. Therefore, it is important to keep fuel injectors clean and free from varnish deposits.
There are various methods for cleaning fuel injectors. Some places offer fuel injection cleaning by running a solution through the intake system, but this may not effectively clean the injector nozzle. Another method is to use a detergent-rich gasoline that can prevent deposits from sticking and accumulating in the injectors. However, not all gasoline brands contain the same level of detergent, so it is important to choose a brand with sufficient detergent properties.
In addition to regular cleaning, maintaining the fuel injection system is crucial. Modern fuel injection systems use unit injectors that can achieve pressures above 1500 bar, twice as high as previous injection pressures. These high-pressure systems improve fuel efficiency and are commonly used in heavy-duty truck engines. The unit injector system also eliminates the need for high-pressure fuel pipes and their associated failures, allowing for more accurate injection timing and control.
Clogged Fuel Injectors: Gasoline Contaminants and Their Effects
You may want to see also
Explore related products
Injector types
There are four main types of fuel injection systems: single-point injection, multi-point injection, sequential injection, and direct injection. Single-point injection, also known as throttle body injection (TBI), is the oldest and simplest form, replacing the carburettor with one or two fuel-injector nozzles in the throttle body. This type of injection is less precise than other systems but is less expensive and easier to service.
Multi-point fuel injection (MPFI), on the other hand, dedicates a separate injector nozzle to each cylinder, positioned right outside its intake port. This ensures that the fuel is almost entirely drawn into the cylinder, resulting in more precise metering of fuel and improved air-fuel ratio. MPFI systems can further be classified into two types: those that employ a solenoid and those that use a PZO or piezo-electric type of injector control.
Sequential fuel injection, also known as sequential port fuel injection (SPFI) or timed injection, is a variation of multiport injection. While basic MPFI systems spray fuel simultaneously or in groups, sequential injection triggers each injector nozzle independently, improving efficiency and emissions.
Direct injection takes the fuel injection concept a step further by injecting fuel directly into the combustion chambers, bypassing the valves. This type of injection is more common in diesel engines but is also found in gasoline engines, where it is known as GDI (gasoline direct injection) or DIG (direct-injection gasoline). Direct injection produces maximum fuel economy and is relatively more powerful, making it advantageous for better CNG fuel efficiency.
Understanding MFI Fuel Injectors: How Do They Work?
You may want to see also
Explore related products
Injection systems
There are two main types of injection systems: mechanical and electronic. Mechanical injection systems were the earliest form, using a mechanical regulator assembly to control fuel flow. They are characterised by a spring-loaded injector that is opened by fuel pressure. While these systems are mechanically complex, they are still found in some older vehicles. On the other hand, electronic injection systems, which have been in use since the 1980s, offer more precise control over metering and ignition timing. In these systems, the injector is held closed by a spring and opened by an electromagnet, with the duration of opening determined by an electronic control unit.
Fuel injectors themselves can vary in design, with some featuring a solenoid-operated needle valve, while others utilise a piezo-electric mechanism. The injector spray pattern is critical for optimal performance, with each cylinder requiring a precise fuel pressure and spray direction. A distorted spray pattern due to varnish deposits from gasoline can lead to combustion issues and engine misfires.
Modern advancements, such as the quiescent chamber design, have improved fuel efficiency by injecting fuel at extremely high pressures, promoting a fine atomisation of fuel and complete air penetration in the combustion chamber. This technology has been widely adopted in heavy-duty truck engines. Overall, injection systems play a vital role in engine performance, fuel efficiency, and emissions reduction, with ongoing innovations driving improvements in these areas.
Fuel Injector Cleaner: Where and How to Use It
You may want to see also
Explore related products
Injection timing
The timing of fuel injection plays a crucial role in determining when combustion occurs within the engine's cycle. By adjusting the injection timing, engineers can control the power output, fuel efficiency, and emissions of the engine. The injection timing is influenced by various factors, including engine speed, load, and temperature. It also depends on the type of engine and its specific design characteristics.
One common method of adjusting injection timing is by manipulating the fuel injection pump. This can be done by simply rotating the pump, which changes the timing of the fuel injection events. Another approach is to replace the camshaft with one that has differently shaped and sized lobes, which can alter the timing of valve openings and injector activations. These adjustments can help optimize the engine's performance, improve fuel efficiency, and reduce emissions.
It is important to note that injection timing is closely related to valve timing. The valves control the intake of air and the exhaust of combustion gases, and their timing must be coordinated with the injection timing to ensure proper engine operation. Advanced injection timing, where the fuel is injected earlier in the engine cycle, can increase power output but may also lead to higher emissions. On the other hand, retarding the injection timing by delaying fuel injection can reduce engine knocking and improve fuel efficiency.
Modern engines use electronic fuel injection systems that provide precise control over injection timing. These systems can adjust the timing based on various sensor inputs, such as engine speed, load, and temperature, to optimize performance and fuel efficiency in real time. The use of multiple injections within a cycle is also common with current technology, allowing for more accurate control of the air-fuel mixture and improved combustion.
Fuel Injector Change: When and Why for Your F-150
You may want to see also
Frequently asked questions
A fuel injector is a device that sprays pressurised fuel into the engine.
A fuel injector is an electronically controlled valve (solenoid) that is supplied with pressurised fuel from the fuel pump. It opens and closes very quickly (many times a second) to control the amount of fuel delivered.
The fuel injector sprays gasoline into the inlet manifold or the inlet port. The gasoline is sprayed with the help of a nozzle that is opened and closed with a solenoid-operated needle valve.
The fuel injector plays a critical role in achieving clean and efficient combustion. It ensures that the fuel comes out as a fine mist, mixing with the air passing through the inlet manifold or port. This fuel-air mixture then enters the combustion chamber.
Over time, fuel injectors can become dirty due to varnish deposits left by the evaporation of residual fuel. This can distort the spray pattern, leading to issues such as misfires or pre-ignition. Cleaning your fuel injectors and maintaining them in good condition is essential for optimal engine performance.
