If you're looking to remove the fuel injectors from your 2003 Chevy Malibu, you've come to the right place. This process can be tricky, and it's important to take precautions to prevent dirt and other contaminants from entering the fuel passages when servicing the fuel rail assembly. It's also crucial to relieve fuel system pressure and disconnect the engine fuel feed and return pipes at the fuel rail. Additionally, make sure the engine is cool and the battery is disconnected before beginning any work.
While we can't provide a full step-by-step guide, we can offer some general tips and precautions to keep in mind.

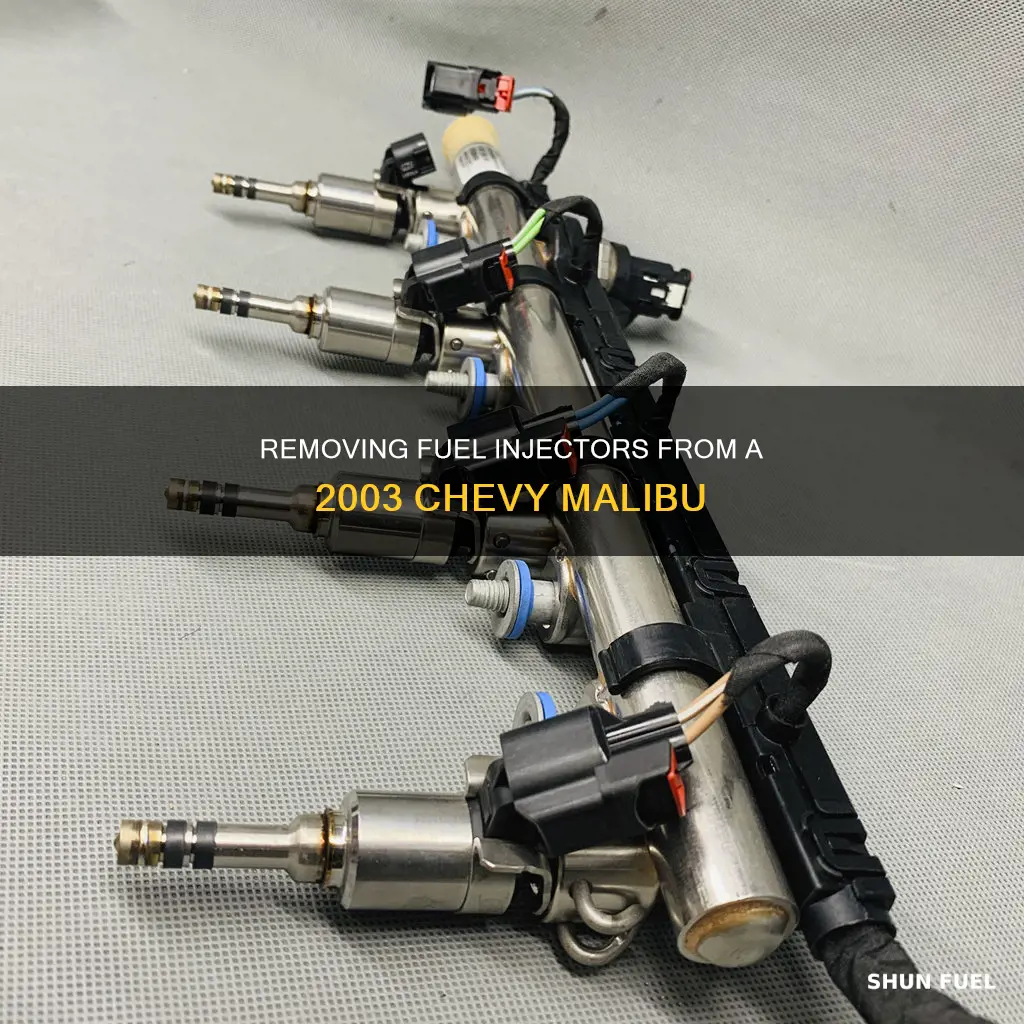

How to remove fuel injectors from a 2003 Chevy Malibu V6
| Characteristics | Values |
|---|---|
| Fuel injector removal procedure | 1. Relieve fuel system pressure. 2. Remove the upper intake manifold. 3. Remove the fuel rail. 4. Remove the fuel injector retaining clips. 5. Remove the fuel injectors. 6. Remove the fuel injector Upper O-ring. |
| Fuel rail removal | Push the black plastic clip inward and pull the fuel line away from the fuel rail. |
| Fuel injector O-rings | If the upper and lower O-rings are different colors (black and brown), install the black O-ring in the upper position and the brown O-ring in the lower position. |
Explore related products
What You'll Learn
Remove the upper intake manifold
To remove the upper intake manifold of a 2003 Chevy Malibu, you must first relieve the fuel system pressure. This is important to prevent damage to the fuel injector electrical connector pins or the fuel injector nozzles.
Next, remove the upper intake manifold. Then, remove the fuel rail. Be sure to carefully depressurize the fuel system according to the service manual instructions. This usually involves a Schrader valve on the fuel rail.
After this, disconnect the electrical connectors for each injector. Unbolt the fuel rail and carefully lift it off the engine.
Fuel Injectors in Corolla: 2004 Model's Engine Secrets
You may want to see also
Explore related products
Disconnect the engine fuel feed pipe
To disconnect the engine fuel feed pipe, you must first relieve the fuel system pressure. This is a critical step to prevent the risk of fire and personal injury from a fuel leak. Refer to the Fuel Pressure Relief Procedure.
Next, remove the upper intake manifold. You will then need to disconnect the engine fuel feed pipe at the fuel rail. This is a simple process, but it must be done carefully. Push the black plastic clip inward and pull the fuel line away from the fuel rail, and it should pop right out. If it is not a quick disconnect, then the fuel line may screw into the fuel rail.
Now, disconnect the engine fuel return pipe at the fuel pressure regulator. Remove the fuel feed pipe and fuel return pipe O-rings and discard. Ensure that you install the new O-rings on the fuel feed pipe and fuel return pipe. It is important to install the fuel injector O-rings in the proper position to avoid leaks. If the upper and lower O-rings are different colours (black and brown), be sure to install the black O-ring in the upper position and the brown O-ring in the lower position. The O-rings are the same size but are made of different materials.
Finally, connect the fuel feed pipe at the fuel rail and tighten the nut to 17 N·m (13 lb-ft).
Honda Accord Fuel Injectors: Standard Feature or Optional Extra?
You may want to see also
Explore related products
Remove the fuel rail
To remove the fuel rail of a 2003 Chevy Malibu, follow these steps:
First, ensure the engine is cool and the battery is disconnected. Remove the intake manifold and any components that may obstruct access to the fuel rail. This includes the fuel injectors, which should be carefully removed to prevent damage to the electrical connector pins or nozzles. Do not immerse the fuel injectors in any type of cleaning fluid, as they are electrical components and may be damaged.
Next, depressurize the fuel system according to the service manual instructions. This usually involves a Schrader valve on the fuel rail. Disconnect the engine fuel feed pipe at the fuel rail, and then disconnect the engine fuel return pipe at the fuel pressure regulator.
Now, remove the fuel feed pipe and fuel return pipe O-rings and discard them. Be sure to cap the fittings and plug the holes during servicing to prevent dirt and other contaminants from entering the fuel passages.
At this point, you should be able to carefully lift the fuel rail off the engine. Be cautious, as the fuel rail may still be holding some pressure. It is recommended to relieve fuel system pressure before removing the fuel rail to reduce the risk of fire and personal injury from any potential fuel leaks.
Mini Cooper Fuel System: Carburetors or Fuel Injectors?
You may want to see also
Explore related products
Disconnect the electrical connectors for each injector
To disconnect the electrical connectors for each injector of a 2003 Chevy Malibu, follow these steps:
First, ensure that the engine is cool and that the battery is disconnected. This is an essential safety precaution. Next, remove the intake manifold and any components that may obstruct access to the fuel rail. This will give you the necessary access to the fuel injectors.
Now, carefully depressurize the fuel system. This is a delicate step, and you should refer to your service manual for specific instructions. Typically, this involves using a Schrader valve on the fuel rail. Once the fuel system is depressurized, you can proceed to disconnect the electrical connectors for each injector.
It is important to note that the fuel injector is an electrical component, and it may be damaged by certain cleaning methods. Do not immerse the fuel injector in any type of cleaner. Additionally, always install the fuel injector O-rings in the proper position to reduce the risk of fire and personal injury from a potential fuel leak. If the upper and lower O-rings are different colors, such as black and brown, install the black O-ring in the upper position and the brown O-ring in the lower position.
Fuel Injection Pumps and Injectors: Are They Interchangeable?
You may want to see also
Explore related products
Use an injector removal tool to unseat each injector
To remove the fuel injectors from a 2003 Chevy Malibu, you will need to use an injector removal tool to unseat each injector carefully. This process is part of the larger task of removing the fuel injectors and the fuel injector assembly.
Firstly, it is important to relieve the fuel system pressure. Refer to the Fuel Pressure Relief Procedure for your specific vehicle. Next, remove the upper intake manifold. After that, remove the fuel rail by carefully lifting it off the engine. Then, disconnect the electrical connectors for each injector.
Now, you will use the injector removal tool to unseat each injector. This tool will help you carefully remove the injectors from the intake manifold without causing any damage to the surrounding components. Ensure that you are using the correct type of injector removal tool; the service manual for your vehicle may specify the exact type required.
By using the injector removal tool, you can efficiently and safely unseat each injector, preventing any damage to the fuel injector electrical connector pins or the fuel injector nozzles. It is important to exercise caution throughout this process to avoid any potential issues.
Modding Diesel Fuel Injectors: Is It Possible?
You may want to see also
Frequently asked questions
Here is a step-by-step procedure to remove the fuel injectors from a 2003 Chevy Malibu:
- Make sure the engine is cool, the battery is disconnected, and you are wearing proper protection like gloves and eyewear.
- Remove the upper intake manifold.
- Relieve fuel system pressure.
- Disconnect the engine fuel feed pipe at the fuel rail.
- Disconnect the engine fuel return pipe at the fuel pressure regulator.
- Remove the fuel feed pipe and fuel return pipe O-rings and discard.
- Remove the fuel rail retaining bolts.
- Remove the fuel rail assembly.
- Remove the injector O-ring seal from the spray tip end of each injector.
Yes, you need to remove the fuel injectors to remove the fuel rail.
To disconnect the fuel injectors, follow these steps:
- Disconnect the main injector harness electrical connector.
- Disconnect the connectors from the fuel injectors.
- Pull up the lock release of the fuel injector connector.
- Depress the lock tab and lift the connector from the injector.
It is important to take the following precautions when removing the fuel injectors to reduce the risk of fire and personal injury:
- Always install the fuel injector O-rings in the proper position.
- Take precautions to prevent dirt and other contaminants from entering the fuel passages when servicing the fuel rail assembly. Cap the fittings and plug the holes during servicing.
- Do not immerse the fuel injector in any type of cleaner as it is an electrical component and may be damaged.
The torque specification for the fuel feed pipe nut is 17 N·m (13 lb ft).
