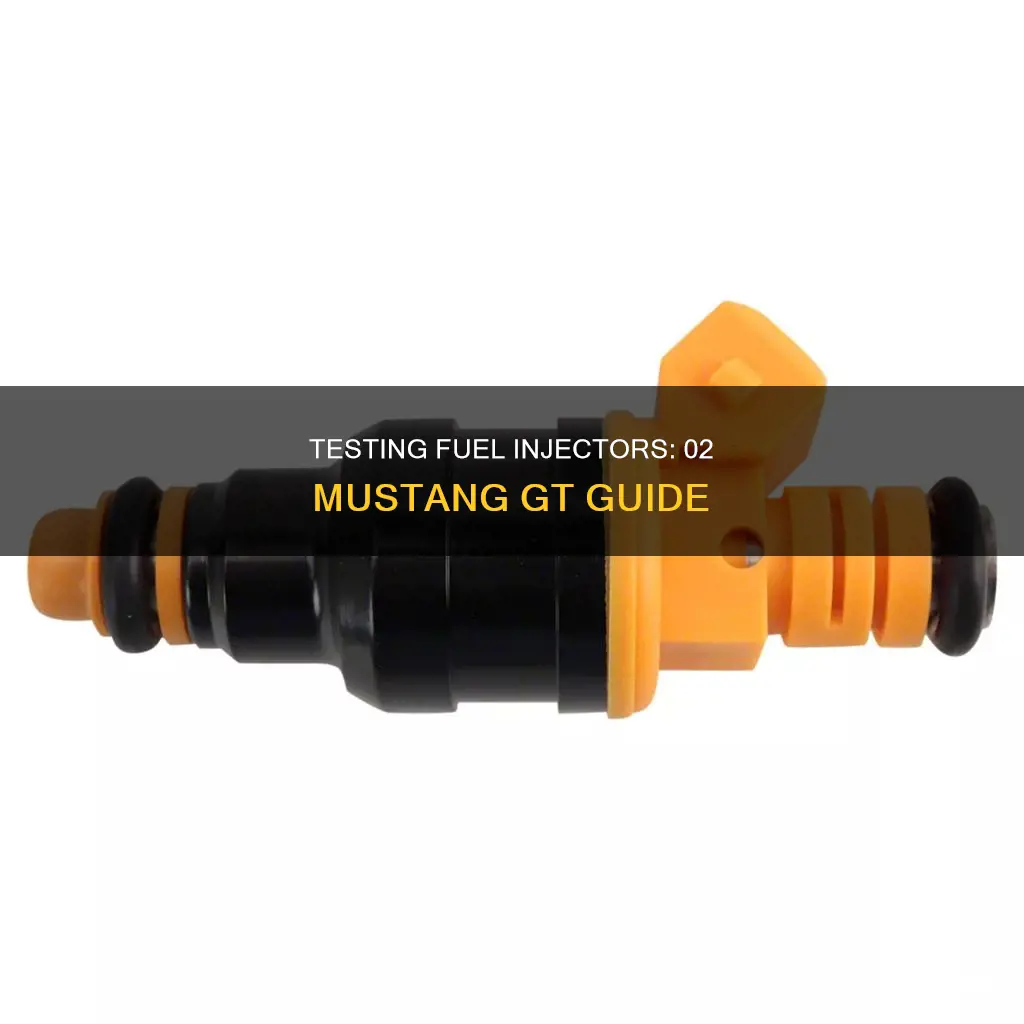

If you're experiencing issues with your 2002 Mustang GT, it could be due to a problem with the fuel injectors. Fuel injectors can cause a range of issues, from a simple clog to a complete failure, which can result in an imbalance in your engine. To test the fuel injectors, you can use a multimeter or a noid light to check for issues such as a short to ground or a failing PIP sensor. Additionally, a cylinder balance test can help identify any weak cylinders that are not putting out power as they should. It's important to record your findings and seek professional service if needed to ensure your Mustang's fuel injectors are functioning properly.
| Characteristics | Values |
|---|---|
| Engine type | 4.6-liter V8 engine |
| Fuel injector issues | Clogged or failed |
| Testing tools | Multimeter, noid light, cylinder balance test, soapy water, paper clip, jumper wire |
| Symptoms | Check engine light on, strange sounds, funny idling, pressure leak, low fuel pressure, gas in oil |
| Possible causes | Leaky fuel injector, fuel line connector, fuel line, check valve, weak cylinder |
| Fuel injector replacement | Available as OEM and aftermarket parts |
Explore related products
What You'll Learn
Using a multimeter to test for clogging or winding failure
To test for clogging or winding failure using a multimeter, start by opening the hood of your car and locating the fuel injectors. They are usually located on the intake manifold and are connected to one another with a fuel rail.
Once you've found the fuel injectors, turn off the vehicle and disconnect the electrical connector for the first fuel injector. Now, use the multimeter to take a resistance reading. Check your vehicle's service manual or look online to find the correct value—most fuel injectors should read between 10 and 18 ohms.
Reconnect the injector and repeat this process for each of the remaining injectors, ensuring that all readings are within the range specified by the manufacturer and consistent across all injectors. If any resistance readings are off, it indicates a faulty injector that needs to be repaired or replaced.
Testing Fuel Injectors: 2008 Impala Maintenance Guide
You may want to see also
Explore related products
Using a noid light to test for wiring issues
Using a noid light is a good way to test for wiring issues. You can get a noid light from your local auto parts store. It's a good idea to undo the coil wire to prevent the car from starting up. You will need to undo each injector at its plug-in point to the harness as the light fits into the plug end of the harness. It is best to do this test in a dark area to see the light better. The noid light test doesn't actually test the injector, but it does test the wiring to the injector. The noid light detects if the computer is sending a signal to that injector. If your car isn't misfiring, this test might not be worth your time.
The noid light checks for constant 12 volts to the injectors and that the computer is pulsing the ground pathways. If the light stays on constantly, either the wiring has a short to ground or the computer has failed. You can also use an old injector with compressed air applied to the injector where the fuel rail would normally connect. Hook the whole thing up, apply compressed air to the injector and stick it in a paper cup of soapy water. When the engine cranks with the ignition switch on, if the injector fires, it will make bubbles. An injector that is stuck open will release a constant stream of bubbles.
The noid light can also be used to test the PIP sensor. The PIP sensor supplies the timing pulse to trigger the TFI and injectors. A failing PIP sensor will sometimes let the engine start if the SPOUT is removed. The noid light will flash when the engine is cranking if the PIP is working.
You can also use a small bulb to make a noid light.
Ford Fuel Injectors: Identifying the Right One for Your Car
You may want to see also
Explore related products
![[2-Pack] Reusable Ethanol Testing Kit - Wide Mouth Fuel Test Bottle for E85 and Ethanol Levels - Fewer Spills and Clear Results in Minutes - Test Hundreds of Times - Two Ethanol Test Bottles Included](https://m.media-amazon.com/images/I/71sU-J0V11L._AC_UL320_.jpg)
Testing the TFI module with a test light
To test the TFI module with a test light, you must first identify the wires that lead to the coil. The next step is to place the leads of the test light on specific wires. One source states that one lead should be placed on the red/green wire on the ignition coil connector, while the other lead should be placed on the dark green/yellow wire on the ignition coil connector. Another source suggests inserting the positive lead of the test light into the passenger side of the ignition coil connector.
Once the leads are in place, turn the key to the start position and observe the test light. If the test light blinks on and off, this indicates that the ignition coil is receiving the switching signal. A constant light, on the other hand, suggests a faulty ignition coil, TFI (ICM), or PIP sensor.
It is also possible to test the TFI module by cranking the engine and observing whether the test light pulses. If the light pulses, the TFI is functioning properly, and the coil should be firing. However, if there is no spark, this may indicate a faulty coil.
Additionally, the PIP signal can be checked by measuring the voltage from the PIP signal using a voltmeter or a test bulb. The voltage should be between 3 to 6 volts, and a blinking light indicates a functioning PIP signal.
Flushing Fuel Injectors: DIY Guide for Optimal Engine Performance
You may want to see also
Explore related products
Checking for leaks at the injectors
Before beginning, it is important to warm up the car's engine to its normal operating temperature. This will ensure that any fuel in the system is at its typical operating pressure and temperature, providing a more accurate assessment of any leaks.
Firstly, locate the injectors. On a 2002 Mustang GT, they are typically found near the engine. Once located, carefully inspect each injector for any signs of fuel leakage. Look for wet spots, drips, or puddles of fuel that may have accumulated. If you notice any fuel traces, it indicates a leak that needs to be addressed.
Next, examine the rubber O-rings at the top and bottom of each injector. These O-rings are crucial for sealing the injectors and preventing fuel leakage. Over time, these O-rings can become damaged, brittle, or worn out, leading to leaks. Replace any damaged O-rings with new ones to ensure a proper seal.
Additionally, pay close attention to the fuel lines connected to the injectors. Ensure that the connections are secure and tight, as loose connections can lead to fuel leaks. Inspect the fuel lines themselves for any cracks, punctures, or signs of deterioration that could result in leaks.
In some cases, leaks may not be immediately visible. To detect such leaks, consider using a Noid light, available at most auto parts stores. Connect the Noid light to the injector wiring and observe if it stays constantly illuminated. If it does, it could indicate a short in the wiring or a potential leak in the fuel system that warrants further investigation.
Finally, if you suspect a leak within the fuel tank, you may need to remove the tank for a more thorough inspection. This step is more involved and may require professional assistance. However, as mentioned earlier, leaks inside the tank can cause significant issues and should not be ignored.
Remember to refer to your Mustang's service manual for specific details pertaining to your vehicle's fuel system, and always exercise caution when working with fuel system components.
Fuel Injector Faults: Signs Your Car Needs Attention
You may want to see also
Explore related products
Performing a cylinder balance test
To perform a cylinder balance test on a 2002 Mustang GT, follow these steps:
Firstly, warm up the car's engine to its normal operating temperature. Then, with the engine and key off, use a jumper wire or paper clip to put the computer into test mode. Start the engine and let it go through its normal diagnostic tests, then quickly press the throttle to the floor. The engine RPM should briefly exceed 2500 RPM. The engine will then shut off power to each injector, one at a time, cycling through all eight injectors. It will then flash a number, either 99 or the number of the failing cylinder, such as 22 for cylinder #2.
Quickly press the throttle again to rerun the test, and if the same cylinder number shows up, that cylinder is weak and isn't performing as it should. You can rerun the test a third time to confirm. This test works on EEC-IV SD set-ups, which are found in Mustang models from 1989 to 1992, and possibly in 1992 F-150 pickups with 302's.
There are other ways to test fuel injectors, such as using a Noid light, a multimeter, or compressed air. These tests can help determine if the injectors are stuck open, clogged, or have failed.
Cleaning TBI Fuel Injectors: A Step-by-Step Guide
You may want to see also
Frequently asked questions
If your 02 Mustang GT is not running properly, it could be due to a faulty fuel injector. Some signs to look out for include a triggered check engine light, strange sounds, or a funny idle.
You can test the fuel injectors in your 02 Mustang GT by using a multimeter or a noid light. First, make sure the engine is warmed up to normal operating temperature. Then, with the engine and key off, use a jumper wire or paper clip to put the computer into test mode. Start the engine and let it run through its diagnostics, then quickly press the throttle to the floor. The engine RPM should briefly exceed 2500 RPM. The engine will then shut off power to each injector, one by one. If a cylinder is weak, it will show up repeatedly in the test results.
Some common issues with fuel injectors in the 02 Mustang GT include clogging, leaking, and complete failure. Leaks can occur in the rubber o-rings at the top/bottom of the injector or inside the combustion chamber.
If your fuel injector is faulty, you will need to take it in for service to get it cleaned and balanced properly. If the injector cannot be repaired, you will need to purchase a replacement fuel injector.
