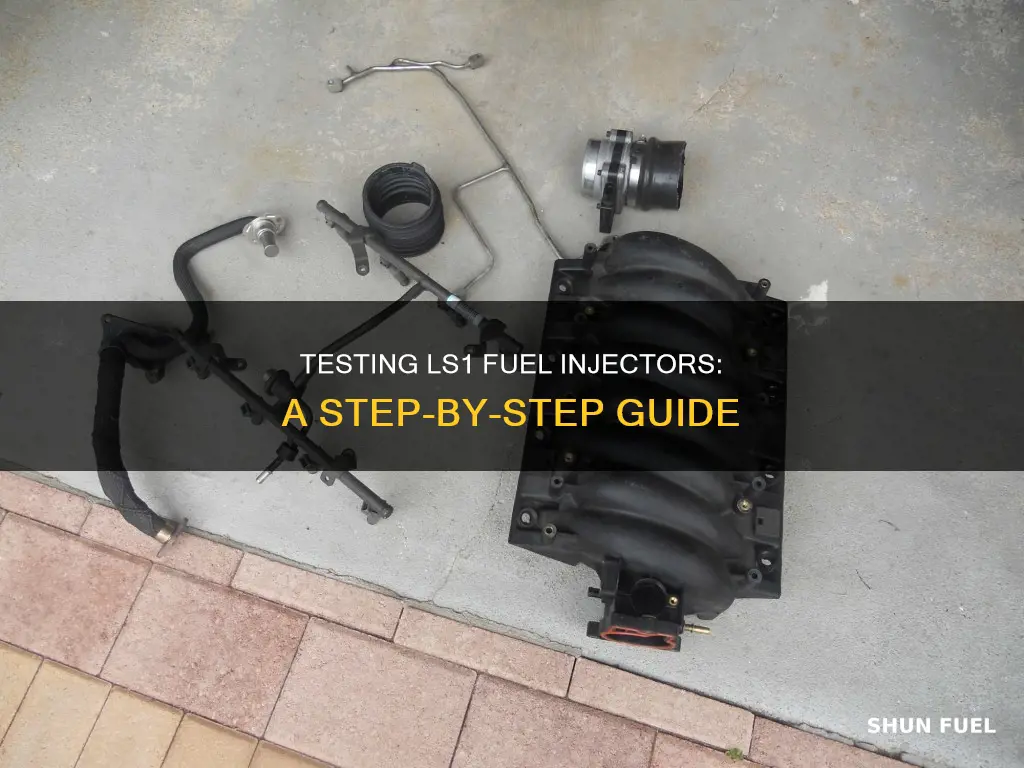

The LS1 fuel injector was designed for the 5.7L engine and is considered the standard fuel injector for this family of engines. It has a longer length compared to other fuel injector types due to the larger size of the LS1 engine. Testing your LS1 fuel injectors can be done by locating the injectors, using a metal rod to listen for clicking sounds, checking for leaks, and measuring fuel pressure. If you find an issue with your fuel injectors, there are various sets of LS1 fuel injectors available with different flow rates to choose from.
| Characteristics | Values |
|---|---|
| Engine type | 5.7L |
| Production year | 1997-2004 |
| Flow rate | 255 liters per hour |
| Fuel pressure | 43.5 psi |
| Fuel injector size | Smaller than LS2 and LS3 |
| Fuel injector length | Longer than LS2 and LS3 |
| Spray pattern | Narrower than LS2 and LS3 |
| Connector type | Single-hole O-ring style |
| Testing method | Using a metal rod or screwdriver to listen for clicking sound |
| Common issues | Low pressure, clogged, or non-functioning |
Explore related products
What You'll Learn
Locating the fuel injectors
The fuel injectors are connected to the fuel rail, so you can start by locating the fuel rail and then tracing the lines to find the injectors. The fuel rail is connected to the LS1 fuel line with a quick-connect fitting. You can use a tool to remove this connection. Once you have disconnected the fuel rail, you will need to clean up any fuel leakage promptly and refrain from smoking.
The next step is to unplug the injectors and undo the fuel connector. To do this, you will need to remove the throttle position sensor (TPS), air intake temperature (AIT) sensor, and manifold absolute pressure (MAP) sensor. Disconnect the throttle cables or drive by wire, and unplug the TPS, AIT, and MAP sensors. You should also disconnect the brake booster vacuum hose and set it aside.
Now, you can focus on the fuel injectors themselves. Undo each fuel injector by unplugging the fuel injector harnesses. At this point, you will have successfully located and accessed the fuel injectors, and you can proceed with testing or installing new injectors as needed.
Cleaning Fuel Injectors in a Chrysler 300: Step-by-Step Guide
You may want to see also
Explore related products
Using a screwdriver to listen for clicking
To test LS1 fuel injectors using a screwdriver, you will need a screwdriver that is at least a foot long but not more than two feet. It should be made mostly of metal, but you could opt to use one with a plastic or rubber handle.
Firstly, start the engine and allow your car to idle. Then, place the tip of the screwdriver against one of the fuel injectors. You will be using the screwdriver to transmit sound from the fuel injector to your ear without bringing your face too close to the engine.
Lean your ear close to the end of the screwdriver that is opposite the injector. As the engine runs, listen for an audible clicking sound. This sound indicates that the injector is being activated and is functioning correctly. If you don't hear a clicking sound, the injector may need to be cleaned or replaced.
Repeat this process for each injector, making a note of any that are quiet. Be extremely careful when leaning into the engine bay, and ensure you keep your eyes open to prevent any accidents. If you have long hair, tie it back to prevent it from getting caught in any moving parts.
In addition to this screwdriver test, you can also use a test light to check for power. A test light looks like a screwdriver with a finely pointed end and a wire hanging out of the handle. Connect the alligator clip at the end of the wire to the negative terminal on the battery, which can be identified by the negative symbol (-) or the letters NEG. Then, locate the two wires going into each injector. One of these wires should be a 12-volt constant that is continuously receiving power.
Fuel Injector Vacuum Leaks: What You Need to Know
You may want to see also
Explore related products
Checking for leaking injectors
Locate the Fuel Injectors:
Start by opening the hood of your vehicle and finding the fuel injectors. Refer to your vehicle's service manual for the exact location. Typically, there is one fuel injector for each cylinder, usually located on the intake manifold and connected by a fuel rail.
Prepare the Necessary Tools:
You will need a long metal rod or a screwdriver. Ensure that the metal rod is at least a foot long. It should be primarily made of metal, but you can also use a screwdriver with a plastic or rubber handle.
Listen for Clicking Sounds:
Place one end of the metal rod or screwdriver on a fuel injector while holding it at an appropriate angle. Bring your ear close to the opposite end of the rod and listen for an audible clicking sound as the engine runs. This clicking indicates that the injector is being activated and is functioning correctly.
Repeat the Process for Each Injector:
Perform the same procedure for each fuel injector in your vehicle. If you come across an injector that is not clicking, it could be due to an issue with the injector itself or the electronic control transmitting to the injector.
Check for Leaking Injectors:
Unbolt the fuel rail and carefully remove it, along with the injectors, from the intake manifold. This will expose the business end of the injectors. Perform a key-on prime test and observe if any of the injectors are leaking fuel. If no leaks are apparent initially, continue checking every 10 minutes for about an hour to ensure accuracy.
Monitor Fuel Pressure:
While checking for leaks, it is essential to have a fuel pressure gauge attached to the Schrader valve. This will help you understand how quickly the pressure is dropping. If there are no leaks, reattach the fuel rail and perform another key-on prime test with the pressure gauge still attached. Ensure that the fuel pressure is within the normal range, typically around 43 psi at prime for LS1 injectors.
Additional Testing:
If the pressure is low, cycle the key off and on, then prime again. Repeat this process several times to see if the pressure rises to the normal range. Finally, start the engine and let it idle. The fuel pressure should remain stable at around 43 psi.
Remember to consult a professional mechanic if you are unsure about any of these steps or if you suspect a more serious issue with your fuel injectors or engine.
Fuel Injectors: 2000 Chevrolet Malibu LS Specifications and Maintenance
You may want to see also
Explore related products
Differences between LS fuel injectors
Despite LS injectors being relatively easy to swap between different engine types and connectors, they are not all the same. LS injectors vary in size, design, and fuel type compatibility.
The original LS1 fuel injector was designed for the 5.7L engine and is often considered the standard fuel injector for this family of engines. It has a flow rate of approximately 255 liters per hour, which is perfect for most street applications. LS1 engines were made from 1997-2004. LS1 fuel injectors are much smaller than LS2 or LS3 fuel injectors because the LS1 engine is a smaller engine and doesn't require as much fuel. LS1 fuel injectors have a longer length compared to other fuel injector types because LS1 engines are larger, making it necessary for the fuel injectors to be longer to reach all the engine's cylinders.
The LS2 fuel injector is a high-flow fuel injector designed for the 6.0L engine. It has a flow rate of approximately 315 liters per hour, making it a great choice for those who want more power and performance from their engine. LS2 engines were made from 2005-2007. LS2 fuel injectors are shorter, as they are designed for smaller LS2 engines.
The LS3 fuel injector is the largest fuel injector in the LS family. It was designed for the 6.2L engine and has a flow rate of approximately 375 liters per hour, making it the perfect choice for those who want the most power and performance from their LS engine. The LS3 engines were first introduced in 2008 and are known for their high-performance capabilities. The shortest fuel injectors are the LS3 fuel injectors, which are designed for the compact LS3 engine.
Another difference between the fuel injectors is the spray pattern. LS1 fuel injectors have a narrower spray pattern than LS2 or LS3 fuel injectors because the LS1 engine has smaller cylinders. The fuel injectors need to provide a more focused spray of fuel to efficiently fuel the engine. The other major difference is the fuel pressure. LS1 fuel injectors operate at a lower fuel pressure than LS2 or LS3 fuel injectors because the LS1 engine doesn't produce as much power and doesn't require as much fuel pressure to operate efficiently.
Testing Fuel Injectors: 2004 Civic Maintenance Guide
You may want to see also
Explore related products
Using a multimeter to test for power
To test LS1 fuel injectors using a multimeter, you will need to first open the hood and locate the fuel injectors. Most vehicles have one fuel injector for each cylinder, usually located on the intake manifold and connected by a fuel rail.
Once you have located the injectors, follow these steps:
- Set up the multimeter: Set the multimeter to measure ohms (resistance). Most injector readings should range between 11 and 14 ohms.
- Turn off the engine: Fuel injectors should be tested cold unless otherwise specified, as temperature variations will change the readings.
- Remove the injector wiring harness: There may be a slide lock that needs to be moved before pressing down on the tabs to remove the wiring harness.
- Connect the multimeter: With the key in the "on" position, gently probe both sides of the injector wiring connector with the multimeter leads.
- Check the voltage: One of the wires should register around 12 volts on the meter. A lower reading indicates excess resistance in the wire.
- Test all injector wiring harnesses: Leave the ground lead in position and test all injector wiring harnesses. They should all read around 12 volts.
- Inspect for leaks and corrosion: Before removing the injector, inspect the injector housing for any leaks and the electrical connectors for corrosion.
- Test the injector valve: With the injector still installed, you can test the valve using a fuel pressure gauge while hot-wiring the fuel pump to stay on. Attach a 12-volt power source (power and ground) to the injector and observe the gauge. If the injector valve is working properly, the gauge should fluctuate as you connect and disconnect the circuit.
- Test the spray pattern: To check the spray pattern, the injector must be removed. Attach a 12-volt power source and observe the pattern. It should be robust. If the pattern is muted, the injector should be replaced.
Fuel Injector Cleaner: Can It Smooth Out Rough Idling?
You may want to see also
Frequently asked questions
The fuel injectors are usually located on the intake manifold and are connected to one another with a fuel rail. Refer to the service manual for your vehicle to locate the fuel injectors.
You can test the fuel injectors by placing the tip of a long metal rod or screwdriver on a fuel injector and bringing your ear close to the rod to listen for clicking. As the engine runs, listen for an audible clicking sound given off by the injector. This sound indicates the injector is being activated.
There are a number of issues that could cause your fuel injectors to fail, such as low pressure, clogging, or leaking. You can check for leaking injectors by unbolting the fuel rail and pulling the rail with injectors out of the intake to see the injectors. Then, do a key-on prime and watch for injectors that are leaking fuel.
LS1 fuel injectors are smaller than LS2 and LS3 fuel injectors as the LS1 engine is smaller and does not require as much fuel. LS1 fuel injectors have a longer length compared to other types as the LS1 engines are larger, and the injectors need to be longer to reach all the engine's cylinders. LS1 fuel injectors also operate at a lower fuel pressure and have a narrower spray pattern than LS2 and LS3 fuel injectors.
