Fuel injectors are an essential component of a vehicle's engine, spraying fuel into the cylinders to be mixed with air and then burned to generate power. If a fuel injector is faulty, it can cause the engine to run poorly or not run at all. While some fuel injector issues require a professional mechanic, others can be identified using simple DIY methods. One such method is to test fuel injectors with a test light, which can be used to check for power and pulse signals from the computer. This process involves locating the two wires connected to each injector and testing them for voltage. If one wire lights up the test light, the injector is receiving the required voltage. However, if neither wire causes the light to turn on, there may be an issue with the power supply to the injector.

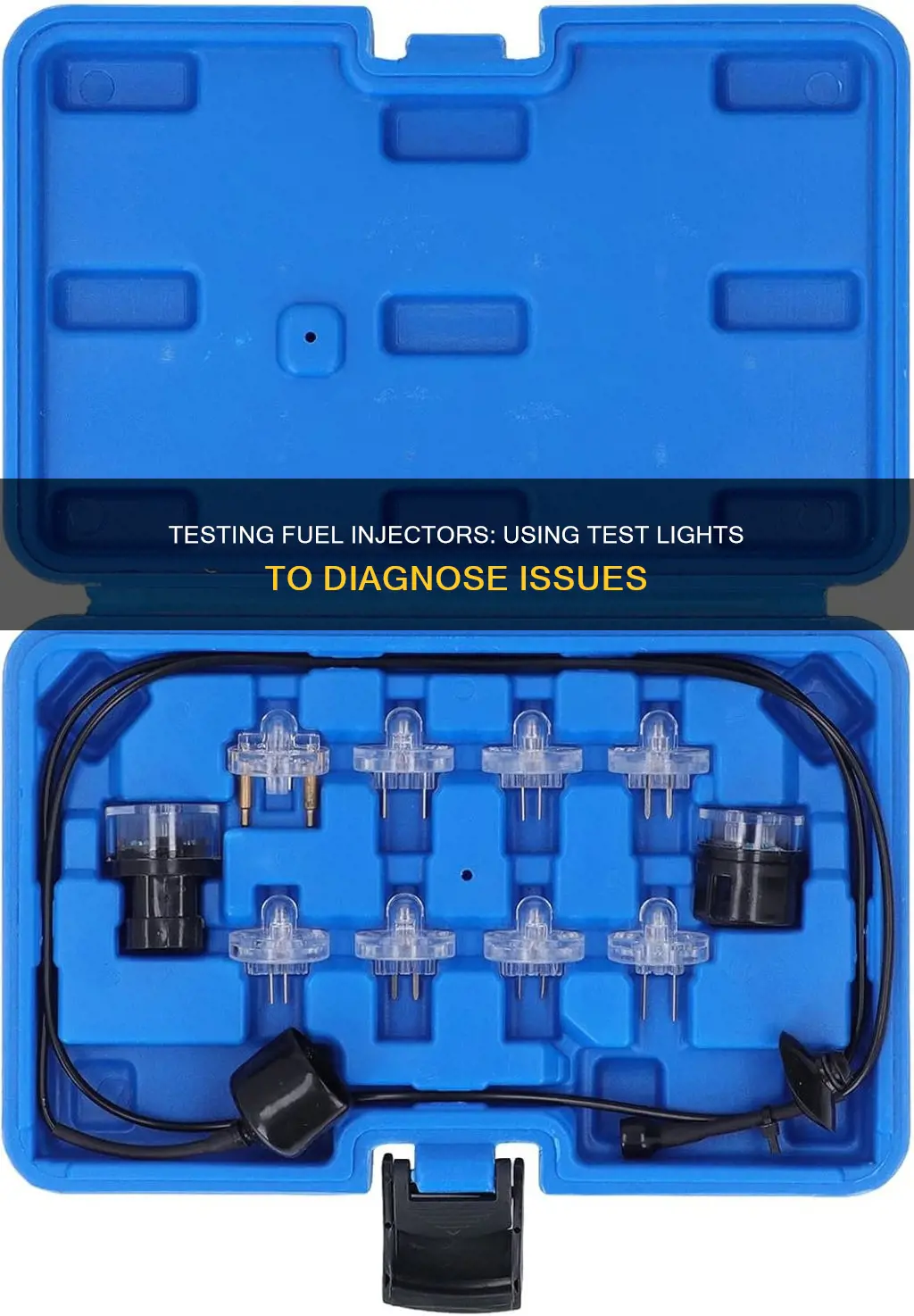

Testing Fuel Injectors with a Test Light
| Characteristics | Values |
|---|---|
| Fuel injector issues | Can be diagnosed by DIY methods with some simple tools |
| Tools | Test light, screwdriver, voltmeter, digital multimeter, fuel pressure gauge |
| Protective gear | Protective gloves and eyewear |
| Fuel injector | Should be tested cold unless otherwise specified |
| Wires | One of the two wires is a 12-volt constant that should be continuously receiving power from the vehicle's electrical system |
| Testing | Use the sharp end of the test light and press it firmly into the rubber coating around each wire until it penetrates the metal wiring |
| Voltage | If the test light turns on with one wire, the injector is receiving the necessary constant voltage |
| Flickering light | With the engine running at an idle, the test light should flicker dimly and as the throttle is applied, the light should flicker more brightly |
| Flow rate | Critical item with injectors; all injectors should have the same flow rate |
| Testing flow rate | Set up a pump with a known pressure, use a pulse tool that is calibrated to pulse the injector at a known rate, then use a measuring device |
| Faulty injector | If the pulsing light dims as you connect one of the injectors, that injector is faulty and needs to be replaced |
Explore related products
What You'll Learn
Test light connection
To test fuel injectors with a test light, you will need to locate the two wires going into each injector. Each fuel injector will have a metal clip plugged into it with two wires coming out of it. These wires are often grey and black but can be any colour. Make sure the clip has a good metal-on-metal connection to make the test light work.
One of the wires is a 12-volt constant that should be continuously receiving power from your vehicle's electrical system. You can test each wire for voltage by pressing the sharp end of the test light firmly into the rubber coating around each wire until it penetrates the metal wiring. If the test light turns on with one wire, the injector is receiving the necessary constant voltage.
You can then use the test light to confirm this on the wire for the last fuel injector clip. Keep the test light connected as you reconnect each fuel injector one by one. The pulse intensity should remain the same. If the pulsing light dims as you connect one of the injectors, that injector is faulty and needs to be replaced.
If the test light is failing to light up, the injector may be bad, or there could be an issue with the electronic control unit for the vehicle. With the engine running at an idle, the test light should flicker dimly, and as the throttle is applied, the light should flicker more brightly. If the test light remains lit, there is a problem in the circuit, or the device driver in the computer may have failed.
Fuel Injector Cleaner: Clogging or Cleaning the Fuel Filter?
You may want to see also
Explore related products
Locating wires
Locating the wires is the first step in testing your fuel injectors with a test light. Each fuel injector will have a metal clip plugged into it, with two wires coming out. These wires are usually grey and black, but they can be any colour. One of these wires is a 12-volt constant that should be continuously receiving power from your vehicle's electrical system.
To locate the wires, start by identifying the fuel injector. The fuel injector is a small, metal device that is usually located near the engine. Once you have located the fuel injector, you should see the metal clip and the two wires coming out of it.
With the engine off, carefully disconnect the wiring clips to each injector. You can then begin to test each wire for voltage. Take the sharp end of the test light and press it firmly into the rubber coating around each wire, penetrating the metal wiring inside. One of the wires should make the test light turn on when it comes into contact with the wire inside the coating.
If neither wire reacts, you may have a faulty fuel injector fuse in the PDC. In this case, you will need a fuel injection wiring diagram to help trace the wire and repair the connection.
It is important to always cover any holes in the wire's protective coating with electric tape once you are done testing. This will help ensure the wires remain protected and insulated.
Cleaning Fuel Injectors: Easy DIY Guide Without Removal
You may want to see also
Explore related products
Testing wires for voltage
Locate the wires: Start by locating the two wires connected to each fuel injector. These wires will be the only ones coming out of each injector and are often grey and black, but they can vary in colour.
Prepare the test light: Ensure the test light is properly connected and functional. A test light is a simple device used to check for the presence of voltage or current. It is an affordable and straightforward tool for this task.
Expose the wire: Each wire should have a small exposed portion coming out of the plastic clip that connects to the injector. Gently penetrate the rubber coating surrounding the wire with the sharp end of the test light until you reach the metal wiring.
Test for voltage: Firmly press the test light into the exposed metal wiring. One of the two wires should illuminate the test light, indicating it is receiving constant voltage. If neither wire lights up, there may be an issue with the power supply to the injector, resulting in a failure to fire.
Repeat the process: It is important to test each injector and both wires for voltage. Even if one injector shows a power issue, continue testing the others as they may have the same problem.
Observe the pattern: While testing, pay attention to the pattern of flickering or flashing of the test light. With the engine idling, the light should flicker dimly, and as the throttle is applied, it should brighten. This indicates the signal transmitted by the ECU to the injector to spray fuel.
By following these steps, you can effectively test the wires for voltage and gain valuable insights into the functioning of your fuel injectors, ensuring they are receiving the necessary power to operate correctly.
V4 Engines and Their Fuel Injector Setup Explored
You may want to see also
Explore related products
Interpreting the test light
Firstly, it's important to understand the role of fuel injectors and the potential issues that can arise. Fuel injectors are responsible for spraying fuel into the engine's cylinders, where it mixes with air and is ignited by the spark plug to generate power. Faulty fuel injectors can lead to engine performance issues, including difficulty in accelerating, a noticeable lag in response, and a decrease in overall engine power.
Now, let's delve into interpreting the test light results:
- If the test light illuminates with one of the wires, it indicates that the injector is receiving the required constant voltage. This means the electrical connection is functioning as intended.
- On the other hand, if neither of the wires causes the test light to turn on, it signifies a power-related issue with the fuel injector. This can result in the injector failing to operate as it is not receiving the necessary voltage.
- When testing multiple injectors, it's important to note that a problem with one injector does not necessarily imply that the others are functioning correctly. It is recommended to test all injectors and make note of any inconsistencies.
- Additionally, pay attention to the colour of the wires that light up. Different-coloured wires may indicate specific constants or issues within the electrical system.
- For further analysis, you can use a voltmeter to check the resistance through the injector. Most injector readings should fall within the range of 11 to 14 ohms. If the resistance reading deviates significantly from the manufacturer's specifications, it could suggest a faulty injector coil, impacting injector performance.
- It is also important to consider the spray pattern of the injector. To check this, remove the injector and attach pressurised air to the inlet. Observe the pattern of the released air and fuel mixture. If the pattern appears weak or muted, it may be an indication that the injector needs to be replaced.
- Lastly, consider using an injector cleaner machine or ultrasonic cleaning to remove any deposits, dirt, or carbon build-up from the injectors. This non-disassembly method can help ensure optimal injector performance and fuel efficiency.
Remember, safety should always be a priority when working with fuel systems. Ensure you take the necessary precautions, including wearing protective gear and creating a safe working environment.
Fuel Injector Cleaners: Are They All the Same?
You may want to see also
Explore related products
Troubleshooting
If you are experiencing issues with your fuel injectors, there are several troubleshooting methods you can try. Firstly, it is important to identify the type of fuel injectors in your vehicle, as there are several types, with EFI (Electronic Fuel Injection) systems being the most widely used today in cars and light trucks. Always refer to your owner's manual for specific information about your vehicle's fuel injectors.
One common issue with fuel injectors is leaks, which can occur when the O-ring seals wear out. To check for leaks, turn on the engine and let it idle for a few minutes. Look and smell for any signs of leaking gasoline under the hood. If you suspect a leak, a diagnostic scanner, also known as an on-board diagnostics (OBD) reader, can help identify the specific faulty fuel injector.
Another way to test fuel injectors is by using a test light or voltmeter. With the key in the "on" position, connect the test light or voltmeter to the negative side of the battery. Probe both sides of the injector wiring connector, and one of the wires should register around 12 volts or illuminate the test light. If neither wire reacts, test the fuel injector fuse in the PDC, and if that is intact, you will need a fuel injection wiring diagram to trace the wire and repair the connection.
To test the spray pattern of the injector, it must be removed. Attach pressurized air to the injector inlet and a 12-volt power source to energize the injector. Observe the spray pattern, which should be robust. If the pattern is weak or muted, the injector should be replaced.
It is also important to consider the flow rate of the injectors, as they all need to have the same or similar flow rate. To test this, you will need a pump with a known pressure, a pulse tool calibrated to pulse the injector, and a measuring device such as a flask. If you observe drips or a poor flow, it indicates an issue with the injector.
If you are unsure or uncomfortable performing these troubleshooting methods, it is recommended to consult a professional mechanic or a service center with an injector test bench for comprehensive testing and diagnostics. Regular testing and maintenance of your fuel injectors can help ensure your vehicle runs smoothly and efficiently.
Fuel Injector Freezing: What You Need to Know
You may want to see also
Frequently asked questions
You can test fuel injectors with a test light by locating the two wires going into each injector. One of these wires should be a 12-volt constant that is continuously receiving power. Test each wire for voltage by pressing the sharp end of the test light into the rubber coating around each wire. If the test light turns on with one wire, the injector is receiving the necessary constant voltage.
If neither wire makes the light turn on, there is an issue with the power reaching the fuel injector, which will result in it failing to fire.
If you locate an injector with a power issue, make a note of which one it is and continue to test the rest. Once you have identified all the faulty injectors, you can purchase replacements at most auto parts stores.
To test for the pulse signal from the computer, attach the test light lead to the positive side of the battery and have a helper start or crank the engine. Probe the opposite side of the injector connector from the power circuit. The test light should flicker, indicating that the injector is receiving a signal from the computer.
If the test light does not flicker, there may be a bad wiring connection or a failed PCM injector driver, which may require a PCM replacement.
