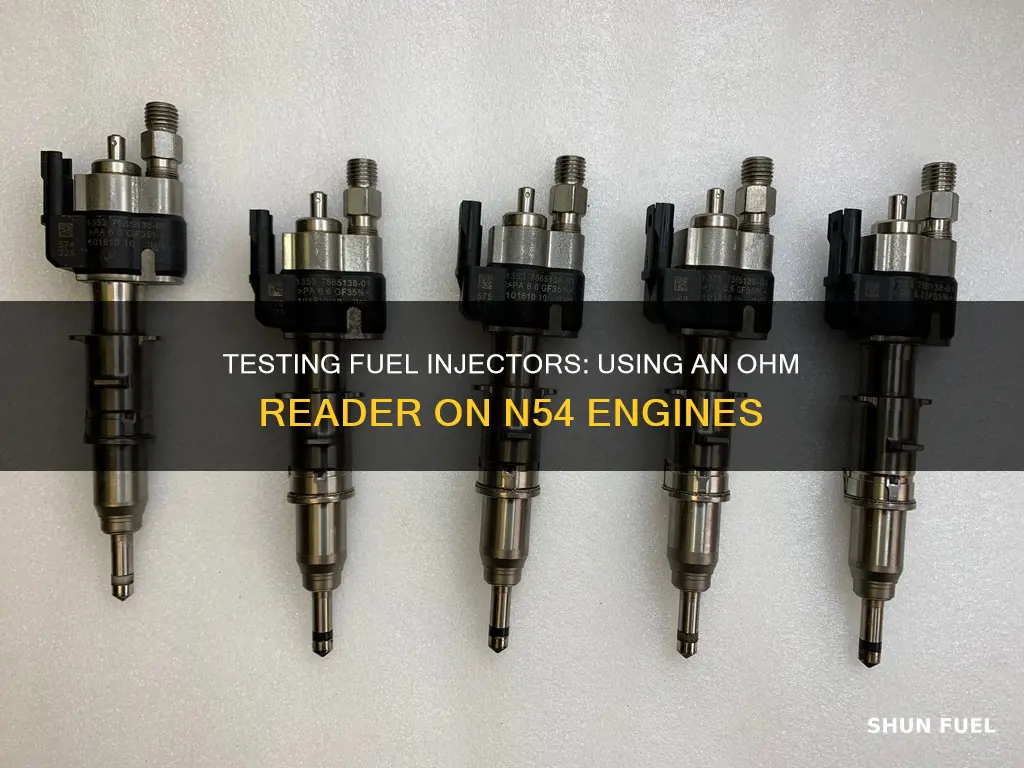

Testing fuel injectors with an ohm reader is a common method to check their functionality. An ohm meter measures resistance and any voltage running through the circuit can damage the meter. A reading of zero ohms usually indicates a faulty injector, whereas a reading of 11-14 ohms is considered normal. However, it is important to note that an ohm test only verifies the electrical capability of the injectors, and other tests, such as cylinder balance tests, may be required to identify issues like leaks or poor flow.
| Characteristics | Values |
|---|---|
| Resistance reading | 11.8-12 ohms |
| No resistance reading | 0 ohms |
| Resistance range | 11-14 ohms |
| Fuel pressure at idle | 47-50 psi |
| Fuel pressure after 10 minutes | 45 psi |
| Fuel pressure after 30 minutes | 38 psi |
| Fuel pressure after 60 minutes | 30 psi |
| Ohm reading | 16.5 ohms |
| Cylinder balance test | Required for further diagnosis |
| Injector cleaner | Required for further diagnosis |
| Coil | May be shorted |
| RPM | 3000 rpm |
| Time to settle | 15 seconds |
Explore related products
What You'll Learn
Ohm meter measures resistance
An ohmmeter is an instrument used to measure electrical resistance, expressed in ohms. It is one of the functions of a multimeter, which is an electrical instrument capable of measuring voltage, current, and resistance. Resistance is the measure of electrical "friction" as charges move through a conductor. It is important to note that you should never measure the resistance of any electrically "live" object or circuit.
When testing fuel injectors, you may encounter a situation where one injector shows no resistance reading, while the others display ohms. This could be due to a failed injector or incorrect testing procedure. To verify, clean the pins on the injector, scrape away any corrosion with a precision screwdriver, and retest. If the issue persists, test from another point down the line at another connector to double-check.
To measure resistance using an ohmmeter, follow these steps:
- Set your multimeter to the highest resistance range available. The resistance function is usually denoted by the Greek letter omega (Ω) or the word "ohms."
- Touch the two test probes of your meter together. The meter should register 0 Ω of resistance.
- If using an analog ohmmeter, calibrate it for 0 Ω of resistance using the adjustment knob or wheel. Touch the test probes together and adjust until the needle points exactly to zero.
- Test the continuity of a piece of wire by connecting the meter probes to its opposite ends. If the ohmmeter needle doesn't move, it indicates non-continuity.
It is important to be careful with the probes as they can be sharp. Additionally, your body resistance can impact the readings, so it is recommended to adjust the meter range accordingly.
Using Two Bottles of Fuel Injector Cleaner: Safe or Not?
You may want to see also
Explore related products
No resistance could mean a failed injector
When testing fuel injectors, it is common to use an ohm reader or a multimeter to check the resistance. If one of the injectors shows no resistance or 0 ohms while the others show readings within the expected range, it is likely that the injector has failed. This could be due to several factors, such as electrical or mechanical failure, or even external leaks.
It is worth noting that a "0" reading could also be due to a faulty test. For example, if the pins on the injector are corroded or caked, it may be difficult to get an accurate reading. In such cases, cleaning the pins and scraping away any corrosion with a precision screwdriver can help ensure better contact and a more accurate reading.
Additionally, it is recommended to test the injector when it is cold and hot, as the resistance may change at different temperatures. Comparing the injector's resistance to the OEM specification, which is usually available in vehicle-specific diagnostic manuals, can help identify any issues.
If the injector is indeed failed, it will typically not pulse during testing or flow any fuel. This can cause the engine to run rough at idle but smooth out over 1500 RPM. In some cases, the injector may still click when the engine starts, even if it is failed.
Fuel Injectors and Ultrasonic Cleaners: Safe or Not?
You may want to see also
Explore related products
$269 $298
Normal ohms reading but bad injectors?
Firstly, it's important to understand that an ohm test only verifies that the injectors are electrically capable of working. A normal ohm reading indicates that the injectors are receiving the correct electrical signals, but it doesn't necessarily mean that they are functioning optimally.
One possible explanation for this phenomenon is that the injectors could have a poor flow or be leaking. In this case, the ohm test would not detect any issues, but you may experience symptoms such as sporadic idle, stalling, or burning smells. To confirm this, you can perform a fuel pressure test, which will help determine if there is a leak or flow issue.
Another potential cause could be that the injectors are clogged or have internal damage. Over time, injectors can become clogged due to the accumulation of dirt or carbon deposits, which can restrict fuel flow and affect performance. In some cases, internal components of the injector, such as coil windings, may become damaged or shorted, leading to performance issues.
Additionally, it's worth considering the possibility of a faulty meter or incorrect testing procedure. Ensure that the pins on the injector are clean and free of corrosion, as caked pins can interfere with accurate readings. It's also important to set the correct range on your device, as a resistance reading outside the selected range may result in an inaccurate display.
To gain a more comprehensive understanding of the injector's condition, it is recommended to employ additional testing methods, such as measuring inductance and coil "Q" with an impedance bridge. This equipment can detect issues that may not be apparent through a simple ohm test, providing a more conclusive assessment of the injector's functionality.
In conclusion, while a normal ohm reading indicates electrical functionality, it doesn't preclude the possibility of other issues affecting the injectors' performance. To thoroughly diagnose injector problems, it is advisable to combine multiple testing methods and consider factors beyond electrical resistance.
Removing Fuel Injector on Cat C7s: Step-by-Step Guide
You may want to see also
Explore related products
Ohm testing injectors
Ohm testing is a way to test your fuel injectors for any issues. Faulty fuel injectors can affect fuel economy and cause a misfire. If your engine is running rough, there may be an issue with the vehicle’s fuel delivery system. A faulty injector can cause one of your cylinders to not ignite fully, which will throw the balance of the engine off at all speeds. This ruins fuel economy since all of the fuel may not be combusting, and you have to press harder on the gas pedal to get the car to move.
To start the Ohm testing process, turn the car on. Turn the key to the second (ON) position for this test. You want battery power flowing, but don’t want the engine running. Then, set up a digital volt-ohm meter (DVOM) to measure DC voltage. Use the lowest range possible if the meter doesn’t auto-range. Next, touch the negative lead of the DVOM to a ground source. The car’s frame is connected to ground, so look for an unpainted piece of the frame under the hood. Some DVOMs have alligator clips so that you don’t have to hold the lead. This frees up your hands to focus on getting the positive lead in the correct spot.
Then, place the positive lead on the wiring harness terminal. The wiring harness will have two terminals that the prongs on the injector insert into. One will be connected to the ground and will read 0 volts. The other should read around 12 volts. Repeat this process with all injector wiring harnesses. They should all be around 12 volts. A lower reading means there is excess resistance in the wire somewhere.
If the injector resistance is normal, the next step is to remove the injector and test the spray pattern it produces on an injector tester. If you are experiencing any difficulty with testing your injectors, consult a certified technician.
Fuel Injectors in Jeep Liberty: How Many Are There?
You may want to see also
Explore related products
Cleaning injectors
The cleaning service involves testing the injectors through a test program that mimics the actual operating parameters, including pressures of up to 400 bar and varying pulse widths. This is done to ensure the injectors are functioning correctly and to prevent potential issues.
It is important to note that this service may not fix all issues with the injectors. For example, earlier design flaws will likely not be resolved through cleaning alone.
Additionally, some companies offer piezoelectric injector cleaning and flow testing services for Siemens VDO Piezoelectric Injectors. These tests are conducted at the actual operating pressure, but only for Index 11 or Index 12 Injectors.
It is recommended that customers understand the expectations and limitations of the cleaning service before proceeding.
Replacing Fuel Injectors in Infinity Cars: Step-by-Step Guide
You may want to see also
Frequently asked questions
No resistance is usually indicative of a failed injector or incorrect testing. Resistance is supposed to be between 11 and 14 ohms.
You need to isolate each injector and put the ohm meter across each set of leads. If the ohm meter measures infinity, that's an open circuit and the coil in the injector is bad.
You can test for leaking injectors by putting your truck in neutral, bringing the RPMs to a redline for a few seconds, and letting off. If you get periodic hangs on the drop, this indicates that your injectors are worn. You can also short the leads together and make sure you are on R time one, not on diode check or tone.
