Fuel injectors are a crucial component of your vehicle's engine, delivering a precise amount of fuel into the cylinders to ensure smooth engine operation. However, over time, fuel injectors can become clogged or malfunction due to dirt, gunk, or carbon buildup, leading to issues such as rough idling, poor fuel economy, and even engine failure. To prevent such problems, it is essential to regularly test the fuel injector signal while the engine is running. This can be done using a simple listening test with a long metal screwdriver or a mechanic's stethoscope. By placing the screwdriver against the injector and your ear against the handle, you should hear a clicking sound, indicating a functioning injector. Additionally, visual inspections for leaks and spray patterns, as well as electrical tests using test lights and voltmeters, can help identify potential issues with the fuel injectors.
| Characteristics | Values |
|---|---|
| Purpose | To check if the fuel injectors are working properly |
| Tools | Mechanic's stethoscope, thin hose, screwdriver, test light, DVOM, voltmeter, multimeter, fuel pressure gauge, pressurized air, diagnostic scanner |
| Safety precautions | Wear gloves and eye protection, work outside or in a well-ventilated area, avoid smoking and open flames |
| Symptoms of faulty fuel injectors | Engine runs poorly or fails to run, rough idling, knocking, poor gas mileage, smoky exhaust |
| Testing methods | Listening for clicking sounds, checking for leaks, observing spray pattern, measuring voltage and resistance, checking for power and pulse signals |
| Possible issues | Clogged or dirty injectors, faulty wiring, broken O-ring seals, internal component damage |
Explore related products
What You'll Learn
Use a test light to check for power and pulse signals
To test a fuel injector signal while the engine is running, you can use a test light to check for power and pulse signals. This is an inexpensive but efficient tool that can help you diagnose whether your fuel injector is faulty.
First, hook the test-light clip to a bare metal bracket or a bolt on the engine. Then, disconnect the electrical connector from the fuel injector that you need to test. Next, connect the terminals of the harness connector with the test light, one at a time. If the test light does not glow, there is a problem with the connection. If the test light glows, you have found the power source.
Now, connect the fuel injector to the harness connector and plug the test light clip to the positive side of the battery. With the engine running at an idle, the test light should flicker dimly. As your helper applies throttle by pressing the gas pedal, the light should flicker more brightly. This light represents the signal being transmitted by the ECU to the injector to spray fuel. If the test light is failing to light up, the injector may be faulty or there could be an issue with the electronic control unit.
You can also test the pulse signal by inspecting the opposite wire on the fuel injector connector. Install a pin through the wire and use it to investigate. The test light should light up, indicating that the injector is receiving the pulse signal from the computer to open and close the injector. If the test light remains lit, there is a problem in the circuit or the device driver in the computer may have failed.
How to Clean Clogged Fuel Injectors?
You may want to see also
Explore related products
Listen for a clicking sound with a screwdriver
To test your fuel injectors while the engine is running, you can use a screwdriver to listen for a clicking sound. This is a simple and inexpensive way to check for issues with your fuel injectors.
First, locate your fuel injectors. These are usually found on the intake manifold, connected by a fuel rail. Most applications have one fuel injector for each cylinder. For a V-style engine, there will be two fuel rails with half of the injectors on each side of the motor.
Next, find a long metal screwdriver or rod. Place the tip of the screwdriver or rod on one of the fuel injectors, holding it at an angle that allows you to bring your ear close to the opposite end.
Now, with the engine running, bring your ear close to the screwdriver or rod and listen for an audible clicking sound. This clicking indicates that the injector is being activated and is functioning correctly. Repeat this process for each injector, making note of any that are not clicking.
If you don't hear a clicking sound from an injector, it may be faulty or clogged and will need to be cleaned or replaced. This simple test can help you identify any fuel injectors that are not working properly, allowing you to take appropriate action to ensure the optimal performance of your engine.
Understanding Fuel Injectors in a 460 Ford Engine
You may want to see also
Explore related products
Check for leaks with a flashlight
To check for leaks with a flashlight, start by opening the hood of your car and locating the fuel injectors. They are usually found on the intake manifold, connected to one another by a fuel rail. Turn on the engine and let it idle for a few minutes. Shine a flashlight or a work light under the hood, looking for any signs of leaking gas. If you notice any leaks, it may indicate that one or more fuel injectors need to be replaced due to faulty O-ring seals.
Fuel injectors are an essential part of your vehicle's engine, spraying fuel into the cylinders for combustion. Over time, they can wear out or become clogged, leading to issues such as rough idling, knocking, decreased fuel efficiency, and smoky exhaust. Therefore, it is crucial to regularly check for leaks and other problems.
Before beginning the inspection, ensure you are wearing appropriate safety gear, including gloves and eye protection, to safeguard against sharp objects and fuel exposure. It is also recommended to work outdoors or in a well-ventilated area to mitigate the risk of inhaling gas fumes.
To further pinpoint the source of any leaks, you can use a long metal rod or screwdriver to listen for the clicking sound of the injector. Place one end of the screwdriver on the injector and hold it at an angle that allows you to bring your ear close to the opposite end. As the engine runs, a functioning injector will produce an audible clicking sound. If you don't hear this sound, it could indicate a faulty injector that requires cleaning or replacement.
Additionally, you can use a test light to check for power and pulse signals from the computer to the injector. Connect the test light to the positive side of the battery, and probe the opposite side of the injector connector. The light should flicker in response to engine RPM/Load. If no pulse is observed, it may suggest a faulty wiring connection or a failed PCM injector driver.
Cleaning Diesel Fuel Injectors: Sea Foam Solution
You may want to see also
Explore related products
Use a voltmeter to check resistance
To test a fuel injector signal while the engine is running, you can use a voltmeter to check resistance. This test requires an assistant and is an important safety step to prevent major engine damage.
First, remove the fuel pump fuse to prevent the car from starting while a crank test is being performed. This step is crucial to prevent large quantities of gasoline from being injected into the engine cylinders, which could wash away the oil that protects the pistons and cylinder walls.
Next, adjust the voltmeter setting to ohms. This test can be performed with the injector installed or uninstalled. If you are testing with the injector uninstalled, you will need to expose the injector electrical terminals. Connect the voltmeter leads to the terminals; the polarity of the leads is irrelevant.
This test will give you a baseline ohm reading of all injectors, which should typically range between 11 and 14 ohms. It is important to note that fuel injectors should be tested cold unless otherwise specified, as temperature variations will impact the readings.
If the test shows high resistance or an open circuit, it indicates an issue with the injector, and it may need to be replaced.
Additionally, you can use a mechanic's stethoscope or a long screwdriver to listen for a ticking or clicking sound from the injector. This sound indicates that the injector is receiving a signal and is functioning correctly.
Tightening Fuel Injector Inlet Screws for Optimal Performance
You may want to see also
Explore related products

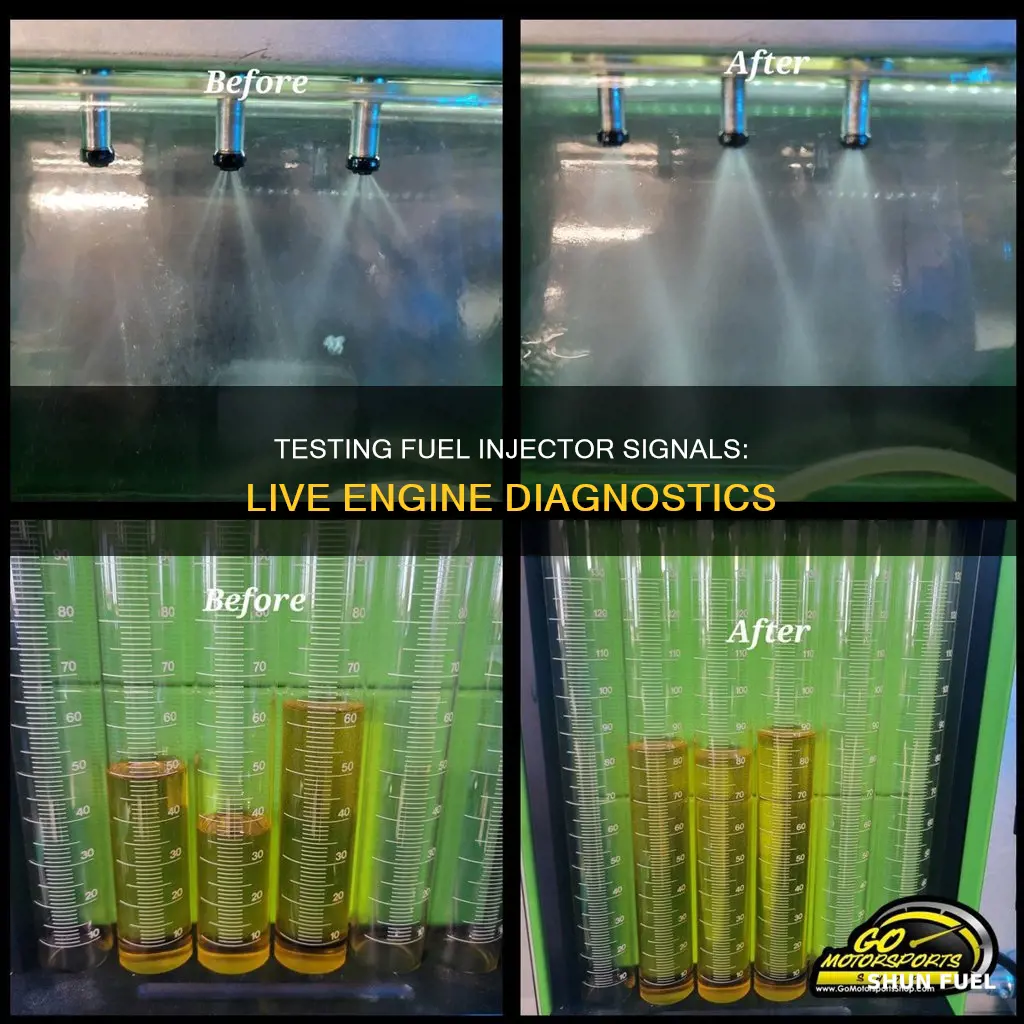

Observe the spray pattern
To observe the spray pattern of a fuel injector, you will need to remove the injector. Attach pressurised air to the inlet of the injector. Attach a 12-volt power and ground source to energise the injector. Compressed air should be released from the outlet valve with traces of fuel still remaining from the injector. Take the necessary fire precautions during this step. Observe the spray pattern, which should be robust. If the spray pattern is muted, the injector should be replaced.
The spray pattern can also be observed by pulling out an older injector and test-firing it. If you observe fuel coming out partially atomized in an inverted V pattern, the injector is functioning as it should. If, on the other hand, you see a solid, single spray or an irregular pattern, it means your injector is dirty or an internal component is broken or worn out.
The geometry of the diesel fuel injection nozzle and fuel flow characteristics in the nozzle significantly affect the processes of fuel atomization, combustion, and the formation of pollutant emissions in a diesel engine. The spray cone angle also has an effect on the performance and emissions of a diesel engine. Differences in the spray pattern may not be obvious unless the injectors are very dirty.
To observe the spray pattern, you need to have the ignition switch in the run position to power up the D jet controller. With the main and cold start injectors pulled from their holders, the engine should not start. However, if there is any residual fuel in the intake manifold, the engine may briefly start and run until the residual fuel runs out.
Fuel Injector Failure: Check Engine Light Warning Sign?
