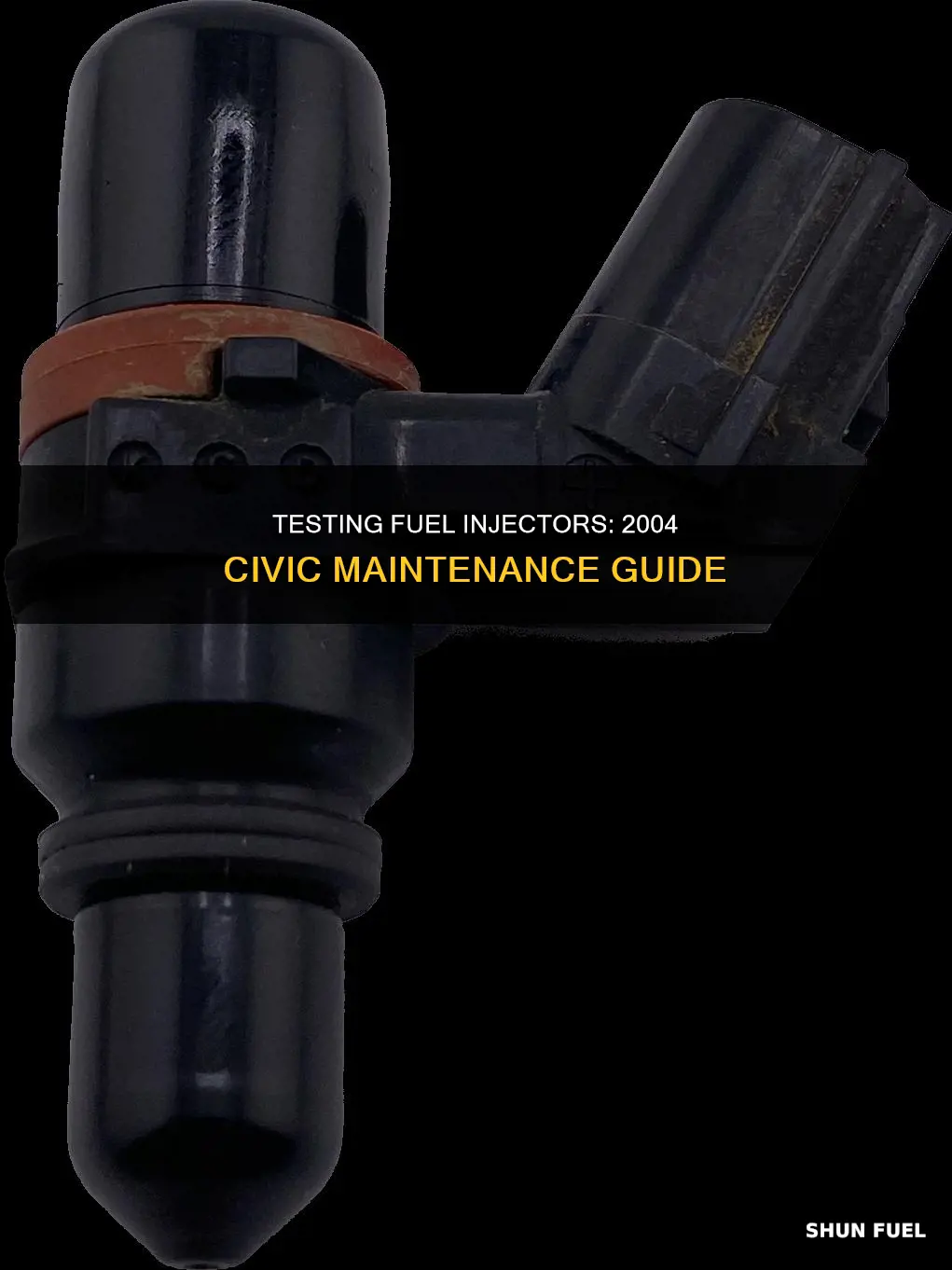

If you're experiencing issues with your 2004 Honda Civic, it may be time to test your fuel injectors. A faulty fuel injector can cause a range of problems, from a rough idle to a complete engine misfire. Luckily, testing fuel injectors is a straightforward process that can be done at home with the right tools and some automotive know-how. This guide will walk you through the steps to test the fuel injectors in your 2004 Honda Civic and help you identify any potential issues.
Explore related products
What You'll Learn
Using a multimeter to test for internal resistance
To test the internal resistance of a fuel injector on a 2004 Honda Civic, you will need to use a multimeter. This process will help you determine whether the fuel injector's internal coil has failed, causing it to stop injecting fuel.
Preparation
Before you begin, ensure that you have identified the correct cylinder. You can do this by referring to the cylinder # id for the Honda Civic. Additionally, ensure that the key is in the off position, as you don't need power for this test.
Disconnect the Fuel Injector
First, disconnect the fuel injector from its harness connector. Depending on your vehicle, you may need to remove plastic panels to access the injectors. These are typically secured by bolts and can be removed with a basic socket set, including an extension.
Set the Multimeter
Set your multimeter to Ohms (Ω) mode. This will allow you to measure the resistance of the fuel injector. The standard resistance specification for a Honda Civic fuel injector is 10 to 13 Ohms (Ω).
Measure the Resistance
Now, use the multimeter test leads to measure the resistance across the two male spade terminals of the fuel injector. Make sure to record the resistance value that your multimeter displays for the specific injector you are testing.
Interpret the Results
If the resistance value you measured is significantly different from the standard specification (10-13 Ohms), it indicates that the fuel injector is faulty. This could be due to issues such as shorted or open internal coil windings.
Repeat for Other Injectors
If you have multiple fuel injectors, repeat the above steps for each one, recording the resistance values for each injector. This will help you identify any injectors that are not performing as expected.
It is important to note that a faulty fuel injector can cause issues with the vehicle's performance, such as rough idling, lack of power, and hesitation during acceleration. Therefore, it is crucial to address any issues identified during the testing process to ensure optimal vehicle performance and fuel efficiency.
Fuel Injector Coverage Under GM Powertrain Warranty
You may want to see also
Explore related products
Testing for a clogged fuel injector
Symptoms of a Clogged Fuel Injector
A clogged fuel injector can cause a range of issues with your Honda Civic's engine performance, including:
- Rough idle
- Lack of power
- Engine misfire
- Hesitation when accelerating
- Poor fuel economy
- Stalling
Testing the Internal Coil Winding
To test the internal coil winding of the fuel injector, you will need to disconnect the fuel injectors from their harness connectors. Once disconnected, you can use a multimeter to test the resistance across the two male spade terminals.
Measuring Resistance
The resistance specification for the 1.5L Honda Civic is 10 to 13 Ohms, while the 2.0L Honda Civic should measure between 5-7 Ohms. If the resistance value of the fuel injector is significantly different from the specified range, it indicates a problem with the fuel injector.
Other Testing Methods
There are alternative methods to test fuel injectors, such as using a noid light or a test light. A noid light is plugged into the injector connector and should blink when the engine is cranked over. A test light can also be used by hooking it up to the battery negative and touching the tip of the light to the wires going to the fuel injectors.
Cleaning and Repair
If you find that your fuel injectors are clogged, they will need to be removed from the engine and cleaned or replaced. This can be done by a professional injector cleaning service, which will use an ultrasonic fuel injector cleaning process to remove any clogging.
Turbo and Fuel Injectors: Perfect Match or Not?
You may want to see also
Explore related products
Identifying the location of fuel injectors
Fuel injectors are a critical component of modern automobile engines, responsible for atomizing and injecting fuel into the combustion chamber. They are integral to a car's engine fuel delivery system, delivering the right fuel at the right time.
The location of the fuel injectors in a car depends on the type of fuel injection system used. The two main types are manifold injection and direct injection.
Manifold Injection Systems
Also known as port injection or multi-point injection, this type of system injects fuel into the intake ports just upstream of each cylinder's intake valve. The injectors are located at the intake ports or throttle body, rather than inside the combustion chamber. This type of system typically uses multiple fuel injectors, but some may use a central injector with tubes and poppet valves.
Direct Injection Systems
Direct injection systems spray fuel directly into the air inside the cylinder or combustion chamber. This can be achieved with a conventional helix-controlled injection pump, unit injectors, or a common-rail injection system. In a common-rail system, the fuel is supplied to a common header (accumulator) and then sent through tubing to the injectors. The accumulator maintains pressure and returns excess fuel to the fuel tank.
To identify the location of the fuel injectors in your specific vehicle, you can refer to the vehicle's repair manual or seek guidance from a professional mechanic. Additionally, online resources and automotive forums can provide vehicle-specific information and diagrams to help you locate the fuel injectors.
Fuel Injector Repair: Cost and Symptom Guide
You may want to see also
Explore related products
Testing fuel injectors with a noid light
Firstly, you will need to select the correct noid light for your vehicle. Different vehicles have different types of connectors on their fuel injectors, so it is important to choose a noid light that fits easily into the fuel injector connector. Once you have the correct noid light, follow these steps:
- Focus on the fuel injector you want to test and disconnect it from its electrical connector. There may be a metal clip securing the connector to the fuel injector. Press the clip to unlock and remove it, or, if there is a plastic locking tab, press it as you gently pull the connector out.
- After removing the connector, insert the noid light into the fuel injector.
- Crank over the engine. If the noid light flashes, this indicates that the fuel injector is receiving power and pulse signals from the fuel injection computer. If the noid light does not flash, this indicates that electrical power is not reaching the fuel injector, or that the fuel injection computer is not delivering the pulse signals.
- Repeat this process for each fuel injector, testing them all. If the noid light flashed identically for all connectors, then all the fuel injectors are receiving power and pulse signals.
Noid light kits are available to purchase, which include multiple noid lights and other tools to make the testing process easier and more efficient. Alternatively, it is possible to make a homemade noid light using an LED bulb and a resistor.
Cleaning Fuel Injectors in a Pontiac Grand Prix (1998): DIY Guide
You may want to see also
Explore related products
Checking for leaks
One way to check for leaks is through a visual inspection. Pop the hood and inspect each fuel injector for wet spots or a residual gasoline smell. A shiny substance that resembles gasoline indicates a potential leak. Sometimes, there may not be an apparent wet spot, but there could be a build-up of dirt or grime around an injector due to fuel acting as a magnet for dust and debris. If one injector appears dirtier, this could be a sign of leakage.
You can also check for leaks by listening for unusual sounds. Start the engine and let it run as usual, then move close to the injectors and fuel rail to listen for any abnormal sounds.
Another method is to use a fuel pressure gauge. Install the gauge on the fuel rail Schrader valve and pressurise the system by cycling the key on for a few seconds. Turn the key off and time the pressure reduction. The initial pressure should be approximately 40 pounds per square inch (PSI), and if the time for a pressure drop of 20 PSI exceeds 20 minutes, the injectors are likely free of excessive leakage.
Alternatively, you can try a more extensive method by raising the fuel rail above the intake base with the fuel lines still hooked up, placing paper under the injectors, and priming the rail. If there are drops of fuel on the paper, the injectors are likely leaking.
Cold Weather's Impact on Fuel Injectors: What You Need to Know
You may want to see also
Frequently asked questions
A bad or clogged fuel injector can cause a rough idle, a lack of power, or hesitation when accelerating your Honda Civic.
You can test your fuel injectors by using a multimeter to measure the resistance of the fuel injector across its two male spade terminals. You can also use a noid light or a test light.
The resistance specification for your fuel injectors is 10 to 13 Ohms.
If your fuel injectors are bad, you will need to replace them. You can purchase replacement fuel injectors and install them yourself or take your car to a mechanic for repair.
