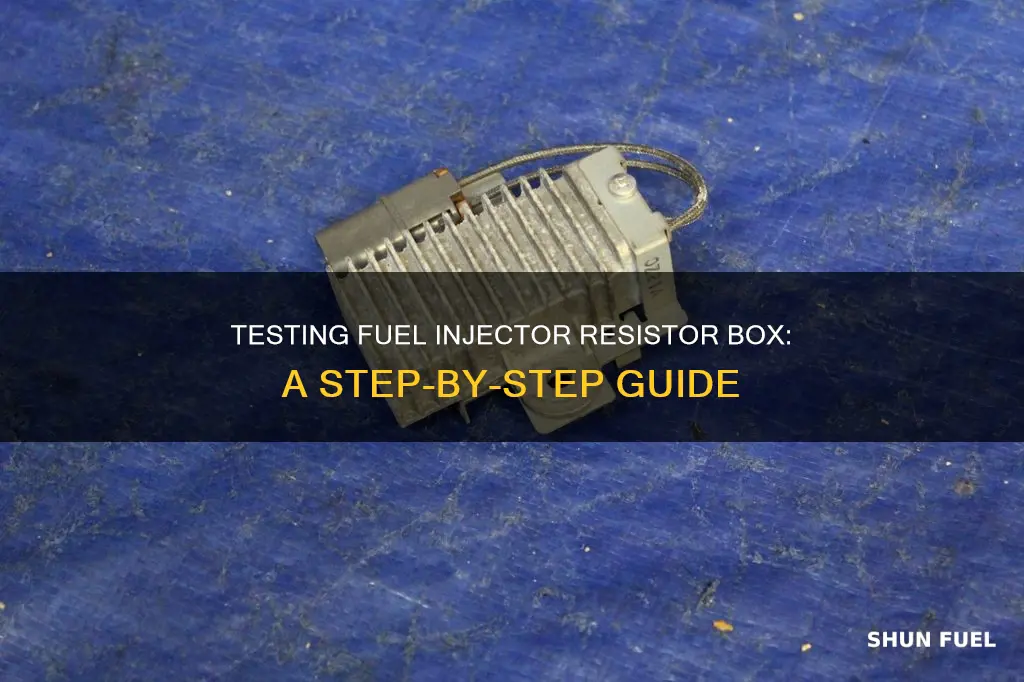

Fuel injectors are components that use an electrical signal to deliver fuel to your engine. Over time, they can malfunction due to dirt, gunk, or carbon buildup. To test the fuel injector resistor box, you can use a digital volt-ohm meter (DVOM) or an analog meter to measure the resistance across the electrical contacts of the injectors. You can also use a multimeter to take a resistance reading with your vehicle turned off. Check your vehicle's service manual for the correct value, but most fuel injectors should read between 10 and 18 ohms. If the resistance reading is off, the injector may need to be repaired or replaced.
| Characteristics | Values |
|---|---|
| Tools required | Digital volt-ohm meter (DVOM), multimeter, screwdriver |
| Fuel injector location | One per cylinder, typically a black plastic housing installed directly above the cylinder |
| Resistance | Should be within the range suggested by the manufacturer, typically between 10 and 18 ohms |
| Resistance issues | If the resistance is much higher or lower than the other injectors, there is an issue with the coil of the injector, and it will need to be replaced |
| Injector blockage | Fuel contamination and high mileage can cause injector blockage |
| Symptoms of injector issues | Rough idle, no-start condition, hard cold starting, flooding on hot start, rich fuel mixture, fuel leaking onto the engine, poor gas mileage |
| Resistor wattage | The correct wattage can be calculated by dividing the voltage by the resistance in ohms to find the current, then multiplying the voltage by the current |
Explore related products
What You'll Learn
Use a screwdriver to listen for the injector click
To test your fuel injectors with a screwdriver, start by popping the hood of your car while the engine is running. Place the tip of the screwdriver on a fuel injector. Ensure that you hold the screwdriver at an angle that allows you to bring your ear close to the opposite end.
As the engine runs, listen for an audible clicking sound given off by the injector. This clicking sound indicates that the injector is being activated. Repeat this process for each injector in your vehicle. If you find an injector that is not clicking, there may be an issue with the injector itself or the electronic component that controls it.
You can also create a listening rod to avoid bringing your face too close to the engine. To do this, weld a 2" metal ball with a 1/4" hole drilled into it to a long 1/4" rod. Cut the rod to approximately 2 feet in length. Place one end of the rod on the injector and bring your ear close to the opposite end to listen for the clicking sound.
Fuel Injector Maintenance: To Clean or Not?
You may want to see also
Explore related products
Test resistance with a multimeter
To test the resistance of a fuel injector resistor box with a multimeter, you will first need to locate the four wires that go to the injectors. These wires are usually found near the brake master cylinder on the driver-side harness connectors.
Once you have located the wires, you can use your multimeter to measure the resistance. Set the multimeter to measure resistance, typically denoted by the Greek letter omega (Ω). Touch the red and black wires of the multimeter to the two metal contacts on the injector you are testing.
The resistance reading on the multimeter should give you an indication of the condition of the fuel injector. A reading of 12 ohms or less typically indicates that the injector needs to be replaced. Some sources suggest that a reading of less than 10 ohms is a sign that the injector should be replaced, while others suggest a range of 14-17 ohms as the threshold for replacement.
It is important to note that the exact resistance values may vary depending on the vehicle, and it is recommended to consult a technician or a vehicle-specific repair guide for more accurate information. Additionally, ensure that you have a good contact between the multimeter leads and the prongs on the connector to get an accurate reading. Dirty or bad connections can increase resistance and cause improper readings.
Fuel Injector Failure: Causes and Symptoms
You may want to see also
Explore related products
Check for correct wattage
To check for the correct wattage of a fuel injector resistor box, you will need to do some calculations. First, you need to determine the resistance of your fuel injectors in ohms. You can do this by using a digital volt-ohm meter (DVOM) or a multimeter. Set the tool to measure ohms and connect the probes to the injector's pins.
Next, you will need to find the hold current in amps. This can be done by testing the injector with a multimeter or by contacting the retailer or manufacturer of your injectors.
Once you have the injector resistance and hold current, you can calculate the wattage using the formula:
> Wattage = Voltage x Current
For example, if you have a 12-volt system and a 6-ohm injector, the current would be 2 amps (12 volts / 6 ohms = 2 amps). So, the wattage would be 24 watts (2 amps x 12 volts = 24 watts). Therefore, you would need a 25-watt resistor.
It is important to note that low impedance injectors typically have a resistance of 2-5 ohms, and they require a minimum of 1.19 amps to open/fire correctly. The wattage and resistance values will vary depending on the specific injectors and the vehicle's electrical system.
Testing a Fuel Injector with a Multimeter: Step-by-Step Guide
You may want to see also
Explore related products
Locate the driver-side harness connectors
To locate the driver-side harness connectors, you must first identify whether your vehicle is an OBD-I model. This is important as OBD-I vehicles have driver-side harness connectors located near the brake master cylinder. Once you have confirmed that your vehicle is an OBD-I model, you can begin the process of locating the connectors.
The driver-side harness connectors are situated close to the brake master cylinder. They are easily identifiable by their four wires, which are typically coloured black. These wires are responsible for supplying power to the injectors. To access them, you may need to remove or adjust certain components, such as the glove box, to create a clear working area. This will provide you with the necessary space to work on the connectors and perform any required maintenance or repairs.
It is important to note that the process of locating and working on the driver-side harness connectors may vary slightly depending on the specific make and model of your vehicle. Therefore, it is always a good idea to refer to your vehicle's service manual or seek advice from a qualified mechanic if you are unsure about any aspect of the process.
Once you have located the driver-side harness connectors, you can proceed with the next steps in testing or maintaining your fuel injector resistor box. It is important to work carefully and methodically when dealing with electrical components in your vehicle to avoid any potential issues or damage.
Cleaning Fuel Injectors: DIY Using Tire Stem
You may want to see also
Explore related products
Identify the type of fuel injector
Fuel injectors are electrical-mechanical devices that open and close to allow fuel to enter the engine's combustion chamber. They are controlled by an on-board computer that sends a signal in the form of a pulse. The length of the pulse determines how much fuel is delivered to the engine.
There are two main types of fuel injectors: mechanical and electronic. Mechanical injectors are spring-loaded into the closed position and are opened by fuel pressure. On the other hand, electronic injectors are also held closed by a spring but are opened by an electromagnet built into the injector body. The electronic control unit determines how long the injector stays open.
There are also different types of fuel injection systems:
- Single-point injection: This is the earliest and simplest type, replacing the carburettor with one or two fuel-injector nozzles in the throttle body. It is less precise than other systems but offers better control than a carburettor and is less expensive and easier to service.
- Multi-point or multiport injection: This system devotes a separate injector nozzle to each cylinder, right outside its intake port. This ensures that the fuel vapour is completely drawn into the cylinder. It meters fuel more precisely than single-point injection, achieving the desired air-fuel ratio and improving related aspects.
- Sequential port fuel injection (SPFI) or timed injection: This is a type of multiport injection where each injector nozzle is triggered independently, rather than all at the same time or in groups. This addresses the issue of fuel "hanging around" a port when the engine is idling in basic multiport injection.
- Continuous injection: In this system, the fuel is squirted into the inlet port all the time the engine is running. The injector acts as a spray nozzle to break up the fuel into a fine spray, and the amount of fuel sprayed is controlled by a mechanical or electrical control unit.
- Timed injection or pulsed injection: This system delivers fuel in bursts to coincide with the induction stroke of the cylinder. Like continuous injection, it can be controlled either mechanically or electronically.
- Common-rail system: In this system, fuel from the fuel tank is supplied to a common header (the accumulator) and then sent through tubing to the injectors, which inject it into the combustion chambers. The accumulator has a high-pressure relief valve to maintain pressure and return excess fuel to the fuel tank. This system is commonly used in diesel engines.
- Direct injection: This type of injection is more common in diesel engines but is also starting to be used in gasoline engines. It involves injecting fuel directly into the combustion chambers, past the valves. It offers even more precise fuel metering than other systems and gives engineers greater control over how combustion occurs in the cylinders.
Removing Audi A4 Fuel Injectors: A Step-by-Step Guide
You may want to see also
Frequently asked questions
If your fuel injectors are dirty, clogged, or have carbon buildup, your vehicle may start exhibiting problems. This can lead to a complete breakdown of the vehicle if left unattended.
You can test your fuel injectors by placing the tip of a long screwdriver on the top of the fuel and placing your ear on the handle of the screwdriver. You should hear a regular clicking sound as the injector cycles on and off. Compare this sound with your other injectors and note any differences.
With your vehicle turned off, disconnect the electrical connector for your fuel injector. Use a multimeter or an ohm meter to take a resistance reading. Check your vehicle's service manual or look online to find the correct value (most fuel injectors should read between 10 and 18 ohms).
If your fuel injectors are faulty, they will need to be repaired or replaced. You can use products to clean dirty injectors, or you can take your vehicle to a mechanic to perform a test and determine the best course of action.
You can use a digital volt-ohm meter (DVOM) to determine which fuel injectors you have. Set the tool to read ohms and connect the probes to the injector's two pins.
