A faulty fuel injector can cause your engine to run poorly or not run at all. Testing a fuel injector with a multimeter is a simple process that can be done at home with minimal tools and setup. A multimeter is a common tool used to diagnose problems in automotive, household electronics, and industrial machinery. This article will provide a step-by-step guide to testing a fuel injector with a multimeter, ensuring your car's fuel delivery system is functioning properly.
Testing a Fuel Injector with a Multimeter
| Characteristics | Values |
|---|---|
| Tools Required | A multimeter, screwdriver |
| Basic Knowledge | Basic electrical knowledge |
| Vehicle Status | Vehicle should be turned off |
| Fuel Injector Location | One per cylinder, typically a black plastic housing installed directly above the cylinder |
| Testing | Disconnect the electrical connector for the fuel injector and use a multimeter to take a resistance reading |
| Resistance Reading | All injector wiring harnesses should be around 12 volts. A lower reading means there is excess resistance in the wire |
| Spray Pattern | If the injector resistance is normal, remove the injector and test the spray pattern it produces on an injector tester |
| Faulty Injector | A faulty injector can cause one of the cylinders to not ignite fully, leading to poor engine performance and reduced vehicle efficiency |
Explore related products
What You'll Learn
Locate the fuel injectors
To locate the fuel injectors, pop the hood and look for the fuel rail—a metal rod—running along the top of the engine. The fuel injectors are beneath this fuel rail. Depending on your car model, you may need to remove the fuel line and the fuel rail to access the injectors.
In most cars, there is an injector for each cylinder. These are held in place with small clips and have an electrical connector on top. Wires run from these connectors to the fuel rail. Gently remove the electrical connectors and then carefully pull out each injector.
Before removing the injectors, make sure the engine is cold enough to touch and disconnect the battery. Remove the plastic engine covers using the appropriate socket and set them aside. Use pliers to disconnect the electrical connector on each injector.
The fuel injectors are located under the intake manifold. To access them, you will need to remove the intake manifold. This step usually depressurizes the fuel system in multi-port fuel-injected vehicles, but your engine may vary, so check your repair manual.
Use a socket and ratchet to remove the bolts and brackets holding the fuel rail in place. Be careful not to use too much force and deform or bend the fuel rail. The injector and rail will drip, so have shop towels ready.
Fuel Injector Functionality: Understanding the Grounding Process
You may want to see also
Explore related products
Check for correct resistance
To check the resistance of a fuel injector with a multimeter, you will first need to locate the injectors. They are usually located on the intake manifold and are connected to one another with a fuel rail. Once you have located the injectors, follow these steps:
- Turn off the vehicle: You don't need power for this test.
- Disconnect the injector wiring harness: This will involve removing any plastic panels and bolts securing the injectors.
- Set the multimeter to measure ohms: This is usually done by setting the multimeter to measure DC voltage and selecting the lowest range if it doesn't auto-range.
- Take a resistance reading: Touch the negative lead of the multimeter to a ground source, such as an unpainted piece of the car's frame under the hood. Then, place the positive lead on the wiring harness terminal. The wiring harness will have two terminals, with one connected to ground and reading 0 volts.
- Check for the correct resistance: The correct resistance value for your injectors can be found in your vehicle's service manual or online. Most fuel injectors should read between 10 and 18 ohms, with some sources specifying a range of 11 to 24 ohms. The resistance should be within 0.5 ohms of the injector's rated resistance. For example, if your vehicle's fuel injectors have a rated resistance of 16.5 ohms, they should measure between 16 and 17 ohms. If the resistance is off, the injector is faulty and needs to be repaired or replaced.
- Repeat for all injectors: All readings should be within the range suggested by the manufacturer and consistent across all injectors.
It is important to note that resistance measurements can only show gross failures of the coil in the injector. A more conclusive test is to measure the inductance and coil "Q" with an impedance bridge. Additionally, testing the spray pattern of the injector can also help identify any issues.
Fuel Injector PSI: Understanding the Optimal PSI Range
You may want to see also
Explore related products
Listen for clicking sounds
To test a fuel injector with a multimeter, you need to start by popping the hood of your car while the engine is running. Place a thin metal rod or screwdriver on one of the injectors and bring your ear close to listen for an audible clicking sound. This clicking sound indicates that the fuel injector is functioning.
The clicking sound is produced by the solenoid inside the injector activating and deactivating the injector's valve. If you don't hear this sound, it could mean that either the solenoid has failed or the computer isn't sending the pulse signal, resulting in a dead injector.
Repeat this test for each injector in your vehicle. If you find one that is not clicking, there may be an issue with the injector itself or the electronic control transmitting to it.
You can also use a mechanic's stethoscope or a length of hose to listen for the clicking sound. This method can help you better hear the sound without bringing your face too close to the running engine.
Additionally, you can use a multimeter to test for an open or shorted coil inside the fuel injector. Set the multimeter to an appropriate value on the Ohms scale according to the resistance specifications for your particular fuel injector. Most injectors should read between 10 and 18 ohms. A resistance reading outside the specified range indicates that the injector needs to be replaced.
Removing Fuel Injectors from a 2003 Volvo V70
You may want to see also
Explore related products
Observe spray pattern

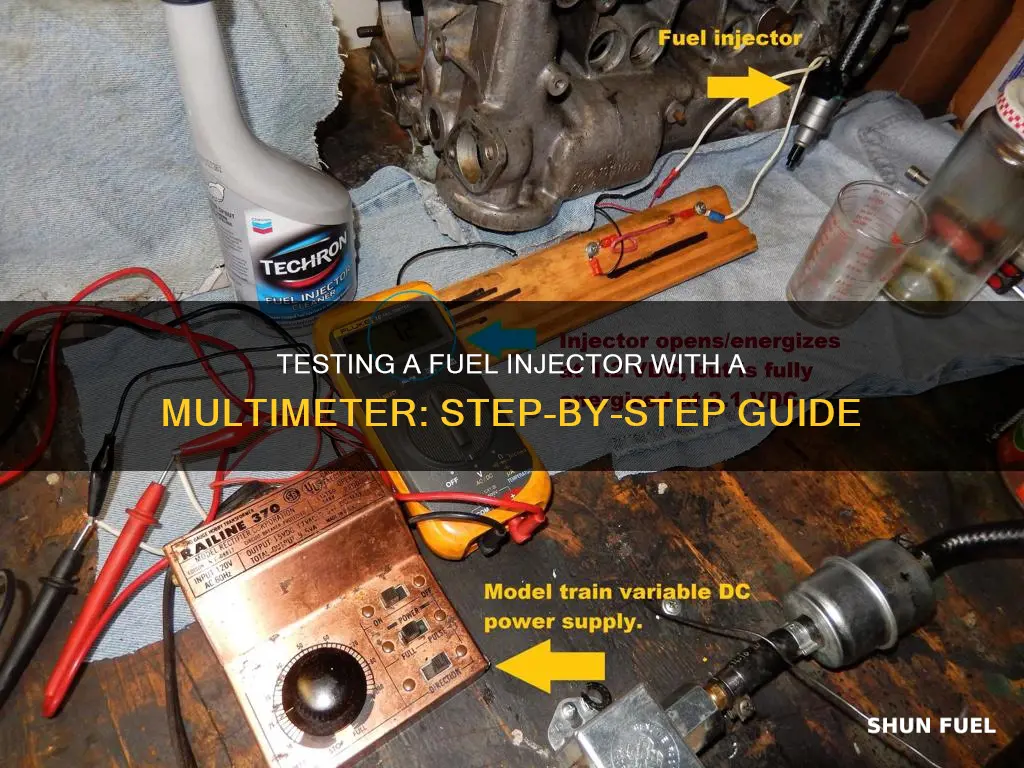

To observe the spray pattern of a fuel injector, you will need to remove the injector. This can be done by opening the hood and locating the fuel injectors, which are usually found on the intake manifold. Once the injector is removed, attach pressurized air to the injector inlet and a 12-volt power and ground source to energize it. It is important to take the necessary safety precautions, such as wearing eye protection and gloves, when performing this task.
When observing the spray pattern, look for a fine, even mist. A properly functioning injector will produce a spray that is partially atomized in an inverted V pattern or a multi-nozzle spray pattern, depending on the type of injector. If you observe a single stream of fuel or an irregular pattern, it could indicate that the injector is dirty, clogged, or damaged. A poor spray pattern can lead to issues such as incomplete combustion, engine knocking, and poor fuel efficiency.
Additionally, you can use a measuring device, such as a flask with graduations of known value, to determine the flow rate of the injector. By activating the injector over the flask for a set time, you can calculate the flow rate and compare it to the expected values. This will help you identify any discrepancies in the fuel output, indicating potential issues with the injector.
Another method to test the spray pattern is to use a fuel injector tester or diagnostic tool. The ANCEL AJ400 fuel injector tester, for example, offers a spray pattern and uniformity test feature that allows you to monitor how evenly each injector is spraying fuel. This helps ensure proper fuel distribution and promotes smooth engine performance.
It is important to note that fuel injectors are designed to spray fuel into the cylinders of the engine, where it mixes with air and is ignited by a spark plug to produce power. Therefore, any issues with the spray pattern or flow rate can impact the engine's performance and fuel efficiency. By regularly observing and testing the spray pattern, you can identify potential problems and take appropriate action, such as cleaning or replacing the injector.
Bad Fuel Injectors: White Smoke Culprit?
You may want to see also
Explore related products
Check for leaks
To check for leaks, you must first locate your fuel injectors. Refer to your vehicle's service manual for the exact location. Typically, there is one fuel injector per cylinder, usually located on the intake manifold and connected to one another with a fuel rail. Once you have located the injectors, look for any fuel leaks around them. Leaks may indicate a sealing issue or a cracked injector.
Another way to check for leaks is to use a measuring device, such as a flask with graduations of known value. Set up the injector over the flask with the pump on. If you notice drips or a worse flow, the injector pintle is not sealing properly.
You can also use a metal rod or screwdriver to listen for any clicking sounds coming from the injector. As the engine runs, bring your ear close to the rod and listen for an audible clicking sound, which indicates that the injector is being activated. If you do not hear any clicking, this could be a sign of a leak or another issue with the injector.
Additionally, you can use a multimeter to test for leaks by measuring the resistance of the injector. First, disconnect the electrical connector for the fuel injector. Set the multimeter to the ohms setting and place the probes on the injector terminals. Take a resistance reading and compare it to the manufacturer's specifications. If the reading is out of the specified range, it could indicate a leak or another issue with the injector.
Fuel Injector Maintenance for 2004 VW Beetles
You may want to see also
Frequently asked questions
Refer to the service manual for your vehicle. There is usually one fuel injector for each cylinder. They are typically a black plastic housing installed directly above the cylinder.
With your vehicle off, disconnect the electrical connector for your fuel injector. Set the multimeter to measure ohms to take a resistance reading.
If the injector resistance is normal, remove the injector and test the spray pattern it produces on an injector tester. If the test light turns on with one wire, the injector is receiving the necessary constant voltage. If neither wire makes the light turn on, there is an issue with the power reaching the fuel injector.
