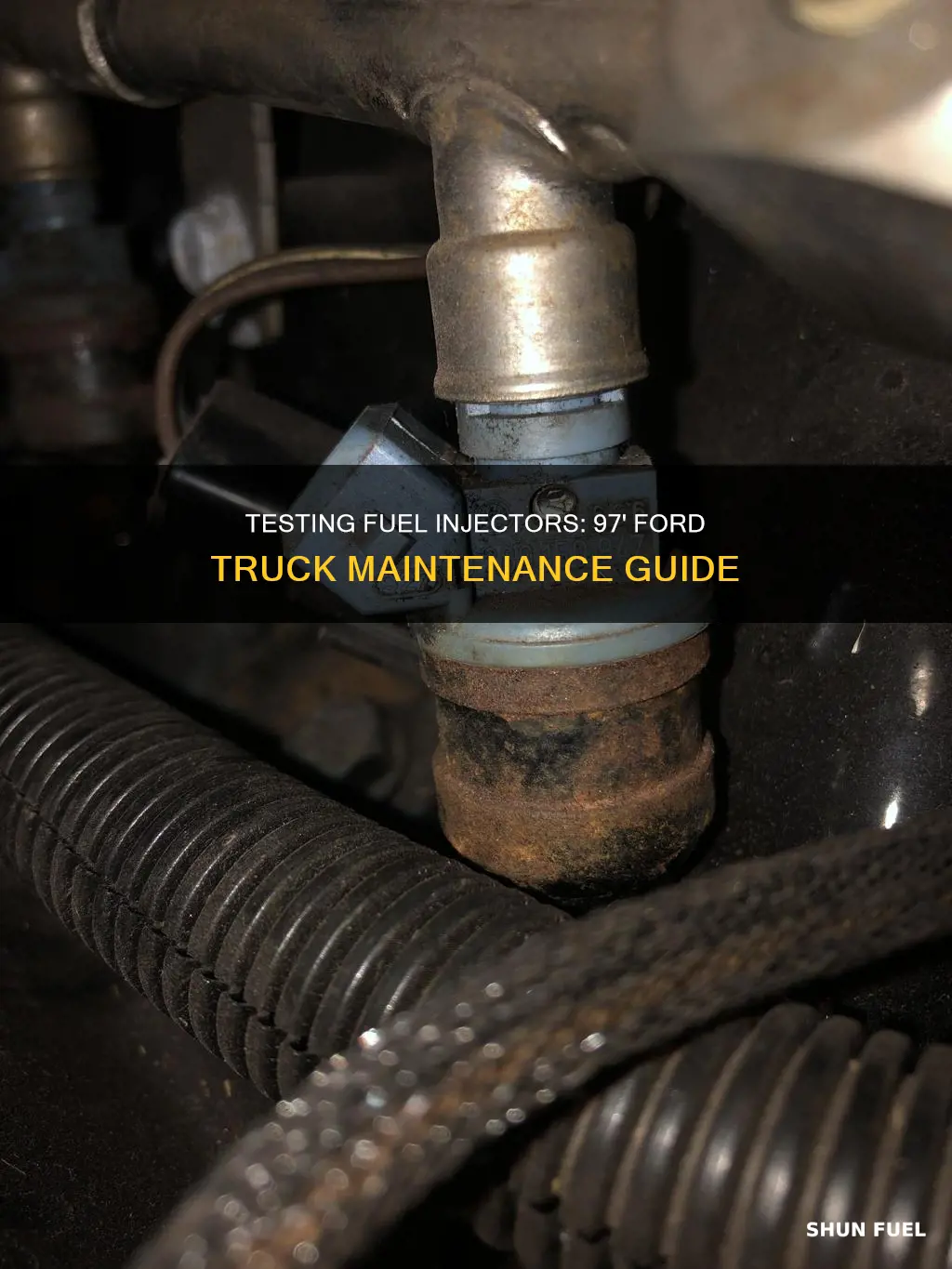

Fuel injectors are an important part of a vehicle's engine. They spray fuel into the cylinders, which is then ignited by the spark plugs to power the engine. When fuel injectors go bad or get clogged, they can cause issues like rough idling, knocking, poor gas mileage, and smoky exhaust. This can lead to engine failure. Luckily, there are several ways to test fuel injectors, including a listening test, a resistance test, and a diagnostic test. This introduction will cover the steps for performing these tests on a 97 Ford truck, as well as common issues and symptoms of a bad fuel injector.
| Characteristics | Values |
|---|---|
| Fuel Injector Function | Spray fuel into the cylinders of the engine |
| Fuel Injector Location | Engine manifold positioned on top of the engine |
| Fuel Injector Issues | Rough idling, knocking, poor gas mileage, smoky exhaust, engine failure |
| Fuel Injector Wear | Most last through 50,000 to 100,000 miles of driving |
| Fuel Injector Test | Listening test with a long metal screwdriver |
| Fuel Injector Connector Issue | Broken locking tabs causing false contact |
| Fuel Injector Resistance Test | Conducted with a cold engine using a multimeter |
| Fuel Injector Tester | Tool to check and balance fuel injectors under load |
Explore related products
What You'll Learn
- Prepare for testing by putting on protective gear and checking for broken fuel injector connectors
- Locate the fuel injectors using the service manual for your vehicle
- Use a screwdriver to listen for a clicking sound, indicating a functioning injector
- Check for leaks on or around the injector by smelling for gas and looking for drips
- Perform a multimeter resistance test to check for internal coil winding issues
Prepare for testing by putting on protective gear and checking for broken fuel injector connectors
To prepare for testing your fuel injectors, you'll need to take some safety precautions and check for any visible damage to your fuel injector connectors.
Start by putting on protective gear. This includes work gloves to protect your hands from scrapes and scratches, eye protection to shield your eyes from debris and fuel, and long sleeves or coveralls to limit contact with fuel. If you have long hair, tie it back to keep it away from your face and the engine.
It's also important to create a safe working environment. If possible, work outside or in a well-ventilated area. If you're working in a garage, open the doors and consider using fans to increase airflow. Avoid smoking or any open flames during testing, as gas fumes can catch fire.
Before you begin the diagnostic process, there are a few visual checks you can perform to identify potential issues with your fuel injectors. One of the most common problems with the 4.6L Ford engine is broken fuel injector connectors, specifically the plastic locking tabs. Take a close look at all the fuel injector connectors to see if any of the locking tabs are broken. If you find any broken connectors, this could be the reason your fuel injector is not working properly. A broken locking tab can cause a false contact with the fuel injector, leading to a malfunction.
Additionally, you can check for leaks on or around the fuel injectors. Leaks can occur when the O-ring seals on the fuel injector wear out. Turn on the engine and let it idle for a few minutes, then lean in and smell for gasoline. Look for any visible leaks or drips, which could indicate an issue with the O-ring seals.
Testing N54 Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Locate the fuel injectors using the service manual for your vehicle
To locate the fuel injectors in your 97 Ford truck, start by opening the hood of your vehicle. The fuel injectors are usually located on the intake manifold, which is positioned on top of the engine. They are connected to one another with a fuel rail.
The fuel rail is a cylindrical rail that runs along the top of the intake manifold, and each fuel injector is situated between the fuel rail and the intake manifold. If your engine has a V-shaped design (V6, V8, or V10), it will have two fuel rails, with half of the injectors on each side of the motor.
Most vehicles have one fuel injector for each cylinder. You can refer to the service manual for your specific vehicle to locate the fuel injectors accurately. This manual will provide detailed information on the location and layout of the fuel injectors, as well as any other relevant components. It will also specify the type of fuel injectors in your vehicle, such as the widely used EFI (Electronic Fuel Injection) systems.
By consulting the service manual, you can gain a clear understanding of the fuel injector arrangement in your 97 Ford truck and proceed with any necessary tests, repairs, or maintenance tasks confidently.
Cleaning Fuel Injectors on a 99 Toyota: A Step-by-Step Guide
You may want to see also
Explore related products
Use a screwdriver to listen for a clicking sound, indicating a functioning injector
To test your fuel injectors, you'll need to locate them first. Most vehicles have one fuel injector for each cylinder, usually located on the intake manifold and connected to one another with a fuel rail. Once you've found them, grab a long metal rod or screwdriver—it should be at least a foot long and mostly made of metal. Now, follow the steps below to use a screwdriver to listen for a clicking sound, indicating a functioning injector:
First, start your engine and let your car idle. Place the tip of the screwdriver against one of the fuel injectors. It's important to hold the screwdriver at an angle that allows you to bring your ear close to the handle. As the engine runs, listen carefully for a clicking sound coming from the injector. This sound indicates that the injector is being activated and is functioning properly.
Repeat this process for each injector. If you come across one that isn't clicking, it could be a sign of an issue with the injector itself or the electronic control transmitting to the injector. In such cases, you may need to clean or replace the injector. Make sure to note which injectors are quiet, as this can help you identify which ones might need attention.
Additionally, be on the lookout for leaks on or around the fuel injectors, as this could indicate bad O-ring seals. To check for leaks, let your car idle for a few minutes and see if you can smell any gasoline. If you notice any visible leaks or drips, it's likely that the O-ring seals on the injector need to be replaced.
Remember to take the necessary safety precautions when performing these tests, such as wearing protective gear and ensuring adequate ventilation to prevent the buildup of gas fumes.
Cleaning Fuel Injectors: Seafoam Treatment Guide
You may want to see also
Explore related products
Check for leaks on or around the injector by smelling for gas and looking for drips
To check for leaks on or around the injector, you must first turn on the engine and let the car idle for a few minutes. Then, lean in and smell for any signs of gasoline. It is important to be cautious and avoid leaning too closely or too directly against any hot or running parts of the engine. Shine a flashlight or a work light under the hood and inspect each fuel injector for any visible leaks or drips. Look out for wet spots or a shiny substance that resembles gasoline, as this could indicate a potential leak. Sometimes, you may not see an apparent wet spot but notice an accumulation of dirt or grime around an injector, which could be caused by fuel leaking and attracting dust and debris. If one injector appears dirtier than the others, this could be a sign of a leaky injector.
If you suspect a leak, you can use a diagnostic scanner, also known as an on-board diagnostics (OBD) reader, to help identify bad fuel injectors. These devices can read the data your vehicle's computer system stores and help you spot errors and problems. Additionally, you can perform a visual inspection of the injector areas to see if there are any wet spots, which could indicate external leaks. If you notice any visible leaks or wet spots, it is important to replace the damaged O-ring seals, as leaks can occur when these seals wear out.
Another method to test for leaks is to remove the fuel rail and injectors and slip a tight-fitting, suitable size rubber hose over the fuel inlet of each injector. Apply regulated air pressure at a similar level to the operating fuel pressure, such as 40 psi max, and stick the tip of the injector under water. If you see bubbles, it indicates a leaky injector. However, this procedure is complicated and may require assistance from multiple people to hold the injectors in place while pressurizing the system.
It is important to note that fuel injector leaks can cause rough starts, poor fuel economy, and engine misfires. Leaking fuel injectors can also lead to severe and costly engine damage and are considered a fire hazard. Therefore, it is crucial to identify and address any potential leaks as soon as possible.
How to Remove and Clean Fuel Injectors?
You may want to see also
Explore related products
Perform a multimeter resistance test to check for internal coil winding issues
To perform a multimeter resistance test on your 97 Ford truck to check for internal coil winding issues, you will first need to locate the fuel injectors. Refer to your service manual to find them. Most applications have one fuel injector for each cylinder, usually located on the intake manifold and connected by a fuel rail.
Before you begin the test, ensure your Ford's engine is cold. If it has been running, let it cool down completely. Put on protective work gloves, eye protection, and coveralls or long sleeves to safeguard against scrapes, debris, and fuel.
Now, disconnect the fuel injectors from their engine wiring harness connectors. Set your multimeter to Ohms (Ω) mode. Measure the resistance of each fuel injector across its two male spade terminals with the multimeter test leads. The resistance value should be between 11 to 18 Ohms. Record the resistance value for each injector.
If the resistance value is more than 0.5% off or does not match the other injectors, the injector is faulty and needs to be replaced.
Additionally, you can check for leaks on or around the fuel injectors. Turn on the engine and let it idle for a few minutes. Leaks can be identified by the smell of gasoline or visible drips.
Ford Flex Fuel Injectors: How Many Are There?
You may want to see also
Frequently asked questions
Most applications have one fuel injector for each cylinder. They are usually located on the intake manifold and are connected to one another with a fuel rail. The fuel rail is a cylindrical rail that will run along the top of the intake manifold, and each fuel injector will be between the fuel rail and the intake manifold.
Some common symptoms of a bad fuel injector include rough idling, lack of power, and hesitation when accelerating. If your fuel injectors are not working properly, your engine might not be getting enough fuel.
You can use a metal rod or screwdriver to transmit sound from the fuel injector to your ear. Place one end of the rod on the injector and hold it at an angle that allows you to bring your ear close to the opposite end. Listen for an audible clicking sound as the engine runs, indicating that the injector is being activated. Repeat this process for each injector, and if you find one that is not clicking, there may be an issue with the injector or its electronic control.
