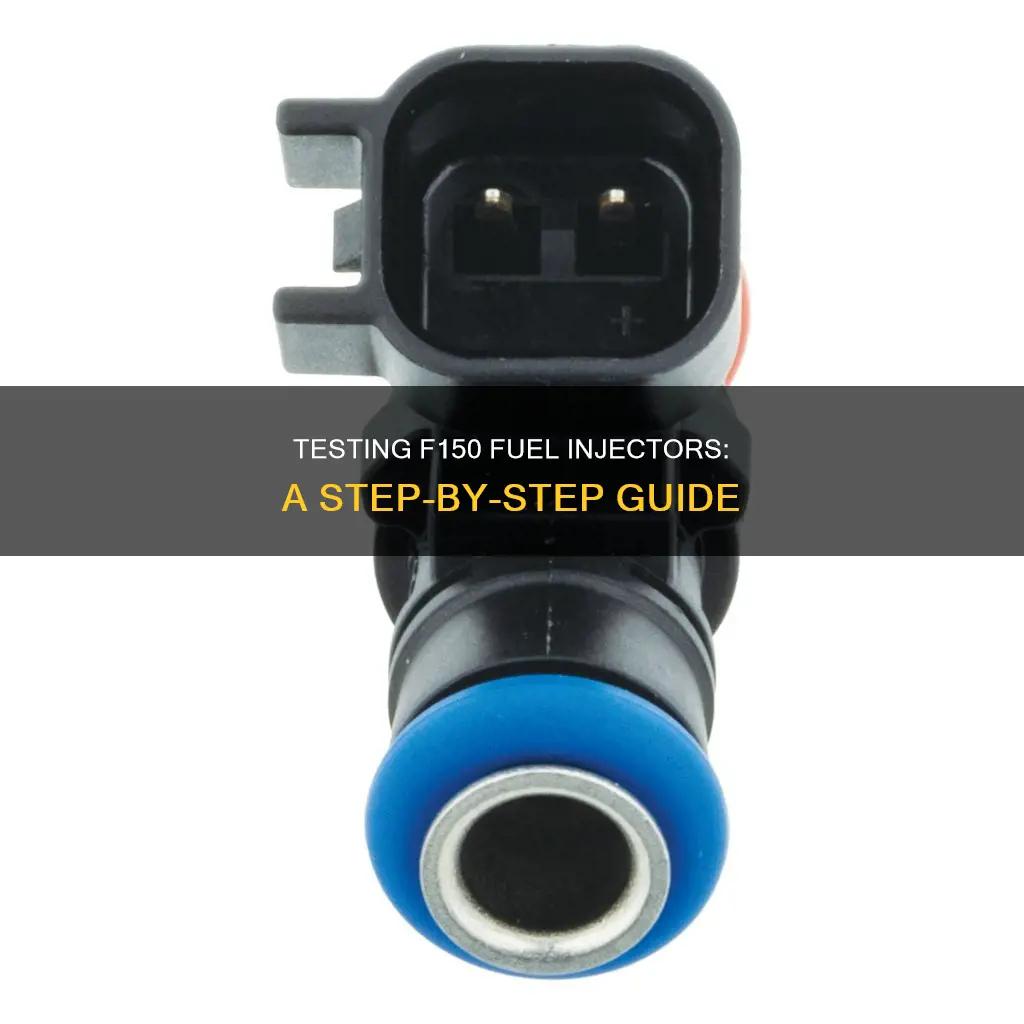

Testing the fuel injectors on your F150 can help you identify issues with your engine's performance. Fuel injectors spray fuel into the engine's cylinders, where it is combined with air and compressed before being ignited to produce power. A faulty fuel injector can cause your engine to run poorly or not at all. Common symptoms of a bad fuel injector include a rough idle, lack of power, and hesitation during acceleration. To test your fuel injectors, you can use a screwdriver or a long metal rod to listen for an audible clicking sound, indicating the injector is activated. You can also perform a fuel injector resistance test using a multimeter to check the internal resistance. If your injector is clogged, you may need to remove it and test the spray pattern on an injector tester.
| Characteristics | Values |
|---|---|
| Fuel Injector Failures | Internal electrical problem, clogged injector |
| Symptoms of Failure | Engine cylinder misfire, lack of power, bad gas mileage, check engine light on |
| Testing Methods | Using a screwdriver or metal rod to listen for clicking, checking resistance with a multimeter or DVOM, testing spray pattern with brake cleaner spray with adapter |
| Required Tools | Long screwdriver or metal rod, multimeter or DVOM, brake cleaner spray with adapter |
Explore related products
What You'll Learn
Using a screwdriver to listen for a clicking sound
To test your F150 fuel injectors with a screwdriver, you will need a screwdriver that is at least a foot long but not longer than two feet. It should be mostly made of metal, but it's okay if it has a plastic or rubber handle. This method will allow you to listen for a clicking sound, which indicates that the injector is being activated.
First, locate the fuel injectors. For a V-style engine (V6, V8, or V10), there will be two fuel rails, with half of the injectors on each side of the motor. Place the tip of the screwdriver on one of the fuel injectors. Make sure to hold the screwdriver up with one hand to keep it steady. Lean your ear close to the end of the screwdriver that is opposite the injector. Be very careful not to get too close to the engine, and keep your eyes open to prevent any accidents.
As the engine runs, listen carefully for an audible clicking sound coming from the injector. Repeat this process for each injector. If you come across one that is not clicking, there is likely an issue with that injector or the electronic control transmitting to it.
While this method can be useful for diagnosing a faulty fuel injector, keep in mind that there may be other issues with your fuel injectors that this test will not reveal. Additionally, always exercise caution when working with a running engine to avoid injury.
Fuel Injectors: Harmful or Helpful?
You may want to see also
Explore related products
Testing the internal resistance of the fuel injector
To begin the test, ensure that your Ford F150's engine is cold. It is recommended to let the engine cool down completely if it has been running for an extended period. This is important because the engine temperature can affect the resistance readings.
The tool required for this test is a multimeter, which measures the internal resistance of the fuel injector in Ohms. You can purchase or upgrade a multimeter suitable for automotive diagnostic testing if needed.
Once you have your multimeter, follow these steps:
- Set the multimeter to the appropriate setting, typically the Ohms (Ω) setting, to measure resistance.
- Disconnect the fuel injector from its electrical connector.
- Connect the multimeter leads to the fuel injector's terminals. Ensure a secure connection by consulting the multimeter's instructions for proper lead placement.
- Read the resistance value displayed on the multimeter.
- Compare the measured resistance value to the manufacturer's specified range, which is typically between 10 and 18 Ohms for Ford F150 fuel injectors.
If the measured resistance falls within the specified range, the fuel injector does not have an internal short or open-circuit problem. However, you should still proceed to check for clogging or other potential issues.
On the other hand, if the resistance is outside the specified range, it indicates a faulty fuel injector. Common causes include a shorted internal coil winding or an open circuit.
Fuel Injector Issues: Running Rich and Solutions
You may want to see also
Explore related products
Checking the spray pattern
To check the spray pattern, you will need to remove the injector wiring harness. You may need to move a slide lock before you can press down on the tabs to remove the wiring harness. Once the harness is removed, set your DVOM to measure ohms. Place the meter leads on the prongs inside the connector, ensuring they do not touch each other.
The next step is to test the spray pattern. You can do this by using a basic tool kit that includes a hand-held DIY fuel injector cleaning tool. This tool allows you to pulse (or activate) the fuel injector while it is connected to a spray can of brake cleaner. This will help you visually check the injector's spray pattern and see if it is clogged.
A clogged fuel injector will usually spray in a squirt or stream instead of a fine mist. The ability of the fuel injector to atomize (spraying a fine mist) is critical for complete fuel combustion within the cylinder. When the fuel injector cannot do this, the engine cylinder will underperform.
Diagnosing Faulty Fuel Injectors in Your BMW E46
You may want to see also
Explore related products
Removing the upper intake manifold
To remove the upper intake manifold, you will need to first locate the fuel injectors. These can usually be found on the intake manifold and are connected to one another by a fuel rail. The fuel rail is a cylindrical rail that runs along the top of the intake manifold, and each fuel injector sits between the fuel rail and the intake manifold.
Once you have located the fuel injectors, the next step is to remove the injector wiring harness. You may need to move a slide lock to press down the tabs and remove the wiring harness.
Next, you will need to remove any plastic panels that are blocking access to the injectors. These are typically secured by bolts and can be removed with a basic socket set and an extension.
Now, you can begin to remove the upper intake manifold. This process will vary depending on your specific vehicle, so it is recommended to refer to the service manual for your car. However, as a general guide, you will need to loosen and remove any bolts or clamps holding the manifold in place. You may also need to disconnect any hoses or lines connected to the manifold.
Be careful not to damage any of the components during removal, and place the manifold in a safe location once it is removed. It is also important to note that removing the upper intake manifold is not always necessary when testing fuel injectors, and there are diagnostic strategies available to help you eliminate variables before testing.
Signs of a Bad Fuel Injector: What to Look For
You may want to see also
Explore related products
Checking for symptoms of a bad fuel injector
Firstly, it's important to understand the role of fuel injectors in your vehicle. Fuel injectors spray fuel into the cylinders of your engine, where it combines with air and is compressed before ignition by the spark plug, ultimately powering your vehicle. As a result, a faulty fuel injector can cause poor engine performance or even engine failure.
Now, let's discuss some specific symptoms and tests to identify a problematic fuel injector:
- Engine Cylinder Misfire: One of the most common symptoms of a bad fuel injector is an engine cylinder misfire. This can occur when the fuel injector fails to inject fuel or doesn't inject enough, causing incomplete combustion. You may notice this as a rough idle, lack of power, or hesitation during acceleration.
- Check Engine Light: If your "Check Engine Light" (CEL) is illuminated, it could indicate an issue with one or more fuel injectors. You can use an OBDII scanner to check for specific error codes related to cylinder or injector issues.
- Fuel Economy: Keep an eye on your fuel economy. A faulty injector can affect fuel combustion, leading to decreased fuel efficiency. You may notice that you need to press harder on the gas pedal to maintain the same speed, indicating a potential issue with the fuel delivery system.
- Spray Pattern: The spray pattern of the fuel injector is critical for effective combustion. A clogged injector may still spray fuel but in a squirt or stream instead of a fine mist. This can be visually inspected using a brake cleaner spray with an adapter tool or a handheld DIY fuel injector cleaning tool kit.
- Internal Electrical Problems: Fuel injectors can suffer from internal electrical issues, such as short circuits or open circuits, which can prevent them from functioning properly. You can test the internal resistance of the fuel injector using a multimeter or an ohm meter to ensure it is within the normal range.
- Audible Clicking: A simple test to identify a faulty injector is to use a long, thin screwdriver or metal rod to listen for an audible clicking sound from each injector. Place one end of the screwdriver or rod on the injector and bring the other end to your ear. A lack of clicking may indicate an issue with the injector or its wiring.
Remember, it's important to refer to your vehicle's service manual for specific information about the location and type of fuel injectors in your F150. Additionally, if you encounter any difficulties or uncertainties during the testing process, it's best to consult a professional mechanic for further diagnosis and repair.
Fuel Injector Issues: Code P0171 and Bad Injectors
You may want to see also
Frequently asked questions
The fuel injectors in your F150 are usually located on the intake manifold and are connected to one another with a fuel rail. You can refer to the service manual for your vehicle to locate them.
A bad fuel injector will cause your F150 to misfire at idle and while the vehicle is being accelerated. You might also notice a lack of power, bad gas mileage, and the check engine light turning on.
You can test the fuel injectors electrically with an ohm meter. You can also use a long metal rod or screwdriver to listen for a clicking sound, which indicates that the injector is being activated.
If you find a faulty fuel injector, you may need to replace it or have a diagnostic done of your vehicle's electronic control unit and fuel system by a professional mechanic.
It is important to ensure that the engine is not running during the test. You should also be careful not to touch any moving parts or hot components.
