The fuel injector is a common issue in the Nissan 240SX, which can cause the engine to run roughly and idle poorly. Testing the fuel injector is a straightforward process that can be performed using a digital multimeter. This guide will cover the testing process for the 1995-1998 Nissan 240SX, with slight variations for the S13 model. By following these steps and referring to the fuel injector wiring diagram, you can easily determine whether your fuel injector is functioning properly or needs to be replaced.

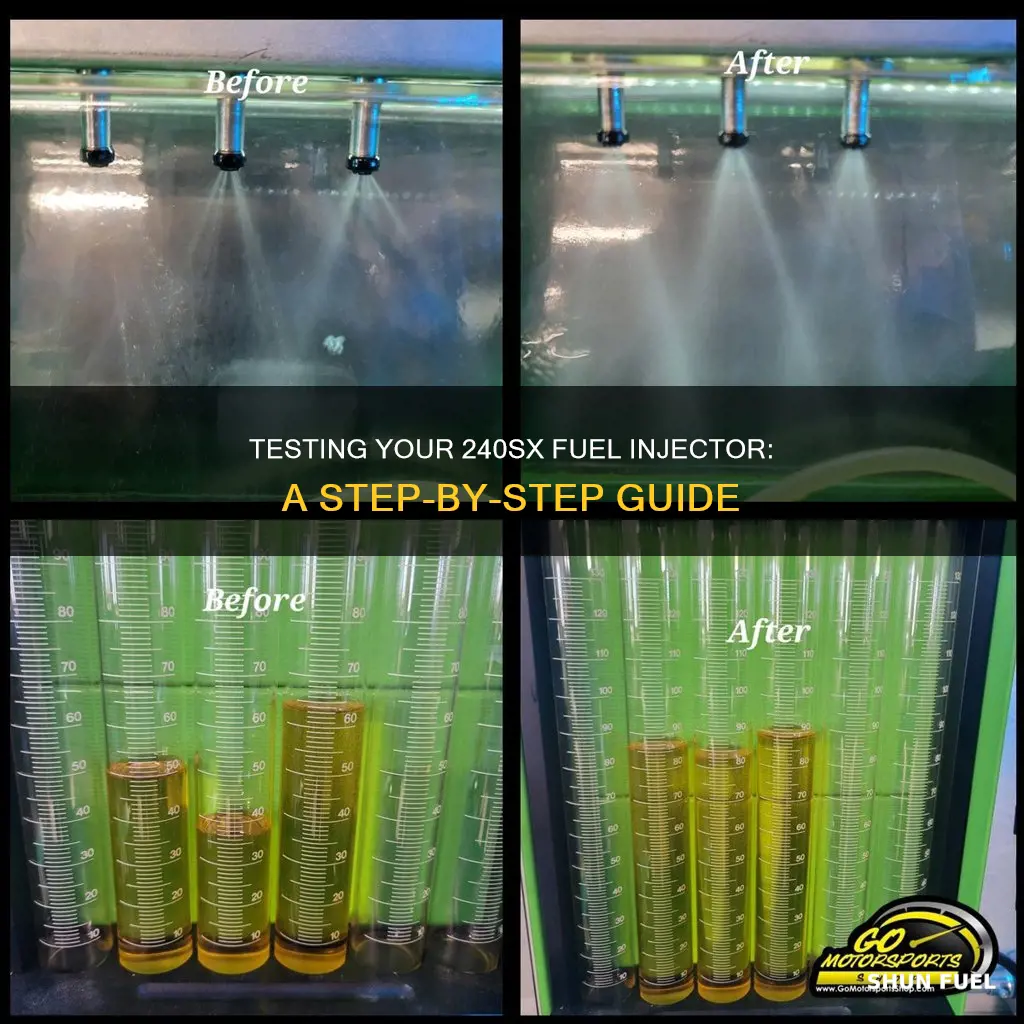

Testing a fuel injector on a Nissan 240SX
| Characteristics | Values |
|---|---|
| Tools | Digital multimeter, noid light, ohmmeter |
| Steps | 1. Measure the pins on the side feed fuel injector to check for clogs or internal failure. 2. Check the resistance of the fuel injector connectors. 3. Check the wiring connector with an automotive noid light. 4. Check the voltage of the red and black wires with the ignition on and off. 5. Test all injectors if there is a generic engine misfire code. 6. Pull the fuel rail and check for spray. |
Explore related products
What You'll Learn
Using a digital multimeter to check for clogging
To check for clogging in your 240SX fuel injector, you can use a digital multimeter to test the internal windings. This process will help you determine whether the injector is clogged or has failed internally, causing your 2.4-liter KA24DE engine to run rough, idle roughly, or exhibit poor performance.
- Open the hood of your Nissan 240SX and locate the fuel injectors. Refer to your vehicle's service manual or online resources to identify their location. For the 1995-1998 Nissan 240SX, the side feed injector clips can be found along the passenger side of the engine, mounted near the intake manifold.
- With your vehicle turned off, disconnect the electrical connector for one of the fuel injectors.
- Set the dial of your digital multimeter to measure resistance or OHMS.
- Gently probe the two pins of the fuel injector with the multimeter.
- Observe the resistance value displayed on the multimeter. For the 1995-1998 Nissan 240SX, the resistance value should be between 9 and 14 OHMs Ω. If you own an S13 model, the value should be slightly different, falling between 8 and 12 OHMs Ω.
- Repeat this process for each fuel injector, reconnecting the previous connector before moving on to the next one.
- If any of the resistance readings fall outside the specified range, it indicates a potential clog or internal failure of that particular fuel injector.
- In the case of abnormal resistance readings, the faulty injector will need to be repaired or replaced to restore optimal engine performance.
By following these steps and using a digital multimeter, you can effectively check for clogging in your 240SX fuel injectors and identify any injectors that require maintenance or replacement.
