Mercedes Mullins

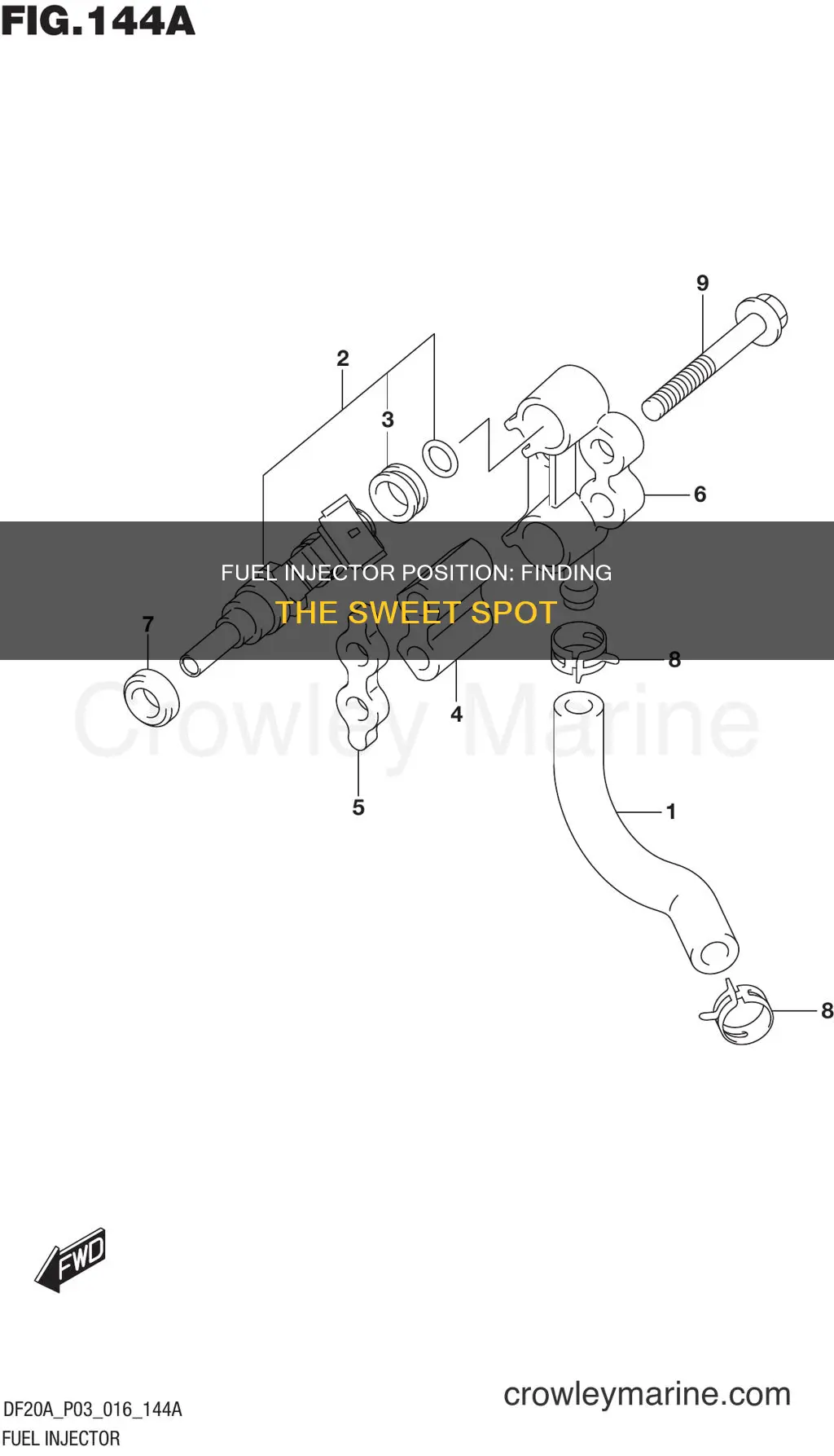

Fuel injectors are an important part of a vehicle's engine, spraying fuel into the cylinders to power the engine. When fuel injectors malfunction, they can cause issues like rough idling, knocking, poor mileage, and smoky exhaust. To test fuel injectors, the vehicle's electrical system must be active without the engine running. This involves turning the key to the on position and testing each wire coming out of the fuel injectors. A listening test can also be performed by placing the tip of a screwdriver on the injector and putting your ear on the handle to listen for a clicking sound. Additionally, leaks around the injector may indicate a problem with the O-ring seals. While injector placement and angle can vary, the nozzle location should ideally be as parallel to the airflow stream as possible, maintaining a proper intercept angle for optimal engine performance.
Characteristics and Values of Fuel Injector Positioning
| Characteristics | Values |
|---|---|
| Fuel Injector Location | Upper or Lower |
| Injector Type | EFI (Electronic Fuel Injection) |
| Injector Placement | Upstream or Downstream |
| Nozzle Location | Perpendicular or Parallel to Airflow Stream |
| Nozzle Angle | Not More Than 45 Degrees |
| Spray Pattern | Towards Valve or Backside of Valve |
| Injector Size | Large or Small |
| Fuel Film and Atomization | Affected by Nozzle Location and Spray Pattern |
| Engine Type | Stock or Race |
| Engine Constraints | Idle Quality, Emissions, Fuel Mileage, Packaging Constraints |
| Fuel Injector Testing | Listening Test, Leak Check, Diagnostic Scanner |
Explore related products
What You'll Learn
- Fuel injector location can vary depending on the engine and application
- The nozzle location should be as parallel to the airflow stream as possible
- The spray pattern can be affected by injector placement
- The vehicle's electrical system must be active to test fuel injectors
- Fuel injectors can be identified by a clicking sound when the engine is idling
Fuel injector location can vary depending on the engine and application
Fuel injectors are designed to spray fuel into the cylinders of an engine, where it is combined with air. The location of the fuel injectors can vary depending on the engine and application.
There are several observable trends from research on injector location, but individual engines may deviate from theory or previously observed trends. There are three factors that must be considered: idle quality (including emissions in an OEM smog-legal application), proper fuel/air atomization, and the physical constraints of the engine and intake-manifold configuration. These factors determine the injector location and angle within the intake manifold's inlet runner. Ideally, the nozzle location should be as parallel to the airflow stream as possible.
The injector placement can be either closer to the valve (downstream, near the cylinder head) or closer to the air meter (upstream, towards the top of the inlet runner). A stocker engine is primarily concerned with idle quality, low emissions, fuel mileage, and engine-compartment packaging constraints. The fuel-injector capacity of a stocker is low compared to a race engine, while inlet-runner velocity and low-speed vacuum are high. The small-capacity nozzle creates a good spray pattern that disperses uniformly within the incoming air stream. With good atomization, the nozzle can be located downstream, close to the valve.
On the other hand, high-idle vacuum generated by mild stock engines allows for placing the injector farther upstream without significant low-speed driveability degradation. Additionally, downstream injector placement simplifies system packaging and makes it easier to mount the fuel rails. However, with really large injectors (over 96 lb/hr), the spray pattern becomes less effective, and the injector should be placed farther from the valve to allow more time for the air/fuel to atomize properly.
Unclogging Fuel Injectors: DIY Cleaning Methods and Solutions
You may want to see also
Explore related products
The nozzle location should be as parallel to the airflow stream as possible
The nozzle angle in relation to the airflow stream is known as the "intercept angle". The ideal intercept angle is dependent on the engine's inlet airspeed at idle. The lower the inlet airspeed at idle, the more important it is to maintain the ideal angle. Maintaining the proper intercept angle generally helps low-speed driveability and may also improve performance throughout the engine's operating band.
According to Strader, the intercept angle should "not be more than 45 degrees, although it can be less". In most factory EFI setups, the injector sprays towards the valve, or parallel to the airflow stream. This is in contrast to most aftermarket companies, which design their intakes so that the injectors sit vertically, perpendicular to the airflow path.
The nozzle location and angle are important factors in injector performance. The spray pattern of the fuel injector can be affected by the nozzle location, and vice versa. For example, a nozzle located downstream, close to the valve, will have a good spray pattern that disperses uniformly within the incoming air stream. This ensures that the available fuel is used most efficiently.
If the nozzle location is not ideal, a different spray pattern may be required. The only way to know is to be prepared to test and swap parts if necessary.
Fuel Injector Maintenance: Are They Plugged or Not?
You may want to see also
Explore related products
The spray pattern can be affected by injector placement
The spray pattern of a fuel injector is influenced by its placement in the engine. Injectors are designed to spray fuel into the engine's cylinders, where it mixes with air and combusts. The spray pattern can vary depending on the injector's position, such as whether it is mounted above a valve or directly in the airstream. For example, an injector with a wide "V"-shaped spray pattern may not work optimally if it misses the intake valves.
The orientation of the injector nozzle and its location in the manifold can impact the spray pattern. When changing injectors or adding another row, the nozzle location may differ, affecting the fuel film and atomization. If the spray pattern differs from the original injector, a change in location may be required to achieve the desired spray pattern. Alternatively, an injector with a similar spray pattern to the original should be used.
The geometry of the injector nozzle and its fuel flow characteristics play a significant role in the fuel atomization process. The number and arrangement of holes in the injector plate influence the spray pattern and fuel atomization. For instance, a single-hole injector will produce a narrow spray, while a two-hole injector can direct the spray to the back of one or two intake valves. The angle of the holes also affects the spray pattern.
Additionally, the size of the injector and its positioning can impact the engine's performance and fuel atomization. For example, larger injectors may struggle to achieve a stable idle AFR due to incorrect positioning. In some cases, poor atomization may be caused by the spray pattern not adequately covering the intake port or runner wall, resulting in larger fuel droplets that condense on the port walls.
Troubleshooting Fuel Injectors in Your 2004 Chevy Classic
You may want to see also
Explore related products
The vehicle's electrical system must be active to test fuel injectors
To test fuel injectors, the vehicle's electrical system must be active without the engine running. This means inserting the key and turning it to the "on" position without engaging the engine's starter. This step is crucial as it ensures that all the vehicle's electronics, such as interior lighting and the radio, are activated. It is important to be cautious and avoid accidentally starting the vehicle. If this happens, simply turn it off and try again. During this test, the vehicle's battery powers everything, so it is advisable to turn off non-essential components like the headlights and stereo to conserve power and ensure sufficient battery life to restart the vehicle later.
With the electrical system active, the next step is to locate the wires connected to the fuel injectors. Each fuel injector will have a metal clip with two wires, typically grey and black but potentially other colours. One of these wires is a 12-volt constant that should continuously receive power from the vehicle's electrical system. To verify this, a test light can be used. A test light is a tool that resembles a screwdriver with a pointed end and a wire hanging from the handle. When it comes into contact with a powered circuit, a light bulb inside the handle illuminates.
To test the wires, wrap any exposed wiring with electric tape to ensure safety. Then, connect the alligator clip from the test light to the positive terminal of the battery, identified by a "+" sign or the letters "POS". Ensure a secure metal-to-metal connection for accurate results. Next, use the sharp end of the test light to penetrate the rubber coating around each wire, firmly pressing until it contacts the metal wiring. A lit test light indicates that the wire is receiving power, while a non-responsive light suggests a potential issue with the fuel injector.
It is important to test each wire coming out of the fuel injectors, as a problem with one injector does not necessarily mean the others are unaffected. If an injector with a power issue is identified, make a note of it and continue testing the remaining injectors. Additionally, follow the wires on the non-functional injectors to check for breaks that may be disrupting the electrical current. This comprehensive testing approach ensures that any issues with the fuel injectors are identified and can be addressed accordingly.
Fuel Injector Clogs: Do They Cause RPM Surges?
You may want to see also
Explore related products
![12613411 Upgraded 4-hole [4.8/5.3/6.0L] Fuel injectors Fit for:-Chevy Avalanche 2010-2013, Colorado 2010-2012, Tahoe 2010-2014; Fit for:-GMC Yukon 2010-2014, Canyon 2010-2012 - 8Pcs](https://m.media-amazon.com/images/I/71EjgN22ouL._AC_UL320_.jpg)
Fuel injectors can be identified by a clicking sound when the engine is idling
Fuel injectors are designed to spray fuel into the cylinders of your engine, where it is combined with air and ignited by spark plugs to power the engine. They are usually located on the engine manifold, positioned on top of the engine.
It is important to note that fuel injectors wear out over time, and problems can occur sooner than expected. They can get clogged, sensors can malfunction, and residue can build up, causing issues with the fuel injector. Therefore, it is recommended to regularly check the fuel injectors and take necessary actions, such as cleaning or replacing them, to ensure optimal engine performance.
Additionally, when working with fuel injectors, it is crucial to prioritize safety. Wear protective gear, such as work gloves, eye protection, and coveralls, to shield yourself from debris and fuel. Work in a well-ventilated area, avoid smoking or open flames, and always refer to your vehicle's owner's manual for specific instructions and safety precautions.
Fuel Injector Cleaner: Can It Clean Catalytic Converters?
You may want to see also
Frequently asked questions
There are several ways to test fuel injectors. One way is to use a screwdriver and your ear. Start the engine and let it idle. Place the tip of a long metal screwdriver against one of the fuel injectors and put your ear to the handle. If you hear a clicking sound, the injector is working. No sound may indicate that the injector needs to be cleaned or replaced. You can also look and smell for leaks. Shine a light under the hood and check for leaking gas or the smell of gasoline.
Fuel injectors are located on the engine manifold, which is on top of the engine.
The ideal position for a fuel injector is one that achieves a "proper intercept angle". This is the angle of the nozzle in relation to the airflow stream. The nozzle location should be as parallel to the airflow stream as possible, but no more than 45 degrees.
If you are using a tall setup, it is recommended to use the upper location.
