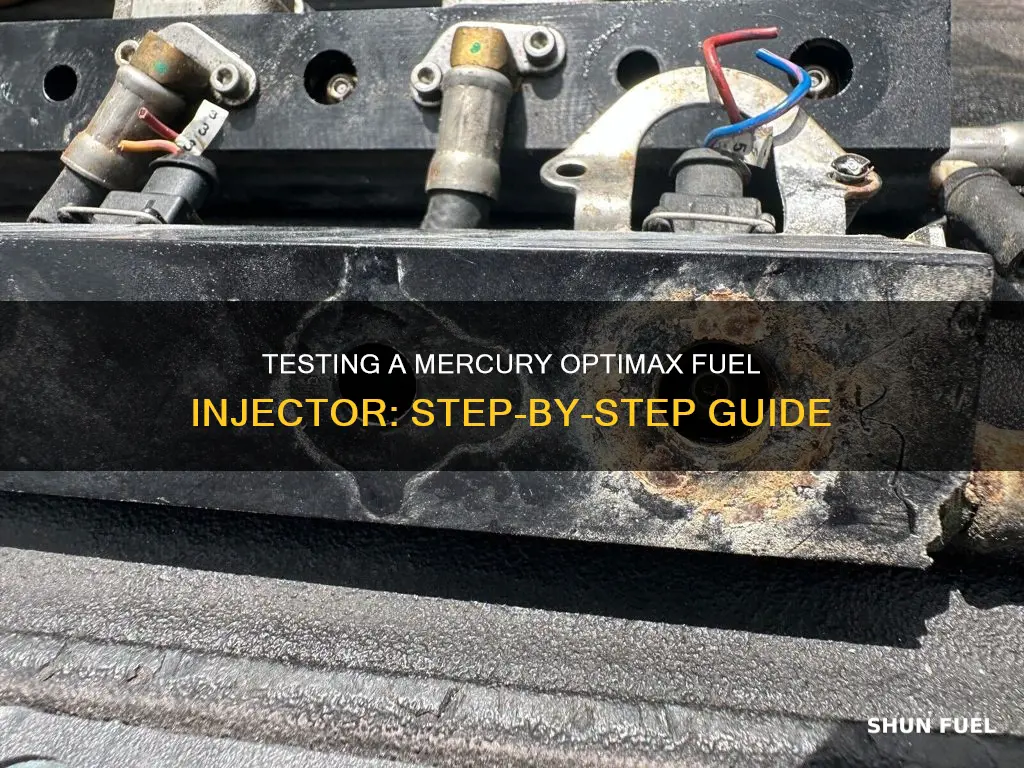

The Mercury Optimax fuel system is a finely tuned direct fuel injection system that uses a combination of high-pressure fuel and air to inject an atomized mixture of gas directly into the combustion chamber. The fuel injectors are prone to clogging and damage, especially in saltwater environments, and require regular maintenance and testing to ensure optimal performance. Testing the fuel injectors involves checking the ohm resistance, performing a spray test, and verifying the spray pattern to ensure uniform atomization of fuel. Ultrasonic cleaning and dynamic flow testing are also recommended to maintain reliable performance under varying load and RPM scenarios.
| Characteristics | Values |
|---|---|
| Fuel System | Direct fuel injection system |
| Injector Type | Fuel and air injectors |
| Fuel Type | High-pressure fuel |
| Fuel Pumps | 3 fuel pumps, a pulse-operated lift pump, and 2 electric pumps |
| Fuel Rail | Fuel flows to the fuel rail and is cooled by seawater |
| Fuel Pressure Regulator | Installed on the fuel rail to relieve excess pressure |
| Air Injector | Fed via a belt-driven air compressor |
| Air Compressor | Injecting pressurized air and fuel |
| Fuel Injector Testing | Spray pattern testing, static flow test at 5 bar, dynamic flow testing |
| Fuel Delivery Problems | Clogged or damaged fuel injectors |
| Fuel Injector Cleaning | Ultrasonic cleaning, multiple stages of heated treatment |
| Fuel and Air Rail Service Kits | 10 psi or 14 psi spring |
| Fuel Pressure Adjustment | CDS program and electronic pressure transducer |
| Fuel Injector Maintenance | Ohm resistance check, adding oil to the fuel, using Quickleen |
| Fuel Injector Issues | No fuel through injectors, faulty direct injector |
| Fuel Injector Removal | Screwdriver or cotter pin tool |
Explore related products
What You'll Learn
Ultrasonic cleaning
The ultrasonic cleaning process is an advanced method of cleaning that is offered by some companies, such as Injector-Rehab and MRP Fuel Injection. This process is designed to ensure the optimal performance of the injectors and the engine as a whole. It is a detailed and meticulous process that involves several stages of testing and verification.
Firstly, the injectors are ultrasonically cleaned, removing any built-up deposits, varnish, or contaminants. This step is crucial, especially for saltwater boating environments, as Optimax injectors are prone to corrosion due to the lack of oil passing through them.
After the initial cleaning, a series of tests are conducted to ensure the proper functioning of the injectors. One such test is the spray pattern test, where technicians inspect and verify the spray pattern of each injector. This step ensures that the fuel is atomized uniformly, which is vital for optimal combustion and engine efficiency.
Following the spray pattern test, a static flow test at 5 Bar is performed to measure the injector's fuel delivery at a standardized pressure. This test ensures consistent and accurate performance, providing valuable data for comparison.
Finally, dynamic flow testing is carried out to simulate real-world conditions. This comprehensive evaluation tests the injectors' performance under varying load and RPM scenarios, guaranteeing their reliability and optimal functioning.
Overall, the ultrasonic cleaning process for Mercury Optimax fuel injectors is a detailed and thorough procedure. It involves multiple stages of cleaning, testing, and verification, ensuring that the injectors are free of debris, functioning correctly, and delivering optimal performance for the engine.
Checking Fuel Injectors: A Step-by-Step Guide to Testing
You may want to see also
Explore related products
Testing flow rates
Testing the flow rates of your Mercury Optimax fuel injectors can be done in several ways. One method is to use a 12-volt radio battery to jump the injector after turning on the fuel pump. If the injector opens, the voltage source is functioning properly. Alternatively, you can test the flow rate by checking the ohm resistance of the injectors before making any adjustments.
Another way to test the flow rate is to use a noid light tester, which is a tool used to diagnose fuel injection issues. This tool can help determine if the injectors are receiving electrical signals and firing properly. You can also perform a spray test by spraying fuel into the plenum to see if the engine fires up.
It is also recommended to test the flow rates at idle and wide open. This can be done by removing the fuel injectors with a screwdriver or cotter pin tool, and sending them to a reputable shop for testing and cleaning if needed.
Additionally, a dynamic flow test can be conducted to simulate real-world conditions and evaluate the performance of the injectors under varying load and RPM scenarios. This comprehensive evaluation ensures reliable performance. After testing, it is standard to receive a detailed flow data sheet documenting the performance metrics of each injector, providing transparent information about the improvements made during the service.
When to Use Berryman Fuel Injector Cleaner?
You may want to see also
Explore related products
Spray pattern testing
Understanding the Mercury Optimax Fuel Injection System:
The Mercury Optimax fuel injection system is a finely tuned direct fuel injection system that combines high-pressure fuel and high-pressure air to inject an atomized mixture directly into the combustion chamber. This system consists of air injectors, fuel injectors, multiple fuel pumps, and ignition coils. The air and fuel injectors work in harmony, with fuel flowing into the air injector, which then injects the mixture into the cylinder for combustion.
Preparing for Spray Pattern Testing:
Before conducting spray pattern testing, it is essential to address any potential issues with the Mercury Optimax fuel injectors. Common problems include clogging, corrosion, and damage, especially in saltwater boating environments. Therefore, it is recommended to have the injectors professionally cleaned using ultrasonic cleaning methods to ensure optimal performance during testing.
Conducting Spray Pattern Testing:
The spray pattern test evaluates the spray pattern, flow rate, and leakage of the fuel injectors. Here is a step-by-step guide:
- Remove the Injectors: Carefully remove the fuel injectors using a screwdriver or a specialized tool, depending on the injector type.
- Send for Testing: Reputable shops, such as Brucato, offer flow rate testing services at idle and wide-open throttle positions. They will test for spray patterns, flow rates, and leaks.
- Results and Reporting: After testing, a comprehensive test report is prepared, recording the results for spray patterns, flow rates, and leaks. This report provides valuable insights into the performance and condition of the fuel injectors.
- Injector Maintenance: Depending on the test results, new components, such as filter baskets, O-rings, and pintle caps, may be installed. The injectors are then lubricated and sealed in Poly bags to maintain their condition until reassembly.
Additional Considerations:
- Prevention and Maintenance: Regular maintenance and cleaning of the fuel injectors can help prevent issues. Some Mercury Optimax owners suggest adding a little oil to the fuel or using a premix to provide lubrication to the injectors and prevent corrosion.
- Professional Services: Specialized injector service providers offer comprehensive cleaning, testing, and replacement services. They have the necessary equipment and expertise to ensure the optimal performance of your fuel injectors.
By following these steps and working with reputable service providers, Mercury Optimax owners can ensure accurate spray pattern testing and maintain the performance and longevity of their fuel injectors.
Cleaning Fuel Injectors: DIY Guide to Fix Dirty Injectors
You may want to see also
Explore related products
Static flow testing
During the static flow test, the injectors are held fully open (i.e. static) and are tested for a specific duration at a particular fuel pressure. The standard test conditions are 15 seconds at 43.5 psi or 3 BAR. The test measures the volume of fuel that passes through the injector at this pressure and time. The results are given as a measure of volume, for example, a 36lb or 1000cc injector.
When testing Mercury Optimax fuel injectors, it is important to consider the unique design of the system. The Optimax system uses both fuel and air injectors, with the fuel injector mounted to flow fuel into the air injector. This system is more complex than traditional fuel injection systems and is prone to issues caused by high-ethanol content fuel. As such, it is recommended to have the injectors regularly tested and cleaned by a reputable service.
Chrysler 300 Fuel Injectors: Understanding Ohm Range
You may want to see also
Explore related products
Dynamic flow testing
During dynamic flow testing, the injectors are tested under a range of pressures from 200 RPM to 10,000 RPM at different duty cycles. The injector set should deliver the same amount of fuel for each RPM range and duty cycle to ensure consistent performance. This type of testing not only reveals if the injectors flow uniformly at each testing point but also indicates if injector latency, or the time it takes for the injector to open and close, remains consistent. By simulating real-world scenarios, dynamic flow testing provides valuable insights into the injector's performance and health.
Additionally, dynamic flow testing includes dynamic ultrasonic cleaning, where the injectors are placed in an ultrasonic cleaning tank and electronically cycled on and off while being ultrasonically cleaned with detergents. This process agitates and dislodges any particles and buildup, both inside and outside the injectors, ensuring they are thoroughly cleaned.
For Mercury Optimax fuel injectors, dynamic flow testing can be particularly beneficial due to the unique and intricate nature of the injection system. The Optimax system combines high-pressure fuel and air to inject an atomized mixture directly into the combustion chamber. As a result, both the fuel and air injectors are prone to corrosion and clogging, especially in saltwater boating environments. Dynamic flow testing can help identify any issues with the injectors and ensure their optimal performance, which is critical for the overall functioning of the engine.
The Right Fuel Injector for Your 2008 Passat
You may want to see also
Frequently asked questions
If your engine is not firing up, there could be an issue with the fuel injectors. Check that there is a good spark and that fuel is being pumped to the rail. If there is no fuel passing through the injectors, they may need to be serviced.
You can test the injector with a 9-volt battery. Take the injector lead off and jump the injector with the battery after the fuel pump is on. If the injector opens, the voltage source is not the issue.
You can clean your fuel injectors by sending them to a specialist company, which will use an ultrasonic cleaning process to remove deposits, varnish, and contaminants.
It is recommended to service your Mercury Optimax fuel injector when you notice any issues with your engine's performance. However, it is also a good practice to have them regularly inspected and cleaned to ensure optimal performance.
