If you're experiencing issues with your 1997 4.6L Ford F150's fuel injector, it's likely due to a faulty fuel injector connector. Broken fuel injector connectors are one of the most common problems with the 4.6L Ford engine, specifically the plastic locking tabs of the connector. Before testing, ensure you have the right tools and equipment, such as a multimeter, a fuel pressure gauge, and a noid light. To test the fuel injector, start by checking the fuel pressure, which should be within the manufacturer's specified range. If the fuel pressure is abnormal, it may indicate a problem with the fuel pump or fuel pressure regulator. Next, use a noid light to check the injectors for power, and then perform a spray test to check the spray pattern and volume. Additionally, you can test the internal resistance of the fuel injector using a multimeter. By following these steps, you can diagnose and address issues with your 1997 F150's fuel injector connector.
| Characteristics | Values |
|---|---|
| Engine | 4.6L |
| Vehicle Type | Ford F150, F250, E150, E250, Expedition |
| Year | 1997-2002 |
| Symptoms of a Bad Fuel Injector | Misfiring at idle and while accelerating, rough idle, lack of power, hesitation when accelerating |
| Tools Required | Multimeter, fuel pressure gauge, noid light, hand tools, pen and paper |
| Steps to Test Fuel Injectors | 1. Check fuel pressure; 2. Use noid light to check for power; 3. Check injectors for resistance; 4. Perform spray test |
| Fuel Injector Connector Issue | Broken locking tabs on the connector |
Explore related products
What You'll Learn

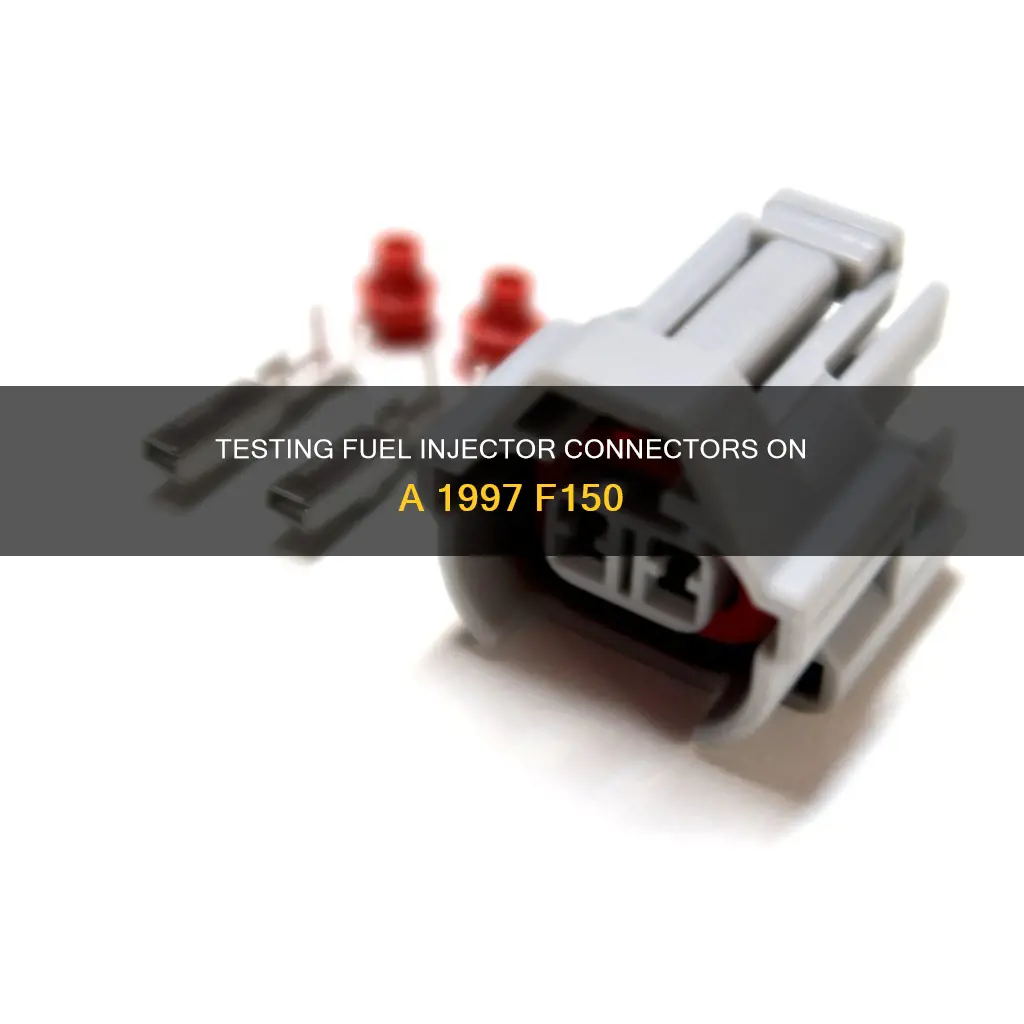

Check for broken locking tabs on the connector
When testing a bad fuel injector on your 1997 F150, it is important to check for broken locking tabs on the connector. Broken locking tabs on the connector are one of the most common problems with the 4.6L Ford engine. These locking tabs are usually made of plastic and can break over time, causing the connector to make false contact with the fuel injector.
Before you begin any testing, it is recommended to inspect all the fuel injector connectors to identify any broken locking tabs. If you find any connectors with broken locking tabs, it is likely that you have found the root cause of the issue. This is because the broken locking tabs can lead to improper contact between the connector and the fuel injector, resulting in the fuel injector not functioning correctly.
If you do find broken locking tabs, there are a few options for addressing the issue:
- Leave the connector as it is: Although this option is not ideal, you may choose to leave the connector with broken locking tabs as it is. While it will be loose, it might still function to some extent. However, this is not a recommended long-term solution as it can lead to further complications.
- Use nylon ties or similar materials to secure the connector: Another temporary solution is to use nylon ties or similar materials to tie and secure the connector in place. However, this is not a permanent fix and may not provide a reliable connection.
- Purchase new connectors with wiring: You can opt to buy new connectors that come with wiring. This option allows you to re-solder the connections, providing a more permanent solution. However, it can be challenging to find electrical tape with the same characteristics as the original wires, which may impact the overall quality of the repair.
- Buy replacement plastic connectors: This is often the cheapest and most effective solution. You can purchase just the plastic connectors from suppliers like Rockauto and replace only the damaged parts. This option allows you to avoid the need for soldering and provides a secure connection.
- Acquire a complete injector harness: As a last resort, you can choose to buy a complete injector harness. While this option is the most expensive, it ensures that you have a fully functional and undamaged setup.
By following these steps and addressing any broken locking tabs on the fuel injector connectors, you can effectively troubleshoot and resolve issues with your 1997 F150's fuel injector system.
Fuel Injector Clogs: Do They Cause RPM Surges?
You may want to see also
Explore related products
Test the fuel injector's internal resistance
To test the fuel injectors' internal resistance on a 1997 4.6L Ford F150, you should start by checking the internal resistance of all eight fuel injectors. The resistance specification is 11 to 18 Ohms.
Before you begin, inspect all the fuel injector connectors to see if any have broken locking tabs. Broken fuel injector connectors are one of the most common problems with the 4.6L Ford engine, and if you find any, there's a good chance that's what's causing the fuel injector to malfunction. The locking tabs can cause the connector to make false contact with a fuel injector.
Your vehicle's engine should be cold when conducting the resistance test. If the engine has been running, let it cool down completely. Then, disconnect the fuel injectors from their engine wiring harness connectors.
You can use a multimeter to conduct a resistance test. Alternatively, you can use a screwdriver as a stethoscope to listen for an audible tick that goes with the engine speed. If it's not clicking, it could be a problem with the injector, wiring, or PCM injector drivers.
Fuel Injector Driver: DIY Guide to Building Your Own
You may want to see also
Explore related products
Check the fuel pressure
Checking the fuel pressure of your 1997 F150 is important to ensure that your truck is running optimally. Low fuel pressure can cause various issues, including surging idle, stumbling, poor acceleration, lack of power, and poor top speed. To check the fuel pressure, follow these steps:
Firstly, it is important to note that fuel pressure must be checked while the engine is making power. This means running the fuel pressure gauge inside the cab of the truck or taping the gauge to the cab's cowl, outside the windshield, where it is visible to the driver. Ensure that you are taking the necessary safety precautions when working with fuel-related components. Do not smoke or have any open flames or light sources near the engine.
Next, you will need to install a fuel pressure test kit onto the fuel pressure relief valve. Cycle the ignition key to the 'on' position and wait a few seconds for the fuel system to pressurize. Before starting the engine, check for any leaks in the system. Then, test the fuel system pressure to ensure it is within the specified range. For a 1997 F150, the Key On, Engine Off (KOEO) fuel pressure should be between 30-45 psi, and the Key On, Engine Running (KOER) fuel pressure should be between 27-42 psi.
If the fuel pressure is below the specified range, there may be an issue with the fuel pump or the fuel pressure regulator. A faulty regulator can cause the pressure to be too high, leading to a rich fuel mixture and potential performance issues. If the pressure is within the acceptable range, but you are still experiencing problems, the issue may lie elsewhere, such as a vacuum leak or a problem with the fuel injectors.
It is always recommended to have a second person present when performing any tests or repairs on your vehicle, especially when dealing with fuel systems. If you are unsure about any aspect of the process, it is best to consult a qualified mechanic to avoid any potential safety hazards or further damage to your vehicle.
Removing and Cleaning Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Use a noid light to check for power
To test a bad fuel injector connector in a 1997 F150, you can use a noid light to check for power. Here's a step-by-step guide:
- Before you begin, it is important to note that broken fuel injector connectors are a common issue with the 4.6L Ford engine. Specifically, the plastic locking tabs on the connector tend to break, so inspect all the fuel injector connectors for any damage.
- Ensure your Ford F150's engine is cold before performing the test. If the engine has been running, allow it to cool down completely.
- Disconnect the fuel injectors from their engine wiring harness connectors.
- Unplug the fuel injector connector from the fuel injector.
- Insert the Noid light into the connector. Make sure to use the correct Noid light for your specific vehicle. Noid light sets typically contain various types, and using the wrong one can damage the female terminals inside the fuel injector electrical connector.
- Stand at a safe distance from the engine but remain within eye view of the Noid light.
- Have an assistant crank the engine. The engine may or may not start.
- Observe the Noid light. You will get one of three results:
- Case 1: The Noid light flashes on and off the whole time the engine is cranking or running. Compare this to another fuel injector connector. If both flashing results are identical, it indicates that the fuel injector is receiving power (12 Volts) and the injector pulse signal from the PCM (Powertrain Control Module).
- Case 2: The Noid light does not flash on and off at all when the engine is cranked or running. This indicates that either power or the fuel injector pulse signal from the PCM is missing.
- Case 3: The Noid light comes on and stays brightly lit the whole time the engine is cranking or running. This usually indicates that the PCM is fried or, in rare cases, that the circuit feeding the fuel injector connector is shorted to ground.
Fuel Injectors From China: Worth the Money?
You may want to see also
Explore related products
Perform a spray test
To perform a spray test on your 1997 F150, you will need to first open the hood and locate the fuel injectors. Refer to the service manual for your vehicle to find them. Once located, you will need to remove the injector to check the spray pattern.
Before you begin, ensure you are wearing the appropriate safety gear, including eye protection and gloves. It is also recommended to perform the test with the engine cold, unless otherwise specified, as temperature variances will change the readings.
Now, attach pressurised air to the injector inlet. Then, attach a 12-volt power and ground source to energise the injector. You should now be able to observe the spray pattern. If the pattern is muted, the injector should be replaced.
You can also observe the spray pattern by connecting a starter switch to the positive on the battery and to terminal 50 on the starter. This will allow you to activate the starter motor and observe the injectors spraying.
Using Two Bottles of Fuel Injector Cleaner: Safe or Not?
You may want to see also
Frequently asked questions
If your engine is running rough, there may be a problem with the vehicle's fuel delivery system. A faulty injector can cause one of the cylinders to not ignite fully, throwing off the engine's balance.
A bad fuel injector will cause your 4.2L Ford F150 to misfire at idle and while the vehicle is being accelerated. You may also experience a rough idle, lack of power, and hesitation when you accelerate.
You will need a multimeter, a fuel pressure gauge, and a noid light. First, check the fuel pressure, then use the noid light to check the injectors for power. Next, check the injectors for resistance, and finally, perform a spray test.
Set the multimeter to measure ohms and place the meter leads on the prongs inside the connector, ensuring they do not touch each other. High-impedance injectors will range from 12 to 17 ohms, while low-impedance injectors will be around 2-5 ohms.
Broken fuel injector connectors are a common problem with the 4.6L Ford engine. Before testing, ensure your Ford vehicle's engine is cold. Check all the fuel injector connectors for broken locking tabs, as this could cause the connector to make false contact with the fuel injector.
