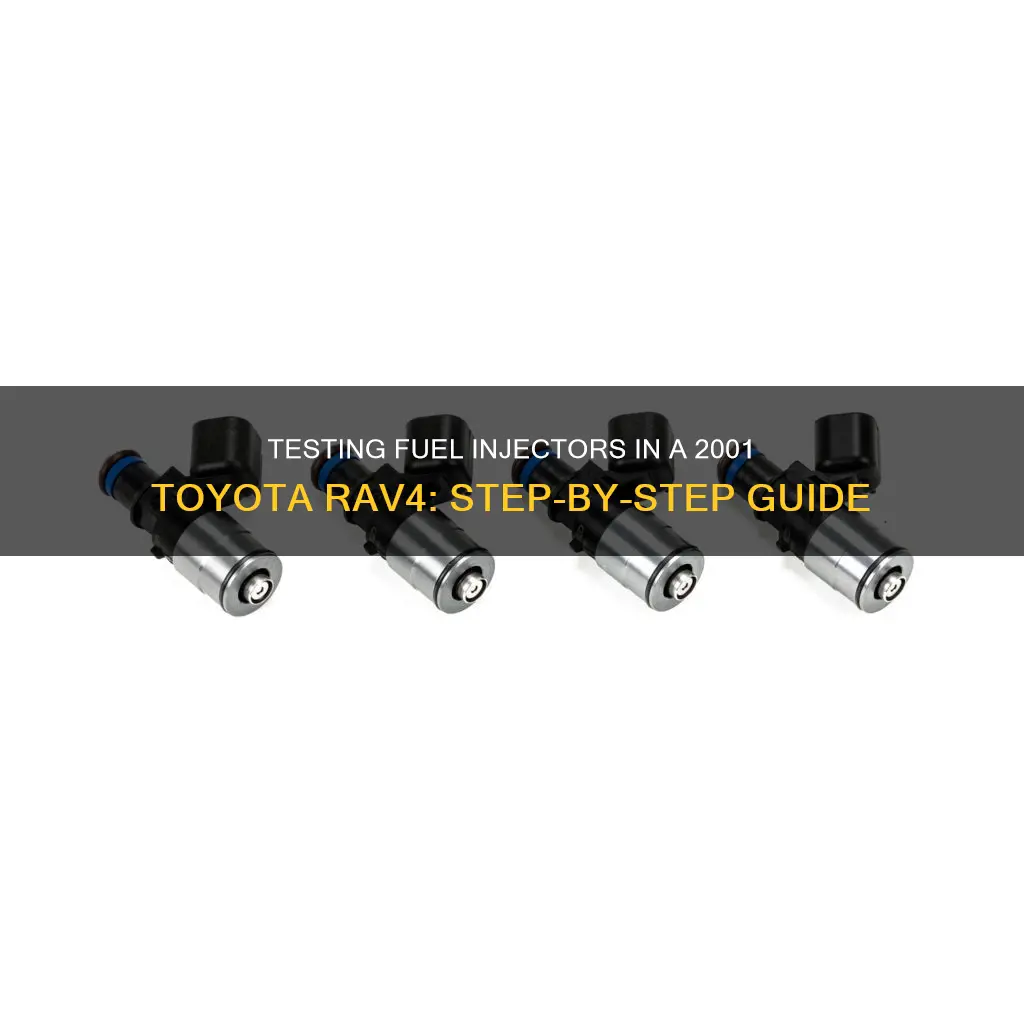

If you're experiencing issues with your 2001 Toyota RAV4, you may need to test or replace the fuel injectors. Common problems include a drop in mileage, poor idling, and leaks. While Toyota RAV4s are generally known to have a reliable fuel injection system, older models with high mileage can develop issues such as worn-out injectors, leaks, and carbon buildup. To test the fuel injectors, you can check for leaks using a propane bottle and hose or soapy water. You can also inspect the airflow meter and the entire feedback circuit through the computer by using a scope to compare injector dwell to airflow signal. Replacing the injectors is also a straightforward process, with easy access for removal and installation.
Explore related products
What You'll Learn
Inspecting and cleaning old injectors
To inspect the injectors, start by checking the airflow meter. The flap inside should rotate smoothly and be free of any binding. A buildup of dirt or varnish can cause the flap to bind, so be sure to clean it if necessary. The spring pressure should also return the flap to its closed position. Next, inspect the air filter if you notice any dirt in the unit. This can be cleaned or replaced.
Another way to test the injectors is to use a scope to compare the injector dwell (on time) to the airflow signal. If the airflow signal is good but the injector dwell does not increase with airflow, there is a control problem in the computer.
Finally, to perform a pressure check, you will need to disconnect the cold start injector fuel fitting and attach a pressure gauge. This will allow you to check the fuel pressure and ensure it is at the correct level.
EFI Fuel System: Fuel Injectors Explained
You may want to see also
Explore related products
Testing for a vacuum leak
Vacuum leaks can cause drivability issues by allowing unmetered air to enter the engine. Air leaks around the throttle body, injector O-rings, intake manifold gaskets, or vacuum hose connections can cause the air/fuel ratio to go lean. If you find a code 25 (lean air/fuel ratio), start looking for leaks.
One method to find an air leak is to use a propane bottle and hose to check suspicious areas. When propane vapour is siphoned in through a leak, the idle will smooth out and the RPM will change.
Another method is to turn off the engine and pressurize the intake manifold with compressed air (no more than 5 PSI max). Then, use a spray bottle to spray soapy water at possible leak points. If you see bubbles, this indicates a leak.
A third technique is to use a device that fills the intake manifold with smoke to reveal leaks. You can also try a ""smoke test" by blowing smoke into the vacuum line and checking if smoke comes through the injector holes.
If you suspect a leak in the fuel injectors, you can pull them out with the fuel rail to inspect for leaks. You can also check the fuel pressure with the engine running and then after shutting it off. If the pressure drops immediately, there may be a leak in the injectors, fuel lines, or pump.
It is important to note that the system operating pressure varies depending on the application but is typically 30-37 PSI with the vacuum hose connected to the regulator and 38-44 PSI with the hose disconnected and plugged.
Additionally, the EGR valve can be an often-overlooked cause of air leakage. If the valve sticks open, it can act like a vacuum leak, causing lean misfire at idle and hesitation problems.
Fuel Injector Issues: Ford F150's P0401 Error Code
You may want to see also
Explore related products
Testing the A/F Sensor
The A/F sensor's output voltage and the short-term fuel value can be read using the OBD II scan tool or TOYOTA hand-held tester. The A/F sensor output voltage is used to provide feedback for the ECM to control the air-fuel ratio. By the A/F sensor output, the ECM can determine the deviation amount from the stoichiometric air-fuel ratio and control the proper injection time immediately. If the A/F sensor is malfunctioning, the ECM is unable to perform accurate air-fuel ratio control.
To test the A/F sensor, you can use a scan tool to access bidirectional control of the injector volume to verify the performance of a suspect air/fuel sensor. This test function temporarily suspends normal closed-loop operation, allowing you to monitor the A/F sensor's reaction to increased or decreased injection quantity. As you alternately command a 25% increase and a 12.5% decrease in injection quantity, look for the A/F sensor PID to fluctuate from somewhere below 3.0 volts (a rich indication) to somewhere above 3.35 volts (a lean indication). The A/F sensor should respond within 1.1 seconds of each commanded fuel shift.
If your scan tool does not support the Injector Volume test, you can try forcing the mixture lean or rich by creating a large vacuum leak or adding propane. Before jumping to any conclusion, be sure to take closed-loop responses into account by monitoring short-term fuel trims as well as the A/F sensor data. Look for significant variation in STFT rather than in the air/fuel sensor PID itself.
You can also try swapping the left front with the right front to see if the lean condition moves to the bank 2. Additionally, to make sure that the O2 sensors are working correctly, try taking the air filter out and then spray some propane into the air intake while the car is running in a closed loop. Observe what is happening to the fuel trims while you are introducing the propane. You should see drastic negative STFT numbers and eventually, the LTFT should start going down to zero and then into the negative numbers.
Fuel Injector Disconnected: Can You Still Drive Safely?
You may want to see also
Explore related products
Testing for fuel leaks
To check for air leaks, a propane bottle and hose can be used to check suspicious areas. This will cause the idle to smooth out and the RPM to change if there is a leak. Another method is to turn off the engine and pressurize the intake manifold with compressed air, before spraying soapy water at possible leak points. Bubbles would indicate a leak. Alternatively, a device that fills the intake manifold with smoke can be used to reveal leaks.
If there is a fuel injector problem, a technician will typically test the injectors individually, and they may need to be removed for bench testing.
Fuel Injectors in Mercedes C 240: What You Need to Know
You may want to see also
Explore related products
Testing fuel pressure
To test the fuel pressure of a 2001 Toyota Rav4, you will need a fuel pressure gauge.
First, ensure the engine is off and the ignition is off. Locate the fuel line near the fuel injector rail. Remove the fuel pressure test port cap, which is located at the fuel rail. You may need to remove the port cover and use a male O-ring type tube to connect to the port. Connect the fuel pressure gauge to the test port and turn the ignition on, but do not start the engine.
Once the fuel pressure gauge is connected and the ignition is on, it will begin to read the fuel pressure in the system. The pressure should be between 30 and 45 PSI (pounds per square inch). If the pressure is lower than the recommended range, check the fuel pressure regulator, fuel filter, and fuel injectors. If the pressure is higher than the recommended range, check the fuel pressure regulator and fuel pump.
If the pressure is not within the recommended range, it may indicate a problem with the fuel system. This could be due to a number of factors, including a faulty pressure regulator, a clogged fuel filter, or dirty or malfunctioning injectors.
To check for vacuum leaks, you can use a propane bottle and hose to test suspicious areas. Siphoning propane vapor through a potential leak will cause the idle to smooth out and the RPM to change. Another method is to pressurize the intake manifold with compressed air and then use soapy water to spray possible leak points, indicated by the formation of bubbles. Alternatively, you can use a device to fill the intake manifold with smoke to reveal leaks.
Diagnosing Fuel Injector Issues: Is It Working?
You may want to see also
Frequently asked questions
You can test your fuel injectors by checking the operation of the airflow meter and the entire feedback circuit through a computer. Compare the injector dwell (on time) to the airflow signal using a scope. If the airflow signal is good but the injector dwell does not increase, there is a control problem in the computer.
Inspect the flap-type airflow meter by pushing the flap with your finger. There should be no binding when the flap is pushed open, and spring pressure should return it to its closed position.
A buildup of varnish or dirt could be causing the binding. Be sure to inspect the air filter if you find any dirt in the unit.
Vacuum leaks can cause drivability problems by allowing unmetered air to enter the engine. Air leaks around the throttle body, injector O-rings, intake manifold gaskets, or vacuum hose connections can cause the air/fuel ratio to go lean. If you find a code 25 (lean air/fuel ratio), start looking for leaks.
Use a propane bottle and hose to check suspicious areas. When propane vapour is siphoned in through a leak, the idle will smooth out and the rpm will change. Alternatively, pressurize the intake manifold with compressed air and spray soapy water at possible leak points. Bubbles will indicate a leak.
You can remove the old injectors for inspection and cleaning. If they are worn out, you can purchase stock replacement injectors.
