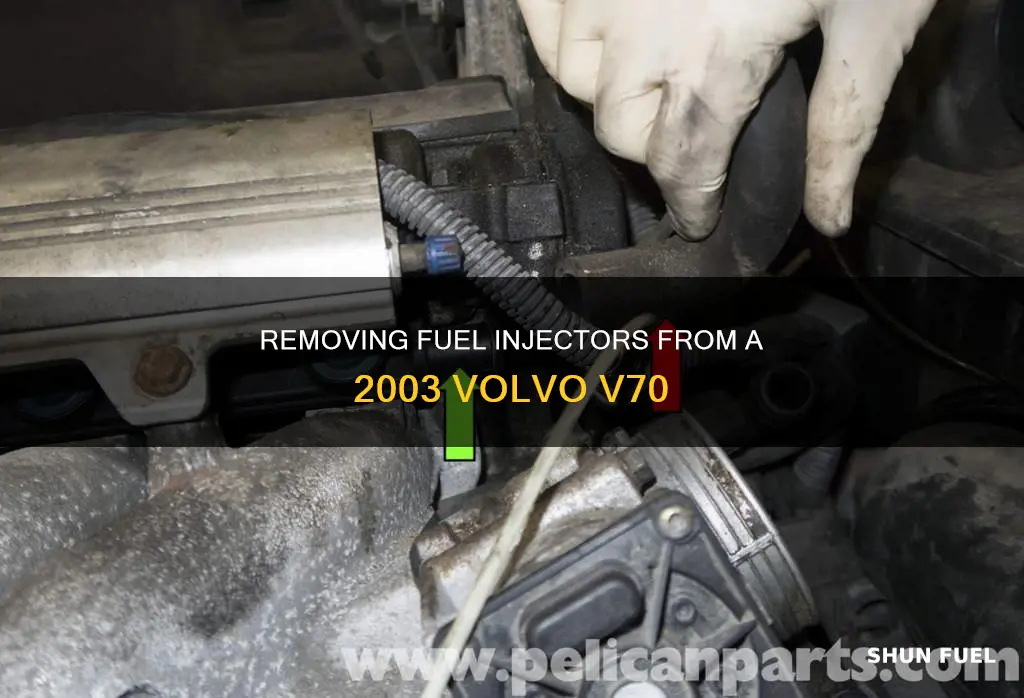

Removing the fuel injector from a 2003 Volvo V70 requires first relieving the fuel system pressure to minimize fuel spillage. This can be done by removing the fuel pump fuse and running the vehicle until the engine stalls. Next, the fuel rail, which is the injectors' shared fuel supply, needs to be removed along with the electrical connectors. Individual injectors can then be separated from the fuel rail. It is important to note that when removing the fuel injectors, all fuel injector sealing O-rings should be replaced if they are to be reused.
Explore related products
What You'll Learn
Remove the fuel rail with all injectors attached
To remove the fuel rail with all injectors attached, you will need to relieve the fuel rail pressure. Using a flathead screwdriver and a rag, press the Schrader valve in to do this. Next, use a fuel line release tool (5/16) to release the fuel line. Press the tool towards the line to release the locks, then slide the line off the fuel rail.
Now, remove the two 10mm fuel rail fasteners. You can then pull the fuel rail straight up and out of the intake manifold. Be careful not to damage the fuel injectors when removing the rail. If the O-rings are stuck, you can use a flathead screwdriver to gently lever the fuel rail up. Spraying lubricant around the O-rings may also help.
Once the fuel rail is removed, you can separate the individual injectors by removing the main securing plate. If you plan to reuse the injectors, replace all the fuel injector sealing O-rings.
It is also worth noting that, when removing the fuel rail, you may want to drain the coolant and remove the upper radiator hose, as this can make the process easier.
Fuel Injector Cleaner: P0172 Code Solution?
You may want to see also
Explore related products
Disconnect the electrical connectors
To disconnect the electrical connectors of a fuel injector in a 2003 Volvo V70, you must first remove the fuel rail to which all the injectors are attached.
Begin by relieving the fuel system pressure to minimize the amount of fuel spilled. Remove the fuel pump fuse and run the vehicle until the engine stalls. Next, remove the fuel pressure test port cap, which is located on the side of the fuel rail. Using a flathead screwdriver and a rag, press the Schrader valve in to relieve the fuel rail pressure.
Now, you can release the fuel line. Use a fuel line release tool (5/16) and press it toward the line to release the locks. Then, simply slide the line off the fuel rail. Remove the two 10mm fuel rail fasteners. Pull the fuel rail straight up and out of the intake manifold, being careful not to damage the fuel injectors.
Once the fuel rail is removed, you can proceed to disconnect the electrical connectors to all the injectors. Individual injectors can then be separated from the fuel rail as needed.
Cleaning Diesel Fuel Injectors: Seafoam Solution for Your Car
You may want to see also
Explore related products
Relieve fuel rail pressure
To relieve fuel rail pressure on your 03 Volvo V70, follow these steps:
First, remove the fuel pressure test port cap, which is located on the side of the fuel rail. Using a flathead screwdriver and a rag, press the Schrader valve in to relieve the pressure. Be careful when performing this step, as fuel may still be under pressure and could spray out.
Next, release the fuel line. Using a fuel line release tool (5/16), press the tool towards the line to release the locks. Then, slide the fuel line off the fuel rail.
After the fuel line is disconnected, remove the two 10mm fuel rail fasteners. You may now carefully pull the fuel rail straight up and out of the intake manifold. Be cautious not to damage any of the fuel injectors during this process.
If the O-rings are stuck, you can use a flathead screwdriver to gently lever the fuel rail up. Spraying lubricant around the O-rings can also help to free them.
Once the fuel rail is removed, you can access and replace the individual fuel injectors as needed. Remember to replace the sealing O-rings and ensure that the locking plate is properly seated in the injector groove when reinstalling the injectors.
Removing Ford Fuel Injector Filters: A Step-by-Step Guide
You may want to see also
Explore related products
Remove the fuel pressure test port cap
To remove the fuel pressure test port cap from your 2003 Volvo V70, you will need to perform the following steps:
Firstly, locate the fuel pressure test port cap on the side of the fuel rail. It is important to identify this component correctly to ensure a safe and proper removal. Once located, grab a flathead screwdriver and a rag. You will use these tools to relieve the pressure in the fuel rail.
Position the flathead screwdriver and rag at the Schrader valve. Press the valve in with the screwdriver, being careful not to damage any surrounding components. This action will release the pressure built up in the fuel rail, making subsequent steps safer and easier.
Now that the pressure is relieved, you can focus on removing the fuel pressure test port cap directly. It is usually a good idea to wear protective gloves and eye protection for this step, as there may still be residual fuel or vapours present. Grasp the fuel pressure test port cap firmly and turn it counterclockwise to unscrew it. If the cap is tight, you can use a suitable wrench to assist in the removal process, being careful not to overtighten.
Once the fuel pressure test port cap is removed, set it aside in a safe place, away from any flammable materials. You can now proceed with the next steps in removing the fuel injector, such as releasing the fuel line and removing the fuel rail fasteners. Remember to refer to a qualified mechanic or a detailed Volvo V70 service manual for the subsequent steps, as they may vary depending on your specific model and year.
By following these steps, you will be able to safely and effectively remove the fuel pressure test port cap on your 2003 Volvo V70, allowing you to access and work on the fuel injector and other components in the fuel system.
Cleaning Fuel Injectors After Water Contamination: DIY Guide
You may want to see also
Explore related products
Reinstall the fuel injectors
To reinstall the fuel injectors, you will need to first replace the sealing O-rings. You can purchase these from a site like Quick Brick Motorsports for $12 a set. Ensure that the locking plate is properly seated in the injector groove. Then, press the fuel rail with the injectors into the intake manifold until fully seated. Install the fuel rail fasteners and tighten them.
It is important to never change the injector flow rate without also installing a tune that matches the new flow rate. For example, the green injectors used in the 2000 V70 R are rated at 468 cc/min, while the blue injectors in the C70 2.3 Turbo are rated at 395 cc/min. The white and blue injectors have the same flow but different specifications due to the different fuel pressures in Volvo models.
If you are having trouble with the plate, gently lever in the area of the fuel injectors to free it. If the plate bends or is damaged, it will need to be replaced.
The fuel injectors are part of a computer system that sprays fuel at regular intervals. The injectors' shared fuel supply is an aluminum fuel rail.
Piezo Fuel Injectors: Understanding Their Functionality
You may want to see also
Frequently asked questions
First, relieve the fuel system pressure by removing the fuel pump fuse and running the vehicle until the engine stalls. Then, working at the side of the fuel rail, remove the fuel pressure test port cap and relieve the fuel rail pressure by pressing the Schrader valve with a flathead screwdriver and a rag. Next, release the fuel line using a fuel line release tool and remove the two 10mm rail fasteners. Finally, pull the fuel rail straight up and out of the intake manifold.
First, disconnect the electrical connectors to all the injectors. Then, remove the fuel injector locking plate from the fuel rail. If it is stuck, gently lever in the area of the fuel injectors to free the plate. Finally, pull the fuel injector straight out of the fuel rail.
It is a good idea to relieve fuel system pressure before beginning to minimise the amount of fuel spilled. Keep in mind that parts may have been replaced with different-sized fasteners, so be prepared with different-sized sockets and wrenches. If you plan to reuse the fuel injectors, replace all the fuel injector sealing O-rings.
