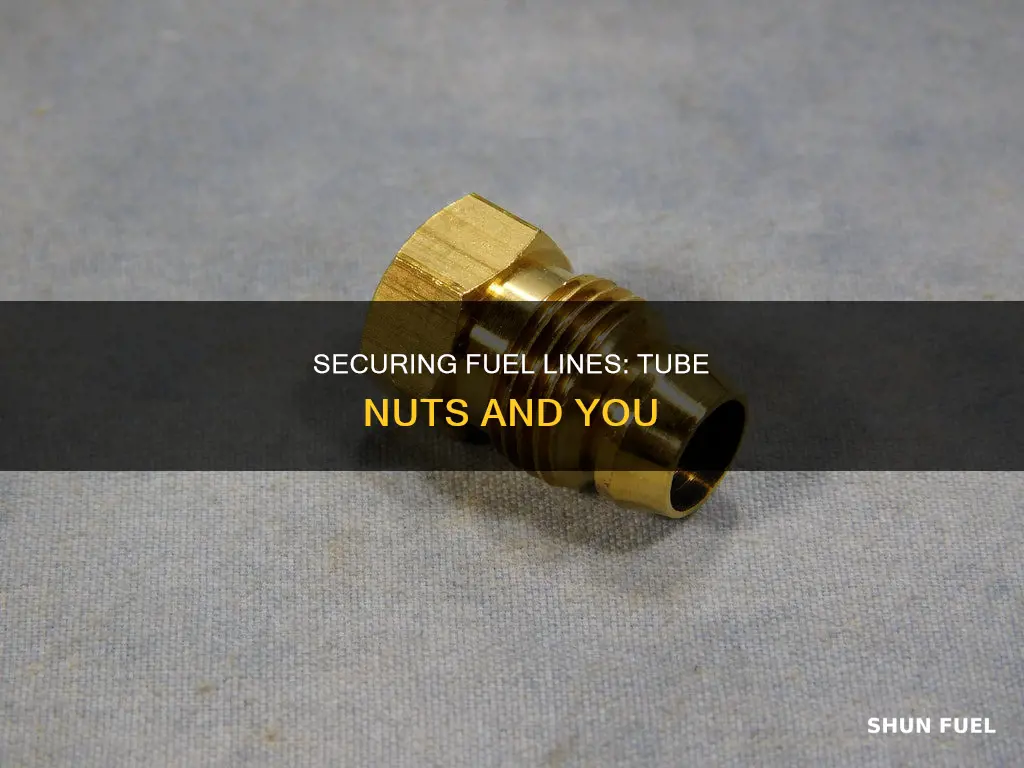

When it comes to sealing a fuel line with a tube nut, there are several factors to consider. Firstly, it is important to determine the type of fuel line and the location of the fuel line run, as different grades of fuel lines are suitable for different locations and fuel types. The thread type of the component is also crucial, as certain thread types, such as NPT or NPTF, require sealant around the threads. In addition, the choice of sealant is important, with liquid or paste sealants being preferable to tape to prevent clogging. Finally, the proper tightening of fittings is essential to ensure a secure seal.
Characteristics and Values of sealing a fuel line with a tube nut
| Characteristics | Values |
|---|---|
| Thread type | NPT, NPTF, UNF |
| Sealant type | Liquid or paste, teflon tape, teflon paste, pipe thread sealant, high-temperature pipe sealant |
| Fuel type | Gasoline, diesel |
| Hose grade | A1, A2, B1, B2 |
| Hose location | Above or below deck |
| Hose material | Rubber |
| Hose clamps | Marine-grade stainless steel |
Explore related products
What You'll Learn
- Know the thread type and match it with the correct thread type
- Use liquid or paste sealants instead of tape to avoid clogging
- Choose a sealant with chemical resistance to fuel, diesel, or gasoline
- For gasoline, use Aviation Form-a-gasket Number 3 or Form-a-gasket No. 3 for ethanol
- Use a double flare on the tubing combined with an inverted flare fitting
Know the thread type and match it with the correct thread type
Knowing the thread type is critical when sealing a fuel line with a tube nut. Matching the thread type with the correct counterpart ensures optimal compatibility and prevents malfunction.
The first step in identifying the thread type is determining whether it is a male or female thread. Male threads are set on the exterior of the thread, while female threads are located inside. This differentiation helps to match the correct connections.
The next step is to identify whether the thread is tapered or parallel. Tapered threads have a taper angle, which is the angle between the taper and the center axis of the pipe. The outermost part of the tapered thread is called the 'crest', and the innermost part is the 'root'. Tapered thread types include Metric Tapered, BSPT, and NPT/NPTF. NPT (National Pipe Thread) is a tapered thread common in plumbing connections and fuel line components in North America. It leaves a minute gap at the point of the male thread tip and female valley, and it is recommended to use a sealant with it. NPTF (National Pipe Taper Fuel) is a semi-compatible variant of NPT.
On the other hand, parallel threads maintain the same diameter throughout the part. Examples of parallel threads are BSPP, UN/UNF, and Metric Parallel. Parallel threads often require an o-ring or thread tape to ensure a tight seal.
After identifying the gender and type of thread, the next step is to determine the pitch size, which is the number of threads per inch or the distance between threads. A pitch gauge is highly recommended for accuracy. Finally, measure the thread diameter using a caliper to measure the outside diameter of a male thread and the inside diameter of a female thread.
By following these steps, you can correctly identify the thread type and match it with the appropriate counterpart when sealing a fuel line with a tube nut.
Fuel Line Size Guide for Small Gas Engines
You may want to see also
Explore related products
Use liquid or paste sealants instead of tape to avoid clogging
When sealing a fuel line with a tube nut, it is important to consider the type of sealant you will be using. While Teflon tape is a common choice for sealing fuel lines, it is not recommended due to the risk of clogging. Liquid or paste sealants are a better alternative as they are less likely to clog sensitive components downstream.
Liquid or paste sealants, such as the ones recommended for fuel lines, are designed to be compatible with the chemicals in the fuel system. They are formulated to resist the fuel, oil, or gasoline that comes into contact with the sealant. This compatibility ensures that the sealant does not break down and clog the fuel line or other components.
Additionally, liquid or paste sealants are often more effective at sealing fuel lines than tape. They can fill in gaps and create a stronger, more durable seal. This helps to prevent leaks and ensures the fuel line is secure.
When selecting a liquid or paste sealant, it is important to consider the type of fuel line you are using. For example, if you are using an A1 fuel hose, which is commonly used below deck on the high-pressure side, you will need a sealant that can withstand high pressure and has good fire resistance. On the other hand, if you are using a B-type fuel hose for less volatile fuels like diesel, you can choose a sealant with lower fire resistance but one that has good solvent resistance.
By choosing a liquid or paste sealant that is compatible with your fuel type and fuel line location, you can effectively seal your fuel line while avoiding the clogging issues associated with tape.
Fuel Line Molds: Where to Buy for KX65
You may want to see also
Explore related products
Choose a sealant with chemical resistance to fuel, diesel, or gasoline
When sealing a fuel line with a tube nut, it is important to choose a sealant that is resistant to the chemicals in the fuel. This is especially important if you are dealing with diesel or gasoline, which are harsher chemicals.
There are several types of sealants that are suitable for use with fuel lines. One option is a liquid or paste sealant, which will not clog your fuel line. For example, a product like Aviation Form-a-gasket Number 3 is a good option for gasoline. If you are dealing with a modern engine that uses injectors, you may want to consider Form-a-gasket No. 3, which is specifically designed to be solvent-resistant to gasoline. For a high-temperature sealant, you could try Permatex's High-Temperature Thread Sealant, which has medium solvent resistance and is suitable for fuel sender applications.
Another option is to use a Teflon (PTFE) paste, such as the one offered by Permatex. This product is a high-temperature sealant that can be used on fuel, oil, and water pumps, among other applications. It is important to note that Teflon tape should be avoided as it can break free and cause clogging issues.
If you are looking for a sealant with the most resistance to fuel, you might want to consider a polysulfide sealant. These sealants create impermeable seals that do not degrade, even when fully immersed in fuel. They can also be modified to have additional properties like abrasion resistance and increased load-bearing capacity. For an even stronger sealant, you could try an epoxy polysulfide, which has increased chemical resistance and is the toughest option for gasoline resistance.
Finally, you may want to consider a modified silyl polymer sealant, which has increased abrasion and heavy mechanical stress resistance compared to conventional silicone sealants. This type of sealant is a good option if you need something that can withstand heavy loads, such as from trucks or other heavy vehicles.
Choosing the Right Oetiker Clamp for Your Fuel Line
You may want to see also
Explore related products
$9.99
$7.99 $9.99
For gasoline, use Aviation Form-a-gasket Number 3 or Form-a-gasket No. 3 for ethanol
When sealing a fuel line with a tube nut, it is critical to first determine the thread type of the component you are purchasing and then match it with the corresponding thread type. Most fuel filters, pumps, and tank connections have female NPT or NPTF ports. If you are dealing with NPT or NPTF threads, you will need to use a sealant.
For gasoline, it is recommended to use Aviation Form-a-gasket Number 3. This product is a slow-drying, non-hardening brush-top sealant that is approved for use in both aviation and automotive applications. It has a wide temperature range, from -65°F to 400°F (-54°C to 204°C), and is resistant to gasoline, oil, and grease. It is suitable for sealing close-fitting machined surfaces, hoses, and solid gaskets.
With the increasing presence of ethanol in modern gasoline, Form-a-gasket No. 3 is a more specialized option that offers solvent resistance to gasoline, especially in modern engines with injectors. This sealant is specifically designed for engines that utilize direct injection, such as the E-TEC and HPDI (high-pressure direct injection) systems, as well as any diesel engine.
It is worth noting that liquid or paste-type sealants are generally preferred over Teflon tape, as they are less likely to clog sensitive components downstream. When making connections from a threaded port to a hose barb connection, be sure to follow the ABYC guidelines that recommend the use of two marine-grade stainless steel hose clamps at each connection point of the fuel line over the hose barb.
Kart Fuel Line Sizing: Kartech Arrow Specs
You may want to see also
Explore related products
$14.68 $15.45
Use a double flare on the tubing combined with an inverted flare fitting
To seal a fuel line with a tube nut, you can use a double flare on the tubing combined with an inverted flare fitting. This method provides a secure and vibration-resistant seal, making it suitable for high-pressure applications. Here's a step-by-step guide on how to achieve this:
Step 1: Cutting the Tube
Start by using a tubing cutter to make a straight, clean cut on the tube. Ensure you end up with a perfectly uniform and square end, as this will be crucial for achieving a good double flare. Avoid using a hacksaw, as it may not provide the required precision.
Step 2: Deburring the Tube
Use a dedicated deburring tool or the pointy blade of your tubing cutter to deburr the inside of the tube. Clean the outside of the tube with a wire brush, fine sandpaper, or Scotch-Brite. This step ensures that the sealing surface of the flare is smooth.
Step 3: Lubricating the End
Lubricate the end of the tube to facilitate the flaring process. You can use grease, brake fluid, or other types of oil as a lubricant. Just remember to clean any excess oil after the process to avoid contamination.
Step 4: Measuring and Clamping
Measure the correct projection of the tube from the clamp to ensure a precise flare. Clamp the tube tightly, using either a basic wingnut-type tool or a more advanced tool with an "operation zero" die that sets the depth.
Step 5: Creating the Double Flare
Follow the specific instructions for your flaring tool to create the double flare. This process involves folding the end of the tube back in on itself to create a stronger, reinforced connection. The double flare should be smooth and free of cracks or imperfections.
Step 6: Combining with an Inverted Flare Fitting
Combine the double flare on the tubing with an inverted flare fitting. Inverted flare fittings have a more complex installation process but offer the advantage of a secure and vibration-resistant seal. Ensure that you follow the manufacturer's instructions for a proper fit.
Remember that double flares are commonly used with softer metals like copper or aluminum, as they help prevent splitting during tightening. For stainless steel tubing, a single flare is typically recommended due to the potential for cracking with double flares. Always exercise caution during the flaring process and refer to specific guidelines for your vehicle's fuel system.
Kohler Engines: Choosing the Right Fuel Line Diameter
You may want to see also
Frequently asked questions
It is recommended to use a liquid or paste type sealant for fuel lines. Teflon tape can be used, but it is not recommended as it can break free and cause clogging.
For gasoline, the best option is regular gasoline-resistant Aviation Form-a-gasket Number 3. For modern engines that use injectors, try Form-a-gasket No. 3, which is resistant to gasoline with ethanol.
For a diesel engine, a B-type fuel hose is recommended as it is more permeable and used for less volatile fuels.
The most common thread type in fuel line components is NPT or NPTF, which is a tapered thread common to plumbing connections in North America.
For NPT fittings, it is recommended to use a thread sealant that is resistant to fuel. Teflon tape or paste can also be used, but it should not be applied to the first three threads from the end.
