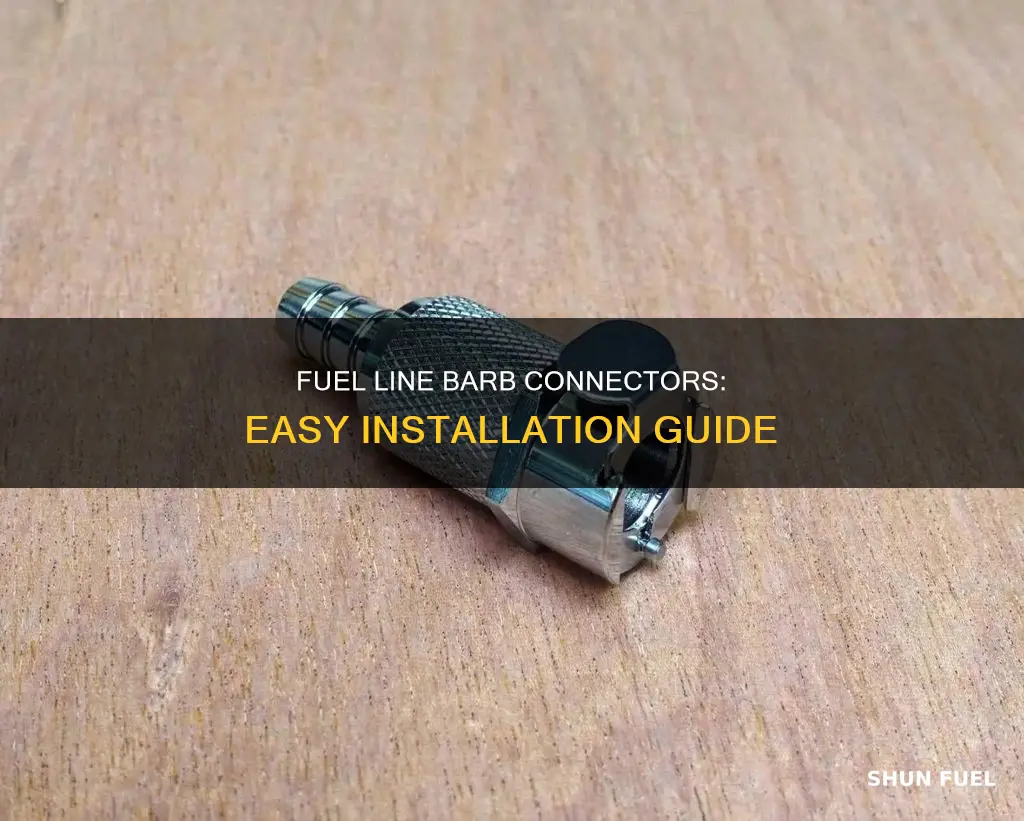

Barb connectors, also known as hose barb fittings or barbed fittings, are essential components in fluid transfer systems. They are used to connect a vehicle's low-pressure fluid systems. There are various types of barb connectors, including straight, elbow, tee, and Y-shaped connectors, each designed for specific applications. The installation process for fuel line barb connectors involves cutting and heating the fuel line, as well as securing the connectors with hose clamps. The choice of connector depends on factors such as hose size, angle requirements, and the number of hoses to be connected.
Characteristics and Values of Installing Fuel Line Barb Connectors
| Characteristics | Values |
|---|---|
| Barb connectors types | Straight, elbow, tee, Y-shaped, reducer, union |
| Barb connectors uses | Joining hoses of the same or different diameters, joining hoses at angles |
| Fuel line types | Nylon, rubber, plastic |
| Fuel line sizes | 5/16-inch (8mm), 3/8-inch (10mm), 1/2-inch (12mm), 5/8-inch (16mm) or larger |
| Fitting types | Barbed, compression, quick connect, AN, push-lock, bulkhead |
| Fitting prices | Basic ($1-$5), Quick Connect ($5-$20), AN ($10+), Bulkhead ($5-$20) |
| Barb fitting materials | Plastic, Brass, Stainless Steel |
| Barb fitting prices | Plastic ($1-$5), Brass ($5-$20), Stainless Steel ($10-$30) |
| Installation tools | Mastercool hydraulic flaring tool, hair dryer, heat gun |
| Installation methods | Slip rubber line over hardline and clamp, use boiling water, use huge pressure |
| Removal methods | Cut fuel lines, use pliers, heat with a heat gun, use a razor blade |
Explore related products
What You'll Learn
Choosing the Right Connector
Type of Connector
The type of connector you need depends on the specific application and your fluid transfer needs. Barb connectors come in various types, including straight, elbow, tee, Y-shaped, reducer, and union. Straight barb connectors are used for connecting hoses of the same diameter, while elbow connectors allow for connections at angles with their 90-degree or 45-degree bends. Tee and Y-shaped connectors are used for connecting three hoses together, with slightly different configurations. Reducer connectors are handy when you need to connect hoses of varying diameters, and union connectors facilitate easy disconnection and reconnection of hoses without cutting.
Pressure Requirements
Consider the pressure requirements of your fluid transfer system. Barb fittings are commonly used for low to medium-pressure applications, and the maximum pressure they can handle depends on factors like material, design, and size. Plastic barb fittings are typically used for low-pressure applications, while brass fittings can handle higher pressures. If you need an even higher-pressure rating, consider stainless steel barb fittings, which can withstand pressures exceeding 150 psi.
Compatibility
Ensure that the connector you choose is compatible with your fuel line material and the specific requirements of your vehicle's fuel system. Fuel lines come in different sizes, typically specified by their inner diameter (ID), and the right size ensures proper fuel delivery and performance. Common sizes include 5/16-inch (8mm) for smaller engines, 3/8-inch (10mm) for most passenger vehicles, and larger sizes for high-performance or heavy-duty applications.
Cost
The cost of barb fittings can vary depending on factors such as material, size, brand, and type. Plastic fittings are the most affordable, while brass and stainless steel options are more expensive. Basic fittings, including barbed fittings, are usually the most cost-effective, while specialized fittings like AN fittings for high-performance applications can be significantly pricier.
Running Fuel Lines: A Comprehensive Guide
You may want to see also
Explore related products
Preparing the Fuel Line
Firstly, it is important to determine the type of fuel line you are working with. Common types include rubber, nylon, and steel fuel lines, each requiring slightly different preparation methods. For instance, if you are dealing with a rubber fuel line, you may need to slip it over the hardline and secure it with a hose clamp. On the other hand, nylon fuel lines often require heating to soften the material before installation.
Next, you must select the appropriate barb connectors for your specific application. Barb connectors come in various types, including straight, elbow, tee, Y-shaped, reducer, and union barb connectors. The choice depends on factors such as hose size, angle requirements, and the number of hoses you need to connect. It is also essential to consider the pressure requirements of your system, as different barb connectors have varying pressure ratings. For instance, plastic barb fittings are typically used for low-pressure applications, while brass and stainless steel fittings can handle higher pressures.
Additionally, you should pay attention to the quality and compatibility of the fuel line and connectors. Ensure that the connectors are made from high-quality materials and are compatible with your specific fluid transfer needs. Check manufacturer specifications to ensure that the connectors can withstand the required pressures.
Finally, consider the cost of the barb connectors, which can vary depending on factors such as material, size, brand, and type. Basic plastic barb fittings are usually the most affordable, while brass and stainless steel fittings tend to be more expensive.
By carefully preparing the fuel line and selecting the appropriate connectors, you can ensure a secure and reliable installation of your fuel line barb connectors.
Best Fuel Line Options: Choosing Between Tygon and Orgone
You may want to see also
Explore related products
Inserting the Barb
When inserting the barb, it is important to ensure you have the correct type of barb connector for your specific application and fluid transfer needs. Barb connectors come in various types, each designed for specific applications. For instance, straight barb connectors are used for connecting hoses of the same diameter, while elbow barb connectors are used for hose connections at angles, with a 90-degree or 45-degree bend in the barb.
The process of inserting the barb will depend on the type of fuel line and connector you are working with. For example, if you are working with a rubber fuel line, you would typically slip the hose over the barbed end of the connector and secure it with a hose clamp. On the other hand, if you are working with a hard nylon fuel line, you may need to heat the line and the connector with boiling water or a heat gun to soften the materials before inserting the barb.
It is important to exercise caution when working with fuel lines and connectors, especially in the presence of fuel vapors. Additionally, it is crucial to select the appropriate size of the fuel line and connector to ensure proper fuel delivery and performance. The size of a fuel line is typically specified by its inner diameter (ID), and common sizes include 5/16-inch (8mm) for smaller engines, 3/8-inch (10mm) for most passenger vehicles, and larger sizes for heavy-duty and high-performance applications.
The cost of barb fittings can vary depending on factors such as material, size, brand, and complexity of design. Basic plastic barb fittings are usually the most affordable, while stainless steel barb fittings tend to be at the higher end of the price range. It is also important to consider the pressure rating of the fuel line and connector to ensure it is suitable for your application.
Removing Fuel Lines: A Step-by-Step Guide for Boat Owners
You may want to see also
Explore related products
Clamping and Securing
Firstly, ensure you have the correct size of the clamp for your fuel line. It is essential to match the size of the clamp with the barb and hose to prevent leakage. Using a clamp that is too small can lead to an improper seal, while an oversized clamp may damage the hose.
There are various types of clamps available, each with its advantages and disadvantages. Some common options include:
- Spring clamps: These are easy to install and remove, but they may not provide the most secure connection for high-pressure applications.
- Hose clamps: Traditional hose clamps can be effective, but it is important to ensure they do not pinch the hose, as this can cause leaks.
- Worm gear clamps: While these are commonly used, they are not recommended for fuel lines as they can cut into the hose and cause damage.
- Fuel injection clamps: These are designed specifically for fuel injection hoses and are a good option to prevent leaks.
- Oetiker clamps: Oetiker clamps provide a secure connection but may be more expensive and require additional tools for installation.
- Supra clamps: Stainless steel supra clamps are recommended for fuel lines as they can exert more torque and provide an even distribution of pressure, reducing the risk of cutting into the hose.
When securing the clamp, it is crucial to avoid over-tightening, as this can damage the hose and barb. Ensure the clamp is securely fastened but not excessively tightened.
Additionally, consider the pressure requirements of your application. Barb fittings are commonly used for low to medium-pressure applications, with plastic barb fittings suitable for low-pressure and brass barb fittings for higher-pressure systems. If you are working with high-pressure fuel lines, you may need to explore other options, such as AN fittings.
Finally, some users recommend using a sealant at the barb connection. However, this is generally not necessary if the hose and barb are the correct size and properly secured. A sealant could potentially cause blockages in the fuel line, so it is generally advised against unless there is a specific reason for its use.
Remember to follow safety guidelines and regulations, especially if your vehicle is used for racing or other high-performance applications.
Fuel Line Fix: Routing Tips for Your 64 Impala
You may want to see also
Explore related products
Testing for Leaks
Before starting the engine, it is essential to check for any fuel leaks. This can be done by visually inspecting the fuel lines, fittings, and connectors for any signs of fuel dripping or pooling. Ensure that the engine is cool before beginning your inspection to avoid any risks associated with a hot engine.
One common method to test for leaks is to pressurize the fuel system. This can be achieved by using a bike pump, an air line inserted into the fuel fill nozzle, or a specialized pressure tester. The goal is to achieve a couple of pounds per square inch (psi) above ambient pressure. Be cautious not to over-pressurize the system, as this may lead to leaks or damage to the fuel lines and connectors.
When pressurizing the system, listen carefully for any unusual sounds, such as a disgruntled moan, which could indicate that the fuel cap is releasing excess pressure. After pressurizing, carefully inspect the fuel lines, fittings, and connectors for any signs of leaks. Look for fuel dripping or spraying, and pay attention to any unusual smells of fuel, which could indicate a leak.
If you have access to one, using a clear fuel filter housing or clear hoses can make leak detection much easier. Clear lines allow you to see air bubbles or fuel leaks more readily. Install clear hoses at the inlet and outlet of the fuel filter housing, then re-prime the system and start the engine. If there is a significant amount of air entering or exiting the fuel filter housing, it could indicate a leak or an issue with the fuel filter.
In some cases, you may need to use specialized tools, such as a fuel pressure test kit, to diagnose more challenging leaks, such as those caused by a dead fuel injector or a failed check valve in a fuel pump. These tools can help you isolate the source of the leak more precisely.
It is important to note that pressurizing the fuel system may not always reveal a vacuum leak. If you suspect a vacuum leak, consider using a portable can to connect your suction line and work your way back toward the tank. Additionally, if you have an unstable idle or low power, this could be indicative of air in the fuel supply line, warranting further investigation.
Finally, if you have recently replaced any fuel lines or connectors, inspect the fittings one at a time to ensure they are secure and free from leaks. This includes checking filter housing gaskets, O-rings, and fuel screen housing gaskets.
Fuel Tank Liner: Northern Suppliers for Your Needs
You may want to see also
Frequently asked questions
Barb connectors, also known as hose barb fittings or barbed fittings, are essential components in fluid transfer systems. They have serrated ends that grip onto the fuel line and are often used with rubber or plastic fuel lines. Here are some common types:
- Straight Barb Connectors
- Elbow Barb Connectors
- Tee Barb Connectors
- Y-Barb Connectors
- Reducer Barb Connectors
- Union Barb Connectors
It is important to choose barb connectors that are compatible with your specific application and fluid transfer needs. Here are some additional tips:
- If it's low pressure, the hose is commonly slipped right over the fuel line and hose clamped.
- If it's higher pressure, you can braze a brass barb fitting to a steel line.
- You can also flare a fitting and then go to the barb fitting with a coupling.
- To remove a fuel line from a barbed connection, you can use a heat gun to moderately warm the hose end, expanding and softening it for easy removal.
The cost of barb fittings can vary depending on factors such as material, size, brand, and complexity of design. Here is a general price range:
- Plastic Barb Fittings: $1 to $5 per fitting
- Brass Barb Fittings: $5 to $20 or more per fitting
- Stainless Steel Barb Fittings: $10 to $30 or more per fitting
