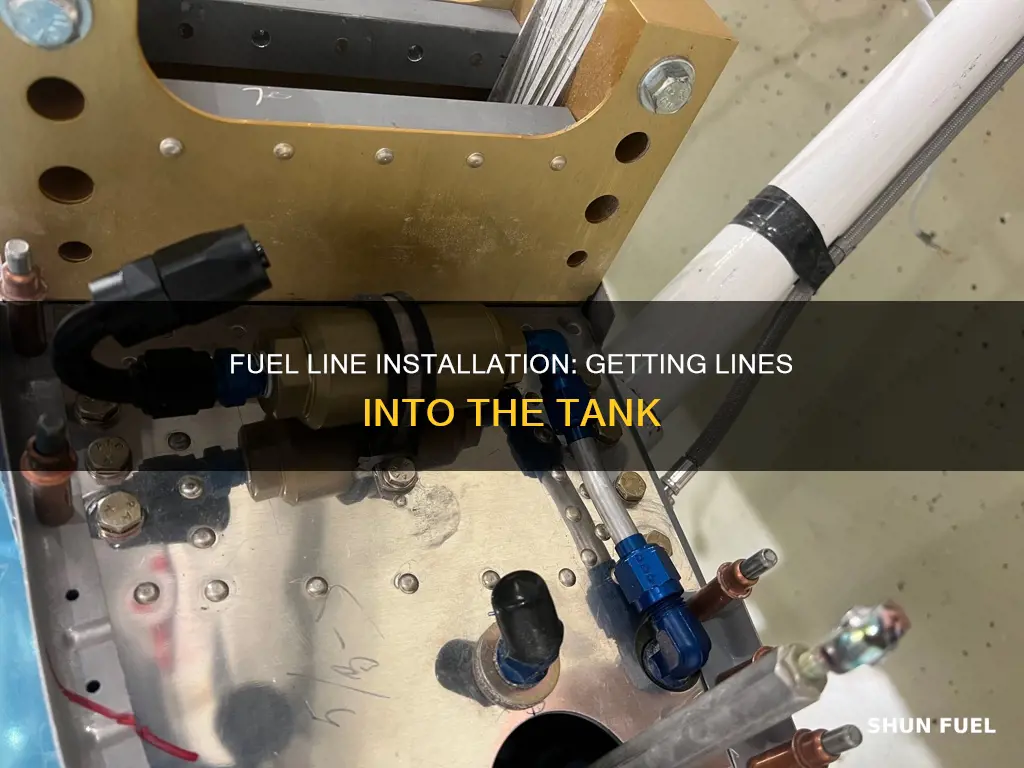

Fuel Line Installation: A Step-By-Step Guide For Your Tank

Getting fuel lines into a tank can be a challenging task, but with the right tools and a bit of patience, it's definitely achievable. Whether you're working on a car, boat, or any other vehicle, understanding the process is key to ensuring a successful installation. This guide will walk you through the steps, from preparing the necessary materials to connecting the lines securely, ensuring your vehicle runs smoothly and efficiently.

Fuel Tank Access: Locate the fuel tank and identify the access points

Locate the fuel tank on your vehicle, as this is the primary component where you'll need to access the fuel lines. The tank is typically located on the left or right side of the vehicle, often behind the rear wheel well or under the floor. It can also be found in the trunk or behind the back seat in some models. Once you've identified the tank's general location, you'll need to inspect the vehicle to find the specific access points. These are usually small openings or ports designed for maintenance and fuel-related tasks. They are often covered by a small plastic or metal cap, which can be removed to reveal the access point. These caps are crucial for preventing contamination and are typically located near the fuel tank's top or side.

When you've found these access points, it's important to understand their purpose. Some are for fuel gauge connections, allowing you to connect a fuel gauge sensor to monitor the fuel level. Others might be for fuel pump connections, where you can access the fuel pump module to ensure it's functioning correctly. There may also be lines or hoses connected to these points, which are essential for the fuel delivery system. Identifying these connections is crucial for any maintenance or repair work you plan to perform.

In some vehicles, the fuel tank might have a dedicated access panel or cover, especially in older models or those with a more complex design. This panel provides a clear and secure way to access the tank's interior. It often has a latch or release mechanism that you can operate to open it, revealing the fuel lines and other components. Locate this panel and understand how it operates to ensure you can safely and efficiently access the fuel tank.

Remember, when working with fuel lines, it's crucial to exercise caution. Always ensure the engine is off and the vehicle is in a secure position to prevent any accidents. Wear protective gear, such as gloves and safety goggles, to safeguard against potential hazards. Understanding the vehicle's specific design and following the manufacturer's guidelines will ensure a safe and successful fuel line access process.

Fuel Line Inspection: Check for damage, leaks, and proper connections

Fuel lines are an essential component of your vehicle's fuel system, and ensuring their proper function is crucial for optimal performance and safety. Here's a step-by-step guide on how to inspect your fuel lines for damage, leaks, and secure connections:

• Visual Inspection: Begin by visually examining the fuel lines for any visible signs of damage. Look for cracks, punctures, or any discolored areas along the length of the lines. Pay close attention to bends and joints, as these areas are more susceptible to wear and tear. Check for any signs of corrosion or rust, especially if your vehicle is exposed to harsh weather conditions. Even small tears or cuts can lead to fuel leaks, so any damage should be addressed promptly.
• Leaks Detection: Fuel line leaks can be a serious issue and often go unnoticed until they cause significant problems. To check for leaks, start the engine and listen for any unusual sounds, especially hissing or roaring noises. These sounds may indicate a fuel leak. You can also use a fuel line inspection kit, which typically includes a spray containing a chemical that will react with fuel to create a visible foam. Spray the kit along the length of the fuel lines and watch for any foam formation, indicating a potential leak. If you suspect a leak, it's crucial to have the issue resolved immediately to prevent fuel wastage and potential fire hazards.
• Connection Integrity: Proper connections are vital to ensure a continuous and efficient fuel supply. Inspect all fuel line connections for tightness and security. Check that the lines are securely attached to the fuel tank and the engine's fuel injectors or carburetor. Over time, connections can loosen due to vibration, so it's essential to tighten them accordingly. If you find any loose connections, use the appropriate tools to tighten the fittings and ensure a snug fit.
• Route and Position: Examine the fuel lines' route and position to ensure they are not damaged or pinched. Fuel lines should be routed away from hot engine components to prevent overheating and potential damage. Check for any obstructions or tight spaces that might cause the lines to rub or be pinched, as this can lead to leaks or blockages. Ensure that the lines are not hanging loosely, as this can make them more susceptible to damage.
• Professional Assistance: If you're unsure about any aspect of the inspection or if you notice any issues, it's best to consult a professional mechanic. They have the expertise and tools to thoroughly examine the fuel system and address any problems. Regular maintenance and inspections can help prevent costly repairs and ensure your vehicle's fuel system operates efficiently and safely.

Fuel Pump Location: Identify the fuel pump and its wiring

To locate the fuel pump and its wiring, you'll need to access the fuel tank and engine bay of your vehicle. Here's a step-by-step guide:

• Access the Fuel Tank: Start by locating the fuel tank, which is usually positioned at the rear of the vehicle, below the driver's side. You may need to remove the rear trim panel or access panel to get to it. Once inside, you should see the fuel pump module, which houses the pump and its wiring.
• Identify the Fuel Pump Module: The fuel pump module is a small, rectangular-shaped component. It is typically located near the bottom of the tank and is secured with one or two screws. Carefully inspect the module to identify the fuel pump and its wiring harness. The pump is usually a small, cylindrical component with electrical connections.
• Locate the Wiring: The wiring for the fuel pump is connected to the pump module. It will consist of a few wires, often color-coded for identification. Common colors include black (ground), brown or orange (power), and green or white (signal). Carefully trace the wiring from the pump module to the engine bay, where it will connect to the fuel injection system or the engine's electrical harness.
• Check for Connections: Ensure that all wiring connections are secure and intact. Over time, connections can loosen or corrode, leading to fuel pump issues. Inspect the wiring for any signs of damage, such as burns or exposed wires. If you notice any issues, it's best to consult a professional mechanic for repairs or replacements.
• Refer to Diagrams (Optional): For more complex vehicles, you might find detailed wiring diagrams in your vehicle's service manual. These diagrams can help you visualize the wiring route and identify any specific connections. If you're unsure about any wiring, it's advisable to consult a professional or refer to the manual for accurate guidance.

Remember, working with fuel systems requires caution and knowledge of vehicle-specific components. If you're unsure, it's always best to seek assistance from a qualified mechanic to ensure the job is done safely and correctly.

Fuel Filter Replacement: Replace the filter to ensure clean fuel flow

Fuel filters are an essential component of your vehicle's fuel system, ensuring that only clean and debris-free fuel reaches the engine. Over time, these filters can become clogged or worn out, leading to reduced engine performance and potential issues. Replacing the fuel filter is a straightforward process that can be done at home with the right tools and a bit of knowledge. Here's a step-by-step guide to help you through the fuel filter replacement process:

Step 1: Locate the Fuel Filter

Start by identifying the fuel filter in your vehicle. The location can vary depending on the make and model of your car. It is typically found along the fuel line, often near the engine or under the car, and may be accessible by lifting the vehicle or removing certain panels. Refer to your vehicle's manual if you're unsure about the exact location.

Step 2: Drain the Fuel System

Before removing the old filter, it's crucial to drain the fuel system to prevent any spills or mess. Locate the fuel drain valve, usually found under the car near the fuel tank. Open the valve and allow the fuel to drain into a suitable container. Ensure you have a container with a capacity to hold the amount of fuel that might need to be drained. This step is essential for a clean and safe replacement process.

Step 3: Remove the Old Filter

Now, you can proceed to remove the old fuel filter. Use the appropriate tools, such as a fuel filter wrench or a pair of pliers, to carefully twist and pull the filter out of its housing. Take note of the direction you remove it to ensure proper installation of the new filter. Keep the old filter for inspection or disposal, as it can provide valuable insights into the condition of your fuel system.

Step 4: Install the New Filter

With the old filter removed, it's time to insert the new one. Ensure you have the correct filter type and size for your vehicle. Slide the new filter into the housing, making sure it is properly aligned. Tighten the filter securely using the appropriate tool, being careful not to overtighten.

Step 5: Reassemble and Test

After installing the new fuel filter, carefully reassemble any panels or components you may have removed during the process. Check for any leaks around the filter and the connections. Start the vehicle and let it run for a few minutes to ensure the fuel system is functioning correctly. Check for any unusual noises or vibrations, and verify that the engine is running smoothly.

By following these steps, you can effectively replace the fuel filter, ensuring a clean and efficient fuel flow to your engine. Regular maintenance of the fuel filter will help maintain optimal engine performance and longevity. Remember, if you're unsure about any step, it's always best to consult a professional mechanic for guidance.

Fuel Line Routing: Ensure lines are secure and routed correctly

When dealing with fuel line installation, proper routing is crucial to ensure the system's integrity and safety. Here's a step-by-step guide to achieving secure and correct fuel line routing:

• Understanding the Layout: Begin by thoroughly examining the vehicle's fuel system diagram or the manufacturer's specifications. This documentation will provide detailed information about the fuel tank's location, the position of the fuel pump, and the various fuel lines' connections. Understanding the layout is essential to ensure you route the lines correctly and avoid any potential interference with other components.
• Preparing the Materials: Gather all the necessary components, including the fuel lines, fittings, and any required tools. Ensure that the fuel lines are of the appropriate size and material for the specific application. Common materials include rubber, vinyl, or braided hoses, each with advantages depending on the vehicle's requirements.
• Routing the Lines: Start by positioning the fuel lines from the tank to the pump and then to the engine. Route the lines along the vehicle's frame or under the body, ensuring they are not pinched or subjected to excessive stress. Keep the lines as straight as possible to minimize the risk of damage and ensure easy access for future maintenance. Secure the lines using appropriate clamps or ties to prevent movement and potential damage.
• Securement and Support: Properly secure the fuel lines to maintain their position and prevent movement. Use appropriate clamps or ties, ensuring they are tight enough to hold the lines in place but not so tight that they cause damage. Consider the vehicle's vibration and movement, especially in high-performance applications, and choose securement methods that can withstand these conditions. Additionally, provide support for longer lines to prevent sagging, which can lead to fuel leakage or contamination.
• Inspection and Testing: After routing and securing the fuel lines, conduct a thorough inspection. Check for any signs of damage, such as cracks, punctures, or kinks, and ensure all connections are tight and secure. Perform a fuel pressure test to verify the system's integrity and ensure there are no leaks. This step is critical to identifying potential issues before the vehicle is put into operation.

By following these steps, you can ensure that the fuel lines are routed correctly and securely, minimizing the risk of fuel leaks, contamination, or system failures. Proper routing and securement are essential for maintaining the vehicle's performance and safety.
