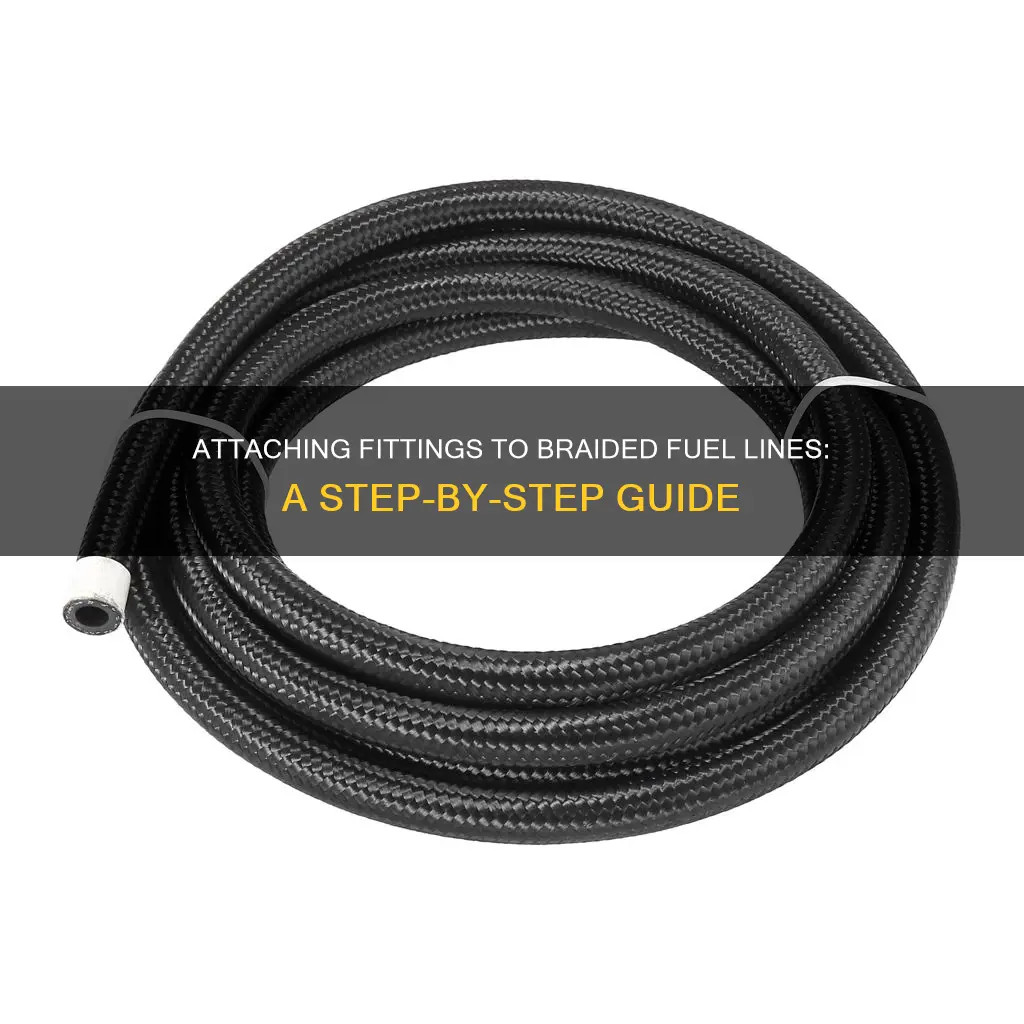

How to attach a fitting to a braided fuel line
| Characteristics | Values |
|---|---|
| Tools required | High-speed cutting tool, vice jaws, long-nose pliers, pressurized air, brake cleaner |
| Cutting process | Use electrical tape to prevent fraying, cut with a dremel or angle grinder, ensure square and clean cuts |
| Assembly | Insert cut hose into socket with a twisting and pushing motion, apply oil to the inside of the hose and socket nut, use pliers to gently open out the hose |
| Fittings | AN fittings, stainless steel fittings, aluminum fittings, nylon fittings, inverted flare fittings, compression fittings, tube nuts, swivel-seal hose ends, tube sleeves |
| Hose types | Stainless steel braided hose, nylon braided hose, Teflon-braided hose, rubber-braided hose |
| Additional tips | Sketch out the setup beforehand, ensure fittings are compatible with the hose, clean assembled hose to prevent debris |
Explore related products
What You'll Learn
- Use a high-speed cutting tool to cut the braided line
- Wrap the line with electrical tape to prevent fraying
- Insert the cut braided hose into the socket using a twisting and pushing motion
- Apply a small amount of oil to the inside of the hose and the threads of the socket nut
- Use a male-to-male adapter to connect the braided line to the hard line
Use a high-speed cutting tool to cut the braided line
When cutting a braided line, it is important to use a high-speed cutting tool to ensure a clean and square cut. A Dremel with a cutoff wheel or disc is a popular choice for this task. Before cutting, wrap electrical tape tightly around the area to be cut to prevent fraying and to provide a clear guide for your cut. It is important to wear eye and ear protection when using any sort of cutting power tool.
Once you have made your cut, you can begin assembling your fittings. First, insert the cut end of the braided hose into the socket, using a twisting and pushing motion until the hose reaches the back of the threads inside the socket nut. You can use long-nose pliers to gently open out the hose, but be careful not to use too much force. Mark the position of the hose against the back of the socket nut with a piece of masking tape. This will act as a guide to check if the hose is being pushed out during assembly.
Before inserting the fitting, it is recommended to apply a small amount of oil to the inside of the hose and the threads of the socket nut. Then, you can press on the female end of the fitting and secure it in a vise. Add a slight drop of oil to the male end for easy assembly. The hardest part of the assembly is forcing the hose into the female part without unravelling the end.
After assembly, it is important to clean your braided hose and fittings to prevent any debris from entering your fuel system. A combination of pressurized air and brake cleaner can be used for effective results. You can also tape up the ends of your assembled hoses until you are ready to install them.
