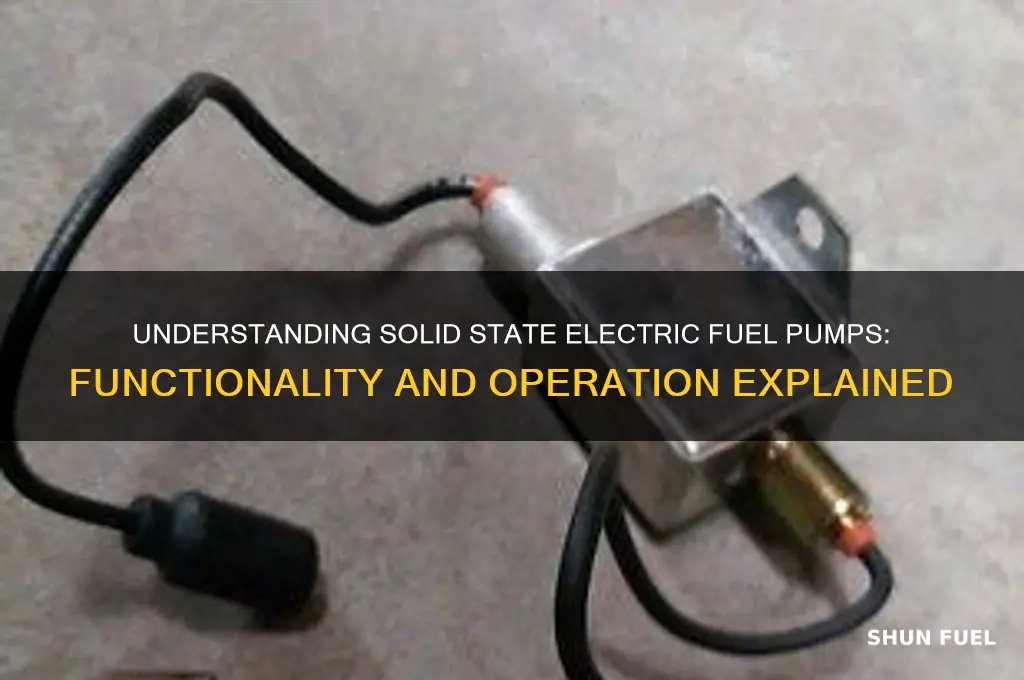

A solid-state electric fuel pump is a critical component in modern vehicles, designed to efficiently deliver fuel from the tank to the engine. Unlike traditional mechanical pumps, it operates using advanced electronic components, eliminating moving parts and reducing wear. The pump works by utilizing a solid-state semiconductor device, such as a piezoelectric or magnetostrictive element, which generates precise pressure waves when an electric current is applied. These waves create a pumping action, forcing fuel through the system. This design ensures reliable, quiet, and highly controlled fuel delivery, optimizing engine performance while minimizing energy consumption and maintenance needs. Its compact size and durability make it ideal for both conventional and electric vehicles, marking a significant advancement in fuel system technology.
| Characteristics | Values |
|---|---|
| Operation Principle | Uses solid-state electronics (e.g., MOSFETs, IGBTs) to control fuel flow. |
| Power Source | Electric (12V or 24V DC from vehicle battery). |
| Fuel Delivery Mechanism | Turbine or gerotor pump design for consistent fuel pressure. |
| Pressure Regulation | Controlled by a solid-state pressure regulator or PWM (Pulse Width Modulation). |
| Efficiency | High efficiency due to precise electronic control and low energy loss. |
| Noise Level | Quieter than mechanical fuel pumps due to fewer moving parts. |
| Durability | Longer lifespan due to reduced wear and tear from solid-state components. |
| Response Time | Faster response to engine demands compared to mechanical pumps. |
| Size and Weight | Compact and lightweight due to solid-state design. |
| Maintenance | Low maintenance; no brushes or mechanical parts to replace. |
| Compatibility | Suitable for modern fuel injection systems and electric vehicles. |
| Temperature Resistance | Operates efficiently in a wide temperature range (-40°C to +125°C). |
| Control Method | Microcontroller or ECU-based control for precise fuel delivery. |
| Environmental Impact | Reduced emissions due to optimized fuel delivery and efficiency. |
| Cost | Higher initial cost compared to mechanical pumps but lower long-term maintenance costs. |
| Applications | Used in gasoline, diesel, and hybrid vehicles, as well as electric vehicles with range extenders. |
Explore related products
What You'll Learn
- Electric Motor Operation: Drives the pump, converting electrical energy into mechanical motion for fuel delivery
- Impeller Mechanism: Rotates to create suction, drawing fuel from the tank into the pump
- Check Valves Function: Ensure one-way fuel flow, preventing backflow and maintaining consistent pressure
- Pressure Regulation: Integrated regulator controls fuel pressure to match engine demands efficiently
- Power Supply Integration: Connects to vehicle’s electrical system, ensuring continuous power for operation
Electric Motor Operation: Drives the pump, converting electrical energy into mechanical motion for fuel delivery
The heart of a solid-state electric fuel pump is its electric motor, a compact yet powerful component that transforms electrical energy into the mechanical force needed to move fuel. Unlike traditional fuel pumps driven by engine motion, this motor operates independently, ensuring consistent fuel delivery regardless of engine speed. Its efficiency lies in its ability to convert nearly 90% of electrical input into usable motion, a critical factor in maintaining optimal fuel pressure for modern engines.
Consider the motor’s operation as a choreographed dance of magnetic fields. When current flows through the motor’s windings, it generates a magnetic force that interacts with permanent magnets, causing the rotor to spin. This rotation is transferred to the pump mechanism, typically a gerotor or turbine, which draws fuel from the tank and pushes it toward the engine. The motor’s speed, controlled by the vehicle’s ECU, adjusts fuel flow based on demand—higher RPMs during acceleration, lower during idle.
One practical tip for diagnosing motor-related issues: listen for unusual noises during operation. A whining or grinding sound may indicate worn bearings or misalignment, while a complete lack of noise could mean the motor isn’t receiving power. Testing voltage at the motor’s terminals (typically 12V in most vehicles) can confirm electrical supply, but always disconnect the battery before handling wiring to avoid short circuits.
Comparatively, solid-state electric fuel pumps offer advantages over mechanical alternatives. Their brushless DC motors eliminate the wear associated with brushed designs, extending lifespan to over 100,000 miles in many cases. Additionally, their ability to operate at variable speeds reduces energy waste, contributing to better fuel efficiency—a feature particularly valuable in hybrid or high-performance vehicles where precise fuel management is essential.
In summary, the electric motor’s role in a solid-state fuel pump is both precise and adaptable. By seamlessly converting electrical energy into mechanical motion, it ensures reliable fuel delivery under all driving conditions. Understanding its operation not only highlights its engineering elegance but also equips you to troubleshoot issues effectively, keeping your vehicle running smoothly.
