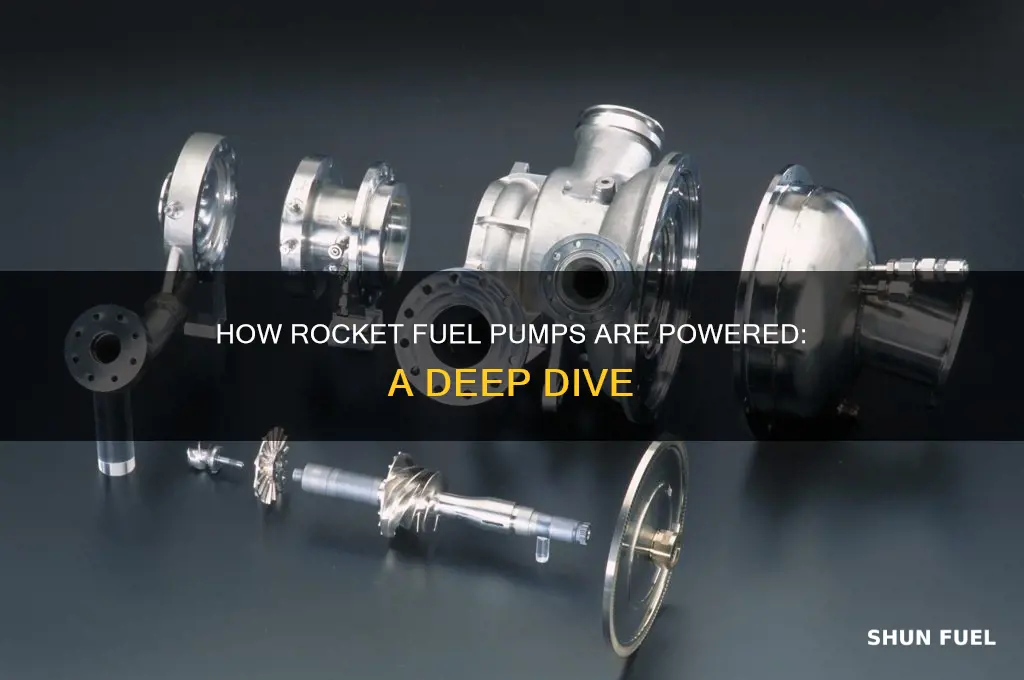

Rocket fuel pumps are powered through a sophisticated system that ensures the continuous and high-pressure delivery of propellant to the engine. Unlike aircraft engines, rockets operate in the vacuum of space, necessitating self-contained power sources. Typically, fuel pumps in rockets are driven by a separate power cycle, often utilizing a portion of the rocket's own propellant. In liquid-fueled rockets, a gas generator or preburner diverts a small amount of fuel and oxidizer to produce hot, high-pressure gas, which then drives a turbine connected to the fuel pumps. Alternatively, some designs use electrically powered pumps, drawing energy from onboard batteries or fuel cells. This dual-purpose use of propellant—both as fuel for combustion and as a power source for the pumps—maximizes efficiency and ensures reliable thrust generation in the extreme conditions of spaceflight.
| Characteristics | Values |
|---|---|
| Power Source | Turbopumps are typically powered by a gas generator or preburner. |
| Turbopump Function | High-speed turbines drive centrifugal pumps to pressurize and move fuel. |
| Fuel Types | Liquid oxygen (LOx), liquid hydrogen (LH2), kerosene (RP-1), etc. |
| Turbine Power | Derived from burning a portion of the rocket's fuel (e.g., RP-1 + LOx). |
| Exhaust Gas Utilization | Exhaust from the gas generator or preburner powers the turbine. |
| Pump Speed | Turbopumps can spin at tens of thousands of RPM (e.g., 30,000+ RPM). |
| Pressure Output | Pumps fuel to high pressures (e.g., 300+ bar) for combustion. |
| Efficiency | High efficiency in converting fuel energy into pump power. |
| Cooling Mechanism | Some turbopumps use cryogenic fuels (e.g., LH2) for cooling. |
| Redundancy | Critical systems often have redundant turbopumps for reliability. |
| Control System | Precise control of fuel flow and pressure via throttle valves and sensors. |
| Materials | Turbopumps are made of high-strength, heat-resistant materials (e.g., Inconel). |
| Application | Used in liquid-fueled rockets (e.g., SpaceX Falcon 9, NASA SLS). |
| Historical Development | Turbopumps have been used since the V-2 rocket in the 1940s. |
| Modern Innovations | Advances in materials and design for higher efficiency and reliability. |
Explore related products
What You'll Learn
- Turbopump Drive Systems: Gas generators or electric motors power turbopumps for fuel propulsion
- Fuel Pressurization Methods: Helium or nitrogen gas pressurizes tanks to feed fuel into pumps
- Pump Efficiency Factors: Speed, impeller design, and material strength optimize fuel pump performance
- Propellant Feed Systems: Turbopumps draw fuel from tanks, ensuring steady flow to engines
- Power Source Integration: Rocket engines divert exhaust gases to drive turbopump mechanisms
Turbopump Drive Systems: Gas generators or electric motors power turbopumps for fuel propulsion
Rockets demand immense power to propel themselves into space, and this power begins with the fuel pumps. Turbopump drive systems are the heart of this process, responsible for delivering propellant at high pressure to the combustion chamber. These systems rely on two primary power sources: gas generators and electric motors, each with distinct advantages and applications.
Gas generators, often fueled by a portion of the rocket's own propellant, offer a compact and reliable solution. A small amount of fuel and oxidizer is combusted in a separate chamber, generating hot gas that drives a turbine connected to the turbopump. This turbine spins at incredible speeds, sometimes exceeding 100,000 RPM, providing the necessary power to pressurize and deliver the main propellant flow. The Saturn V moon rocket's F-1 engines, for instance, utilized gas generator-driven turbopumps, showcasing their capability in large-scale applications.
Electric motors, on the other hand, provide a cleaner and potentially more efficient alternative. Powered by batteries or fuel cells, these motors eliminate the need for a separate combustion process, reducing complexity and potential points of failure. Electric turbopumps are particularly attractive for smaller rockets and reusable launch systems, where efficiency and simplicity are paramount. SpaceX's Raptor engine, designed for the Starship, employs electric turbopumps, highlighting their growing prominence in modern rocketry.
The choice between gas generators and electric motors depends on the specific mission requirements. Gas generators excel in high-thrust applications, where raw power is crucial, while electric motors offer advantages in terms of control, efficiency, and environmental impact. As rocket technology advances, we can expect further innovations in turbopump drive systems, potentially blending the strengths of both approaches to achieve even greater performance and reliability. Understanding these systems is key to appreciating the intricate engineering behind every successful launch.
