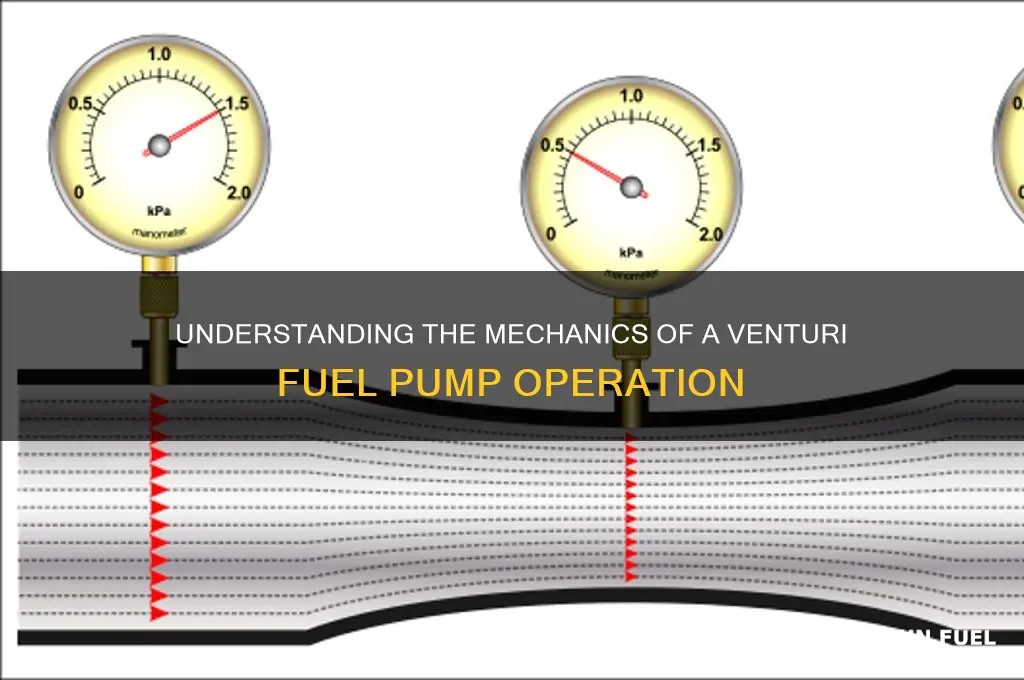

A Venturi fuel pump operates on the principle of the Venturi effect, a phenomenon where fluid flow velocity increases as it passes through a constricted section of a pipe, resulting in a decrease in pressure. In the context of a fuel pump, this effect is harnessed to create a vacuum that draws fuel from the tank into the engine. The pump consists of a narrow throat within a tube, where the fuel flows at high speed, creating low pressure. This low-pressure area sucks fuel from the tank through an inlet, and the fuel is then mixed with air or carried by the airflow to the carburetor or fuel injection system. The simplicity and reliability of Venturi fuel pumps make them a common choice in various applications, particularly in small engines and older carbureted systems.
Explore related products
What You'll Learn
- Venturi Principle Basics: Explains how fluid velocity increases in a constricted area, creating low pressure
- Fuel Pump Design: Describes the structure, including nozzle, throat, and diffuser components
- Suction Mechanism: Details how low pressure draws fuel into the pump from the tank
- Pressure Recovery: Explains how fuel pressure is restored in the diffuser section
- Applications in Engines: Discusses how venturi pumps integrate into carburetor systems for fuel delivery
Venturi Principle Basics: Explains how fluid velocity increases in a constricted area, creating low pressure
Fluid behavior in constricted spaces is a cornerstone of the Venturi principle, a phenomenon that underpins the operation of Venturi fuel pumps. When a fluid, such as air or liquid, flows through a pipe and encounters a narrowed section, its velocity increases. This acceleration is not arbitrary but a direct consequence of the conservation of mass, which dictates that the product of the fluid's cross-sectional area and its velocity remains constant. As the area decreases, velocity must increase to maintain this balance. For instance, in a typical Venturi tube, if the inlet area is 10 square centimeters and the fluid flows at 2 meters per second, the velocity in a constricted area of 5 square centimeters will double to 4 meters per second.
This increase in velocity is intrinsically linked to a decrease in pressure, a relationship described by Bernoulli's principle. As the fluid speeds up in the constricted area, its kinetic energy rises, leaving less energy available for pressure. This creates a low-pressure zone at the throat of the Venturi tube. The pressure differential between the inlet and the throat is the driving force behind the pump's functionality. In practical terms, this means that if the inlet pressure is 100 kPa, the pressure at the throat might drop to 80 kPa, creating a vacuum effect that can draw fuel into the system.
Understanding this principle is crucial for optimizing Venturi fuel pump performance. The design of the constriction—its shape, angle, and length—directly influences the efficiency of the pressure drop and, consequently, the pump's ability to draw fuel. For example, a gradual taper to the constricted area minimizes energy loss due to turbulence, ensuring a more consistent flow. Conversely, a sharp constriction can lead to cavitation, where the pressure drop is so severe that it causes the fluid to vaporize, disrupting the flow. Engineers must balance these factors to achieve optimal performance, often using computational fluid dynamics (CFD) simulations to refine designs.
A real-world application of this principle can be seen in carbureted engines, where a Venturi tube in the carburetor creates a low-pressure zone that draws fuel into the airstream. The ratio of air to fuel is critical for combustion efficiency, typically ranging from 14:1 to 15:1 by weight for gasoline engines. By precisely controlling the Venturi's geometry, engineers ensure that the correct fuel-air mixture is delivered under varying operating conditions. This highlights the Venturi principle's role not just as a theoretical concept but as a practical tool for achieving precise fluid control in engineering applications.
In summary, the Venturi principle's interplay between fluid velocity and pressure is fundamental to the operation of Venturi fuel pumps. By constricting the flow area, velocity increases, leading to a low-pressure zone that can be harnessed to draw fuel. This mechanism, rooted in the laws of fluid dynamics, requires careful design to maximize efficiency and avoid issues like turbulence or cavitation. Whether in automotive carburetors or industrial systems, mastering this principle enables engineers to create reliable, effective fluid-handling solutions.
Does Ford Still Use the CP4 Fuel Pump? Uncovering the Truth
You may want to see also
Explore related products
Fuel Pump Design: Describes the structure, including nozzle, throat, and diffuser components
A Venturi fuel pump operates on the principle of fluid dynamics, leveraging the Venturi effect to create a pressure differential that draws fuel into the system. Central to its design are three critical components: the nozzle, throat, and diffuser. Each plays a distinct role in ensuring efficient fuel delivery, and understanding their structure is key to appreciating the pump's functionality.
The nozzle is the first component in the Venturi pump’s flow path. It is a tapered section that accelerates the flow of the motive fluid, typically air or a pressurized liquid. As the fluid passes through the nozzle, its velocity increases while its pressure decreases, in accordance with Bernoulli’s principle. This low-pressure zone is crucial, as it creates a vacuum that draws fuel from the supply tank. The nozzle’s angle and diameter are precisely engineered to optimize this effect, ensuring sufficient pressure drop without causing turbulence or inefficiency. For example, in automotive applications, a nozzle with a 15-degree taper is commonly used to balance flow rate and pressure differential.
Following the nozzle is the throat, the narrowest section of the Venturi tube. Here, the motive fluid reaches its maximum velocity and minimum pressure. The throat’s design is critical, as it must maintain a smooth flow while sustaining the pressure differential needed to draw fuel. In practice, the throat’s diameter is often 30-50% smaller than that of the nozzle, depending on the application. For instance, in small engines, a throat diameter of 6 mm is typical, while larger industrial pumps may use diameters up to 25 mm. The throat’s length is also important; too short, and the pressure drop may be insufficient; too long, and friction losses can reduce efficiency.
The final component is the diffuser, which gradually expands the flow area, converting the high-velocity, low-pressure fluid back into a low-velocity, high-pressure stream. This process recovers much of the energy lost in the nozzle and throat, ensuring the pump operates efficiently. The diffuser’s angle is typically shallower than the nozzle’s, often around 7 degrees, to prevent flow separation and maintain stability. In fuel systems, the diffuser also serves to mix the motive fluid and fuel thoroughly, ensuring a consistent blend for combustion. For optimal performance, the diffuser length should be at least twice the throat diameter, a rule of thumb widely applied in pump design.
Together, these components form a seamless system that harnesses fluid dynamics to deliver fuel reliably. While the Venturi pump’s design appears simple, its effectiveness lies in the precise engineering of each part. For DIY enthusiasts or engineers, understanding these specifics allows for customization and troubleshooting, whether upgrading a carburetor or designing a fuel system from scratch. Always consider the fluid properties and flow rates when modifying these components, as even small changes can significantly impact performance.
