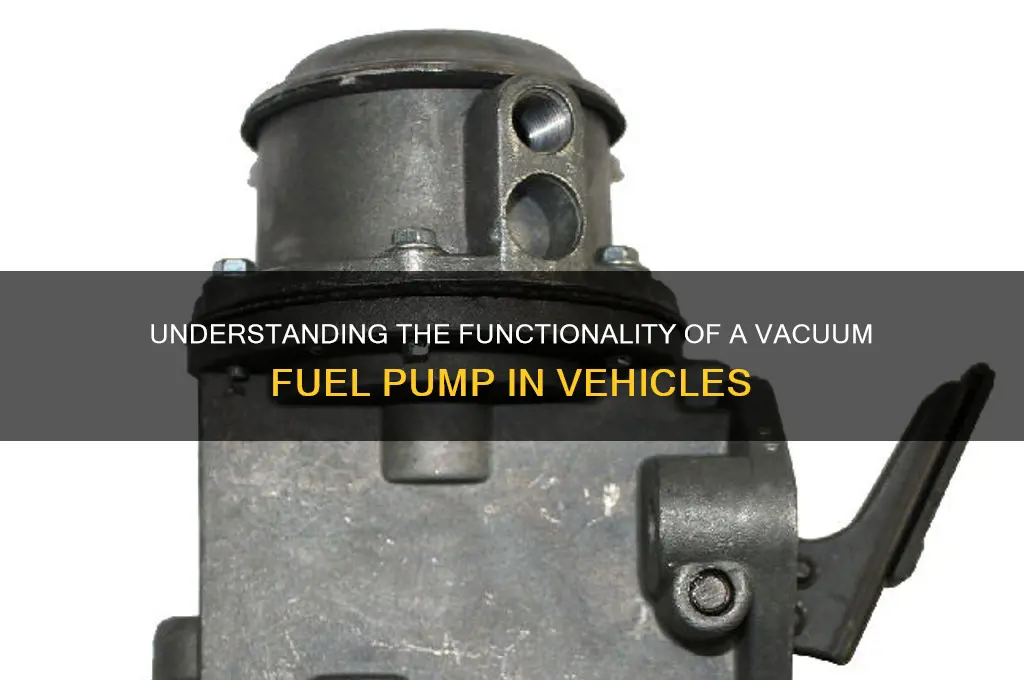

A vacuum fuel pump, commonly used in older carbureted vehicles, operates by utilizing engine-generated vacuum to draw fuel from the gas tank to the carburetor. The system typically consists of a mechanical diaphragm pump mounted on the engine, which is connected to the intake manifold via a vacuum hose. As the engine runs, the manifold creates a low-pressure area, causing the diaphragm to move and create suction. This suction pulls fuel through the fuel lines, delivering it to the carburetor for combustion. The pump often includes a check valve to prevent fuel from flowing back into the tank and a pressure regulator to maintain consistent fuel delivery. While less common in modern fuel-injected vehicles, understanding how a vacuum fuel pump works provides valuable insight into the evolution of automotive fuel systems.
| Characteristics | Values |
|---|---|
| Type | Vacuum-operated fuel pump |
| Operation Principle | Utilizes engine vacuum to create a pressure differential, drawing fuel from the tank to the carburetor |
| Components | Vacuum source (engine intake manifold), diaphragm, valves (inlet, outlet, vacuum), fuel lines, fuel filter |
| Vacuum Source | Connected to the engine's intake manifold via a vacuum hose |
| Diaphragm Function | Alternates between creating low pressure (suction) and high pressure, moving fuel through the pump |
| Inlet Valve | Allows fuel to enter the pump from the fuel tank when the diaphragm moves downward |
| Outlet Valve | Allows fuel to exit the pump toward the carburetor when the diaphragm moves upward |
| Vacuum Valve | Controls the vacuum applied to the diaphragm, regulating pump operation |
| Fuel Flow Direction | One-way flow from fuel tank to carburetor, prevented from reversing by check valves |
| Pressure Regulation | Dependent on engine vacuum and pump design; typically low pressure (3-7 PSI) |
| Application | Commonly used in older carbureted vehicles, motorcycles, and small engines |
| Advantages | Simple design, low cost, reliable in low-pressure systems |
| Disadvantages | Dependent on engine vacuum, limited fuel pressure, not suitable for fuel-injected systems |
| Maintenance | Regular inspection of vacuum lines, diaphragm, and valves for leaks or wear |
| Failure Symptoms | Hard starting, stalling, poor engine performance due to insufficient fuel delivery |
| Modern Relevance | Largely replaced by electric fuel pumps in modern vehicles but still used in specific applications |
Explore related products
What You'll Learn
- Electric Motor Operation: Drives the pump, creating suction to draw fuel from the tank
- Diaphragm Mechanism: Flexes to create vacuum, ensuring consistent fuel flow to the engine
- Check Valve Function: Prevents fuel backflow, maintaining pressure in the fuel line
- Pressure Regulation: Controls fuel delivery, matching engine demand for optimal performance
- Fuel Filter Integration: Removes debris, ensuring clean fuel reaches the pump and engine
Electric Motor Operation: Drives the pump, creating suction to draw fuel from the tank
The electric motor is the unsung hero of a vacuum fuel pump, serving as the primary force that initiates the entire fuel delivery process. When the ignition is turned on, the motor springs into action, converting electrical energy into mechanical motion. This motion is transferred to the pump mechanism, which begins to rotate or oscillate, depending on the pump design. The key principle here is that the motor’s operation creates a low-pressure zone within the pump, effectively generating suction. This suction acts as the initial pull, drawing fuel from the tank through the intake line. Without the motor’s precise and consistent operation, the pump would remain inert, leaving the engine starved for fuel.
Consider the analogy of a straw: just as you create suction by reducing pressure inside the straw, the electric motor enables the pump to reduce pressure in the fuel line. This pressure differential—lower pressure in the pump and higher pressure in the tank—drives the fuel to flow toward the engine. In practical terms, the motor’s speed and torque are critical factors. Most electric fuel pumps operate at speeds ranging from 3,000 to 10,000 RPM, ensuring sufficient suction to handle varying fuel demands, from idle to full throttle. Proper motor function is also tied to voltage stability; a 12V system, for instance, must maintain consistent power delivery to avoid fluctuations that could compromise suction efficiency.
One common misconception is that the motor’s role is merely to spin the pump. In reality, its operation is finely tuned to match the engine’s fuel requirements. For example, in modern vehicles with electronic control units (ECUs), the motor’s speed may be adjusted dynamically based on engine load, temperature, and other factors. This adaptability ensures that the pump delivers the exact amount of fuel needed, neither too much nor too little. For DIY enthusiasts troubleshooting a fuel pump issue, checking the motor’s electrical connections and voltage supply is often the first step, as a weak or failing motor will directly impact suction capability.
Comparing electric motor-driven pumps to mechanical ones highlights their advantages. Mechanical pumps, typically driven by the camshaft, are less efficient and more prone to wear due to their direct linkage to engine speed. Electric motors, on the other hand, offer independence from engine RPM, allowing for more consistent fuel delivery across all operating conditions. Additionally, electric pumps can be mounted inside the fuel tank, reducing the risk of vapor lock—a condition where fuel vaporizes in the lines due to heat. This in-tank design also ensures that the pump remains submerged in fuel, which helps dissipate heat and prolong motor life.
In conclusion, the electric motor’s operation is the linchpin of a vacuum fuel pump’s functionality. By generating suction through precise mechanical action, it ensures a steady flow of fuel from tank to engine. Understanding its role—from speed regulation to voltage requirements—empowers both mechanics and enthusiasts to diagnose and maintain fuel systems effectively. Whether in a high-performance vehicle or a daily commuter, the motor’s reliability is non-negotiable, making it a critical component in modern fuel delivery systems.
GT350 Fuel System: Exploring the Dual Pump Setup
You may want to see also
Explore related products
Diaphragm Mechanism: Flexes to create vacuum, ensuring consistent fuel flow to the engine
The diaphragm mechanism in a vacuum fuel pump is a marvel of simplicity and efficiency, operating on a principle as old as the bellows used in ancient blacksmithing. At its core, the diaphragm is a flexible membrane, typically made of durable materials like nitrile or neoprene, designed to withstand the rigors of constant flexing. When the pump is activated, the diaphragm moves back and forth, creating a vacuum on one side and a pressure differential on the other. This action mimics the lungs’ inhalation and exhalation, drawing fuel from the tank and pushing it toward the engine with precision. Understanding this mechanism is crucial for diagnosing issues like fuel starvation or inconsistent engine performance, as a worn diaphragm can lead to reduced vacuum pressure and inadequate fuel delivery.
To visualize the diaphragm’s role, imagine a piston-like motion within a sealed chamber. As the diaphragm flexes inward, it expands the chamber’s volume, lowering the pressure and creating a vacuum. This vacuum pulls fuel through the inlet valve, while the diaphragm’s outward flex returns the chamber to its original volume, forcing the fuel through the outlet valve and into the engine. This cyclical process ensures a steady, uninterrupted fuel flow, critical for maintaining engine efficiency. For optimal performance, inspect the diaphragm for cracks or thinning every 30,000 miles or if you notice rough idling or difficulty starting. Replacement diaphragms are typically affordable, costing between $10 and $30, making maintenance accessible even for budget-conscious vehicle owners.
One of the diaphragm’s standout advantages is its ability to operate without electrical power, relying instead on the engine’s vacuum system. This makes it particularly reliable in older vehicles or off-road applications where electrical systems may be vulnerable to damage. However, this dependency on engine vacuum also means the pump’s effectiveness can diminish at idle or low RPMs, as less vacuum is generated. To mitigate this, some systems incorporate a check valve to maintain pressure during low-vacuum conditions. If you’re upgrading a classic car or restoring a vintage engine, consider pairing a diaphragm-based vacuum pump with a high-capacity fuel filter to ensure clean, consistent fuel delivery, especially in carbureted systems.
While the diaphragm mechanism is robust, it’s not invincible. Exposure to ethanol-blended fuels can accelerate material degradation, leading to premature failure. If your vehicle frequently uses E10 or higher ethanol blends, inspect the diaphragm annually and opt for ethanol-resistant materials when replacing components. Additionally, contamination from dirt or debris can cause the diaphragm to stick or tear, so always install an inline fuel filter upstream of the pump. For DIY enthusiasts, replacing a diaphragm is a straightforward task: disconnect the fuel lines, remove the pump’s housing, and swap the diaphragm, ensuring all seals are intact. This proactive approach can save you from roadside breakdowns and costly repairs, proving that understanding the diaphragm’s role is as practical as it is fascinating.
Chrysler Pacifica 2005 Fuel Pump Count: A Comprehensive Guide
You may want to see also
Explore related products
Check Valve Function: Prevents fuel backflow, maintaining pressure in the fuel line
Fuel systems in vehicles are designed to deliver a consistent supply of fuel to the engine under varying conditions. One critical component ensuring this reliability is the check valve, a small yet indispensable part of the vacuum fuel pump. Its primary function is to prevent fuel backflow, a phenomenon that could disrupt the entire fuel delivery process. Without this valve, fuel could flow backward, causing a drop in pressure within the fuel line, leading to engine performance issues or even stalling.
Consider the check valve as a one-way gate in the fuel system. When the fuel pump is operational, it generates pressure that pushes fuel toward the engine. The check valve allows this forward flow but instantly closes if the pressure reverses, effectively blocking any backward movement of fuel. This mechanism is crucial during engine shutdown or when the pump momentarily stops, as it maintains the pressure in the fuel line, ensuring that the system is primed and ready for immediate operation when the engine restarts.
The design of the check valve is deceptively simple yet highly effective. It typically consists of a spring-loaded ball or flap that seats against a sealing surface. When fuel flows in the correct direction, the pressure overcomes the spring force, allowing the ball or flap to lift and permit passage. If the flow reverses, the spring pushes the ball or flap back into its seat, creating a tight seal that prevents backflow. This design ensures minimal pressure drop during normal operation while providing robust protection against reverse flow.
In practical terms, the check valve’s role becomes especially evident in systems that rely on vacuum fuel pumps, which are often found in older carbureted engines or auxiliary fuel systems. For instance, in a vacuum-driven fuel pump, the check valve ensures that fuel does not drain back into the tank when the engine is off, maintaining a residual pressure that reduces the time required for the pump to re-establish full pressure. This is particularly beneficial during cold starts or when the engine is frequently turned on and off, such as in stop-and-go traffic.
To ensure the check valve functions optimally, regular maintenance is key. Over time, debris or contaminants in the fuel can cause the valve to stick or leak, compromising its ability to prevent backflow. Inspecting the fuel filter and using clean, high-quality fuel can mitigate these issues. Additionally, if you notice symptoms like hard starting, rough idling, or a loss of power, the check valve may be malfunctioning and should be inspected or replaced as part of a comprehensive fuel system diagnosis. By understanding and maintaining this small component, you can significantly enhance the reliability and performance of your vehicle’s fuel system.
Hyundai Santa Fe Fuel Pump Count: What You Need to Know
You may want to see also
Explore related products
Pressure Regulation: Controls fuel delivery, matching engine demand for optimal performance
A vacuum fuel pump operates by creating a low-pressure environment that draws fuel from the tank to the carburetor, relying on the engine’s vacuum for suction. However, raw suction alone is insufficient for precision; this is where pressure regulation steps in as the linchpin of efficiency. Without it, fuel delivery would be erratic, flooding the engine under low demand or starving it during acceleration. The regulator acts as a gatekeeper, modulating flow to match the engine’s real-time needs, ensuring neither excess nor deficit. This dynamic balance is critical for combustion optimization, reducing waste and maximizing power output.
Consider the regulator as a thermostat for fuel, calibrated to respond to engine load and RPM fluctuations. When the throttle opens during acceleration, the regulator senses increased vacuum and permits higher fuel flow, delivering the extra energy required. Conversely, during idle or deceleration, it restricts flow to prevent over-fueling, which could lead to inefficiency or misfires. This adaptive mechanism is particularly vital in carbureted systems, where precision is less forgiving than in modern fuel-injected engines. For instance, a regulator might adjust pressure from 2 to 6 psi depending on engine demand, ensuring a consistent air-fuel ratio across operating conditions.
Practical implementation of pressure regulation involves a diaphragm-based mechanism within the pump or an external regulator. The diaphragm responds to vacuum changes, opening or closing a valve to control fuel passage. Maintenance is key here: a failing regulator can cause symptoms like hard starting, stalling, or poor acceleration. Inspect for leaks, test vacuum response with a gauge, and replace diaphragms every 50,000 miles or at the first sign of inconsistency. For DIY enthusiasts, aftermarket regulators with adjustable pressure settings offer customization, though factory specs (e.g., 4.5 psi for small-block V8s) are generally optimal for stock engines.
Comparatively, pressure regulation in vacuum fuel pumps contrasts with electric pumps, which rely on fixed-pressure designs or electronic feedback loops. The vacuum-driven system’s simplicity is its strength, but it demands meticulous calibration. For example, altitude adjustments may be necessary, as higher elevations reduce atmospheric pressure, affecting vacuum strength. A regulator with altitude compensation can offset this, ensuring consistent performance whether at sea level or in mountainous regions. This adaptability underscores the regulator’s role as both a problem-solver and performance enhancer.
In essence, pressure regulation transforms the vacuum fuel pump from a rudimentary suction device into a responsive, demand-driven system. It bridges the gap between mechanical operation and engine requirements, turning raw potential into controlled power. For enthusiasts and mechanics alike, understanding this mechanism isn’t just technical knowledge—it’s a toolkit for diagnosing issues, optimizing performance, and appreciating the elegance of a well-regulated system. Master it, and the engine’s heartbeat syncs perfectly with the driver’s intent.
Auxiliary Fuel Pump Installation Guide for Your Chevy Silverado
You may want to see also
Explore related products
Fuel Filter Integration: Removes debris, ensuring clean fuel reaches the pump and engine
Fuel filters are the unsung heroes in the fuel delivery system, playing a critical role in maintaining the integrity of both the fuel pump and the engine. Integrated into the fuel line, these filters act as a barrier, trapping contaminants such as dirt, rust, and debris before they can reach sensitive components. Without this filtration, even microscopic particles can cause wear, reduce efficiency, or lead to costly repairs. For instance, a clogged fuel injector due to debris can decrease engine performance by up to 15%, highlighting the filter’s importance.
Consider the fuel filter as the first line of defense in a multi-step protection system. Its design varies depending on the vehicle—some are inline filters located between the fuel tank and pump, while others are integrated directly into the fuel pump assembly. In either case, the filter’s media, typically a cellulose or synthetic material, is engineered to capture particles as small as 10 microns. Regular replacement, often recommended every 30,000 miles or as per the manufacturer’s guidelines, ensures optimal performance. Neglecting this maintenance can lead to reduced fuel flow, pump strain, and eventual failure.
From a practical standpoint, integrating a fuel filter into the system is not just about debris removal—it’s about preserving the lifespan of the fuel pump. A pump operating with contaminated fuel works harder, consumes more energy, and is prone to overheating. For example, a study found that pumps running with unfiltered fuel experienced a 20% higher failure rate within 50,000 miles compared to those with properly maintained filters. This underscores the filter’s role in preventing premature wear and ensuring consistent fuel delivery.
To maximize the benefits of fuel filter integration, vehicle owners should adopt proactive measures. Inspect the filter during routine maintenance, especially if the vehicle operates in dusty or high-debris environments. Symptoms of a failing filter include rough idling, reduced acceleration, and engine stalling. Upgrading to a higher-quality filter with finer filtration capabilities can provide added protection, particularly for older vehicles or those used in harsh conditions. By prioritizing this component, drivers can safeguard their fuel system’s efficiency and reliability.
In conclusion, fuel filter integration is a vital yet often overlooked aspect of a vac fuel pump’s functionality. Its ability to remove debris ensures that only clean fuel reaches the pump and engine, preventing damage and maintaining performance. Whether through regular replacement, proactive inspection, or upgrading to superior filtration, investing in this component pays dividends in the long-term health of the vehicle. Treat the fuel filter as a critical partner to the fuel pump, and the engine will thank you with smoother operation and extended longevity.
Does Your Fuel Pump Make Noise Before Starting? Here's Why
You may want to see also
Frequently asked questions
A vac fuel pump, or vacuum fuel pump, is a type of mechanical fuel pump that uses engine vacuum to create suction and draw fuel from the tank to the carburetor or fuel injection system. Unlike electric fuel pumps, it relies on the engine's vacuum system for operation, making it simpler and more common in older carbureted vehicles.
A vac fuel pump operates by utilizing the vacuum created in the engine's intake manifold during the intake stroke. This vacuum is directed to one side of a diaphragm inside the pump, causing it to flex and create a low-pressure area. This low pressure draws fuel from the tank, while a check valve ensures the fuel flows in one direction toward the engine.
A vac fuel pump typically consists of a diaphragm, a vacuum port connected to the intake manifold, an inlet for fuel from the tank, an outlet for fuel to the engine, and check valves to maintain proper fuel flow direction. Some models may also include a pressure regulator to control fuel delivery.
Advantages of a vac fuel pump include simplicity, reliability, and low cost, as it has fewer moving parts and doesn’t require electricity. However, disadvantages include dependence on engine vacuum, which can limit performance at idle or high altitudes, and potential incompatibility with modern fuel injection systems that require higher fuel pressure.
