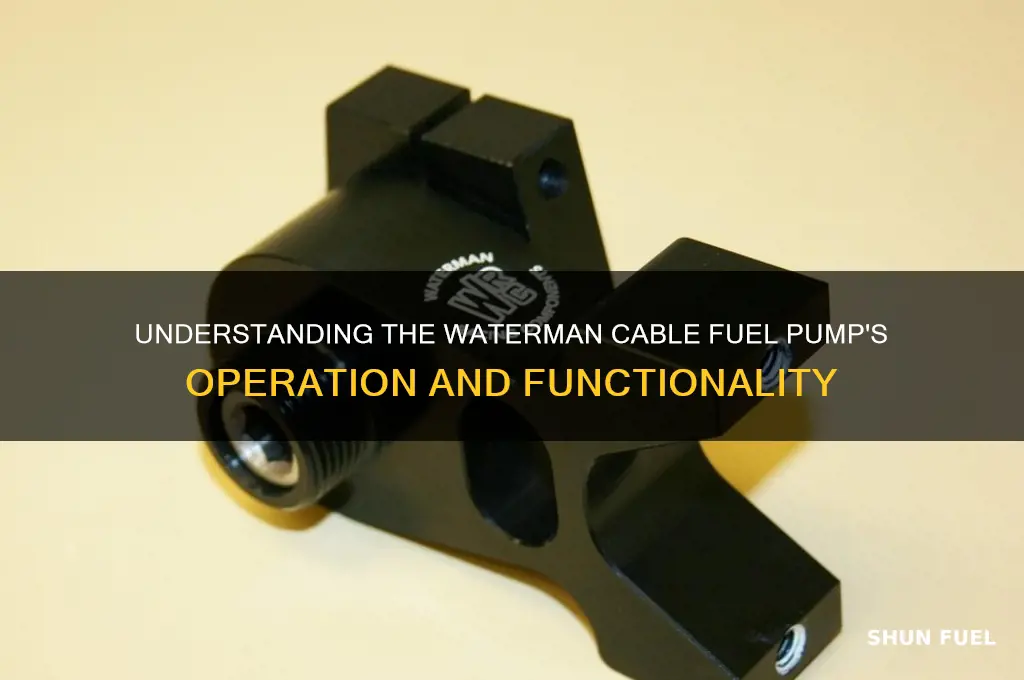

A Waterman Cable Fuel Pump operates on a unique principle that combines mechanical and hydraulic mechanisms to deliver fuel efficiently. Unlike traditional electric fuel pumps, it utilizes a flexible cable driven by the vehicle’s engine, which pulls a diaphragm within the pump to create a vacuum. This vacuum draws fuel from the tank into the pump chamber, where it is then pressurized and delivered to the carburetor or fuel injection system. The cable’s rhythmic motion ensures a consistent fuel flow, making it particularly reliable in older or specialized vehicles. Its simplicity, durability, and ability to function without electricity make it a preferred choice for classic cars, racing applications, and scenarios where electrical systems are unreliable. Understanding its operation involves examining the interplay between the cable drive, diaphragm movement, and the pump’s internal valves, which work together to maintain optimal fuel pressure and delivery.
| Characteristics | Values |
|---|---|
| Operation Principle | Mechanical, cable-driven diaphragm pump |
| Fuel Delivery | Positive displacement, ensures consistent fuel flow |
| Drive Mechanism | Connected to engine via cable, driven by camshaft or crankshaft |
| Diaphragm Function | Alternates between creating vacuum and pressure to draw/push fuel |
| Check Valves | One-way valves ensure unidirectional fuel flow (inlet and outlet) |
| Pressure Regulation | Built-in or external regulator maintains optimal fuel pressure |
| Material Construction | Typically aluminum or steel for durability and corrosion resistance |
| Compatibility | Designed for carbureted engines (not fuel injection systems) |
| Maintenance | Requires periodic diaphragm and valve inspection/replacement |
| Advantages | Reliable, simple design, no electrical components |
| Disadvantages | Limited to low-pressure systems, cable wear over time |
| Common Applications | Classic cars, motorcycles, marine engines, small aircraft |
Explore related products
What You'll Learn
- Pump Mechanism: Explains the internal workings of the Waterman Cable Fuel Pump's mechanical components
- Cable Operation: Details how the cable system drives the pump's fuel delivery process
- Fuel Flow Dynamics: Describes the movement of fuel through the pump and into the engine
- Maintenance Tips: Provides essential care and troubleshooting advice for optimal pump performance
- Installation Process: Outlines steps for correctly installing a Waterman Cable Fuel Pump in vehicles
Pump Mechanism: Explains the internal workings of the Waterman Cable Fuel Pump's mechanical components
The Waterman Cable Fuel Pump operates on a simple yet ingenious mechanical principle, leveraging the interplay of a flexible cable and a precision-engineered pump mechanism to deliver fuel efficiently. At its core, the pump consists of a cylindrical body housing a plunger connected to a cable that extends to the pump handle. When the handle is actuated, the cable pulls the plunger upward, creating a vacuum that draws fuel into the pump chamber through a one-way inlet valve. This process relies on the precise alignment and sealing of internal components to ensure minimal fuel leakage and maximum efficiency.
Analyzing the internal workings reveals a symphony of mechanical components working in harmony. The plunger, typically made of durable materials like brass or stainless steel, moves within a tightly sealed bore to maintain suction. The one-way inlet and outlet valves, often constructed from resilient rubber or synthetic materials, prevent backflow and ensure unidirectional fuel flow. A spring mechanism returns the plunger to its resting position after each stroke, priming the pump for the next cycle. This design minimizes wear and tear while maximizing the pump’s lifespan, even in demanding environments.
To understand the pump’s efficiency, consider its step-by-step operation. First, the handle is pulled, retracting the cable and lifting the plunger. This action creates a low-pressure zone, drawing fuel into the chamber via the inlet valve. Next, the handle is released, allowing the spring to push the plunger downward, forcing fuel out through the outlet valve. This cycle repeats with each stroke, delivering a consistent fuel flow. Practical tips include ensuring the cable is properly lubricated to reduce friction and regularly inspecting valves for debris to maintain optimal performance.
Comparatively, the Waterman Cable Fuel Pump stands out from electric or diaphragm pumps due to its mechanical simplicity and reliability. Unlike electric pumps, it requires no external power source, making it ideal for remote or off-grid applications. Its manual operation also provides greater control over fuel delivery, a feature particularly useful in precision tasks like carburetor priming or small engine maintenance. However, its effectiveness depends on user effort, so it may not be suitable for high-volume or continuous fueling needs.
In conclusion, the Waterman Cable Fuel Pump’s mechanism is a testament to elegant engineering, combining simplicity with functionality. By understanding its internal components—plunger, valves, cable, and spring—users can appreciate its efficiency and reliability. For optimal performance, regular maintenance and proper handling are key. Whether for marine, automotive, or recreational use, this pump’s mechanical design ensures it remains a trusted tool for fuel transfer tasks.
