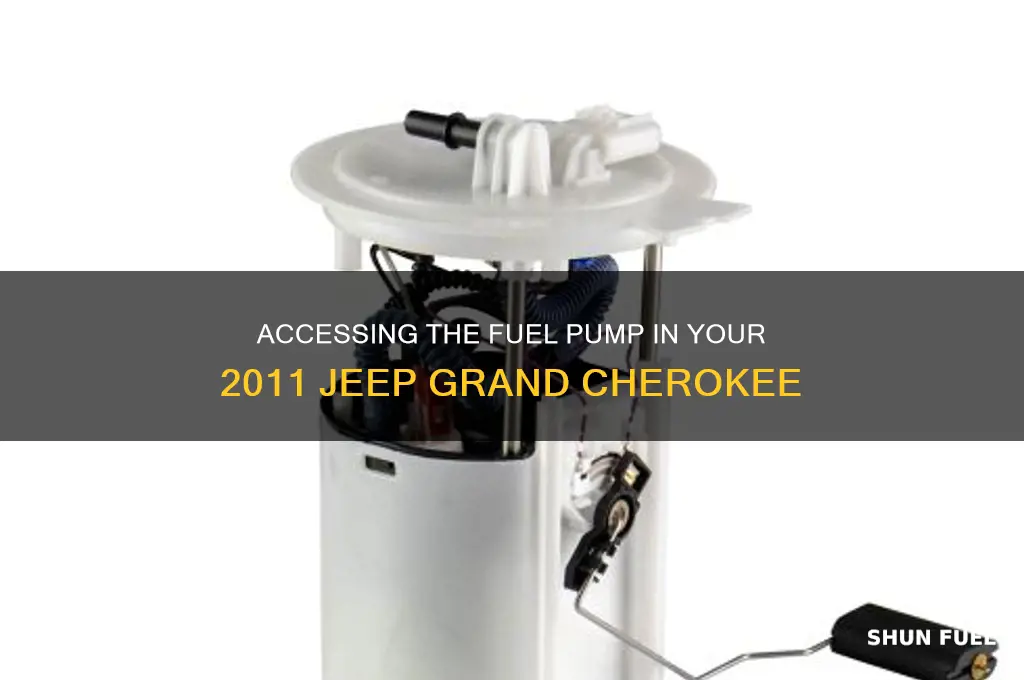

Accessing the fuel pump in an 2011 Jeep Grand Cherokee requires careful steps due to its location within the fuel tank. Begin by ensuring the vehicle is on a level surface, the engine is off, and the fuel tank is as empty as possible to minimize hazards. Disconnect the negative battery terminal to prevent electrical accidents. Locate the fuel tank access panel, typically found beneath the rear passenger seat or cargo area, depending on the model. Remove the necessary interior panels or carpeting to expose the fuel pump module. Once accessible, disconnect the electrical connectors and fuel lines, then carefully lower the module to reach the fuel pump for inspection, replacement, or maintenance. Always refer to the vehicle’s service manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2011 Jeep Grand Cherokee |
| Fuel Pump Location | Inside the fuel tank |
| Access Method | Remove the rear seat and access panel to reach the fuel pump module |
| Tools Required | Socket set, wrenches, screwdriver, trim removal tools, safety equipment |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Access | 1. Relieve fuel pressure 2. Disconnect battery 3. Remove rear seat 4. Remove access panel 5. Disconnect electrical connectors and fuel lines 6. Remove fuel pump module |
| Difficulty Level | Moderate to difficult (requires mechanical skill) |
| Estimated Time | 2-4 hours depending on experience |
| Common Issues | Fuel pump failure, clogged fuel filter, electrical faults |
| Replacement Parts | Fuel pump module, fuel filter, O-rings, gaskets |
| Diagnostic Tools | Fuel pressure gauge, multimeter |
| Recommended Maintenance | Replace fuel filter regularly, inspect fuel lines for leaks |
| Professional Assistance | Recommended if unsure or inexperienced |
| Reference Sources | Jeep service manual, online repair guides, automotive forums |
Explore related products
What You'll Learn
- Locate fuel pump: Under rear seat, remove cover, access fuel pump module
- Disconnect battery: Ensure safety, disconnect negative terminal before accessing fuel pump
- Remove rear seat: Lift seat, unhook latches, set aside carefully for access
- Access fuel tank: Lower cover panel, locate fuel pump assembly inside tank
- Replace fuel pump: Disconnect lines, unbolt module, install new pump securely
Locate fuel pump: Under rear seat, remove cover, access fuel pump module
The fuel pump in an 11 Jeep Grand Cherokee is strategically located under the rear seat, a design choice that balances accessibility with protection. This placement shields the pump from road debris and potential damage while ensuring it remains relatively easy to reach for maintenance or repairs. Understanding this layout is the first step in accessing the fuel pump module efficiently.
To begin the process, start by locating the rear seat assembly. The Jeep Grand Cherokee’s rear seat is designed to fold and lift out, providing clear access to the area beneath. Gently pull the release levers located on the sides of the seat, typically near the seatback hinges. Once released, tilt the seat forward and lift it out of the vehicle, setting it aside carefully to avoid damage. This step reveals the protective cover that shields the fuel pump module.
With the seat removed, you’ll notice a plastic cover secured by a series of screws or clips. Use the appropriate tool—a screwdriver or trim removal tool—to remove these fasteners without stripping them. Lift the cover to expose the fuel pump module, which is typically housed in a metal or plastic enclosure. Be cautious not to damage any surrounding components or wiring during this step.
Accessing the fuel pump module itself requires careful handling to avoid fuel spills or electrical hazards. Before proceeding, ensure the vehicle is on a level surface and the ignition is off. Relieve the fuel system pressure by locating the Schrader valve on the fuel rail (consult the vehicle manual for its exact location) and depressurizing the system using a pressure gauge. Once safe, disconnect the electrical connector and fuel lines from the module, taking note of their positions for reassembly.
This method of accessing the fuel pump under the rear seat is not only practical but also minimizes the risk of contamination or damage to other vehicle components. By following these steps methodically, you can efficiently address fuel pump issues in your 11 Jeep Grand Cherokee, ensuring a safer and more reliable driving experience.
