Vapor lock is a problem that occurs when liquid fuel changes state to vapour while still in the fuel delivery system of gasoline-fuelled internal combustion engines. This disrupts the operation of the fuel pump, causing a loss of feed pressure to the carburetor or fuel injection system, resulting in a transient loss of power or complete stalling. It is caused by low fuel pressure in combination with excessive heat, which can be due to the local climate or a lower boiling point at high altitudes. This can be prevented by ensuring that the fuel lines are routed away from the exhaust system and other hot components. It can also be prevented by installing an electric fuel pump or adding a plastic carb spacer. While vapor lock is rare in modern fuel-injected engines, it can still occur if the fuel lines are restricted and the engine is not able to cool down.
Explore related products
What You'll Learn
Fuel type and climate
Fuel type plays a significant role in the occurrence of vapor lock. The volatility of the fuel, or its tendency to evaporate, is a key factor. Gasoline, for instance, is more volatile than diesel fuel, making it more prone to vapor lock. Modern fuel blends, including those with ethanol, have lower boiling points, making them more susceptible to vaporization and, consequently, vapor lock. The use of winter fuel blends in warm weather can also increase the likelihood of vapor lock.
The design of the fuel system and its compatibility with the fuel type are also important considerations. Carbureted engines, particularly older models with mechanical fuel pumps, have a long history of vapor lock issues. This is due to the distance the fuel must travel from the tank to the carburetor, as well as the low-pressure operation of the system. Modern fuel-injected engines, on the other hand, have the fuel pump located within the tank, keeping the fuel under higher pressure and reducing the risk of vapor lock.
Climate conditions, such as hot weather and high altitudes, are significant contributors to vapor lock. High ambient temperatures can cause the engine to overheat, leading to vaporization of the fuel. Additionally, high altitudes lower the boiling point of the fuel, making it more susceptible to vaporization. Operating a vehicle in hot weather or at high altitudes can increase the chances of vapor lock, especially when combined with other factors such as traffic congestion, which can elevate under-hood temperatures.
The interaction between fuel type and climate is evident in the use of specialized fuels with lower boiling thresholds during winter. Continuing to use these fuels in summer can make vapor lock more likely. Therefore, it is essential to select the appropriate fuel blend for the current climate conditions to reduce the risk of vapor lock.
Securing Small Zip Ties on Fuel Lines: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel pump location
Vapor lock is a problem caused by liquid fuel changing state to vapour while still in the fuel delivery system of gasoline-fuelled internal combustion engines. This disrupts the operation of the fuel pump, causing a loss of feed pressure to the carburetor or fuel injection system, resulting in a transient loss of power or a complete stall. Restarting the engine from this state may be difficult.
Vapor lock typically starts when you shut down an engine. As you shut down, the heat rises up toward the fuel lines. Without air moving through the cowling, fuel in the lines can start to vaporize. This is more likely to occur in fuel injector lines after the flow divider, as fuel is sent to the injector nozzles to be sprayed into the intake manifold. The heat from the engine cylinders and crankcase radiates outwards and up toward the fuel injector lines.
In the context of vapor lock, the location of the fuel pump is important. Fuel injection vehicles have a primary fuel pump that is typically located in the fuel tank. Modern vehicles with gasoline direct injection (GDI) also have a second, high-pressure pump located near the fuel rail in the engine compartment. The primary (low-pressure) fuel pump is part of an assembly that includes parts like the fuel level float, level sensor, and related components.
If your car has a GDI fuel system, the primary (low-pressure) pump supplies fuel to a high-pressure pump at the fuel rail. A typical high-pressure GDI pump has a tappet that rides on the engine's camshaft lobe. When the engine is running, the high-pressure pump is driven by the camshaft, and the tappet acts on the pump's plunger, causing it to compress and pressurize the fuel inside.
When it comes to installing a fuel pump in a classic car, there are a few options to consider. One option is to put the pump in the engine bay, which makes for easier wiring. Another option is to mount it under the car attached to the frame, or in the trunk near the fuel tank for a quieter alternative. It is important to note that the pump should not be mounted in the engine compartment as these pumps are pushers, not suckers. The perfect spot is on a part where the frame rail bends a bit.
Additionally, the pump needs a constant presence of fuel. Otherwise, it will lose its prime and run hot while running dry. The fuel is also the lubricant and coolant. It is recommended to mount the pump very near the tank, as low as possible, to capitalize on gravity feeding.
Removing Fuel Lines: DIY Without Tools
You may want to see also
Explore related products
$41.78
Fuel line insulation
Vapor lock is a problem caused by liquid fuel changing state to vapour while still in the fuel delivery system of gasoline-fuelled internal combustion engines. This disrupts the operation of the fuel pump, causing a loss of feed pressure to the carburetor or fuel injection system, resulting in a transient loss of power or complete stalling. The fuel can vaporize due to being heated by the engine, by the local climate, or due to a lower boiling point at high altitudes. Diesel engines, on the other hand, almost never suffer from vapor lock as diesel fuel is far less volatile than gasoline.
Vapor lock typically starts when an engine is shut down. As the engine shuts down, the heat rises toward the fuel lines. Without air moving through the cowling, the fuel in the lines can start to vaporize. This is more likely to occur in fuel injector lines after the flow divider, as the heat from the engine cylinders and crankcase radiates outwards and up toward these lines.
To prevent vapor lock, it is recommended to open the cowling or oil vents after shutting down the engine. Pointing the airplane into the wind can also help as the breeze can cool the engine and reduce the chances of vapor lock. Installing an electric fuel pump can help push the fuel instead of sucking it, preventing vapor lock. Insulating the fuel line can also help remedy vapor lock by reducing the heat in the line and keeping the fuel cooler. Various products are available for fuel line insulation, such as the Vapor Block™ fuel line sleeve, fuel line insulation sleeve, fuel line insulation wrap, and fuel line heat wrap. These products are designed to reduce heat in the fuel line, keeping the fuel below its boiling point and preventing vapor lock.
Fuel Log Book Entries: Understanding the Right Line
You may want to see also
Explore related products
Altitude and ambient pressure
Vapor lock is a problem caused by liquid fuel changing state to vapour while still in the fuel delivery system of gasoline-fuelled internal combustion engines. This disrupts the operation of the fuel pump, causing a loss of feed pressure to the carburetor or fuel injection system, resulting in a transient loss of power or complete stalling. The fuel can vaporize due to being heated by the engine, by the local climate, or due to a lower boiling point at high altitudes.
The higher you fly, the lower the air pressure, and the lower the air pressure, the lower the temperature at which a fluid will boil. Liquids boil at lower temperatures when in lower-pressure environments. High-altitude operations, high temperatures underneath a cowling, and volatile fuel are a recipe for vapour lock formation. In regions where fuels with lower viscosity (and a lower boiling threshold) are used during the winter to improve engine startup, the continued use of specialized fuels during the summer can cause vapour lock to occur more readily.
Vapor lock was far more common in older gasoline-fuel systems that incorporated a low-pressure mechanical fuel pump driven by the engine. Such pumps were typically located higher than the fuel tank, were directly heated by the engine, and fed fuel directly to the float bowl inside the carburetor. Fuel was drawn under negative pressure (gauge pressure) from the feed line, increasing the risk of a vapor lock developing between the tank and pump.
Today, fuel blends and modern aircraft designs significantly limit the threat of a vapour lock. Moving the fuel pump to the interior of the tank helps prevent vapor lock since the entire fuel delivery system is under positive pressure, and the fuel pump runs cooler than if it were located in the engine compartment. This is the primary reason that vapor lock is rare in modern fuel systems.
Steel Fuel Line Sizing: Powering 1000WHO Safely and Efficiently
You may want to see also
Explore related products
![Twin Bubble Airlock Set [6 Pack], Brew Kits Airlocks for Fermenting,Fermentation Airlock with 6 Stoppers + 12 Grommets](https://m.media-amazon.com/images/I/61t7lKv2FHL._AC_UL320_.jpg)
Fuel injection systems

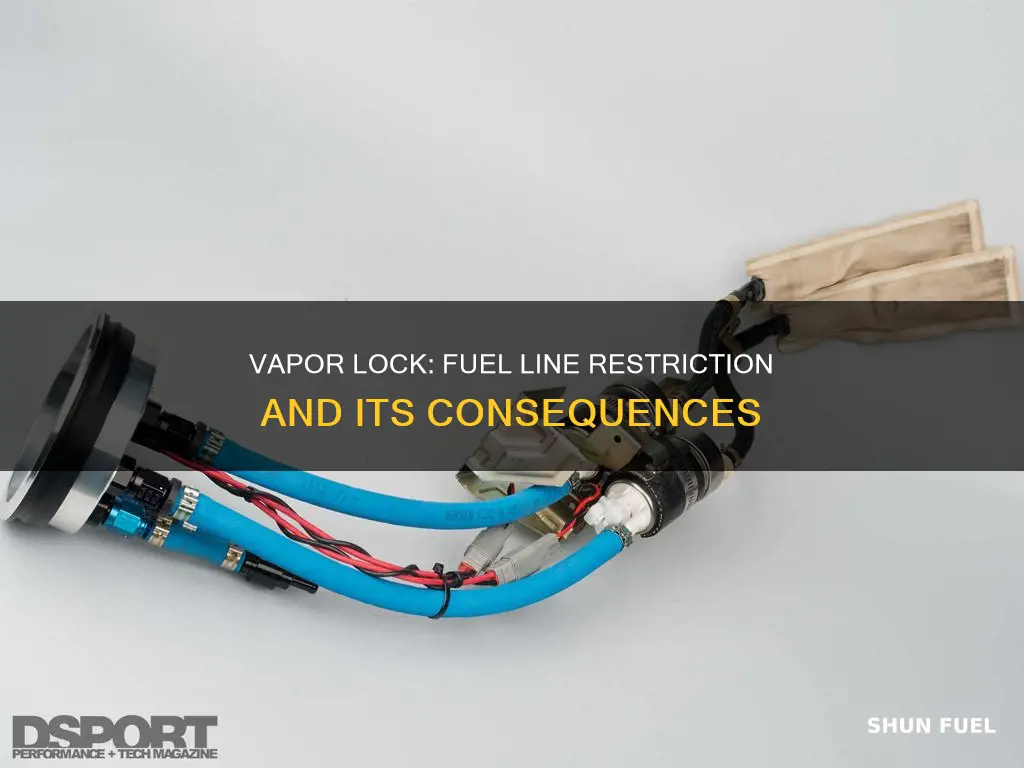

Vapor lock is a phenomenon that can occur in fuel systems, and it is often associated with carbureted engines and fuel systems with mechanical pumps. The issue arises when fuel vaporizes and forms bubbles in the fuel lines, leading to a restriction in fuel flow and potential engine issues. So, can vapor lock occur if a fuel line is restricted? The answer is yes, but it is important to understand the conditions and the type of fuel injection system involved.
One common type is port fuel injection (PFI), where fuel is injected into the intake ports just upstream of the cylinder head. PFI systems typically operate at lower pressures compared to other fuel injection types, and they may be more susceptible to vapor lock issues if the fuel line is restricted. This is because the lower pressure makes it easier for the fuel to vaporize, particularly in high-temperature conditions. If the fuel line supplying the injectors becomes restricted, it can create a backpressure that promotes vaporization, leading to vapor lock.
Another type is direct injection (DI), where fuel is injected directly into the combustion chamber. DI systems operate at much higher pressures, which helps atomize the fuel and improve combustion. Due to the high-pressure nature of DI systems, they are generally less prone to vapor lock issues, even with fuel line restrictions. However, it is still important to ensure that the fuel lines and injectors are maintained properly to prevent any potential issues.
Fuel Line Size for Turbo EK Civic: The Definitive Guide
You may want to see also
Frequently asked questions
Vapor lock occurs when liquid fuel changes state to vapour while still in the fuel delivery system of gasoline-fuelled internal combustion engines. This disrupts the operation of the fuel pump, causing loss of feed pressure to the carburetor or fuel injection system, resulting in transient loss of power or complete stalling.
Vapor lock is caused by low fuel pressure in combination with excessive heat. The hottest cycle of an engine occurs after it has been shut off, and in a low-pressure situation, the remaining fuel can vaporize in the fuel lines.
To prevent vapor lock, ensure that fuel lines are routed away from the exhaust system and other hot components. You can also cover the fuel lines and carburetor in heat shields or install an in-tank electric fuel pump.
To fix vapor lock, you must let the fuel cool so that it returns to a liquid state. You can get the fuel system to cool more quickly by parking in the shade and opening the hood. Once the engine starts, hold the accelerator pedal down until the vehicle runs smoothly.
