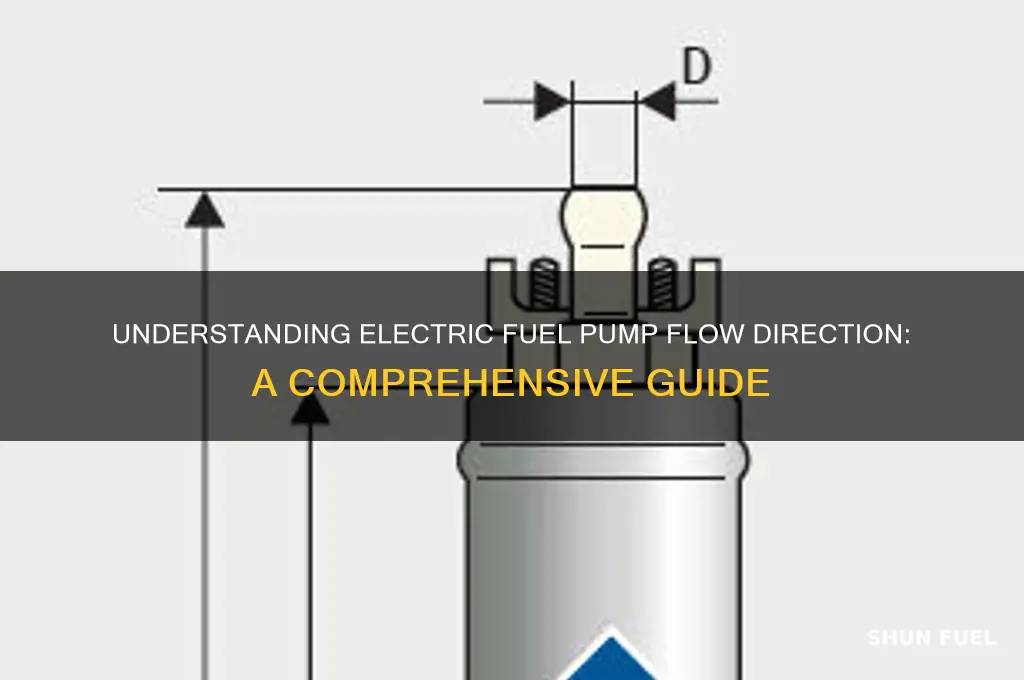

The direction of flow on an electric fuel pump is a critical aspect of its operation, as it ensures that fuel is delivered efficiently from the tank to the engine. Typically, electric fuel pumps are designed to draw fuel from the tank and push it through the fuel lines toward the engine, creating a unidirectional flow. This is achieved through the pump's internal mechanism, which often includes a turbine or impeller that generates pressure to move the fuel. Understanding the flow direction is essential for proper installation, troubleshooting, and maintenance, as reversing the flow can lead to system inefficiencies or damage. Most pumps are clearly marked with an arrow indicating the direction of flow, ensuring correct orientation during setup.
Explore related products
What You'll Learn
- Pump Direction Indicators: Understanding visual cues and labels indicating fuel flow direction on electric pumps
- Inlet vs. Outlet Ports: Identifying the pump’s inlet and outlet ports to determine flow direction
- Arrow Markings: Locating and interpreting arrow symbols that show the fuel flow path
- Flow Testing Methods: Techniques to test and confirm the direction of fuel flow in pumps
- Installation Orientation: How proper pump installation affects and aligns with the correct flow direction
Pump Direction Indicators: Understanding visual cues and labels indicating fuel flow direction on electric pumps
Electric fuel pumps often feature visual cues and labels to indicate flow direction, but these can vary widely across manufacturers. A common indicator is an arrow molded directly into the pump body or printed on a label, pointing from the inlet to the outlet. For instance, many aftermarket pumps, such as those from Bosch or Walbro, use a bold, unidirectional arrow alongside the words "IN" and "OUT" to eliminate ambiguity. Always verify the arrow’s orientation during installation, as misalignment can lead to fuel starvation or system damage.
Beyond arrows, some pumps incorporate color-coding or textured surfaces to denote flow direction. For example, the inlet port might be ribbed or marked with a blue ring, while the outlet is smooth or red. This tactile and visual differentiation is particularly useful in low-light environments, such as during nighttime repairs. However, reliance on color alone can be risky, as labels may fade over time or vary between models. Cross-reference the pump’s manual or manufacturer specifications to confirm the correct interpretation of these cues.
Another critical aspect is the pump’s internal design, which may include non-reversible fittings or asymmetrical ports. For instance, the inlet port is often larger in diameter to accommodate higher fuel volumes, while the outlet is smaller and more streamlined. This physical disparity serves as a secondary indicator but should not replace the primary visual cues. When in doubt, trace the fuel lines from the tank to the engine to ensure logical flow alignment.
Misinterpreting flow direction can have severe consequences, including engine misfire, reduced performance, or even catastrophic failure. For example, reversing the flow on a high-pressure pump can cause the internal check valve to malfunction, leading to fuel leakage or inadequate pressure. To avoid this, adopt a systematic approach: inspect the pump for arrows or labels, compare with the manual, and double-check by simulating flow with a finger or compressed air. This three-step process ensures accuracy and minimizes risk.
Finally, consider the role of aftermarket modifications in complicating flow direction identification. Custom fuel systems or universal-fit pumps may lack standardized indicators, requiring additional research or trial-and-error testing. In such cases, consult online forums or manufacturer support for model-specific guidance. Remember, while visual cues are invaluable, they are only one piece of the puzzle—combining them with technical knowledge and careful inspection guarantees a successful installation.
