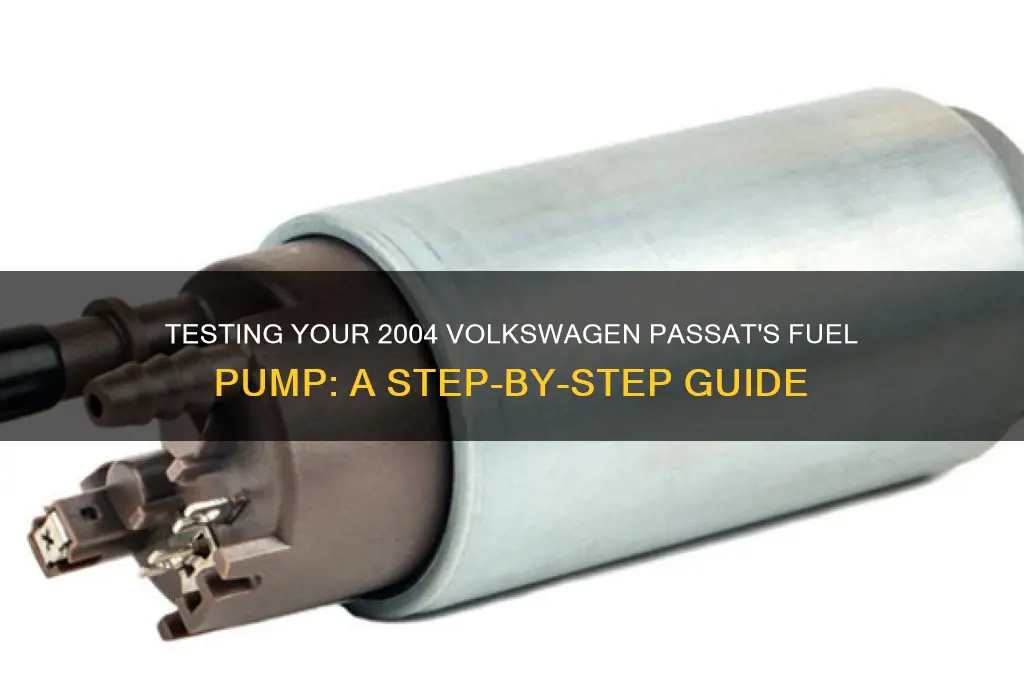

Testing the fuel pump in a 2004 Volkswagen Passat is a crucial diagnostic step to ensure your vehicle’s fuel system is functioning properly. Symptoms of a failing fuel pump include difficulty starting the engine, stalling, or a complete loss of power. To test the fuel pump, start by listening for the pump’s hum when turning the ignition to the on position but not starting the engine. If no sound is heard, check the fuel pump fuse and relay for faults. Next, measure the fuel pressure using a gauge connected to the fuel rail to ensure it meets the manufacturer’s specifications. Additionally, inspect the fuel pump’s electrical connections for corrosion or damage. If these steps do not resolve the issue, further testing or replacement may be necessary to restore proper fuel delivery.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2004 Volkswagen Passat |
| Fuel Pump Location | Inside the fuel tank (access via rear seat or trunk) |
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, safety gloves |
| Safety Precautions | Disconnect battery, work in well-ventilated area, avoid sparks |
| Testing Method 1: Listen for Operation | Turn ignition to "ON" (do not start), listen for fuel pump hum (2-3 sec) |
| Testing Method 2: Measure Voltage | Check voltage at fuel pump connector (should be 12V with ignition ON) |
| Testing Method 3: Fuel Pressure Test | Connect gauge to fuel rail, check pressure (spec: 45-55 PSI) |
| Testing Method 4: Resistance Check | Measure fuel pump resistance (typical range: 10-20 ohms) |
| Common Symptoms of Failure | Engine cranks but won’t start, stalling, loss of power, whining noise |
| Replacement Access | Remove rear seat or trunk lining to access fuel pump assembly |
| Diagnostic Trouble Codes (DTCs) | P0087, P0088, P0190, P0191, P0192, P0193 (related to fuel pressure issues) |
| Estimated Repair Time | 2-4 hours (depending on access and tools) |
| Estimated Cost (Parts + Labor) | $300-$800 (varies by location and parts quality) |
| Precautions During Testing | Avoid smoking, sparks, or open flames near fuel system |
| Professional Recommendation | Consult a mechanic if unsure or if advanced diagnostics are needed |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, locate fuel pump, ensure safety, disconnect battery, relieve fuel pressure
- Electrical Testing: Check fuel pump relay, test for power at pump connector, verify ground
- Fuel Pressure Test: Use gauge to measure pressure, compare to specs, check for leaks
- Listen for Operation: Turn ignition to on, listen for pump hum, note duration
- Resistance Check: Measure fuel pump resistance, compare to factory specs, diagnose faults
Pre-Test Preparation: Gather tools, locate fuel pump, ensure safety, disconnect battery, relieve fuel pressure
Before attempting to test the fuel pump in your 2004 Volkswagen Passat, it's crucial to gather the necessary tools and prepare the vehicle to ensure a safe and efficient process. A well-prepared workspace not only saves time but also minimizes the risk of accidents or damage to the vehicle. Start by assembling a basic toolkit, including a fuel pressure gauge, wrenches, screwdrivers, and safety gloves. These tools will be essential for accessing and testing the fuel pump.
Locating the fuel pump is the next critical step. In a 2004 Volkswagen Passat, the fuel pump is typically located inside the fuel tank. Accessing it requires removing the rear seat or a specific access panel, depending on the model. Familiarize yourself with your vehicle’s layout by consulting the owner’s manual or a reliable repair guide. Knowing exactly where the fuel pump is located will streamline the testing process and prevent unnecessary disassembly of other components.
Safety should always be a top priority when working on a vehicle’s fuel system. Fuel is highly flammable, and improper handling can lead to fires or explosions. Ensure the vehicle is parked on a flat, stable surface away from open flames, sparks, or hot surfaces. Wear safety goggles and gloves to protect yourself from fuel spills. Additionally, work in a well-ventilated area to avoid inhaling fuel vapors, which can be harmful.
Once safety measures are in place, disconnect the battery to prevent accidental electrical shorts during the testing process. This step is often overlooked but is essential for protecting both the vehicle’s electrical system and yourself. Use a wrench to loosen the battery terminal nuts and carefully remove the cables, starting with the negative terminal to minimize the risk of arcing.
Relieving fuel pressure is the final preparatory step before testing the fuel pump. Failure to do so can result in fuel spraying out when the system is opened, posing a safety hazard. Locate the fuel pressure relief valve or Schrader valve, typically found on the fuel rail. Attach a fuel pressure gauge and slowly depress the valve to release the pressure. Once the gauge reads zero, the system is safe to work on. This step ensures a controlled environment for testing the fuel pump’s functionality.
