Ameer Randolph
Installing an Espar fuel pump correctly is crucial for ensuring the efficient and safe operation of your heating system. The process begins with identifying the correct orientation of the pump, which typically involves aligning the inlet and outlet ports with the fuel lines. It’s essential to follow the manufacturer’s instructions, as the specific direction of installation can vary depending on the model. Generally, the pump should be mounted securely, ensuring it is level and free from vibrations that could affect performance. Properly connecting the electrical wiring and fuel lines, while avoiding kinks or leaks, is also critical. Always double-check the orientation and connections before starting the system to prevent damage or malfunction.
Explore related products
What You'll Learn
- Pump Orientation: Ensure the fuel pump is installed with the correct side facing the fuel tank
- Hose Connections: Securely attach fuel lines to inlet and outlet ports without leaks
- Electrical Wiring: Connect power and ground wires to the pump’s terminals properly
- Mounting Bracket: Use the provided bracket to securely fasten the pump in place
- Priming the Pump: Follow manufacturer instructions to prime the pump before initial operation
Pump Orientation: Ensure the fuel pump is installed with the correct side facing the fuel tank
The orientation of an Espar fuel pump during installation is not just a minor detail—it directly impacts the pump’s efficiency and longevity. Installing the pump with the incorrect side facing the fuel tank can lead to inadequate fuel flow, airlock issues, or even mechanical failure. The pump’s design typically includes a specific inlet and outlet configuration, and reversing this orientation disrupts the intended fuel pathway. For instance, the inlet side is often marked with a larger port or a specific label, which must align with the fuel tank’s outlet to ensure proper suction and delivery. Ignoring this alignment risks suboptimal performance or damage to the pump’s internal components.

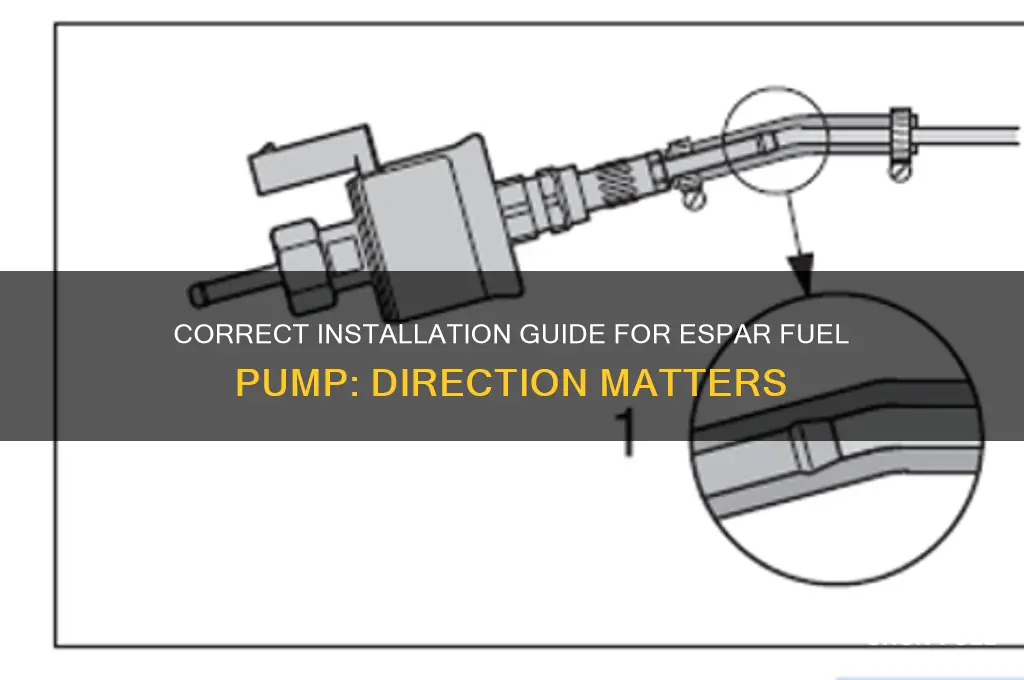

To ensure correct pump orientation, start by identifying the designated inlet and outlet ports on the Espar fuel pump. The inlet side, which draws fuel from the tank, is usually positioned to face the fuel tank directly. Refer to the manufacturer’s manual for precise markings or labels, such as arrows or text indicating "IN" or "OUT." If visual cues are unclear, trace the fuel line path from the tank to the pump, ensuring the line connects to the inlet port. A common mistake is assuming the pump’s orientation based on its physical shape alone, rather than verifying port alignment. Always double-check before securing the pump in place.
Incorrect pump orientation can manifest in several ways, from immediate operational issues to long-term wear. Symptoms include sputtering during operation, inconsistent fuel delivery, or the pump running dry despite a full tank. In severe cases, reversed orientation may cause the pump to overwork, leading to overheating or premature failure. For example, if the outlet side faces the tank, fuel may recirculate inefficiently, creating backpressure and strain on the pump’s motor. Addressing these issues post-installation is time-consuming and costly, making proper orientation a critical preventive measure.
Practical tips for achieving correct pump orientation include using a mirror or flashlight to inspect port labels in tight installation spaces. If the pump lacks clear markings, consult the Espar model-specific diagram available in the manual or online resources. For DIY installers, marking the correct orientation with a piece of tape or a permanent marker before removal can simplify reinstallation. Additionally, test the pump’s functionality briefly before fully securing it to ensure fuel flows in the intended direction. This step-by-step approach minimizes errors and ensures the pump operates as designed, providing reliable performance for the heating system.
Heat Pumps vs. Dual Fuel Systems: Efficiency, Cost, and Performance Compared
You may want to see also
Explore related products
Hose Connections: Securely attach fuel lines to inlet and outlet ports without leaks
Proper hose connections are critical when installing an Espar fuel pump to ensure efficient operation and prevent leaks that could lead to safety hazards or system failures. The inlet and outlet ports on the pump must be connected securely, with attention to both the physical fit and the integrity of the seals. Begin by inspecting the fuel lines for any signs of wear, cracks, or damage. Replace any compromised lines before proceeding, as even minor defects can lead to leaks under pressure.
When attaching the fuel lines, ensure the hose diameters match the port sizes exactly. Mismatched sizes can lead to poor sealing, even with clamps in place. Use high-quality fuel-resistant clamps, such as stainless steel worm-drive clamps, to secure the hoses. Over-tightening can damage the hoses, while under-tightening may allow them to slip or leak. A firm, snug fit is ideal—tight enough to prevent movement but not so tight that the hose material is distorted.
The orientation of the hoses is another key consideration. Route the fuel lines away from heat sources and moving parts to prevent damage over time. Avoid sharp bends, as these can restrict fuel flow and increase the risk of leaks. If the installation requires bending the hoses, ensure the radius is gradual to maintain flow efficiency. Double-check the direction of fuel flow: the inlet port connects to the fuel supply, while the outlet port directs fuel to the burner. Reversing these connections can cause the pump to fail or operate inefficiently.
After securing the hoses, perform a leak test before starting the system. Apply gentle pressure to the fuel lines and inspect the connections for any signs of seepage. Use a solution of soapy water to detect even small leaks, as fuel may not be visible immediately. If leaks are found, loosen the clamps, reposition the hoses, and re-tighten the clamps before testing again. This step is non-negotiable, as undetected leaks can lead to fuel contamination, system damage, or fire hazards.
Finally, consider using additional sealing methods for added security, especially in high-vibration environments. Thread seal tape or liquid sealant can be applied to the threads of the ports (if applicable) to enhance the seal. However, avoid overusing these products, as excess material can enter the fuel system and cause blockages. With careful attention to these details, the hose connections on an Espar fuel pump will remain leak-free, ensuring reliable and safe operation for the life of the system.
Understanding Diaphragm Fuel Pumps: Mechanics, Operation, and Applications Explained
You may want to see also
Explore related products
Electrical Wiring: Connect power and ground wires to the pump’s terminals properly
Proper electrical wiring is the backbone of a reliable Espar fuel pump installation. Incorrectly connecting power and ground wires can lead to malfunctions, damage, or even safety hazards. The pump’s terminals are typically labeled clearly, with one designated for power (usually marked "+" or "12V") and another for ground (marked "-" or "GND"). Always consult the specific model’s manual for precise terminal locations, as designs may vary. Using the correct gauge wire is critical; most Espar pumps require 12-14 AWG wire to handle the current draw efficiently without overheating.
Begin by stripping approximately ¼ inch of insulation from the ends of both the power and ground wires. Ensure clean, burr-free cuts to prevent poor connections. Connect the power wire to the pump’s positive terminal and the ground wire to the negative terminal. Secure each connection with the appropriate terminal screws or connectors provided by the manufacturer. Over-tightening can strip threads, while under-tightening risks loose connections. A firm, snug fit is ideal. If using crimp connectors, ensure they are compatible with the terminal type and properly seated.
A common mistake is neglecting to route wires away from heat sources or moving parts. Secure the wiring harness with zip ties or clamps to prevent chafing or interference. For added protection, wrap exposed connections in heat-shrink tubing or electrical tape. If the pump is installed in a marine or damp environment, consider using marine-grade wiring and waterproof connectors to prevent corrosion. Regularly inspect connections for signs of wear, corrosion, or looseness, especially after the first few hours of operation.
Testing the wiring before final installation is a prudent step. Use a multimeter to verify continuity between the power source and the pump’s terminals, ensuring no shorts or open circuits exist. Apply power momentarily to confirm the pump activates without unusual noises or resistance. If the pump fails to operate, double-check all connections and polarity. Reversed polarity can damage the pump instantly, so accuracy is non-negotiable.
In summary, connecting power and ground wires to an Espar fuel pump’s terminals demands precision, compatibility, and foresight. Proper wiring ensures not only functionality but also longevity and safety. By following manufacturer guidelines, using the right materials, and conducting thorough checks, you can avoid common pitfalls and achieve a robust installation. Remember, a well-wired pump is a reliable pump.
Jumping Your MK2 Jetta Fuel Pump Relay: A Step-by-Step Guide
You may want to see also
Explore related products
Mounting Bracket: Use the provided bracket to securely fasten the pump in place
The mounting bracket is a critical component in the installation of an Espar fuel pump, serving as the anchor that ensures stability and longevity. Without it, the pump risks vibration-induced damage, misalignment, or even detachment, which could lead to fuel leaks or system failure. The bracket is specifically designed to match the pump’s dimensions and weight, providing a secure fit that generic alternatives cannot replicate. Always verify that the bracket is included in your installation kit, as using a substitute may compromise the pump’s performance and safety.
Installing the mounting bracket requires precision and attention to detail. Begin by identifying the designated mounting location, typically a flat, sturdy surface near the fuel source. Align the bracket’s holes with the pump’s mounting points, ensuring they are flush and level. Secure the bracket using the provided bolts and washers, tightening them to the manufacturer’s torque specifications—overtightening can warp the bracket, while undertightening may allow movement. Double-check the alignment before proceeding, as even minor deviations can lead to operational inefficiencies.
A common oversight during installation is neglecting to account for environmental factors. If the mounting surface is exposed to vibration, such as in marine or mobile applications, consider adding vibration-damping pads between the bracket and the surface. These pads absorb shocks, reducing wear on the pump and its connections. Additionally, in corrosive environments, apply a rust-inhibiting primer or paint to the bracket to prevent degradation over time. These small precautions significantly extend the pump’s lifespan and reliability.
For those new to Espar fuel pump installations, a practical tip is to dry-fit the bracket before final assembly. This involves temporarily placing the bracket and pump in position without tightening the bolts, allowing you to assess accessibility and alignment. If adjustments are needed, make them during this stage to avoid complications later. Once satisfied, remove the pump, apply threadlocker to the bolts (if recommended), and proceed with the final installation. This methodical approach minimizes errors and ensures a professional-grade result.
Understanding Jet Style Fuel Pumps: Mechanism, Function, and Operation Explained
You may want to see also
Explore related products
Priming the Pump: Follow manufacturer instructions to prime the pump before initial operation
Before firing up your Espar fuel pump, priming is crucial. Think of it like giving your pump a head start. Air bubbles in the fuel lines can starve the pump, leading to sputtering, poor performance, or even failure. Priming removes these air pockets, ensuring a smooth and efficient fuel flow.
Ignoring this step can result in unnecessary strain on the pump, potentially shortening its lifespan.
The priming process itself is straightforward, but it demands precision. Consult your Espar model's manual for specific instructions, as the procedure can vary slightly. Generally, it involves filling the pump's housing with fuel, often through a dedicated priming port. This might require a small funnel and a measured amount of clean diesel fuel. Some models may have a manual priming pump integrated, simplifying the process.
Remember, using the correct fuel type is paramount. Espar pumps are designed for diesel fuel, and using gasoline or other fuels can cause severe damage.
While priming seems simple, it's a critical step that shouldn't be rushed. Take your time, follow the manufacturer's instructions meticulously, and ensure all air is purged from the system. This initial effort will pay dividends in the long run, guaranteeing optimal performance and longevity for your Espar fuel pump.
Mastering Mechanical Fuel Pumps: A Guide to Advancing Timing
You may want to see also
Frequently asked questions
The Espar fuel pump should be installed with the arrow on the pump body pointing in the direction of fuel flow, typically towards the heater.
Yes, the orientation matters. The pump must be installed with the motor and pump head in the correct position to ensure proper fuel flow and prevent damage.
No, installing the Espar fuel pump upside down can cause fuel flow issues, reduced performance, or damage to the pump. Always follow the manufacturer's guidelines for proper installation.
Yes, the Espar fuel pump should be mounted securely, with the pump body and motor in a horizontal position, and the fuel inlet and outlet ports aligned correctly to ensure proper fuel flow and prevent leaks.
