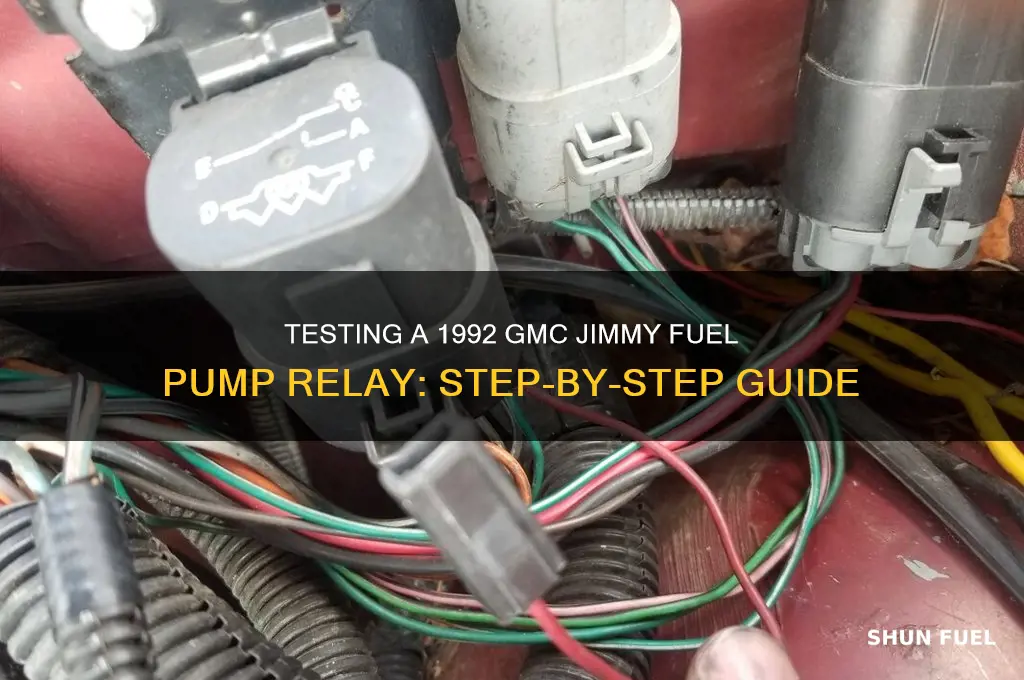

Testing the fuel pump relay on a 1992 GMC Jimmy is a crucial diagnostic step if you suspect fuel delivery issues. The relay acts as a switch, controlling power to the fuel pump, and its failure can lead to a no-start condition or poor engine performance. To test it, locate the relay in the under-hood fuse box, typically labeled FUEL PUMP or FP. Swap the fuel pump relay with a similar relay (such as the horn relay) to see if the fuel pump activates when the ignition is turned on. If the pump runs with the swapped relay, the original fuel pump relay is likely faulty. Additionally, you can use a multimeter to check for continuity in the relay’s terminals or apply power directly to the fuel pump connector to bypass the relay and confirm if the pump itself is operational. Always consult the vehicle’s manual for specific relay locations and wiring diagrams to ensure accurate testing.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1992 GMC Jimmy |
| Component to Test | Fuel Pump Relay |
| Location of Relay | Typically found in the under-hood fuse/relay box |
| Relay Identification | Often labeled as "FUEL PUMP" or similar; consult manual for exact location |
| Tools Required | Multimeter, jumper wires, battery source (if needed) |
| Testing Method | 1. Locate and remove the relay. 2. Use a multimeter to check for continuity across the coil terminals (pins 85 and 86). 3. Apply power and ground to the coil terminals to activate the relay. 4. Check for continuity across the switch terminals (pins 30 and 87) when activated. |
| Expected Results | Continuity should be present across switch terminals when relay is activated; no continuity when deactivated. |
| Common Issues | Open or shorted coil, faulty contacts, or a stuck relay |
| Replacement Part | Compatible fuel pump relay for 1992 GMC Jimmy |
| Safety Precautions | Disconnect the battery before testing to avoid electrical hazards |
| Additional Tips | Test the relay with a known good one for comparison if results are unclear |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay's position in the under-hood fuse/relay box
- Check Power Supply: Test for battery voltage at the relay's power input terminal
- Inspect Ground Connection: Verify a solid ground connection at the relay's ground terminal
- Test Relay Coil: Use a multimeter to check continuity across the relay coil terminals
- Swap with Known Good Relay: Replace the relay with a functioning one to confirm if it's faulty
Locate the Relay: Identify the fuel pump relay's position in the under-hood fuse/relay box
The 1992 GMC Jimmy’s fuel pump relay is a critical component tucked away in the under-hood fuse/relay box, a labyrinth of switches and fuses that can intimidate even seasoned DIYers. Locating this relay is the first step in diagnosing fuel delivery issues, and it requires a blend of patience and precision. Start by consulting your vehicle’s manual or a reliable online diagram to pinpoint the exact position of the relay within the box. The fuel pump relay is typically labeled as "FUEL" or "FP," but its location can vary depending on the trim and engine configuration of your Jimmy.
Once you’ve identified the relay’s position, take a moment to familiarize yourself with the under-hood fuse/relay box layout. This box is usually located near the firewall or battery, secured by a latch or screws. Open it carefully, noting how the relays and fuses are organized—often in rows or grids. The fuel pump relay is usually a larger, square-shaped component compared to smaller fuses. If the box’s cover includes a diagram, cross-reference it with your manual to ensure accuracy. Pro tip: Take a photo of the box before removing any components to avoid confusion during reassembly.
A practical tip for locating the relay is to use a multimeter or test light to verify its position. With the ignition off, remove the relay and check for continuity across its terminals. If you’re unsure which relay is the fuel pump relay, swap it with another relay of the same type in the box (e.g., the horn relay) and attempt to start the vehicle. If the fuel pump engages, you’ve found the correct relay. This method is particularly useful if the box’s labeling is faded or missing.
Caution is key when working under the hood. Ensure the vehicle is turned off and the battery is disconnected before accessing the fuse/relay box to prevent electrical mishaps. Additionally, avoid touching the relay terminals with bare hands or metal tools to prevent short circuits. If the relay is stubbornly stuck in its slot, use a relay puller tool to extract it safely.
In conclusion, locating the fuel pump relay in your 1992 GMC Jimmy’s under-hood fuse/relay box is a straightforward task with the right preparation. By combining visual identification, cross-referencing diagrams, and practical testing, you can confidently isolate the relay for further inspection or replacement. This step not only saves time but also ensures you’re addressing the correct component in your troubleshooting process.
Mechanical Fuel Pump Operation in a 1955 Thunderbird Explained
You may want to see also
Explore related products
Check Power Supply: Test for battery voltage at the relay's power input terminal
A faulty fuel pump relay can leave your 1992 GMC Jimmy stranded. Before condemning the relay itself, it's crucial to verify the power supply reaching it. Think of it like checking if a lightbulb is broken or if the power outlet is dead.
The relay's power input terminal is its lifeline. Without sufficient battery voltage here, the relay can't activate the fuel pump, regardless of its condition.
Testing for Voltage:
Grab your multimeter, set it to the DC voltage range (typically 20 volts), and locate the relay. Consult your Jimmy's manual for the specific relay location, often found in the under-hood fuse box. Identify the power input terminal, usually marked with a symbol resembling a battery or labeled "PWR" or "B+". With the ignition switched on, carefully touch the multimeter's positive lead to the power input terminal and the negative lead to a good ground (like the battery negative terminal).
A healthy reading should be within a few tenths of a volt of your battery voltage (typically around 12.6 volts when the engine is off). If the reading is significantly lower or nonexistent, the problem lies elsewhere in the power supply circuit, not the relay itself.
Troubleshooting Low Voltage:
If your voltage reading is low, trace the power supply path. Check fuses related to the fuel pump circuit, ensuring they're not blown. Inspect wiring for damage, corrosion, or loose connections between the battery, fuse box, and relay. A faulty ignition switch or a problem with the wiring harness could also be culprits.
Remember, safety first! Always disconnect the battery before working on electrical components to prevent accidental shocks.
Testing for battery voltage at the relay's power input terminal is a fundamental step in diagnosing fuel pump relay issues. It narrows down the problem area, saving you time and frustration. By systematically checking the power supply, you can determine if the relay is truly at fault or if the issue lies elsewhere in the electrical system.
1999 Mazda Fuel Pump PSI: Understanding the Pressure Specifications
You may want to see also
Explore related products
Inspect Ground Connection: Verify a solid ground connection at the relay's ground terminal
A weak or corroded ground connection is a silent saboteur of electrical systems, often mimicking symptoms of a faulty fuel pump relay. Before condemning the relay, verify the integrity of the ground circuit. Locate the relay's ground terminal, typically a black wire connected to the relay's body or a nearby chassis point.
A multimeter set to continuity mode is your diagnostic ally here. Touch one probe to the ground terminal and the other to a known good ground, such as the battery negative terminal. A reading of 0 ohms indicates a solid connection. Anything above 0.5 ohms suggests resistance, pointing to a compromised ground.
Corrosion, loose connections, or damaged wiring are common culprits. Inspect the ground wire for fraying, breaks, or signs of heat damage. Clean the terminal and mating surface with a wire brush and dielectric grease to ensure optimal contact. If the wire itself is damaged, replacement is necessary.
Remember, a poor ground connection can lead to intermittent fuel pump operation, stalling, or even complete fuel pump failure. Don't overlook this critical step in your diagnostic process. A few minutes spent verifying the ground can save you from unnecessary relay replacement and frustration.
Do Ford Ranger Models Require Fuel Pumps? A Comprehensive Guide
You may want to see also
Explore related products
Test Relay Coil: Use a multimeter to check continuity across the relay coil terminals
A faulty fuel pump relay can leave your 1992 GMC Jimmy stranded. Before replacing the entire relay, testing the coil is a crucial diagnostic step. This component, essentially an electromagnet, activates the relay's switch, allowing current to flow to the fuel pump. A broken coil means the relay won't function, starving your engine of fuel.
Testing the relay coil's continuity with a multimeter is a straightforward process that can save you time and money.
Steps:
- Locate the Relay: Consult your Jimmy's manual to find the fuel pump relay's location. It's typically housed in a fuse box under the hood.
- Disconnect Power: For safety, disconnect the negative battery terminal before proceeding.
- Identify Coil Terminals: Relays usually have four or five terminals. The coil terminals are typically labeled with numbers or symbols. Refer to your manual or online resources for specific identification.
- Set Multimeter: Set your multimeter to the continuity or resistance setting (usually represented by a diode symbol or the Greek letter omega).
- Test Continuity: Touch the multimeter probes to the identified coil terminals. A functioning coil will show continuity, indicated by a beep (if your multimeter has this feature) or a low resistance reading (typically less than 100 ohms). No continuity or a high resistance reading suggests a faulty coil.
Cautions:
- Polarity: Some multimeters require correct polarity when testing diodes. If your multimeter has a diode setting, ensure you connect the red probe to the positive terminal and the black probe to the negative terminal.
- Safety First: Always disconnect the battery before working on electrical components to prevent accidental shocks.
Testing the relay coil's continuity is a simple yet effective way to diagnose a potential fuel pump relay issue in your 1992 GMC Jimmy. By following these steps and exercising caution, you can determine if the coil is the culprit and make an informed decision about repairs. Remember, a functioning coil is essential for a functioning relay, and a functioning relay is essential for a running engine.
Understanding the Mechanics of a Fuel Pump Nozzle Operation
You may want to see also
Explore related products
Swap with Known Good Relay: Replace the relay with a functioning one to confirm if it's faulty
One of the most straightforward methods to diagnose a faulty fuel pump relay in a 1992 GMC Jimmy is to swap it with a known good relay. This approach eliminates guesswork by directly testing the relay’s functionality under real-world conditions. Begin by locating the fuel pump relay in the under-hood fuse/relay box, typically labeled as "FUEL PUMP" or "FP." Ensure the vehicle is turned off and the ignition key is removed to prevent electrical mishaps. Using a relay puller or pliers, carefully extract the suspect relay from its slot, noting its orientation for proper reinstallation.
Next, identify a compatible relay from another circuit in the same fuse box, such as the horn or A/C relay, which often share the same pin configuration. Alternatively, use a known good relay from another vehicle or a spare part. Insert the functioning relay into the fuel pump relay’s slot, ensuring it clicks securely into place. Start the vehicle and listen for the fuel pump’s priming hum, which should occur for 2–3 seconds when the ignition is turned to the "ON" position. If the pump operates correctly, the original relay is likely faulty.
While this method is effective, exercise caution to avoid misdiagnosis. Relays in other circuits may have different amperage ratings, so prioritize using a relay from the same model year or a verified compatible part. If the vehicle fails to start even with the swapped relay, the issue may lie elsewhere, such as a faulty fuel pump, clogged fuel filter, or wiring problem. Always double-check connections and ensure the replacement relay is in good condition before concluding the diagnosis.
In summary, swapping the fuel pump relay with a known good one is a quick and reliable way to isolate relay failure in a 1992 GMC Jimmy. This method saves time compared to multimeter testing and provides immediate feedback on the relay’s operational status. Keep a spare relay on hand for future diagnostics, and remember to restore the original relay or replace it with a new one if confirmed faulty. This approach combines simplicity with accuracy, making it a go-to technique for troubleshooting fuel system issues.
Understanding Fuel Pump Amp Draw: A Comprehensive Guide for Car Owners
You may want to see also
Frequently asked questions
The fuel pump relay is typically located in the under-hood fuse/relay box. Refer to your owner’s manual or the diagram on the box lid to identify the specific relay.
Symptoms include the engine not starting, stalling, or difficulty starting, especially after the engine has been running and is hot.
Use a multimeter to check for continuity across the relay’s terminals. Swap the fuel pump relay with another relay of the same type in the fuse box and see if the issue persists.
Yes, you can temporarily bypass the relay by connecting the fuel pump directly to the battery (with a fuse in line) to see if the pump operates. However, this is a temporary diagnostic step only.
Replace the relay with a new one of the same part number. Ensure the new relay is properly seated in the fuse box and retest the system.
