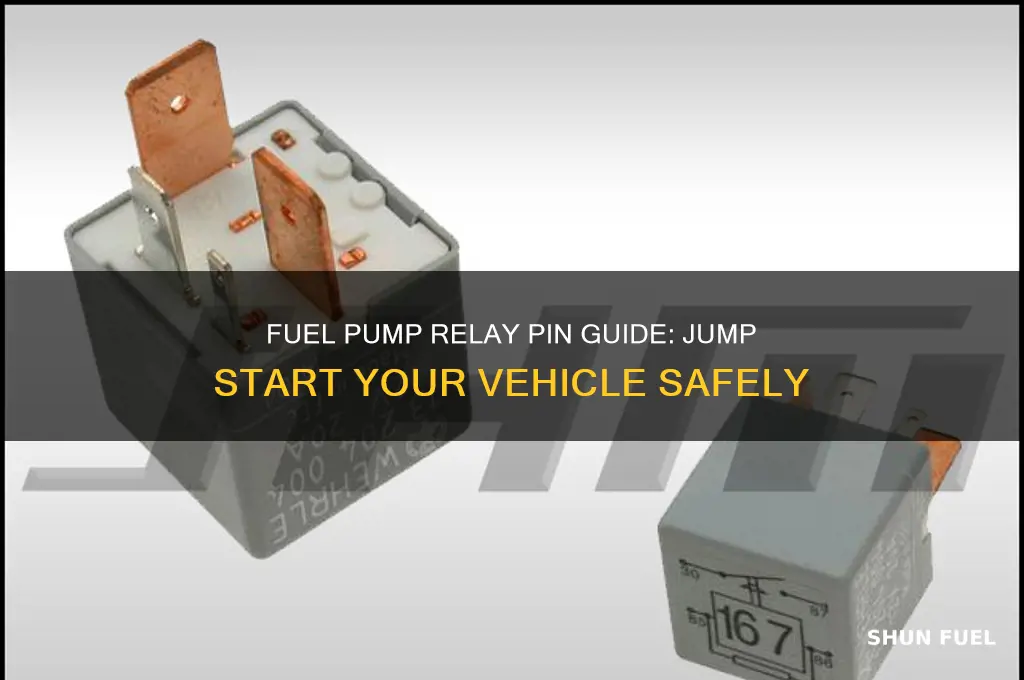

When troubleshooting or replacing a fuel pump relay, it’s essential to understand which pins to jump to test its functionality. A typical fuel pump relay has four or five pins, with the most common configuration being two control pins (usually 85 and 86) and two power pins (usually 30 and 87). To jump the relay and activate the fuel pump, connect the battery’s positive terminal to pin 87 (output) and the negative terminal to pin 85 (ground), bypassing the control circuit. This direct connection simulates the relay’s operation, allowing you to determine if the fuel pump is functioning properly or if the relay itself is faulty. Always exercise caution when working with electrical systems to avoid short circuits or damage.
| Characteristics | Values |
|---|---|
| Pins to Jump | Typically, pins 30 (Battery Power) and 87 (Load/Fuel Pump) |
| Purpose | Bypasses the relay to directly power the fuel pump for testing or diagnostic purposes |
| Voltage | Usually 12V (matches vehicle battery voltage) |
| Polarity | Positive (+) to Pin 30, Negative (-) to Pin 87 (or ground) |
| Safety Precautions | Ensure ignition is off, disconnect battery if unsure, avoid short circuits |
| Common Relay Types | Bosch-style relays (e.g., 4-pin or 5-pin configurations) |
| Alternative Pins | Some relays may use different pin numbers; refer to relay diagram or manual |
| Temporary Fix | Jumping pins is a temporary solution; replace faulty relay for permanent repair |
| Diagnostic Use | Helps determine if the fuel pump or relay is faulty |
| Vehicle Compatibility | Varies by make/model; always verify specific relay pinout for your vehicle |
Explore related products
What You'll Learn
- Fuel Pump Relay Pin Identification: Locate the specific pins for power, ground, and signal on the relay
- Testing Fuel Pump Relay Pins: Use a multimeter to check continuity and voltage across the relay pins
- Common Pin Configurations: Understand standard pin layouts for single and dual-circuit fuel pump relays
- Symptoms of Faulty Pins: Recognize issues like no power, open circuits, or intermittent fuel pump operation
- Replacing Fuel Pump Relay Pins: Steps to safely replace or repair damaged pins on the relay
Fuel Pump Relay Pin Identification: Locate the specific pins for power, ground, and signal on the relay
Identifying the correct pins on a fuel pump relay is crucial for troubleshooting or bypassing the relay in emergency situations. Most fuel pump relays follow a standard pin configuration, though variations exist depending on the vehicle make and model. Typically, a fuel pump relay has four or five pins, each serving a specific function: power, ground, signal, and sometimes a switched power or control pin. Understanding these pins ensures you can safely jump the relay if needed, such as when diagnosing a no-start condition caused by a faulty relay.
To locate the pins, start by consulting the vehicle’s service manual or a relay diagram specific to your car. The power pin (often Pin 30) connects directly to the battery or a fused power source, supplying constant 12V power to the fuel pump. The ground pin (usually Pin 87) completes the circuit, allowing current to flow when the relay is activated. The signal pin (Pin 85 or 86) is controlled by the engine control unit (ECU) or ignition switch, triggering the relay to close the circuit. In some relays, Pin 86 is the ground for the control circuit, while Pin 85 receives the signal from the ECU.
When jumping a fuel pump relay, focus on connecting the power (Pin 30) and ground (Pin 87) pins directly. This bypasses the relay’s internal switch, forcing the fuel pump to run continuously. Use a fused jumper wire to prevent overloading the circuit, and only perform this as a temporary diagnostic step. Avoid connecting the signal pin (85 or 86) directly to power, as this can damage the ECU or relay. Always disconnect the jumper wire after testing to prevent battery drain or safety hazards.
Practical tips include using a multimeter to verify pin functions if the diagram is unclear. Apply 12V power to the signal pin while testing for continuity between the power and ground pins to confirm the relay’s operation. For older vehicles with mechanical relays, the pin layout may differ, so cross-reference with a reliable source. Remember, jumping a fuel pump relay is a temporary fix—replace the relay if it’s faulty to ensure reliable vehicle operation.
In summary, pinpointing the power, ground, and signal pins on a fuel pump relay requires a combination of research, verification, and caution. By understanding the relay’s pin functions and following safety guidelines, you can effectively troubleshoot fuel pump issues or perform emergency bypasses without causing further damage. Always prioritize accuracy and safety when working with electrical systems.
