Regan Brown
The fuel pump relay is a critical component in a vehicle's fuel system, responsible for controlling the power supply to the fuel pump. It ensures that the pump operates only when the engine is running or being started, conserving energy and preventing unnecessary fuel flow. When troubleshooting fuel delivery issues, identifying the correct fuse associated with the fuel pump relay is essential, as a blown fuse can disrupt the relay's function and cause the engine to stall or fail to start. Understanding the location and role of this fuse is key to diagnosing and resolving such problems efficiently.
| Characteristics | Values |
|---|---|
| Location | Typically found in the fuse box under the hood or in the cabin fuse panel. Specific location varies by vehicle make and model. |
| Fuse Rating | Commonly 15-20 amps, but can range from 10-30 amps depending on the vehicle. |
| Relay Function | Controls power to the fuel pump, activating it when the ignition is turned on. |
| Appearance | Usually a rectangular or cube-shaped relay with multiple pins. May be labeled as "Fuel Pump Relay" or have a corresponding fuse number. |
| Diagnosis | A faulty fuel pump relay can cause the engine to crank but not start. Testing involves checking for power at the fuel pump connector when the ignition is on. |
| Replacement | Relays are typically plug-and-play, but consult the vehicle's manual for specific instructions. |
| Related Components | Often located near the fuel pump fuse, inertia switch (in some vehicles), and the engine control module (ECM). |
| Vehicle Dependency | The exact fuse and relay location, rating, and appearance vary widely across different vehicle makes and models. Always refer to the vehicle's manual or a reliable repair guide for accurate information. |
Explore related products
What You'll Learn
Fuel Pump Relay Location
The fuel pump relay is a critical component in your vehicle's fuel system, acting as a switch that controls power to the fuel pump. Its location varies widely across makes and models, making it essential to consult your vehicle’s manual or a trusted online resource specific to your car. For instance, in many Ford models, the fuel pump relay is found in the under-hood fuse box, often labeled as "FPR" or "FP Relay." In contrast, some Honda vehicles house it in the interior fuse box, typically under the dashboard. Knowing this exact spot can save you time during troubleshooting or maintenance.
Analyzing the placement of the fuel pump relay reveals a pattern: manufacturers often prioritize accessibility for diagnostics. In newer vehicles, it’s frequently integrated into the main fuse box under the hood, where it’s shielded from moisture but still easy to reach. Older models, however, may hide it in less intuitive locations, such as behind the glove compartment or under the rear seat. For example, in certain BMWs, the relay is tucked away in the trunk near the battery, requiring you to remove panels for access. Understanding these trends can help you narrow down its location efficiently.
If you’re attempting to locate the fuel pump relay yourself, follow these steps: First, identify the fuse box diagram in your vehicle’s manual or online. Look for labels like "Fuel Pump," "FP Relay," or "FPR." Second, inspect the under-hood fuse box first, as this is the most common location. If it’s not there, check the interior fuse box or trunk area. Third, use a multimeter to test the relay for continuity if you’re unsure it’s functioning properly. Caution: Always disconnect the battery before handling electrical components to avoid short circuits.
A comparative analysis of fuel pump relay locations highlights the importance of vehicle design philosophy. Japanese brands like Toyota and Nissan often place the relay in easily accessible areas, reflecting their focus on user-friendly maintenance. European brands, such as Audi or Mercedes, may conceal it in less obvious spots, emphasizing aesthetics and space optimization. For instance, some Audi models integrate the relay into the engine bay’s control module, requiring specialized tools for access. This contrast underscores why a one-size-fits-all approach doesn’t work when searching for the fuel pump relay.
In conclusion, pinpointing the fuel pump relay location requires a blend of research, observation, and practical know-how. Whether it’s under the hood, in the cabin, or hidden in the trunk, understanding your vehicle’s design philosophy can guide your search. Armed with this knowledge, you’ll be better equipped to diagnose fuel system issues or perform routine checks, ensuring your vehicle runs smoothly. Remember, when in doubt, consult your manual or seek professional assistance to avoid unnecessary complications.
Step-by-Step Guide to Disassembling a Volvo Penta Fuel Pump
You may want to see also
Explore related products

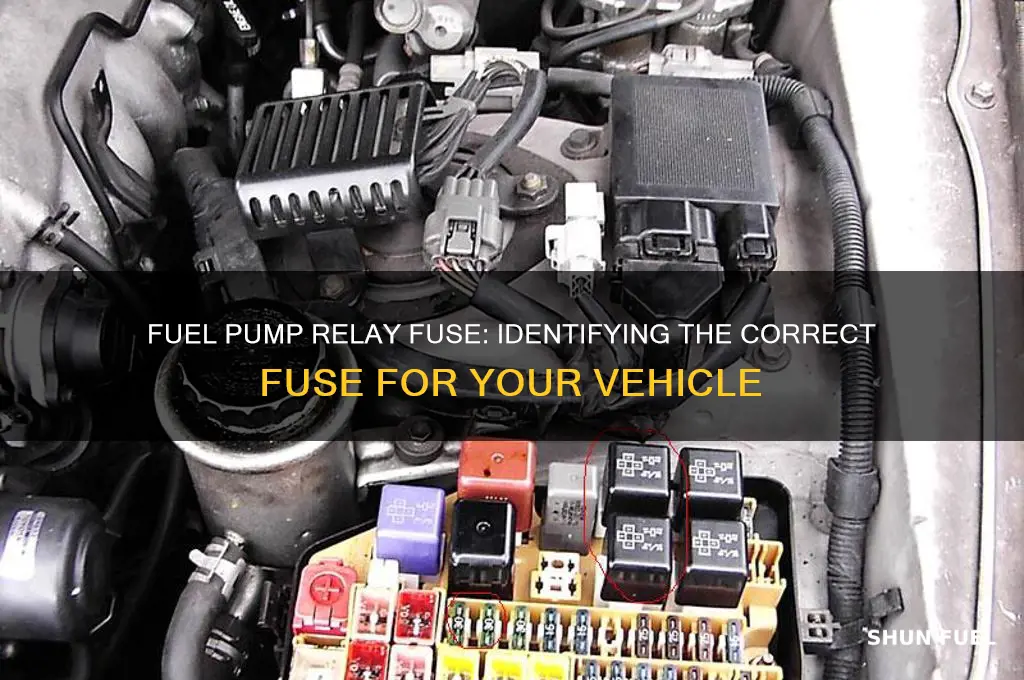

Fuse Box Diagram Identification
Identifying the correct fuse for the fuel pump relay begins with understanding the fuse box diagram, a critical map of your vehicle’s electrical system. Most vehicles place the fuse box under the dashboard or in the engine compartment, often labeled with a diagram on the cover or lid. This diagram uses symbols and numbers to represent each fuse and relay, but deciphering it requires familiarity with the legend. For instance, a fuel pump relay is typically denoted by a symbol resembling a rectangle with a diagonal line or a specific alphanumeric code, such as "FPR" or "FP." Cross-referencing this with your vehicle’s manual ensures accuracy, as designs vary by make and model.
Analyzing the fuse box diagram involves more than just locating the fuel pump relay; it’s about understanding its relationship to other components. Relays often share circuits with related systems, such as the ignition or ECU, so adjacent fuses may provide context. For example, if the fuel pump relay is near the EFI (Electronic Fuel Injection) fuse, it confirms its role in the fuel system. Additionally, amperage ratings on the diagram offer clues—fuel pump relays usually handle higher currents, often 15–20 amps, compared to smaller fuses for interior lights or accessories. This analytical approach minimizes errors when troubleshooting or replacing fuses.
A persuasive argument for mastering fuse box diagram identification is its role in preventing costly repairs. Misidentifying the fuel pump relay fuse can lead to unnecessary replacements or, worse, electrical damage. For instance, using a fuse with incorrect amperage can cause overheating or failure. By spending a few minutes studying the diagram, you empower yourself to address issues like a non-starting engine or erratic fuel delivery efficiently. This skill is particularly valuable for older vehicles, where diagrams may be faded or missing, requiring reliance on pattern recognition and logical deduction.
Comparatively, modern vehicles often simplify fuse box diagram identification with digital tools. Many newer models include interactive diagrams in their infotainment systems or provide access via mobile apps. These digital versions highlight the fuel pump relay and related fuses, offering real-time diagnostics. However, traditional diagrams remain essential for DIY enthusiasts working on older or less tech-equipped vehicles. Both approaches underscore the importance of staying informed about your vehicle’s specific layout, ensuring you’re prepared whether you’re on the road or in the garage.
Descriptively, a well-organized fuse box diagram is a work of functional art, blending clarity with complexity. Each fuse and relay is positioned with purpose, often grouped by system—engine, lighting, interior—for intuitive navigation. The fuel pump relay, for example, is usually found in the "Power Distribution" or "Engine Management" section, surrounded by fuses for the ECU, injectors, or ignition coil. Colors and labels further enhance readability, with high-amperage fuses often in bold or distinct shades. Familiarizing yourself with these design elements transforms a daunting task into a straightforward process, making fuse box diagram identification an essential skill for any vehicle owner.
Step-by-Step Guide: Safely Disassembling a Fuel Pump for Repairs
You may want to see also
Explore related products
Relay Testing Methods
Identifying the correct fuse for a fuel pump relay is only half the battle; ensuring the relay itself functions properly is equally critical. Relay testing methods vary, but they all aim to verify the relay’s ability to switch circuits reliably. A common approach is the continuity test, which checks if the relay’s internal contacts close and open as expected. Using a multimeter set to the continuity mode, place the probes on the relay’s input and output terminals while activating the relay. A consistent beep or low resistance reading indicates proper operation. This method is straightforward but requires isolating the relay from the vehicle’s wiring to avoid false positives.
For a more dynamic test, the voltage drop method simulates real-world conditions. Connect the relay to a power source and measure the voltage across its output terminals when activated. A significant drop in voltage suggests a faulty relay, as it indicates excessive resistance or poor contact. This method is particularly useful for diagnosing intermittent issues, as it mimics the relay’s behavior under load. However, it requires careful setup to avoid damaging the relay or the testing equipment.
Another effective technique is the audible and visual inspection, which leverages the relay’s physical characteristics. When activated, a healthy relay emits a distinct clicking sound as the internal switch engages. Pair this with a visual check for sparks or arcing, which signal worn contacts. While less precise than electronic testing, this method offers immediate feedback and is ideal for quick diagnostics. It’s especially useful when dealing with older relays or in situations where specialized tools are unavailable.
Lastly, the swap and compare method is a practical, low-tech approach. If you have access to a known-good relay of the same type, swap it with the suspect relay and observe the system’s behavior. If the issue resolves, the original relay is likely faulty. This method is simple but relies on having a compatible relay on hand. It’s a quick way to confirm relay failure without extensive testing, making it a go-to for time-sensitive repairs.
Each testing method has its strengths and limitations, so combining them can provide a comprehensive assessment. For instance, start with the audible and visual inspection, followed by a continuity test, and conclude with a voltage drop test if necessary. This layered approach ensures accuracy and minimizes the risk of misdiagnosis. Regardless of the method chosen, safety is paramount—always disconnect the battery before testing to prevent electrical hazards.
Why Briggs Fuel Pumps Fail: Common Causes and Prevention Tips
You may want to see also
Explore related products
![True MODS 6 Pack 4-Pin 12V Bosch Style Fused Relay Switch Kit [Interlocking Harness Socket Holder] [14 AWG Hot Wires] [SPST] [30 Amp] 12 Volt Automotive relays with Fuse for Auto Cars](https://m.media-amazon.com/images/I/81FVp-H-BUL._AC_UY218_.jpg)
Common Symptoms of Failure
A failing fuel pump relay often manifests through subtle yet critical symptoms that can escalate if ignored. One of the earliest signs is difficulty starting the engine, especially in colder temperatures. This occurs because the relay fails to provide consistent power to the fuel pump, resulting in insufficient fuel pressure during ignition. If the engine cranks but doesn’t start, or if it starts only after multiple attempts, the fuel pump relay may be at fault. This symptom is often mistaken for a weak battery or faulty starter, making it crucial to check the relay as part of your diagnostic process.
Another telltale sign is a sputtering or stalling engine, particularly at high speeds or under load. When the relay malfunctions, it can intermittently cut power to the fuel pump, causing the engine to receive an inconsistent fuel supply. This leads to erratic performance, such as hesitation during acceleration or sudden stalls while driving. If you notice these issues, especially when the vehicle is under stress (e.g., climbing a hill or towing), inspect the fuel pump relay for signs of wear or corrosion. Ignoring this symptom can lead to dangerous driving conditions and potential engine damage.
Unusual noises from the fuel tank area can also indicate a failing relay. A whining or buzzing sound, particularly during startup or when the fuel tank is low, suggests the fuel pump is struggling to operate due to inconsistent power delivery. While some noise is normal, a noticeable increase in volume or frequency warrants attention. To diagnose, listen carefully near the fuel tank while someone starts the vehicle. If the noise is louder than usual or persists, the relay may be failing, and replacing it could resolve the issue before the pump itself fails.
Lastly, a failing fuel pump relay can trigger the check engine light, often accompanied by error codes related to fuel system pressure or delivery. Modern vehicles rely on sensors to monitor fuel pressure, and if the relay causes fluctuations, the onboard computer detects the anomaly. Use an OBD-II scanner to read the codes; common ones include P0087 (low fuel pressure) or P0191 (fuel rail pressure sensor circuit). While these codes don’t exclusively point to the relay, they are strong indicators when paired with other symptoms. Addressing the issue promptly prevents further damage and ensures reliable vehicle operation.
Ford Expedition 2004: Fuel Pump Driver Module Explained
You may want to see also
Explore related products
Replacement and Troubleshooting Tips
The fuel pump relay is a critical component in your vehicle's fuel system, ensuring the fuel pump operates only when the engine is running or being started. If this relay fails, your car may not start, or it may stall unexpectedly. Identifying the correct fuse associated with the fuel pump relay is the first step in troubleshooting and replacement. Typically, the fuel pump relay is located in the fuse box under the hood or inside the cabin, often labeled as "FUEL PUMP" or "FP RELAY." Consult your vehicle’s manual for the exact location, as it varies by make and model.
When replacing the fuel pump relay, start by verifying the issue. A common symptom of a faulty relay is a lack of fuel pump operation when the ignition is turned on. Use a multimeter to test the relay for continuity or swap it with a similar relay in the fuse box to see if the problem resolves. If the fuel pump engages after swapping, the relay is likely defective. Purchase a replacement relay that matches the specifications of the original, ensuring compatibility with your vehicle’s voltage and current requirements. Installation is straightforward: disconnect the battery, remove the old relay by pulling it straight out of the socket, and insert the new one firmly into place.
Troubleshooting goes beyond relay replacement. If the new relay doesn’t resolve the issue, inspect the fuse associated with the fuel pump relay. A blown fuse can prevent the relay from receiving power. Locate the fuse in the fuse box, typically marked in the manual, and check it using a multimeter or visual inspection for a broken filament. Replace the fuse with one of the same amperage rating, usually between 10–20 amps, depending on the vehicle. Avoid using a higher-rated fuse, as it can lead to electrical damage or fire hazards.
Another troubleshooting tip is to examine the wiring harness connected to the fuel pump relay. Corroded, loose, or damaged wires can disrupt the circuit. Clean any corrosion with electrical contact cleaner and ensure all connections are secure. If the wiring is frayed or broken, repair or replace it as needed. Additionally, test the fuel pump itself by bypassing the relay temporarily. Connect the fuel pump directly to the battery (using appropriate wiring and a fuse) to see if it operates. If the pump fails to run, the issue may lie with the pump rather than the relay.
In conclusion, replacing and troubleshooting the fuel pump relay requires a systematic approach. Start with the relay, then move to the fuse, wiring, and finally the fuel pump itself. Always prioritize safety by disconnecting the battery before working on electrical components. By following these steps, you can diagnose and resolve fuel pump relay issues efficiently, ensuring your vehicle’s fuel system operates reliably.
DIY Guide: Disassembling a 2003 Jeep Grand Cherokee Fuel Pump
You may want to see also
Frequently asked questions
The fuel pump relay is not a fuse; it is a relay that controls the power to the fuel pump. However, it is often located in the fuse box, typically near the fuel pump fuse.
The fuel pump relay is usually labeled as "Fuel Pump Relay" or "FPR" in the fuse box diagram, which can be found in your vehicle's owner manual or on the fuse box cover. It may also be a larger relay compared to others in the box.
Yes, if the fuse that powers the fuel pump relay is blown, the relay will not receive power and will not function properly, resulting in a non-operational fuel pump. Always check the fuse first when diagnosing fuel pump relay issues.
![Electromagnetic Power Relay, 8-Pin 10 AMP 24V AC Relay Coil with Socket Base, LED Indicator, DPDT 2NO 2NC - MY4NJ 2PCS [Applicable for DIN Rail System]](https://m.media-amazon.com/images/I/71gVMBrJUrL._AC_UY218_.jpg)
