The 1996 Jaguar XJ6, a classic luxury sedan, relies on a fuel pump relay to ensure proper fuel delivery to the engine. Identifying the correct fuel pump relay is crucial for troubleshooting or maintenance, as it controls the power supply to the fuel pump. In the XJ6, the fuel pump relay is typically located in the main fuse box, often found in the engine compartment. However, its exact position may vary depending on the specific model or regional specifications. Consulting the vehicle’s manual or a wiring diagram is recommended to accurately locate the relay, ensuring efficient diagnosis and repair of any fuel system issues.
| Characteristics | Values |
|---|---|
| Location | Typically located in the main fuse box under the hood, near the battery. Some sources suggest it might be in the trunk fuse box, but under-hood is more common. |
| Relay Type | Standard Bosch-style relay (likely 4-pin) |
| Pin Configuration | 30: Power In (Battery), 87: Power Out (Fuel Pump), 85: Ground (via ECU), 86: Control (ECU signal) |
| Color Coding | Varies, but often black or grey casing. Pins may be color-coded (check a relay diagram for specifics) |
| Part Number | Not readily available without specific Jaguar part number lookup. May be cross-referenced with Bosch relay numbers. |
| Replacement | Ensure replacement relay has the same pin configuration and amperage rating. |
Explore related products
What You'll Learn

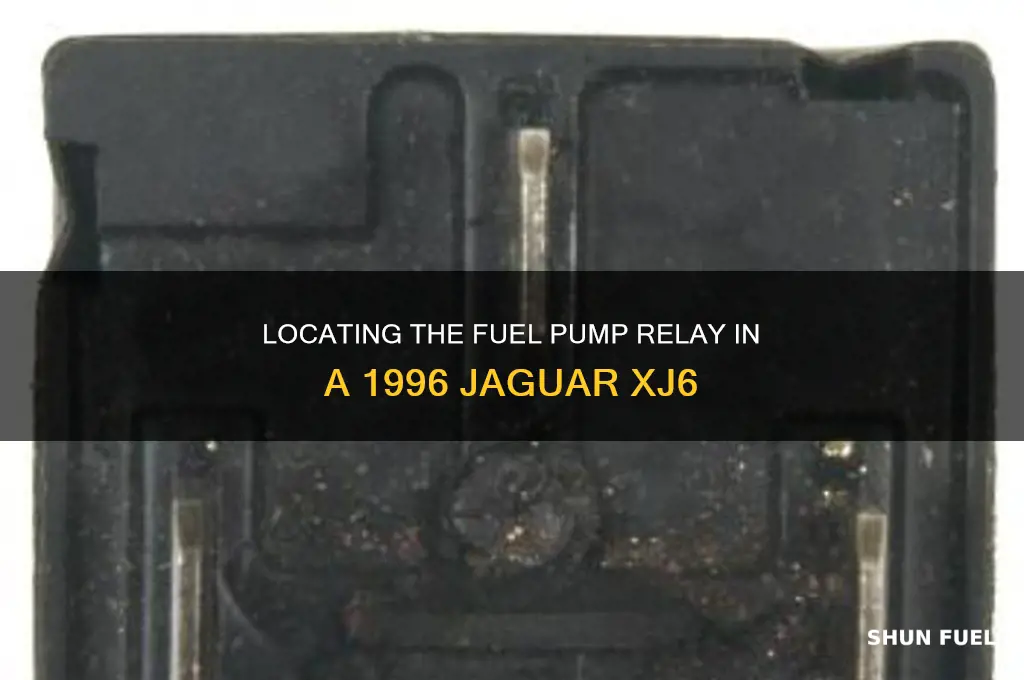

Fuel pump relay location in 96 Jaguar XJ6 engine bay
The fuel pump relay in a 1996 Jaguar XJ6 is a critical component for ensuring your vehicle’s engine receives the necessary fuel supply. Located in the engine bay, this relay acts as a switch, controlling the power supply to the fuel pump. Identifying its exact location is essential for troubleshooting fuel delivery issues or performing maintenance tasks. While the XJ6’s engine bay is well-organized, the relay’s position can be somewhat obscured by surrounding components, making it a challenge for first-time DIYers.
To locate the fuel pump relay, start by opening the hood and familiarizing yourself with the engine bay layout. The relay is typically housed within the fuse and relay box, which is situated near the battery on the driver’s side. In the 1996 XJ6, this box is often a black plastic unit with a removable lid. Once you’ve identified the box, remove the lid to expose the relays and fuses inside. The fuel pump relay is usually labeled, but if not, consult the owner’s manual or a repair guide for its specific position. It’s often a rectangular or square-shaped component with four or five pins.
When working with the fuel pump relay, it’s crucial to exercise caution. Always disconnect the battery before handling any electrical components in the engine bay to prevent accidental short circuits. If you’re testing the relay, use a multimeter to check for continuity or swap it with a known working relay of the same type. Keep in mind that the fuel pump relay is part of a larger system, so if issues persist, consider inspecting the fuel pump itself, the wiring harness, or the inertia switch, which is often located in the trunk for safety purposes.
For those unfamiliar with automotive electrical systems, the fuel pump relay’s location and function can seem daunting. However, with a systematic approach and the right tools, identifying and addressing issues becomes manageable. Regularly inspecting the relay and its connections can prevent unexpected breakdowns, ensuring your 1996 Jaguar XJ6 remains reliable. Remember, if you’re unsure, consulting a professional mechanic is always a wise decision to avoid further complications.
