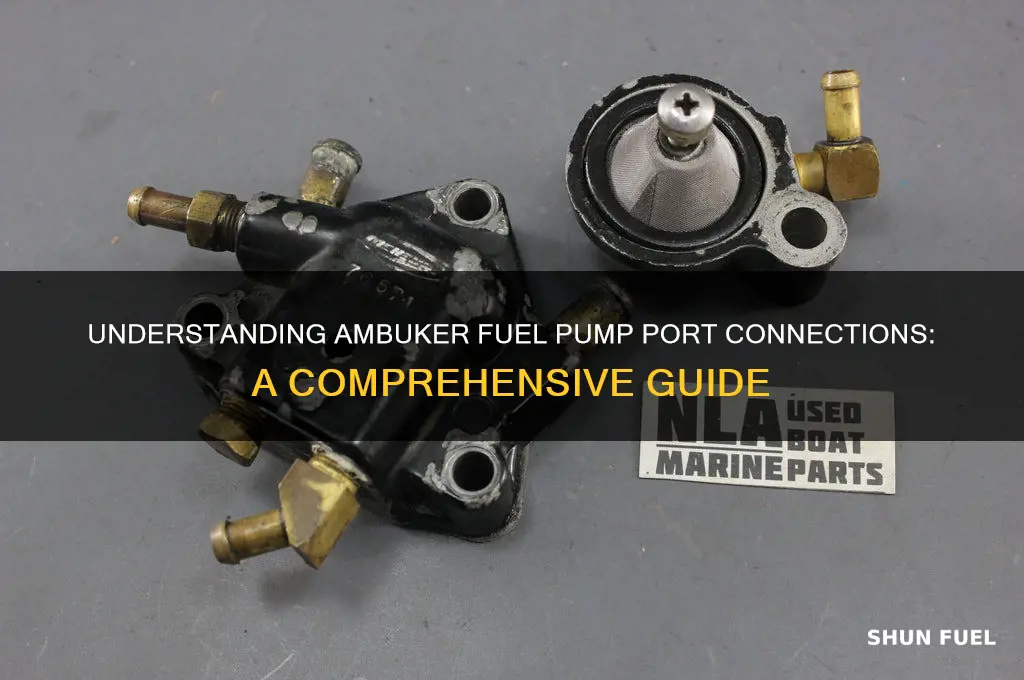

Understanding the correct port connections on an Ambuker fuel pump is crucial for ensuring optimal performance and safety in your vehicle's fuel system. The Ambuker fuel pump typically features multiple ports, each serving a specific function, such as the inlet port for drawing fuel from the tank, the outlet port for delivering fuel to the engine, and possibly additional ports for pressure regulation or return lines. Properly identifying and connecting these ports to their respective components—like fuel lines, filters, and pressure regulators—prevents issues like fuel starvation, leaks, or system damage. Referencing the manufacturer’s manual or diagram is essential to accurately match each port to its designated function, ensuring efficient fuel delivery and maintaining the longevity of your vehicle’s fuel system.
Explore related products
What You'll Learn
Fuel Tank to Pump Inlet
The fuel tank to pump inlet connection is a critical juncture in your vehicle's fuel system, ensuring a steady supply of fuel to the engine. This connection is typically made via a fuel line that runs from the tank's outlet to the pump's inlet port. The inlet port is usually marked with a specific symbol or label, such as "IN" or "INLET," to distinguish it from other ports on the pump. It's essential to identify this port correctly, as connecting the fuel line to the wrong port can lead to fuel delivery issues, engine performance problems, or even damage to the pump.
When connecting the fuel tank to the pump inlet, it's crucial to use the correct fuel line size and material. Most Ambuker fuel pumps use a 3/8-inch or 10-millimeter fuel line, but it's always best to consult the pump's manual or specifications to confirm the correct size. The fuel line should be made of a material compatible with the type of fuel being used, such as rubber, nylon, or stainless steel. For example, ethanol-blended fuels may require a more durable material like nylon or stainless steel to prevent corrosion or degradation.
One common mistake when connecting the fuel tank to the pump inlet is failing to secure the fuel line properly. This can lead to leaks, air pockets, or disconnections, all of which can cause fuel delivery issues. To avoid this, use a high-quality hose clamp or fitting to secure the fuel line to the pump's inlet port. Tighten the clamp to the manufacturer's recommended torque specifications, typically around 15-20 inch-pounds, to ensure a secure connection without damaging the fuel line or pump.
In some cases, you may need to modify or adapt the fuel line to fit the pump's inlet port. This can occur when using an aftermarket fuel pump or when replacing a damaged fuel line. When making modifications, ensure that the fuel line is properly aligned with the inlet port and that there are no sharp bends or kinks that could restrict fuel flow. A good rule of thumb is to maintain a minimum bend radius of 5-6 inches to prevent fuel flow restrictions. Additionally, consider using a fuel line with a smooth interior surface to minimize turbulence and promote efficient fuel flow.
To ensure a successful fuel tank to pump inlet connection, follow these practical tips: (1) clean the fuel line and inlet port thoroughly before installation to remove any debris or contaminants; (2) use a fuel line with a sufficient length to allow for movement and vibration without causing stress on the connection; (3) check the fuel line for cracks, leaks, or damage before installation; and (4) test the fuel system for leaks and proper operation after installation. By following these guidelines and paying close attention to the specific requirements of your Ambuker fuel pump, you can establish a reliable and efficient fuel tank to pump inlet connection that supports optimal engine performance.
