When considering which relay fuel pump to choose, it’s essential to understand the role of the relay in your vehicle’s fuel system. The fuel pump relay acts as a switch, controlling the power supply to the fuel pump, ensuring it operates efficiently and only when needed. Selecting the right relay depends on factors such as your vehicle’s make and model, voltage requirements, and compatibility with the fuel pump. A high-quality relay ensures reliable performance, prevents electrical issues, and extends the lifespan of your fuel pump. Whether you’re replacing a faulty relay or upgrading your system, choosing the correct relay fuel pump is crucial for maintaining optimal engine function and fuel delivery.
Explore related products
What You'll Learn
- Relay Functionality: How the relay controls fuel pump activation and deactivation in vehicles
- Common Issues: Symptoms of a faulty relay, such as no fuel pump operation
- Testing Methods: Steps to diagnose a relay using a multimeter or visual inspection
- Replacement Guide: How to safely replace a defective fuel pump relay in a car
- Compatibility: Ensuring the correct relay type matches the vehicle’s fuel pump system
Relay Functionality: How the relay controls fuel pump activation and deactivation in vehicles
The fuel pump relay is a critical component in modern vehicles, acting as the intermediary between the vehicle's electrical system and the fuel pump. Its primary function is to control the activation and deactivation of the fuel pump, ensuring that fuel is delivered to the engine only when necessary. This not only optimizes fuel efficiency but also enhances safety by preventing the fuel pump from running continuously, which could lead to overheating or unnecessary wear.
Consider the relay as a switchboard operator in a busy office. Just as the operator connects calls to the right departments, the fuel pump relay directs electrical current from the battery to the fuel pump when the ignition is turned on. This process is triggered by the ignition switch, which sends a signal to the relay, closing the circuit and allowing power to flow to the fuel pump. The relay’s design ensures that this connection is both reliable and efficient, minimizing energy loss and ensuring immediate fuel delivery when the engine starts.
However, the relay’s role doesn’t end with activation. It also controls deactivation, a function equally important for safety and efficiency. When the ignition is turned off, the relay opens the circuit, cutting power to the fuel pump. This prevents fuel from being pumped unnecessarily, reducing the risk of fuel leaks or pressure buildup in the fuel lines. In some advanced systems, the relay may also deactivate the fuel pump during a collision, as detected by the vehicle’s safety sensors, further mitigating risks.

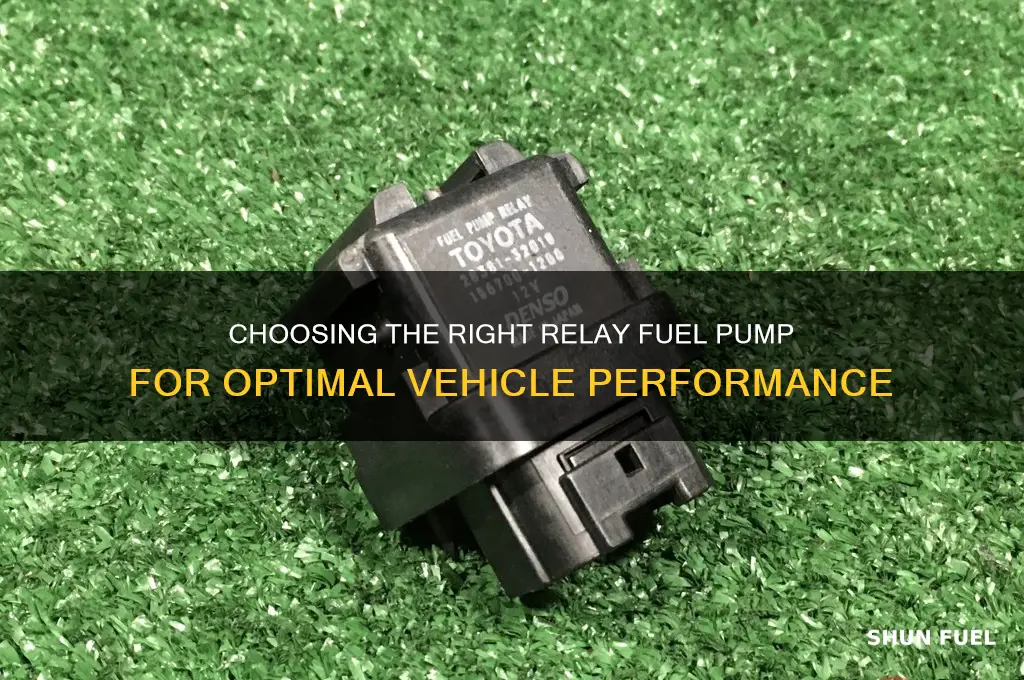

A practical example illustrates this functionality: In a typical vehicle, the fuel pump relay is often located in the fuse box under the hood or near the battery. It’s a small, rectangular component with four to five pins, each serving a specific purpose—power input, power output, control signal, and ground. When troubleshooting fuel pump issues, mechanics often start by testing the relay. A common test involves swapping the fuel pump relay with another relay of the same type (e.g., the horn relay) to determine if the issue lies with the relay itself. If the fuel pump operates when the relays are swapped, the original relay is likely faulty and needs replacement.
In conclusion, the fuel pump relay is a small but indispensable part of a vehicle’s fuel system. Its ability to precisely control fuel pump activation and deactivation ensures optimal engine performance, fuel efficiency, and safety. Understanding its functionality not only aids in diagnostics but also highlights the sophistication of modern automotive electrical systems. Whether you’re a DIY enthusiast or a professional mechanic, recognizing the relay’s role can save time and prevent misdiagnosis, making it a key area of knowledge in vehicle maintenance.
Electric Fuel Pumps: Understanding the Role of Check Valves
You may want to see also
Explore related products
Common Issues: Symptoms of a faulty relay, such as no fuel pump operation
A faulty fuel pump relay can cripple your vehicle, leaving you stranded with a non-starting engine. The relay acts as a switch, activating the fuel pump to deliver fuel to the engine. When it fails, the pump remains dormant, starving the engine of the fuel it needs to run. This issue often manifests as a complete inability to start the vehicle, despite a healthy battery and ignition system. If turning the key yields only a whirring sound from the starter motor but no engine turnover, a faulty relay could be the culprit.
Diagnosing a bad fuel pump relay requires a systematic approach. Start by checking the fuse associated with the fuel pump circuit. A blown fuse will prevent power from reaching the relay, mimicking relay failure. If the fuse is intact, locate the relay itself, typically found in the fuse box under the hood. Swap it with a relay of the same type from another circuit (like the horn or headlights) to see if the fuel pump engages. If the engine starts, the original relay is faulty.
Beyond the obvious no-start condition, other symptoms can hint at a failing relay. Intermittent starting problems, where the engine cranks but doesn't fire consistently, could indicate a relay that's beginning to malfunction. A noticeable delay in fuel pump operation after turning the key to the "on" position can also signal a relay on its last legs. In some cases, a failing relay may cause the fuel pump to run continuously, leading to excessive fuel pressure and potential damage to the pump itself.
Listening for the fuel pump's priming hum can provide valuable diagnostic clues. With the key turned to "on" (not start), you should hear a brief whirring sound as the pump pressurizes the fuel system. Silence could indicate a faulty relay, a bad pump, or a wiring issue.
While replacing a fuel pump relay is generally a straightforward task, it's crucial to address the root cause of the failure. Relays rarely fail without reason. Corroded relay terminals, excessive electrical load, or a failing fuel pump drawing too much current can all contribute to relay burnout. Inspect the relay socket for signs of corrosion or overheating, and ensure the fuel pump is functioning properly before installing a new relay.
Testing Voltage at Mazda Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Testing Methods: Steps to diagnose a relay using a multimeter or visual inspection
A faulty fuel pump relay can leave you stranded, but diagnosing the issue doesn't always require a mechanic. With a multimeter and a keen eye, you can often pinpoint the problem yourself.
Visual Inspection: The First Line of Defense
Begin by locating the fuel pump relay, typically found in the fuse box under the hood or near the driver’s side kick panel. Compare it to other relays in the box; uniformity in size and shape is key. Look for physical damage: cracked housings, burnt pins, or corrosion around the terminals. These signs often indicate a failing relay. If the relay is sealed, check for discoloration or swelling, which can signal overheating. While visual inspection is quick, it’s not foolproof—internal faults may go unnoticed.
Multimeter Testing: Precision Diagnosis
For a definitive diagnosis, a multimeter is your best tool. Start by setting it to the ohms (resistance) setting. With the ignition off, remove the relay and test the coil pins, typically labeled 85 and 86. A reading between 50 and 120 ohms is normal; anything outside this range suggests a faulty coil. Next, test the contacts (pins 30 and 87) with the relay energized. If there’s no continuity, the contacts aren’t closing, confirming a bad relay. Always consult your vehicle’s manual for pin configurations, as they vary by make and model.
Functional Testing: Simulating Real-World Conditions
To test the relay in action, swap it with another identical relay in the fuse box (e.g., the horn relay). If the fuel pump engages, the original relay is at fault. Alternatively, apply 12 volts directly to the coil pins and listen for a clicking sound, indicating the contacts are closing. This method mimics the relay’s operation under load, providing a practical assessment of its functionality.
Cautions and Takeaways
Always disconnect the battery before testing to avoid short circuits. Be mindful of polarity when using a multimeter, as reversed connections can damage the device. While DIY testing is empowering, persistent issues may require professional intervention. Relays are inexpensive, so replacement is often the safest bet if doubt remains. By combining visual inspection and multimeter testing, you can confidently diagnose a faulty fuel pump relay and restore your vehicle’s performance.
Step-by-Step Guide to Removing a 2006 Jackpot Fuel Pump
You may want to see also
Explore related products
Replacement Guide: How to safely replace a defective fuel pump relay in a car
A defective fuel pump relay can lead to engine stalling, poor performance, or even a no-start condition. Identifying and replacing this component is crucial for maintaining your vehicle’s reliability. Before beginning, ensure you have the correct replacement relay, a multimeter for testing, and basic hand tools like a screwdriver and pliers. Always disconnect the car battery to prevent electrical mishaps during the process.
Locate the fuel pump relay, typically found in the fuse box under the hood or near the driver’s side dashboard. Consult your vehicle’s manual for its exact position, as placement varies by make and model. Once identified, use the multimeter to test the relay’s terminals for continuity. A lack of continuity indicates a faulty relay, confirming the need for replacement. Label the relay’s position in the fuse box to avoid confusion during reinstallation.
With the faulty relay identified, carefully remove it by pulling it straight out of its slot. Avoid tilting or forcing it, as this can damage the surrounding components. Insert the new relay, ensuring it clicks securely into place. Reattach any retaining clips or covers that were removed during the process. Double-check the relay’s orientation, as some models are polarity-sensitive.
After installation, reconnect the battery and start the engine to test the repair. Listen for unusual noises and monitor the vehicle’s performance. If issues persist, recheck the relay’s connections or consult a professional mechanic. Properly disposing of the old relay and storing your tools completes the process, ensuring a safe and effective replacement.
DIY Fuel Pump Replacement Guide for 2002 Jeep Grand Cherokee Laredo
You may want to see also
Explore related products
Compatibility: Ensuring the correct relay type matches the vehicle’s fuel pump system
Selecting the wrong relay for your vehicle’s fuel pump can lead to inefficiency, damage, or even failure. Relays act as switches, controlling the high current flow to the fuel pump, and their compatibility hinges on voltage, amperage, and pin configuration. For instance, a 12V relay designed for a 30-amp load won’t function properly in a system requiring 40 amps, causing overheating or insufficient fuel delivery. Always cross-reference the relay’s specifications with your vehicle’s fuel pump requirements, typically found in the owner’s manual or service guide.
Compatibility isn’t just about electrical specs—it’s also about the relay’s form factor and mounting style. Automotive relays come in standard sizes like the ISO 28205 (mini relay) or the larger Hella-style, but some vehicles use proprietary designs. A mismatch here means the relay won’t physically fit or connect properly, rendering it useless. For example, a Toyota Corolla may require a 5-pin relay, while a Ford F-150 might use a 4-pin variant. Measure the existing relay or consult a parts catalog to ensure a precise match.
Upgrading to a higher-capacity relay without assessing compatibility can be counterproductive. While a 50-amp relay might seem like an improvement for a 30-amp system, it could bypass safety margins built into the original design. Overloading the circuit or failing to engage the pump correctly can void warranties or trigger error codes in modern vehicles. Stick to OEM specifications unless you’re performing a well-researched performance modification, and even then, test the system thoroughly before relying on it.
Practical tip: If you’re unsure about compatibility, use the part number of the original relay as a reference. Websites like RockAuto or AutoZone allow you to search by vehicle make, model, and year, ensuring you find the exact match. Alternatively, tools like a multimeter can help verify the voltage and resistance of the existing relay, guiding your replacement choice. Always double-check before purchasing—a $10 relay mistake can cascade into a $500 repair bill if it damages the fuel pump or wiring harness.
In summary, compatibility is non-negotiable when replacing a fuel pump relay. Electrical specs, physical dimensions, and vehicle-specific designs must align perfectly to avoid malfunctions. Treat this component like a critical puzzle piece—one wrong move, and the entire system suffers. Invest time in research, leverage resources, and when in doubt, consult a professional to ensure a seamless fit.
Fixing a Faulty Relay Fuel Pump in a 2000 Toyota Corolla
You may want to see also
Frequently asked questions
A relay fuel pump is a type of electric fuel pump that uses a relay to control the power supply to the pump, ensuring it operates only when the engine is running or being started.
A relay fuel pump works by receiving a signal from the ignition switch or engine control unit (ECU), which activates the relay. The relay then closes the circuit, allowing power to flow to the fuel pump, which begins to deliver fuel to the engine.
Common symptoms of a failing relay fuel pump include difficulty starting the engine, stalling, poor acceleration, and unusual noises coming from the fuel tank area.
In most cases, a faulty relay fuel pump needs to be replaced rather than repaired, as the internal components are not typically serviceable. However, the relay itself may be replaceable if it is the only faulty component.
To test a relay fuel pump, you can use a multimeter to check for voltage at the pump’s connector when the ignition is turned on. You can also listen for the pump’s operation by placing your ear near the fuel tank while someone turns the key to the "on" position. If no sound is heard or voltage is absent, the pump or relay may be faulty.
