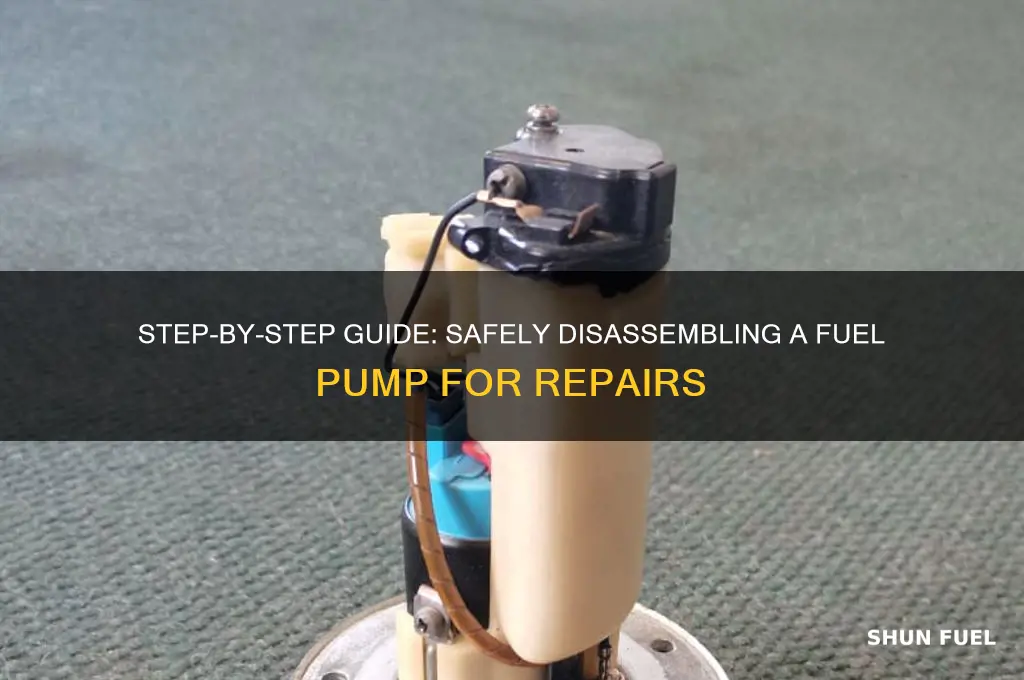

Disassembling a fuel pump requires careful attention to detail and a systematic approach to ensure safety and efficiency. Before beginning, it is essential to disconnect the vehicle’s battery and relieve any fuel system pressure to prevent accidents. Start by locating the fuel pump, typically found inside the fuel tank, and remove the tank if necessary. Once accessed, detach the electrical connector and fuel lines, taking note of their positions for reassembly. Carefully remove the pump from the tank, using appropriate tools to avoid damage to the housing or internal components. With the pump extracted, disassemble it by removing retaining clips, screws, or seals, and inspect each part for wear, debris, or damage. Documenting the disassembly process and organizing components will aid in reassembly or replacement. Always refer to the vehicle’s service manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Safety Precautions | Wear safety goggles, gloves, and ensure vehicle is on a flat surface. Relieve fuel system pressure before starting. |
| Tools Required | Wrenches, screwdrivers, pliers, socket set, fuel line disconnect tool, drain pan. |
| Step 1: Relieve Fuel Pressure | Locate the fuel pressure relief valve or disconnect the fuel pump fuse/relay. Start the engine until it stalls. |
| Step 2: Disconnect Battery | Disconnect the negative battery terminal to prevent electrical accidents. |
| Step 3: Access Fuel Pump | Remove the rear seat or trunk lining to access the fuel pump module (varies by vehicle). |
| Step 4: Disconnect Electrical Wiring | Unplug the electrical connector from the fuel pump module carefully. |
| Step 5: Remove Fuel Lines | Use a fuel line disconnect tool to detach the lines from the pump. Place a drain pan to catch fuel. |
| Step 6: Remove Retaining Ring/Bolts | Remove the retaining ring or bolts securing the fuel pump to the fuel tank. |
| Step 7: Extract Fuel Pump | Carefully lift the fuel pump assembly out of the fuel tank. |
| Step 8: Disassemble Pump (if needed) | Disassemble the pump housing using appropriate tools to inspect internal components (e.g., impeller, motor). |
| Notes | Procedures vary by vehicle make/model. Refer to the vehicle's service manual for specific instructions. |
| Warning | Fuel is flammable; avoid open flames or sparks during disassembly. Work in a well-ventilated area. |
Explore related products
What You'll Learn
- Safety Precautions: Wear gloves, goggles, ensure vehicle is off, and relieve fuel pressure before starting
- Tools Required: Gather socket set, wrenches, screwdriver, fuel line disconnect tool, and drain pan
- Accessing the Pump: Locate fuel tank, remove access panel, and disconnect electrical and fuel lines
- Removing the Pump: Lower tank, unbolt pump assembly, and carefully lift it out of the tank
- Inspecting Components: Check pump, filter, and sender for damage or wear before reassembly or replacement
Safety Precautions: Wear gloves, goggles, ensure vehicle is off, and relieve fuel pressure before starting
Fuel systems operate under high pressure and contain flammable liquids, making disassembly a task that demands respect for safety. Before even considering removing a fuel pump, ensure the vehicle’s ignition is off and the battery disconnected to eliminate any risk of accidental sparks. Fuel injectors can spray fuel at pressures exceeding 60 psi, and residual pressure in the lines can cause dangerous sprays or leaks if not properly relieved. Use the vehicle’s manual to locate the fuel pressure relief valve or follow the manufacturer’s procedure, typically involving running the engine until it stalls or using a specialized tool to depressurize the system.
Personal protective equipment (PPE) is non-negotiable when working with fuel systems. Nitrile gloves resist chemicals and provide a better grip than latex, reducing the risk of spills or skin exposure to gasoline, which can cause dermatitis or absorb harmful additives. Safety goggles are equally critical, as fuel can splash unexpectedly, and even small droplets can cause eye irritation or injury. Avoid open flames or sparks within a 25-foot radius, and work in a well-ventilated area to minimize fume inhalation. A single spark from static electricity or a tool can ignite fuel vapors, turning a routine repair into a hazardous situation.
Relieving fuel pressure isn’t just a recommendation—it’s a step that separates a safe repair from a potential disaster. After turning off the ignition, locate the fuel pump fuse or relay and remove it to prevent accidental activation during disassembly. Then, start the engine and let it run until it stalls, effectively releasing pressure in the lines. If the vehicle has a Schrader valve on the fuel rail, attach a pressure gauge and depress the valve to ensure complete depressurization. Failure to do this can result in fuel spraying forcefully when connections are loosened, increasing the risk of fire or chemical burns.
Even with pressure relieved, fuel residue remains a hazard. Wipe down the work area with a lint-free cloth to remove any spills, and keep a Class B fire extinguisher nearby as a precaution. When removing fuel lines or the pump itself, work methodically to avoid damaging seals or components that could cause leaks later. Store disconnected lines in a sealed container to prevent evaporation of fuel vapors, which are heavier than air and can pool in low areas, creating an explosion risk. By treating every step with caution, you transform a potentially dangerous task into a manageable and safe repair.
Exploring the Fuel Pump Driver Module in the 2019 F150
You may want to see also
Explore related products
Tools Required: Gather socket set, wrenches, screwdriver, fuel line disconnect tool, and drain pan
Disassembling a fuel pump is a task that demands precision and the right tools. Before you begin, gather a socket set, wrenches, a screwdriver, a fuel line disconnect tool, and a drain pan. These tools are not just accessories; they are essential for safely and efficiently accessing and removing the fuel pump. The socket set and wrenches will help you loosen and remove bolts and nuts, while the screwdriver is crucial for prying or unscrewing components. The fuel line disconnect tool ensures you can safely detach the fuel lines without causing leaks or damage, and the drain pan is indispensable for catching any residual fuel, preventing spills and potential hazards.
Consider the analytical aspect of tool selection. Each tool serves a specific purpose, and their collective use ensures a systematic approach to disassembly. For instance, the socket set often includes various sizes to accommodate different bolt heads, while the wrenches provide leverage for tighter spaces. The fuel line disconnect tool is particularly important because it is designed to release the fuel lines’ quick-connect fittings without damaging the O-rings or spilling fuel. This tool alone can save you from costly repairs and environmental hazards, making it a non-negotiable addition to your toolkit.
From a practical standpoint, the order in which you use these tools matters. Start by placing the drain pan beneath the fuel pump to catch any fuel that may spill during disconnection. Next, use the fuel line disconnect tool to carefully detach the fuel lines, ensuring no residual pressure remains in the system. Proceed with the socket set and wrenches to remove the mounting bolts securing the fuel pump to the fuel tank. Finally, use the screwdriver to pry or unscrew any additional components, such as electrical connectors or brackets. This step-by-step approach minimizes the risk of errors and ensures a smooth disassembly process.
A comparative analysis highlights the importance of these tools over improvisational methods. While some may attempt to use pliers or generic tools, the specialized nature of the fuel line disconnect tool and the precision of the socket set and wrenches make them irreplaceable. For example, using pliers to disconnect fuel lines can lead to cracked fittings or damaged O-rings, resulting in leaks that compromise safety and performance. Similarly, a drain pan is far more effective than makeshift containers, as it is designed to contain spills and is often made of materials resistant to fuel corrosion.
In conclusion, the tools required for disassembling a fuel pump are not arbitrary; they are carefully selected to address specific challenges in the process. By gathering a socket set, wrenches, a screwdriver, a fuel line disconnect tool, and a drain pan, you equip yourself with the means to tackle the task safely and efficiently. Each tool plays a unique role, from preventing spills to ensuring precise disconnections, making them indispensable for anyone undertaking this project. Treat this toolkit as your foundation, and approach the disassembly with confidence and care.
Diagnosing EFI Fuel Pump Failure: Signs and Symptoms to Watch For
You may want to see also
Explore related products
Accessing the Pump: Locate fuel tank, remove access panel, and disconnect electrical and fuel lines
The fuel tank is typically located beneath the vehicle, often near the rear axle, though its exact position varies by make and model. Consult your vehicle’s manual or a trusted repair guide to pinpoint its location, as some tanks are concealed under protective shields or require lifting the car for access. Identifying this first ensures you’re working on the correct component and avoids unnecessary disassembly of unrelated parts.
Removing the access panel is the next critical step, but approach it with caution. Most panels are secured by a combination of bolts, screws, or clips, which may be corroded or difficult to reach. Use the appropriate tools—a socket wrench or screwdriver—and apply steady pressure to avoid stripping fasteners. If the panel is stubborn, gently pry it loose with a flathead screwdriver or trim removal tool, taking care not to damage surrounding components or the tank itself.
Disconnecting electrical and fuel lines demands precision and safety. Start with the electrical connector, which is usually a clip-on type. Depress the release tab and pull the connector straight out, avoiding sideways force that could break the clip. For fuel lines, relieve system pressure first by loosening the fuel filler cap and running the engine until it stalls. Then, use line disconnect tools to separate the quick-connect fittings, catching any residual fuel in a container to prevent spills or fire hazards.
This process highlights the balance between efficiency and safety. Rushing through access steps risks damage to the tank or lines, while skipping safety precautions—like relieving fuel pressure—can lead to accidents. By methodically locating the tank, removing the panel, and disconnecting lines, you create a controlled environment for the next phase of disassembly, ensuring both the task’s success and your well-being.
Efficient Fuel Pump and Filter Pressure Relief Techniques Explained
You may want to see also
Explore related products
Removing the Pump: Lower tank, unbolt pump assembly, and carefully lift it out of the tank
Lowering the fuel tank is a critical first step in accessing the fuel pump assembly. This process requires careful planning and execution to avoid spills, damage, or injury. Begin by ensuring the vehicle is on a level surface and the fuel tank is as empty as possible to minimize weight and fire hazards. Use a floor jack and jack stands to securely lift the vehicle, providing ample clearance to work beneath it. Disconnect the negative battery terminal to prevent accidental ignition, and relieve fuel system pressure by locating and depressing the Schrader valve on the fuel rail. With these precautions in place, you can safely proceed to unbolt the tank straps and lower the tank gradually, using a transmission jack or a secure support to control its descent.
Unbolting the pump assembly demands precision and the right tools. Once the tank is accessible, locate the electrical connector and fuel lines attached to the pump. Use a line wrench to loosen the fuel lines, taking care not to damage the fittings or O-rings. Disconnect the electrical connector by pressing the release tab and pulling it apart. Next, identify the retaining bolts securing the pump assembly to the tank. Typically, these are 8mm or 10mm bolts, depending on the vehicle make and model. Use a socket wrench with the appropriate socket size to remove these bolts, keeping track of their positions for reassembly. If the bolts are corroded, apply penetrating oil and allow it to sit for 10–15 minutes before attempting to loosen them.
Lifting the pump assembly out of the tank requires patience and a gentle touch. With the bolts removed, carefully pry the assembly away from the tank using a flat-head screwdriver or a non-marring tool to avoid damaging the tank’s sealing surface. Tilt the assembly slightly to align it with the tank opening, then slowly lift it out, ensuring no fuel lines or wiring get caught. If the assembly is stuck, resist the urge to force it—instead, inspect for any remaining attachments or debris that might be causing resistance. Once free, place the assembly on a clean, oil-resistant surface, taking care to keep the fuel pump module upright to prevent fuel spillage.
A comparative analysis of this process across different vehicles reveals common challenges and best practices. For instance, in-tank fuel pumps on older vehicles often have simpler designs, with fewer electrical connections and easier access. In contrast, modern vehicles may integrate additional components like a fuel level sender or pressure regulator, complicating removal. Regardless of the model, the key takeaway is to work methodically, prioritizing safety and precision. Always refer to the vehicle’s service manual for specific torque values and procedures, as deviations can lead to leaks or system malfunctions. By following these steps, even a novice can successfully remove a fuel pump assembly with confidence.
Delphi Fuel Pumps: Performance, Reliability, and User Ratings Explained
You may want to see also
Explore related products
Inspecting Components: Check pump, filter, and sender for damage or wear before reassembly or replacement
Before reassembling or replacing a fuel pump, a meticulous inspection of its components is crucial to ensure optimal performance and longevity. Start by examining the pump itself for any signs of physical damage, such as cracks, corrosion, or warping. Pay close attention to the impeller or rotor, as wear in these areas can lead to reduced fuel flow and pressure. Use a magnifying glass or a bright light to spot microscopic defects that might otherwise go unnoticed. Even minor imperfections can compromise the pump’s efficiency, so err on the side of caution when evaluating its condition.
Next, inspect the fuel filter for clogging or debris buildup, which can restrict fuel flow and strain the pump. A clogged filter often appears darkened or coated with particulate matter, especially in older vehicles or those exposed to contaminated fuel. If the filter is reusable, clean it thoroughly with a solvent and compressed air, ensuring all passages are clear. However, if the filter is disposable or shows signs of degradation, replace it immediately. A compromised filter not only affects fuel delivery but can also allow contaminants to reach the pump, accelerating wear.
The fuel sender unit, responsible for measuring and transmitting fuel level data, requires equal scrutiny. Check the float arm for bending or breakage, as a malfunctioning sender can lead to inaccurate gauge readings or even pump failure if it interferes with the tank’s internal components. Inspect the electrical connections for corrosion or looseness, as poor conductivity can disrupt the sender’s operation. If the sender unit is integrated with the pump assembly, test its resistance values using a multimeter to ensure it falls within the manufacturer’s specifications.
During inspection, document any findings with notes or photographs to aid in diagnosis and future reference. If damage or wear is detected, weigh the cost and feasibility of repair against replacement. For instance, a worn pump impeller might be replaceable in some models, but in others, it may necessitate a full pump replacement. Similarly, a damaged sender unit could be swapped out individually if it’s a modular component, saving time and expense compared to replacing the entire assembly.
Finally, consider the vehicle’s age, mileage, and operating conditions when deciding whether to repair or replace components. High-mileage vehicles or those used in harsh environments are more prone to cumulative wear, making proactive replacement a wiser choice. Conversely, newer vehicles with isolated issues may benefit from targeted repairs. By thoroughly inspecting the pump, filter, and sender, you not only address immediate concerns but also prevent potential failures down the road, ensuring a reliable and efficient fuel system.
Easy Steps to Safely Remove Your Fuel Pump Cap
You may want to see also
Frequently asked questions
Common tools required include a socket set, wrenches, screwdrivers, pliers, and possibly a specialized fuel pump removal tool, depending on the vehicle model.
Disassembling a fuel pump can be risky due to the presence of fuel and electrical components. If you’re unsure, consult a professional to avoid accidents or damage.
Ensure the vehicle is on a level surface, the engine is cool, and the fuel system is depressurized. Disconnect the battery and wear safety gear to prevent fuel exposure or electrical hazards.
