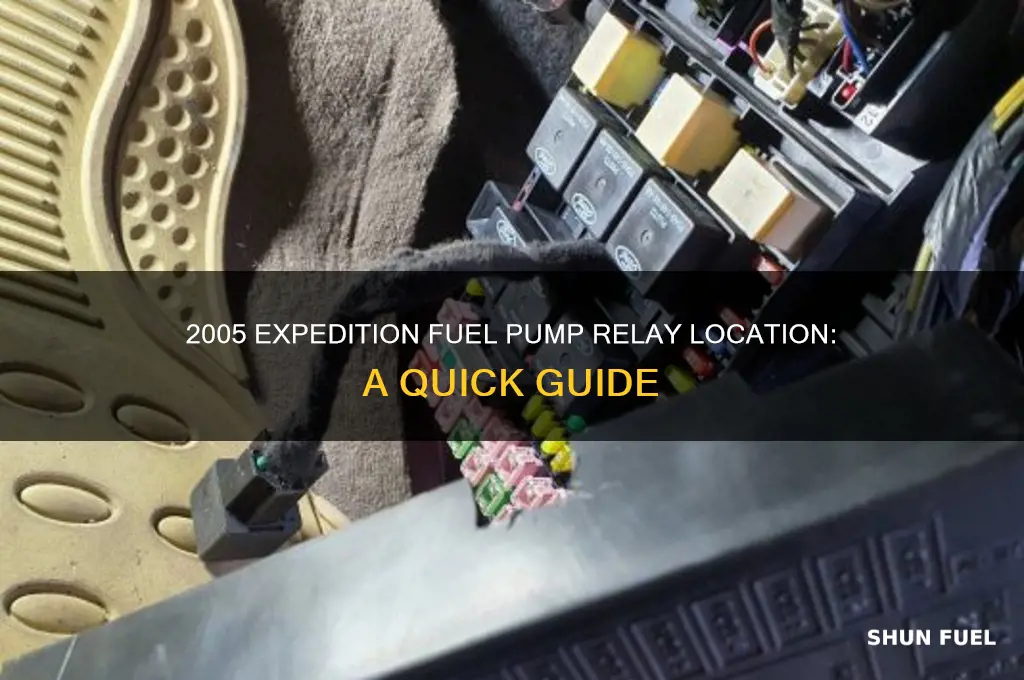

The fuel pump relay in a 2005 Ford Expedition is typically located in the underhood fuse/relay box, which is situated near the battery on the driver's side of the engine compartment. This relay is a crucial component of the vehicle's fuel system, as it controls the power supply to the fuel pump, ensuring proper fuel delivery to the engine. Identifying its exact location can be essential for troubleshooting fuel-related issues or performing maintenance tasks, and consulting the vehicle's manual or a reliable repair guide can provide specific instructions for accessing and replacing the relay if needed.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2005 Ford Expedition |
| Fuel Pump Relay Location | Inside the fuse box under the hood (also known as the Power Distribution Box) |
| Fuse Box Location | Driver's side, near the firewall |
| Relay Position | Typically in the "F15" or "F16" slot (check the fuse box lid diagram) |
| Relay Function | Controls power to the fuel pump |
| Access Difficulty | Easy; requires opening the hood and locating the fuse box |
| Tools Required | None (may need a fuse puller for removal) |
| Replacement Part | Fuel pump relay (specific to Ford Expedition 2005) |
| Symptoms of Failure | Engine cranks but won’t start, no fuel pressure, or intermittent starting |
| Related Components | Fuel pump, inertia switch, fuel pump fuse |
Explore related products
What You'll Learn
Under Hood Fuse Box Location
The 2005 Ford Expedition's under-hood fuse box is a critical component for accessing and troubleshooting various electrical systems, including the fuel pump relay. Located in the engine compartment, this fuse box houses relays, fuses, and other essential components that protect and control the vehicle's electrical circuits. Identifying its exact position is the first step in diagnosing or replacing the fuel pump relay.
Locating the Fuse Box:
Open the hood and look toward the driver’s side of the engine compartment. The under-hood fuse box is typically mounted near the firewall, close to the brake master cylinder. It’s enclosed in a rectangular, black plastic housing with a removable lid. Ford designed this placement for accessibility, though it may require removing a plastic cover or shield to expose it fully. If you’re unsure, consult the owner’s manual for a diagram or label indicating its precise location.
Accessing the Fuel Pump Relay:
Once the fuse box is located, remove the lid by pressing the tabs on the sides or lifting it gently. Inside, you’ll find a grid of fuses and relays, often labeled on the underside of the lid or in the manual. The fuel pump relay is usually labeled as “Fuel Pump” or “FP Relay.” It’s a small, cube-shaped component that plugs into the fuse box. To remove it, grasp the relay firmly and pull straight up. Be cautious not to force it, as excessive pressure can damage the socket.
Practical Tips for Troubleshooting:
If you suspect a faulty fuel pump relay, swap it with a relay of the same type from another slot in the fuse box. This temporary test can help determine if the relay is the issue. Always ensure the ignition is off when working with electrical components to avoid short circuits. If the problem persists, inspect the wiring harness connected to the relay for signs of damage or corrosion.
Maintenance and Replacement:
Regularly inspecting the under-hood fuse box for dirt, moisture, or corrosion can prevent electrical issues. If the fuel pump relay fails, replace it with a manufacturer-approved part to ensure compatibility. While the process is straightforward, consult a professional if you’re uncomfortable working with electrical systems. Proper maintenance of this area ensures the Expedition’s fuel system operates reliably, avoiding potential breakdowns.
Step-by-Step Guide: Removing Fuel Pump in 2005 Honda Accord LX
You may want to see also
Explore related products
Relay Panel Identification Guide
Locating the fuel pump relay in a 2005 Ford Expedition requires familiarity with the vehicle’s relay panel layout. The relay panel, often found under the hood or inside the cabin, houses critical components like the fuel pump relay, which controls power delivery to the fuel pump. Misidentifying relays can lead to unnecessary repairs or safety hazards, making accurate identification essential. This guide focuses on decoding relay panels to pinpoint the fuel pump relay efficiently.
Relay panels are typically labeled, but deciphering these labels demands attention to detail. In the 2005 Expedition, the relay panel under the hood is usually marked with a diagram on the underside of the cover. Look for labels such as "FUEL PUMP" or "FP RELAY," which directly indicate the fuel pump relay’s position. If labels are faded or missing, consult the vehicle’s manual or a reliable online resource for a diagram specific to your model. Cross-referencing with a wiring diagram can further confirm the correct relay.
Not all relays are created equal, and their sizes, shapes, and pin configurations vary. The fuel pump relay in the 2005 Expedition is typically a standard 5-pin relay, distinguishable by its larger size compared to other relays in the panel. To avoid confusion, compare the relay’s physical characteristics with those of neighboring components. If unsure, use a multimeter to test for continuity or power flow when the ignition is on, ensuring the relay is active during operation.
Practical tips can streamline the identification process. Start by disconnecting the battery to prevent electrical mishaps. Use a flashlight to inspect the panel in low-light conditions, and keep a notepad handy to jot down relay positions for future reference. If the relay panel is located inside the cabin, such as under the dashboard, ensure the vehicle is in park and the ignition is off before accessing it. Patience and methodical inspection are key to avoiding errors.
In summary, identifying the fuel pump relay in a 2005 Expedition hinges on understanding the relay panel’s layout and labels. By combining visual inspection, cross-referencing diagrams, and practical testing, you can locate the relay with confidence. This approach not only saves time but also ensures the safety and functionality of your vehicle’s fuel system.
Testing Fuel Pump Relay on a 1990 Miata: Step-by-Step Guide
You may want to see also
Explore related products
Fuel Pump Relay Slot Number
The fuel pump relay in a 2005 Ford Expedition is a critical component, ensuring the fuel pump receives power only when the engine is running or being started. Locating its slot number is essential for diagnostics, replacement, or troubleshooting. In this model, the fuel pump relay is typically housed within the under-hood fuse/relay box, often referred to as the Power Distribution Box. This box is usually located on the driver’s side of the engine compartment, near the firewall or battery. Identifying the correct slot number requires consulting the owner’s manual or the diagram on the box’s lid, which labels each relay and fuse. For the 2005 Expedition, the fuel pump relay is commonly found in slot R5 or R6, though this can vary based on the specific trim or production date.
Analyzing the layout of the Power Distribution Box reveals a systematic organization of relays and fuses. The fuel pump relay’s slot number is strategically placed to allow easy access for mechanics or DIY enthusiasts. Its position is often near other engine management relays, such as those for the ignition or injectors, to streamline wiring and reduce complexity. Understanding the slot number is crucial because a faulty relay can cause symptoms like a no-start condition or erratic fuel delivery. By cross-referencing the diagram, you can confirm the exact location and avoid confusion with similarly sized relays in adjacent slots.
For those replacing the fuel pump relay, knowing the slot number simplifies the process. Start by locating the Power Distribution Box and removing its lid to expose the relays. Identify the fuel pump relay by matching its slot number to the diagram. Use a relay puller tool to extract it carefully, ensuring no damage to the surrounding components. Insert the new relay into the same slot, ensuring it clicks securely into place. Test the vehicle afterward to confirm the issue is resolved. Pro tip: Always disconnect the battery before working on electrical components to prevent accidental shorts.
Comparing the 2005 Expedition’s fuel pump relay slot number to other Ford models highlights consistency in design. For instance, the 2003-2006 Expeditions often share the same relay layout, making troubleshooting more straightforward for experienced mechanics. However, newer models may relocate the relay or integrate it into a different module, emphasizing the importance of model-specific research. This consistency also means that replacement relays are often interchangeable within the same generation, reducing costs and downtime.
In conclusion, the fuel pump relay slot number in a 2005 Expedition is a small but vital detail for maintenance and repairs. By familiarizing yourself with the Power Distribution Box layout and verifying the correct slot (likely R5 or R6), you can address fuel system issues efficiently. Always consult the vehicle’s diagram for accuracy, and approach the task methodically to ensure a successful outcome.
Step-by-Step Guide to Installing a Fuel Transfer Pump Efficiently
You may want to see also
Explore related products
Accessing the Relay Panel Steps
The 2005 Ford Expedition’s fuel pump relay is housed within the central junction box (CJB), a critical component located under the driver’s side of the dashboard. Accessing this relay panel requires precision and awareness of the vehicle’s interior layout. Begin by ensuring the ignition is off and the key is removed to prevent electrical mishaps. Next, locate the driver’s side kick panel, a plastic cover near the footwell. This panel often conceals fuses and relays, making it a prime area for inspection.
To expose the CJB, start by gently prying the kick panel cover loose. Use a flathead screwdriver or trim removal tool to avoid damaging the plastic clips. Once removed, you’ll find the CJB, a rectangular module with a flip-up lid. Lift the lid to reveal the relay panel, which is organized into rows and columns. The fuel pump relay is typically labeled, but consult the owner’s manual or a diagram for exact positioning if unsure.
When handling the relay panel, exercise caution to avoid short circuits or dislodging other components. Relays are sensitive to static electricity, so grounding yourself by touching a metal surface before proceeding is advisable. If replacing the fuel pump relay, ensure the new part matches the original specifications, including amperage and pin configuration. Incorrect installation can lead to system malfunctions or damage.
After identifying the fuel pump relay, use a relay puller or pliers to carefully extract it from the panel. Insert the replacement relay by aligning the pins and pressing firmly until it clicks into place. Reassemble the CJB and kick panel, ensuring all components are securely fastened. Test the vehicle’s operation by starting the engine to confirm the relay functions correctly. This methodical approach ensures safe and effective access to the relay panel, addressing fuel pump issues efficiently.
Jumping a Fuel Pump Relay in Your Cobalt SS: A Step-by-Step Guide
You may want to see also
Explore related products
Testing the Relay Functionality
The fuel pump relay in a 2005 Ford Expedition is a critical component that ensures the fuel pump operates correctly, delivering fuel from the tank to the engine. Testing its functionality is essential for diagnosing issues like hard starts or no-starts. Begin by locating the relay, typically found in the under-hood fuse/relay box, often labeled as "Fuel Pump Relay" or "FPR." Once identified, use a relay puller or pliers to remove it carefully, ensuring not to damage the surrounding components.
To test the relay, you’ll need a multimeter and a basic understanding of its terminals. A standard fuel pump relay has four or five pins: two for the coil (control circuit) and two or three for the contacts (load circuit). Start by setting your multimeter to the continuity or resistance mode. Connect the multimeter probes to the coil terminals (usually pins 85 and 86) and check for continuity. If there’s no continuity, the coil is faulty, and the relay should be replaced.
Next, apply 12 volts to the coil terminals using a jumper wire or test light to activate the relay. With the relay energized, check for continuity between the power (pin 30) and load (pin 87) terminals. If continuity is present, the relay is functioning correctly. If not, the contacts are stuck or damaged, indicating a failed relay. Always double-check your connections and ensure the power source is stable during testing.
A comparative approach can help clarify the process. Imagine testing a light switch: you flip it (apply power) and expect the light to turn on (continuity). Similarly, energizing the relay should close the circuit, allowing current to flow. If the relay fails this test, it’s akin to a broken switch—useless for its intended purpose.
In practice, testing the relay is a straightforward but crucial step in diagnosing fuel system issues. It saves time and money by pinpointing whether the relay is the culprit before replacing other expensive components. Always consult the vehicle’s manual for specific pin configurations and safety precautions. With patience and precision, you can confidently determine if the fuel pump relay is functioning or needs replacement.
Step-by-Step Guide: Safely Removing a Fuel Pump Relay
You may want to see also
Frequently asked questions
The fuel pump relay in a 2005 Ford Expedition is typically located in the underhood fuse/relay box.
To access the fuel pump relay, open the hood, locate the fuse/relay box near the battery, remove the cover, and refer to the diagram on the lid to identify the correct relay.
The fuel pump relay controls the power supply to the fuel pump, ensuring it only operates when the engine is running or being started.
Yes, replacing the fuel pump relay is a straightforward DIY task. Simply locate the relay, pull it out, and insert the new one, ensuring it matches the original.
Symptoms include difficulty starting the engine, stalling, or no fuel pressure. If the relay fails, the fuel pump may not receive power, preventing the engine from running.
