The fuel pump relay on a 2001 Lincoln LS is a crucial component of the vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Located in the underhood fuse and relay box, this relay ensures that the fuel pump operates efficiently, delivering the necessary fuel to the engine. For owners of the 2001 Lincoln LS, identifying the exact location of the fuel pump relay can be essential for troubleshooting fuel-related issues or performing maintenance tasks. Typically, the relay box is situated near the battery or along the driver's side fender, with the fuel pump relay labeled for easy identification. Consulting the vehicle's manual or a repair guide can provide further assistance in pinpointing its precise location.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the power distribution box (fuse/relay box) |
| Power Distribution Box | Located on the driver's side, near the battery |
| Relay Position | Typically in the second row, third position (may vary, consult manual) |
| Relay Label | Often labeled as "Fuel Pump" or "FP" |
| Function | Controls power to the fuel pump |
| Replacement Access | Accessible by opening the hood and locating the power distribution box |
| Tools Required | None (easily removable by hand) |
| Vehicle Model | 2001 Lincoln LS |
| Year | 2001 |
| Additional Notes | Always refer to the vehicle's manual for exact location and diagrams |
Explore related products
What You'll Learn
Location of Fuel Pump Relay

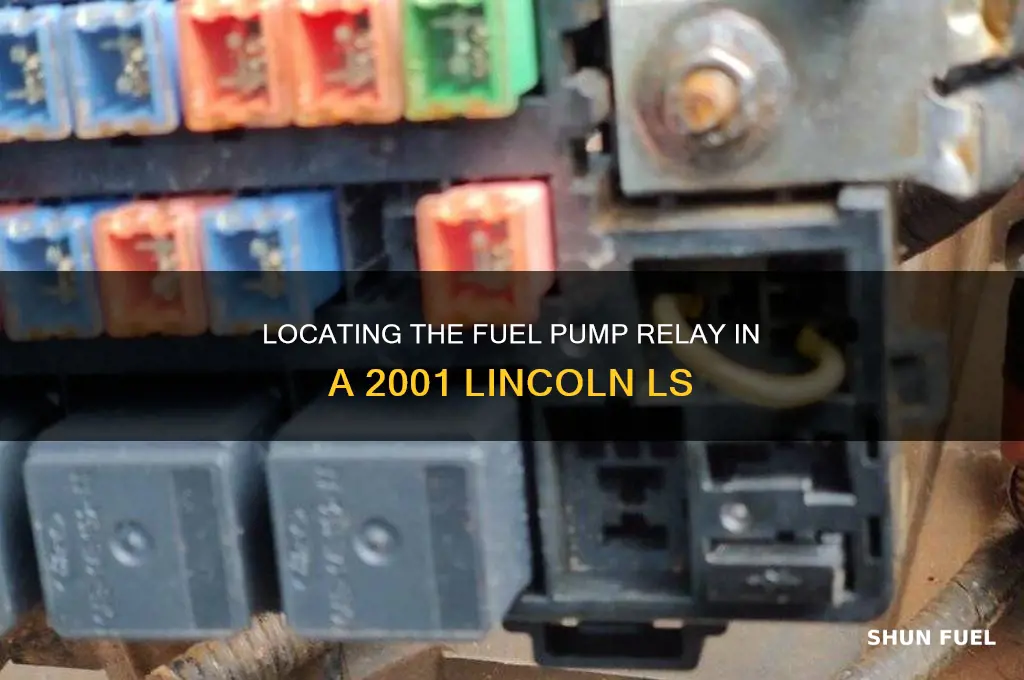

The fuel pump relay in a 2001 Lincoln LS is a critical component for ensuring your vehicle’s engine receives the necessary fuel for operation. Located in the underhood fuse and relay box, this relay acts as a switch, controlling power to the fuel pump. To access it, open the hood and locate the fuse box on the driver’s side, typically near the fender or battery. The relay is usually labeled "FP" or "Fuel Pump" on the box’s underside diagram, making identification straightforward.
Analyzing the design, the 2001 Lincoln LS places the fuel pump relay in a central, accessible location, reflecting an emphasis on ease of maintenance. Unlike some models that bury relays deep within the engine bay, this placement allows for quick troubleshooting or replacement. However, its proximity to heat sources means using a relay with the correct specifications is crucial to prevent overheating or failure. Always verify the part number or consult the owner’s manual before replacing it.
For a step-by-step replacement, start by disconnecting the battery to prevent electrical hazards. Open the hood and locate the fuse box, then remove its cover to expose the relays. Identify the fuel pump relay using the diagram, then grasp it firmly and pull straight up to remove it. Insert the new relay, ensuring it clicks into place, and reattach the fuse box cover. Test the vehicle’s operation afterward to confirm the relay functions correctly.
Comparatively, the 2001 Lincoln LS’s fuel pump relay location is more user-friendly than many European or older domestic models, which often require removing additional components for access. This design choice aligns with Lincoln’s focus on luxury and convenience, even in maintenance tasks. However, its exposed position means it’s more susceptible to corrosion or damage from road debris, so periodic inspection is advisable, especially in harsh climates.
In conclusion, understanding the location and function of the fuel pump relay in a 2001 Lincoln LS empowers owners to address fuel system issues efficiently. Its accessible placement simplifies diagnostics and replacement, but proper handling and part selection are essential for longevity. Regular checks, particularly in older vehicles, can prevent unexpected failures and ensure reliable performance.
Step-by-Step Guide to Testing Your Arctic Cat Fuel Pump
You may want to see also
Explore related products
Identifying the Relay in Engine Bay
The fuel pump relay in a 2001 Lincoln LS is a critical component, often tucked away in the engine bay’s central fuse box. Locating it requires familiarity with the layout of this area, which can vary slightly depending on the vehicle’s configuration. Start by opening the hood and identifying the main fuse box, typically situated near the driver’s side fender or firewall. This box houses multiple relays and fuses, so a systematic approach is key. Refer to the owner’s manual or a repair guide for a diagram of the fuse box layout, as the fuel pump relay is usually labeled as "FP" or "FUEL PUMP."
Analyzing the engine bay’s design reveals that the central fuse box is often secured with a removable cover. Once this cover is lifted, you’ll see rows of relays and fuses arranged in a grid pattern. The fuel pump relay is typically a square or rectangular module with four to five pins, distinguishable from other relays by its label or position. If the diagram isn’t available, look for a relay with a higher amperage rating, as the fuel pump demands more power than most other systems. A multimeter can also be used to test continuity and confirm the correct relay.
Practical tips for identification include using a flashlight to illuminate the fuse box, as shadows can obscure labels. If the relay is difficult to locate, compare it to other relays in the box; the fuel pump relay often has a slightly larger size or a distinct color. Additionally, some vehicles have secondary fuse boxes under the dashboard or in the trunk, so ensure you’re focusing on the engine bay’s primary box. If unsure, consult a mechanic or online forums specific to the 2001 Lincoln LS for visual references.
A comparative approach can also aid in identification. Unlike the fuel pump fuse, which is a small, blade-type component, the relay is a larger, modular unit designed to handle higher electrical loads. It’s also worth noting that the fuel pump relay may be grouped with other powertrain-related relays, such as those for the ignition or injectors. By understanding these distinctions, you can narrow down the search and avoid confusion with similar-looking components.
In conclusion, identifying the fuel pump relay in the engine bay of a 2001 Lincoln LS involves a combination of visual inspection, reference to diagrams, and understanding the relay’s unique characteristics. Armed with this knowledge, you can efficiently locate and, if necessary, replace the relay, ensuring your vehicle’s fuel system operates smoothly. Always exercise caution when working with electrical components, and consider disconnecting the battery before handling relays or fuses.
Testing Your Chevy 350 Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Steps to Access the Relay
The fuel pump relay in a 2001 Lincoln LS is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Located in the underhood fuse and relay box, this relay is often the culprit behind fuel delivery issues. Accessing it requires a methodical approach to avoid damage or confusion. Start by parking your vehicle on a flat surface, engaging the parking brake, and allowing the engine to cool if it has been running. Safety should always be your priority when working under the hood.
Once your vehicle is secure, open the hood and locate the underhood fuse and relay box, typically positioned near the driver’s side fender. The box is usually rectangular and made of black plastic, with a diagram on the lid indicating the positions of fuses and relays. Remove the lid by pressing the tabs on the sides and lifting it off. Inside, you’ll find a grid of fuses and relays, often color-coded or labeled. The fuel pump relay is usually labeled "FP" or "FUEL PUMP" on the diagram. If the diagram is faded or unclear, consult your owner’s manual for precise identification.
With the relay identified, use a relay puller tool or a pair of needle-nose pliers to carefully extract it from its socket. Pull straight up to avoid bending the relay’s pins. If you’re testing the relay, swap it with a similar one from the box (e.g., the A/C relay) to see if the issue persists. If the fuel pump engages with the swapped relay, the original relay is likely faulty and needs replacement. Always replace relays with the correct part number to ensure compatibility and performance.
Before reinstalling the relay or closing the fuse box, inspect the socket for corrosion or damage. Clean the contacts with electrical contact cleaner and a small brush if necessary. Reinsert the relay firmly into its socket, ensuring it clicks into place. Replace the fuse box lid and secure it by aligning the tabs and pressing down until it snaps shut. Test the vehicle’s operation by starting the engine and listening for the fuel pump’s hum, which should occur for a few seconds when the ignition is turned on.
Accessing the fuel pump relay on a 2001 Lincoln LS is a straightforward task when approached systematically. By following these steps, you can diagnose and resolve fuel delivery issues efficiently, saving time and potential repair costs. Always prioritize safety and precision to ensure your vehicle remains reliable and safe to drive.
Are Quantum Fuel Pumps Worth It? Pros, Cons, and Performance Review
You may want to see also
Explore related products
Common Issues with the Relay
The fuel pump relay in a 2001 Lincoln LS is a critical component that ensures the fuel pump operates efficiently, delivering fuel from the tank to the engine. However, this relay is prone to several issues that can disrupt vehicle performance. One common problem is corrosion or oxidation on the relay’s terminals, which can lead to poor electrical contact and intermittent fuel pump operation. This often manifests as difficulty starting the engine or sudden stalling, especially in damp or humid conditions. Regular inspection and cleaning of the relay terminals with electrical contact cleaner can mitigate this issue, ensuring a reliable connection.
Another frequent issue is overheating, which can cause the relay to fail prematurely. The fuel pump relay in the 2001 Lincoln LS is located in the underhood fuse box, where it’s exposed to high temperatures from the engine bay. Over time, the relay’s internal components may degrade, leading to a complete loss of fuel pump function. To address this, consider relocating the relay to a cooler area or installing a heat-resistant relay designed for high-temperature environments. Additionally, ensuring the relay is securely seated in its socket can prevent excessive heat buildup due to loose connections.
Intermittent failure is a frustrating problem that often goes unnoticed until it escalates. This occurs when the relay’s internal switch malfunctions, causing the fuel pump to operate sporadically. Symptoms include erratic engine performance, reduced power, or a complete inability to start the vehicle. Diagnosing this issue requires a multimeter to test the relay’s continuity and voltage output. If the relay fails the test, replacing it with a high-quality OEM or aftermarket unit is the most effective solution.
Lastly, incorrect wiring or installation can render the fuel pump relay ineffective, even if the component itself is in good condition. This often happens during DIY repairs or modifications, where wires are accidentally crossed or the relay is installed in the wrong orientation. Always refer to the vehicle’s wiring diagram and double-check connections before testing the system. Using a relay with a diode or resistor built-in can also protect the circuit from voltage spikes, prolonging the relay’s lifespan and preventing damage to the fuel pump.
In summary, addressing common issues with the fuel pump relay in a 2001 Lincoln LS requires proactive maintenance, proper installation, and timely replacement. By understanding these problems and their solutions, vehicle owners can ensure consistent fuel delivery and avoid costly repairs down the line.
Understanding the 1999 Dodge Ram 1500 Fuel Pump Operation
You may want to see also
Explore related products
Replacement and Troubleshooting Tips
The fuel pump relay in a 2001 Lincoln LS is a critical component that ensures your vehicle’s fuel system operates efficiently. Located in the underhood fuse box, this relay is often overlooked until it fails, leaving you stranded. Identifying its exact position is the first step in troubleshooting or replacing it. The relay is typically labeled "FP" or "Fuel Pump" in the fuse box diagram, which can be found in your vehicle’s owner’s manual or on the underside of the fuse box lid.
When replacing the fuel pump relay, start by disconnecting the battery to prevent electrical mishaps. Locate the relay by matching its position to the diagram, then firmly pull it straight out of its slot. Insert the new relay, ensuring it clicks into place securely. Test the vehicle immediately to confirm the issue is resolved. If the problem persists, consider testing the fuel pump itself or checking for wiring issues, as a faulty relay is often a symptom of a larger electrical problem.
Troubleshooting a fuel pump relay issue requires a systematic approach. Begin by listening for the fuel pump’s hum when turning the ignition to the "on" position; silence may indicate a relay failure. Use a multimeter to test the relay’s terminals for continuity or swap it with a similar relay (e.g., the horn relay) to isolate the problem. If the fuel pump operates with the swapped relay, the original relay is likely defective. Always verify power and ground connections to the relay before assuming it’s the sole culprit.
A common mistake during replacement is using an incorrect relay type, which can lead to overheating or failure. Ensure the replacement relay matches the original’s specifications, including pin configuration and amperage rating. Aftermarket relays are often affordable, but OEM parts guarantee compatibility. Keep a spare relay in your vehicle for emergencies, as fuel pump relay failures are unpredictable and can occur without warning, especially in older vehicles like the 2001 Lincoln LS.
In conclusion, understanding the location and function of the fuel pump relay in your 2001 Lincoln LS empowers you to address issues swiftly. Replacement is straightforward but demands attention to detail, while troubleshooting requires a blend of observation and technical skill. By following these tips, you can maintain your vehicle’s fuel system reliability and avoid unnecessary downtime.
Understanding the Polaris 425 Magnum Fuel Pump Operation and Function
You may want to see also
Frequently asked questions
The fuel pump relay on a 2001 Lincoln LS is located in the underhood fuse/relay box. It is typically labeled as "FPD" (Fuel Pump Driver) or "FPM" (Fuel Pump Module).
To access the fuel pump relay, open the hood and locate the fuse/relay box on the driver’s side fender. Remove the lid of the box to find the relay, which is usually labeled in the diagram on the underside of the lid.
The fuel pump relay controls the power supply to the fuel pump. It ensures the pump only operates when the engine is running or being started, preventing the pump from running continuously and conserving energy.
To test the relay, swap it with another relay of the same type in the fuse box (e.g., the horn relay). If the fuel pump activates when the key is turned to the "ON" position, the relay is functioning. If not, the relay may be faulty and need replacement.
