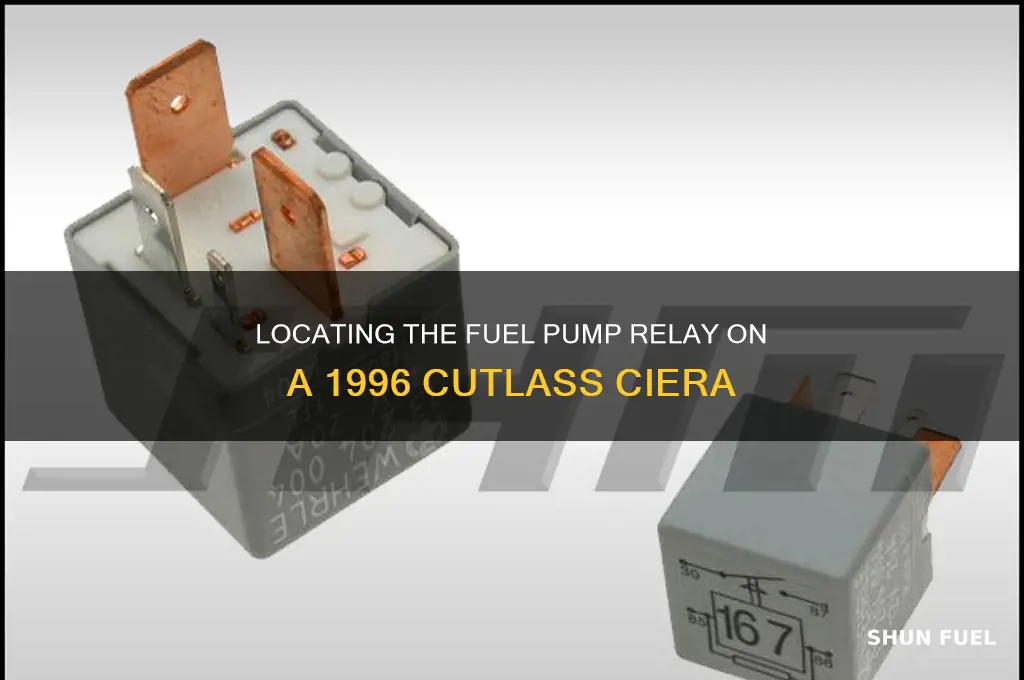

The 1996 Oldsmobile Cutlass Ciera's fuel pump relay is a crucial component in the vehicle's fuel delivery system, ensuring the fuel pump operates efficiently. Located in the underhood fuse/relay box, this relay is typically found near the battery or along the firewall, depending on the specific model configuration. Identifying its exact position can be challenging without a detailed diagram or manual, as the layout may vary slightly. Accessing the relay involves opening the hood and locating the fuse/relay box, which is usually marked with a diagram indicating the relay's position. Once identified, the fuel pump relay can be tested or replaced if it malfunctions, which is often a common issue causing starting or performance problems in older vehicles like the Cutlass Ciera.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the fuse/relay box near the firewall |
| Fuse/Relay Box Label | Often labeled as "Engine" or "Underhood" fuse/relay box |
| Relay Position | Specific position varies; consult the fuse/relay box lid diagram |
| Relay Identification | Typically labeled as "Fuel Pump" or "FP" on the relay itself |
| Relay Function | Controls power to the fuel pump to ensure proper fuel delivery |
| Access Method | Open the hood and locate the fuse/relay box; remove the lid to access |
| Tools Required | None (typically accessible by hand) |
| Diagnostic Tip | If the fuel pump is not working, check the relay for proper operation |
| Replacement Part | Standard fuel pump relay compatible with 1996 Cutlass Ciera |
| Additional Notes | Always refer to the vehicle's manual for exact location and diagram |
Explore related products
What You'll Learn
Fuel Pump Relay Location
The fuel pump relay in a 1996 Cutlass Ciera is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Located under the hood, this relay is typically housed in the underhood fuse/relay center, a common placement in many GM vehicles of that era. This center is usually found near the driver’s side fender, often mounted on the inner fender wall or firewall. Identifying it requires a basic understanding of automotive electrical systems and a bit of patience, as the relay center may be obscured by other components.
To locate the fuel pump relay, start by opening the hood and securing it in place. Look for a black plastic box labeled "Fuse/Relay Center" or something similar. This box contains multiple relays and fuses, each labeled or numbered for identification. The fuel pump relay is often labeled "FUEL" or "FP," but if labels are missing, consult the owner’s manual or a repair guide for the exact position. Once identified, the relay can be tested or replaced if suspected of failure, a common issue causing hard starts or no-start conditions.
A practical tip for troubleshooting: if your Cutlass Ciera fails to start and you suspect the fuel pump relay, try swapping it with another relay of the same type in the fuse/relay center. If the vehicle starts, the relay is likely faulty. However, exercise caution when handling electrical components, and ensure the ignition is off to prevent accidental shorts. For a permanent fix, replace the relay with a compatible part from an auto parts store, ensuring it matches the original specifications.
Comparatively, newer vehicles often integrate the fuel pump relay into the engine control module (ECM), making it less accessible for DIY repairs. The 1996 Cutlass Ciera’s standalone relay design is more user-friendly, allowing owners to diagnose and replace it without specialized tools. This accessibility underscores the importance of understanding your vehicle’s layout, as it can save time and money in maintenance.
In conclusion, the fuel pump relay on a 1996 Cutlass Ciera is a straightforward component to locate and replace, provided you know where to look. Familiarizing yourself with the underhood fuse/relay center and its contents can empower you to tackle basic electrical issues confidently. Always cross-reference with reliable resources if unsure, and prioritize safety when working with automotive systems.
