The 1995 Infiniti J30's fuel pump relay is a crucial component in the vehicle's fuel delivery system, ensuring the fuel pump operates efficiently. Located in the engine bay, this relay is typically housed within the fuse and relay box, which is often found near the battery or along the firewall. For the J30, the fuel pump relay is usually positioned in the main fuse box under the hood, though its exact location may vary slightly depending on the specific model or regional specifications. Identifying and accessing this relay is essential for troubleshooting fuel pump issues or performing maintenance, making it important for owners to consult the vehicle's manual or a reliable repair guide for precise instructions.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the fuse/relay box near the battery or firewall. |
| Fuse/Relay Box Label | Typically labeled as "Fuse & Relay Box" or "Engine Compartment Fuse Block." |
| Relay Position | Often labeled as "Fuel Pump" or "FP" on the underside of the fuse box lid. |
| Relay Appearance | Small, rectangular black or gray plastic component with multiple pins. |
| Function | Controls power supply to the fuel pump to ensure proper fuel delivery. |
| Diagnostic Tip | If the fuel pump is not working, check the relay for clicking when ignition is on. |
| Replacement Access | Easily accessible by opening the hood and locating the fuse/relay box. |
| Vehicle Model Specificity | 1995 Infiniti J30. |
Explore related products
What You'll Learn

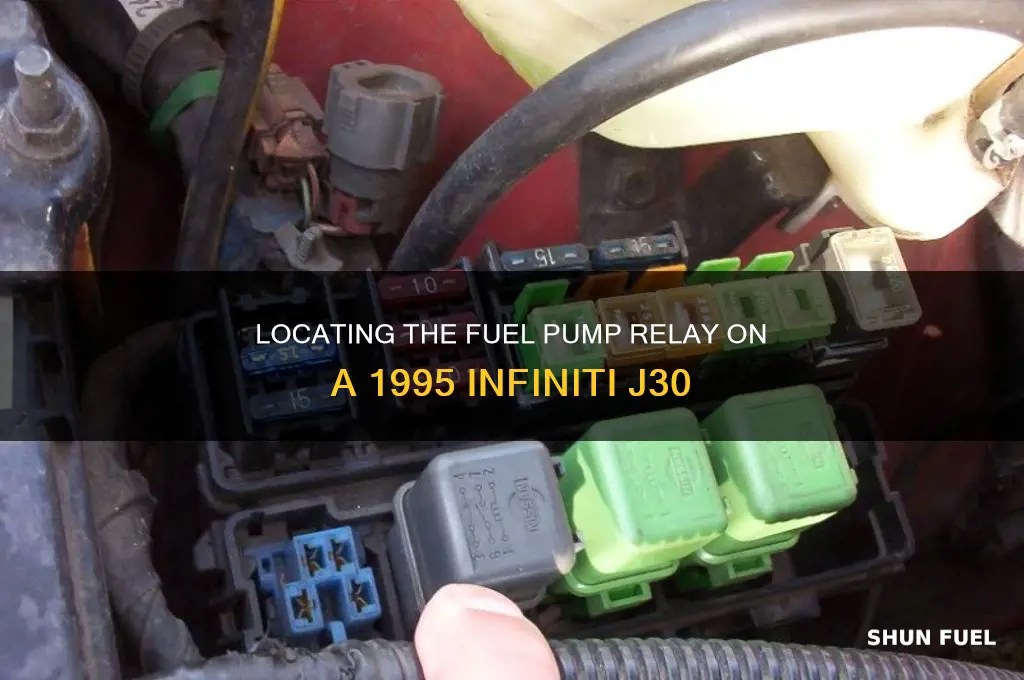

Fuel pump relay location in 1995 Infiniti J30 engine bay
The fuel pump relay in a 1995 Infiniti J30 is a critical component for ensuring your vehicle’s engine receives the necessary fuel for operation. Locating it in the engine bay can be straightforward if you know where to look. The relay is typically housed in the fuse and relay box, which is positioned near the battery on the driver’s side of the engine compartment. This placement is consistent with many vehicles of that era, designed for accessibility during maintenance or troubleshooting.
To locate the fuel pump relay, start by opening the hood and identifying the battery. Directly adjacent to the battery, you’ll find a black plastic box secured with a latch or screws. This is the fuse and relay box. Once opened, the relays inside are often labeled, but if not, consult the owner’s manual or a repair guide for the specific position of the fuel pump relay. It’s usually a rectangular component with four or five pins, distinguishable from other relays by its size and location within the box.
When working with the fuel pump relay, it’s essential to exercise caution. Always disconnect the battery before handling any electrical components in the engine bay to prevent accidental short circuits. If you’re testing the relay, use a multimeter to check for continuity or swap it with a known working relay of the same type. This diagnostic step can help determine if the relay is faulty, which is a common issue causing fuel delivery problems in older vehicles like the 1995 Infiniti J30.
Comparing the 1995 Infiniti J30’s fuel pump relay location to other vehicles of its time reveals a standard design choice. Many manufacturers placed relays near the battery for convenience and to protect them from extreme heat. However, the J30’s relay box is notably compact, requiring careful attention when opening it to avoid damaging nearby components. This design underscores the importance of familiarity with your vehicle’s layout for efficient maintenance.
In summary, the fuel pump relay in a 1995 Infiniti J30 is located in the fuse and relay box near the battery on the driver’s side of the engine bay. Identifying and accessing it involves opening the hood, locating the battery, and carefully inspecting the adjacent relay box. With proper precautions and a basic understanding of the component’s function, you can diagnose or replace the relay effectively, ensuring your vehicle’s fuel system operates reliably.
