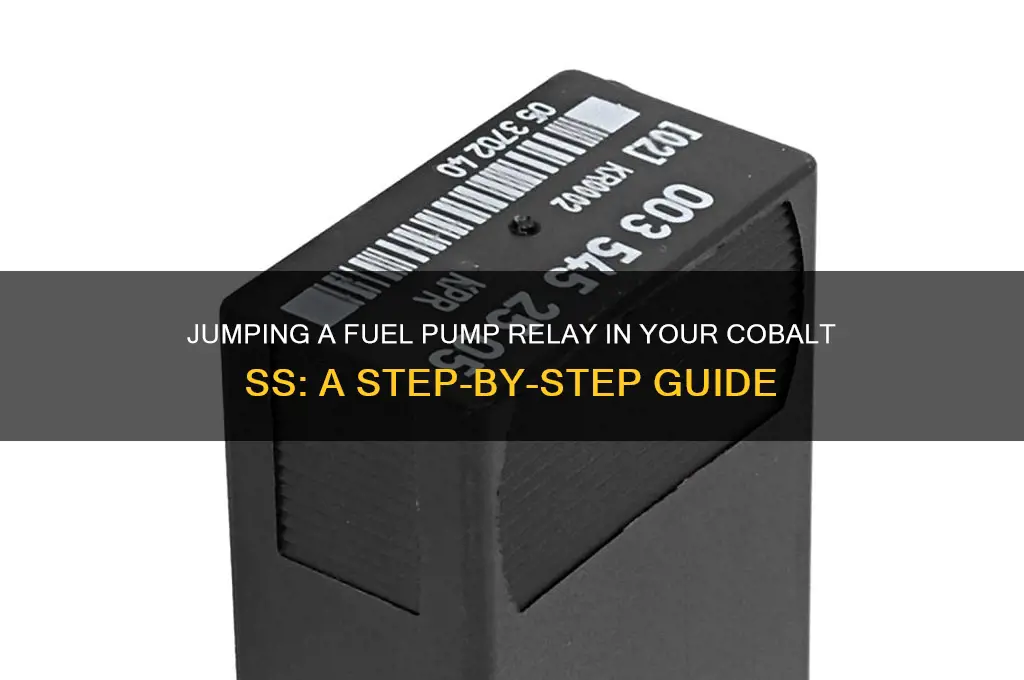

Jumping a fuel pump relay on a Cobalt SS can be a useful troubleshooting step if you suspect the relay is faulty or if the fuel pump isn’t engaging. The fuel pump relay is typically located in the underhood fuse box, and accessing it requires identifying the correct relay based on your vehicle’s manual or diagram. To jump the relay, you’ll need to connect the power and ground terminals directly, bypassing the relay itself. This can be done using a jumper wire or a paperclip, ensuring the connection is secure and temporary. Always exercise caution when working with electrical components, and if the fuel pump operates after jumping the relay, it’s a strong indicator that the relay needs replacement. However, if the issue persists, further diagnosis of the fuel pump or wiring may be necessary.
| Characteristics | Values |
|---|---|
| Vehicle Model | Chevrolet Cobalt SS |
| Fuel Pump Relay Location | Under the hood, in the engine bay fuse box (specific location varies by year) |
| Tools Required | Screwdriver, jumper wires, multimeter (optional) |
| Jumper Wire Connection Points | Connect the battery positive terminal to the fuel pump relay power pin and ground to the ground pin |
| Power Pin Identification | Typically the pin connected to the battery or ignition circuit |
| Ground Pin Identification | Pin connected to the vehicle chassis or ground |
| Safety Precautions | Disconnect the battery before starting, avoid short circuits |
| Testing Method | Use a multimeter to verify voltage at the relay pins before jumping |
| Temporary vs. Permanent Fix | Jumping is a temporary solution; replace the relay for a permanent fix |
| Common Symptoms of Relay Failure | No fuel pressure, engine cranks but won't start, stalling |
| Year Range Applicability | 2005–2010 Chevrolet Cobalt SS models |
| Alternative Method | Use a fused jumper wire to avoid overloading the circuit |
| Professional Assistance | Recommended if unsure about the process or diagnosing the issue |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay location in the Cobalt SS fuse box
- Test for Power: Use a multimeter to check for voltage at the relay terminals
- Swap Relays: Temporarily replace the fuel pump relay with a similar one to test
- Bypass the Relay: Connect the battery directly to the fuel pump to check functionality
- Inspect Wiring: Check for damaged or corroded wires connected to the relay
Locate the Relay: Identify the fuel pump relay location in the Cobalt SS fuse box
The fuel pump relay in a Cobalt SS is a critical component, acting as the switch that controls power to the fuel pump. Without it, your engine won’t receive fuel, leaving you stranded. Locating this relay is the first step in troubleshooting or jumping it, and it’s housed within the fuse box, a centralized hub for electrical components. The Cobalt SS’s fuse box is typically found in the engine bay, but its exact position can vary slightly depending on the model year. Familiarizing yourself with its location saves time and frustration when addressing fuel pump issues.
To identify the fuel pump relay, consult your Cobalt SS’s owner’s manual, which provides a diagram of the fuse box layout. The relay is often labeled as “FUEL PUMP” or “FP RELAY” and is usually a rectangular or square module with four to five pins. If the manual isn’t available, online forums and repair guides specific to the Cobalt SS can offer visual references. Look for a black or gray relay with a tab on one side, which allows for easy removal. Pro tip: Take a photo of the fuse box layout before starting any work to ensure you return everything to its correct position.
Once you’ve located the relay, inspect the surrounding area for signs of damage, such as corrosion or melted plastic, which could indicate an electrical issue. Gently wiggle the relay to ensure it’s securely seated in its slot. If it feels loose, this could be the root of your fuel pump problem. Before attempting to jump the relay, verify that the issue is indeed relay-related by testing for power at the fuel pump connector. This step ensures you’re addressing the correct problem and avoids unnecessary repairs.
Jumping the fuel pump relay involves bypassing its function to directly power the fuel pump. To do this, locate a power source in the fuse box, such as the “ECU” or “PCM” fuse, which typically provides constant power. Use a jumper wire to connect the power source to the fuel pump relay’s power pin (usually pin 87). Exercise caution, as improper connections can cause electrical damage. This method is temporary and should only be used for diagnostic purposes or in emergencies. Always replace the relay if it’s faulty to ensure reliable vehicle operation.
In conclusion, locating the fuel pump relay in the Cobalt SS fuse box is a straightforward task with the right resources. Armed with the owner’s manual or online guidance, you can quickly identify the relay and assess its condition. Whether troubleshooting or jumping the relay, precision and caution are key to avoiding further complications. Understanding this process empowers you to address fuel pump issues confidently, keeping your Cobalt SS running smoothly.
Honda Fuel Pump Lifespan: Durability, Maintenance, and Replacement Guide
You may want to see also
Explore related products
Test for Power: Use a multimeter to check for voltage at the relay terminals
Before attempting to jump a fuel pump relay on a Cobalt SS, it's crucial to verify that the relay is indeed the source of the issue. A multimeter becomes your diagnostic ally in this scenario, allowing you to test for voltage at the relay terminals and pinpoint potential problems. This process is akin to a doctor using a stethoscope to listen to a patient's heartbeat, providing valuable insights into the system's health.
To begin, locate the fuel pump relay in your Cobalt SS, typically found in the under-hood fuse box. Consult your vehicle's manual for the exact location, as it may vary depending on the model year. Once you've identified the relay, use a multimeter set to the DC voltage range (typically 20V) to test the terminals. With the ignition in the "ON" position, touch the multimeter's positive lead to the relay's power input terminal (usually pin 87) and the negative lead to a good ground. A healthy relay should show battery voltage (around 12-14V) at this terminal. If no voltage is present, suspect a faulty fuse, relay, or wiring issue upstream.
A comparative analysis of the relay's terminals can reveal valuable information. For instance, testing the ground terminal (usually pin 85) should show a direct connection to ground (0V). If this terminal reads voltage, it may indicate a poor ground connection or a faulty relay. Similarly, testing the control terminal (usually pin 86) should show voltage when the ignition is in the "START" position, indicating that the engine control module (ECM) is commanding the fuel pump to activate. If no voltage is present at this terminal, suspect a faulty ECM or wiring issue.
When performing these tests, it's essential to exercise caution to avoid short circuits or damage to the vehicle's electrical system. Always ensure the multimeter is set to the correct range and polarity, and never touch the leads to each other or to other components while connected to the relay. A helpful tip is to use a backprobe or breakaway probe to access the relay terminals without damaging the wiring harness. By systematically testing each terminal and comparing the results, you can accurately diagnose the fuel pump relay issue and determine the necessary course of action, whether it's replacing the relay, repairing wiring, or addressing a more complex system fault.
Harley Fuel Pump Check Valve: Functionality and Design Explained
You may want to see also
Explore related products
Swap Relays: Temporarily replace the fuel pump relay with a similar one to test
Swapping relays to test the fuel pump on a Cobalt SS can quickly diagnose whether the relay itself is the culprit behind fuel delivery issues. Begin by locating the fuel pump relay in the under-hood fuse box—typically labeled and situated near other engine management relays. Identify a compatible relay with the same pin configuration, such as the A/C compressor or radiator fan relay, which often share similar designs. Temporarily swap these relays, ensuring the replacement is not critical to immediate driving safety. If the fuel pump activates, the original relay is likely faulty.
This method offers a straightforward, cost-effective diagnostic step before purchasing a new relay. However, exercise caution: incompatible relays or improper swapping can damage circuits. Always consult the vehicle’s service manual or a wiring diagram to confirm pin compatibility. For instance, a 5-pin relay with a normally closed (NC) circuit in the wrong position could short the system. Use a multimeter to verify continuity if unsure, and avoid forcing the relay into the socket if it doesn’t fit seamlessly.
The analytical takeaway here is that relay swapping leverages the modularity of modern automotive systems. By testing with a known-good component, you isolate the problem without specialized tools. This approach aligns with the principle of Occam’s razor—the simplest explanation (a faulty relay) is often correct. However, if the fuel pump still fails to engage, the issue may lie elsewhere, such as a bad pump, wiring fault, or blown fuse.
For practical execution, start with the engine off and ignition in the "ON" position. Listen for the fuel pump’s priming hum, which should occur for 2–3 seconds. If absent, swap the relays and repeat. If the pump activates, replace the faulty relay promptly. If not, proceed to test the pump’s ground and power supply directly. This method saves time compared to disassembling the fuel tank or using a pressure gauge, making it a go-to for DIY diagnostics.
In summary, relay swapping is a targeted, low-risk strategy to pinpoint fuel pump relay failures in a Cobalt SS. It combines simplicity with precision, provided you adhere to compatibility checks and safety precautions. While not a definitive fix, it’s a critical step in narrowing down the root cause of fuel system issues, ensuring you don’t waste time or money on unnecessary repairs.
Step-by-Step Guide to Rebuilding Your Yamaha Fuel Pump Efficiently
You may want to see also
Explore related products
Bypass the Relay: Connect the battery directly to the fuel pump to check functionality
If your Cobalt SS is stalling or failing to start, a faulty fuel pump relay could be the culprit. Bypassing the relay and connecting the battery directly to the fuel pump is a straightforward way to isolate the issue. This method allows you to determine whether the fuel pump itself is functioning properly or if the relay is the problem. Before attempting this, ensure your vehicle is in a safe, well-ventilated area, and disconnect the battery to prevent accidental shorts.
To begin, locate the fuel pump, typically found in the fuel tank. Accessing it may require removing the rear seat or a section of the trunk floor, depending on your Cobalt SS model. Once exposed, identify the fuel pump’s power wire, usually a thick, insulated wire leading directly to the pump. Strip a small section of insulation from this wire and connect it directly to the positive terminal of your battery using a jumper wire. Simultaneously, ground the fuel pump by connecting another wire from the pump’s ground terminal to the battery’s negative terminal.
When the connections are secure, turn the ignition to the "on" position without starting the engine. Listen carefully for the fuel pump’s hum, which should last 2-3 seconds as it primes the system. If the pump operates, it confirms the pump itself is functional, pointing to the relay as the likely issue. If there’s no sound, the pump may be faulty, or there could be a wiring problem between the pump and the battery. Always double-check connections and ensure no exposed wires are touching each other or metal surfaces.
This method is diagnostic, not a permanent fix. Running the fuel pump directly from the battery bypasses safety features and can drain the battery quickly. After testing, disconnect the wires and reassemble any removed components. If the relay is confirmed faulty, replace it with a compatible part. Always consult a repair manual or professional if you’re unsure about any step, as improper handling of fuel system components can be hazardous.
Step-by-Step Guide to Removing the A4JB1 Fuel Pump Safely
You may want to see also
Explore related products
Inspect Wiring: Check for damaged or corroded wires connected to the relay
Before attempting to jump the fuel pump relay on a Cobalt SS, it's crucial to inspect the wiring connected to the relay. Damaged or corroded wires can cause intermittent or complete loss of fuel pump functionality, leading to poor engine performance or a no-start condition. Start by locating the fuel pump relay, typically found in the under-hood fuse box. With the ignition off, carefully remove the relay and examine the wiring harness connected to its terminals.
Upon inspection, look for visible signs of damage such as frayed insulation, cracked wires, or exposed conductors. Corrosion, often appearing as a greenish or whitish residue, can also compromise the connection. Gently tug on each wire to ensure they are securely seated in the relay terminals. If any wires feel loose or come out easily, the terminals may be damaged and require repair or replacement. Use a multimeter to test for continuity in the wires, ensuring that the circuit is complete and free from breaks.
In cases of corrosion, use an electronic contact cleaner and a small brush to carefully remove the residue. For stubborn corrosion, a mixture of baking soda and water can be applied to neutralize the buildup before cleaning. After cleaning, apply a thin layer of dielectric grease to the terminals to prevent future corrosion. If wires are damaged beyond repair, they must be replaced. Splicing in new wires or using a repair kit can restore the connection, but ensure the new wires are the correct gauge and rated for automotive use.
Comparing the condition of the wiring to a known good example can provide valuable insights. If you have access to another Cobalt SS or a wiring diagram, compare the wire colors, routing, and connections to ensure everything matches. Discrepancies may indicate previous repairs or modifications that could affect the fuel pump’s operation. Always refer to the vehicle’s service manual for specific wiring diagrams and troubleshooting steps tailored to the Cobalt SS.
In conclusion, inspecting the wiring connected to the fuel pump relay is a critical step in diagnosing and resolving fuel pump issues on a Cobalt SS. By systematically checking for damage, corrosion, and secure connections, you can identify and address potential problems before attempting to jump the relay. This proactive approach not only ensures a safer repair but also increases the likelihood of a successful outcome, saving time and frustration in the long run.
Carburetor and Electric Fuel Pump: A Comprehensive Installation Guide
You may want to see also
Frequently asked questions
A fuel pump relay is an electrical switch that controls power to the fuel pump. If the relay fails, the fuel pump won’t receive power, causing the engine to stall or not start. Jumping the relay bypasses it to test if the fuel pump is functioning properly.
The fuel pump relay is typically located in the underhood fuse/relay box. Refer to your Cobalt SS owner’s manual or a repair guide to identify the exact relay. It’s often labeled as "FUEL PUMP" or "FP."
You’ll need a jumper wire (or a paperclip in a pinch) and a basic understanding of relay terminals. Ensure the car is off and the ignition is in the "OFF" position before attempting to jump the relay.
Locate the fuel pump relay, identify the power (usually pin 85 or 86) and ground (usually pin 87) terminals. Connect the jumper wire between these terminals, then turn the ignition to the "ON" position. If the fuel pump runs, the relay is likely faulty and needs replacement.
