Mercedes Mullins

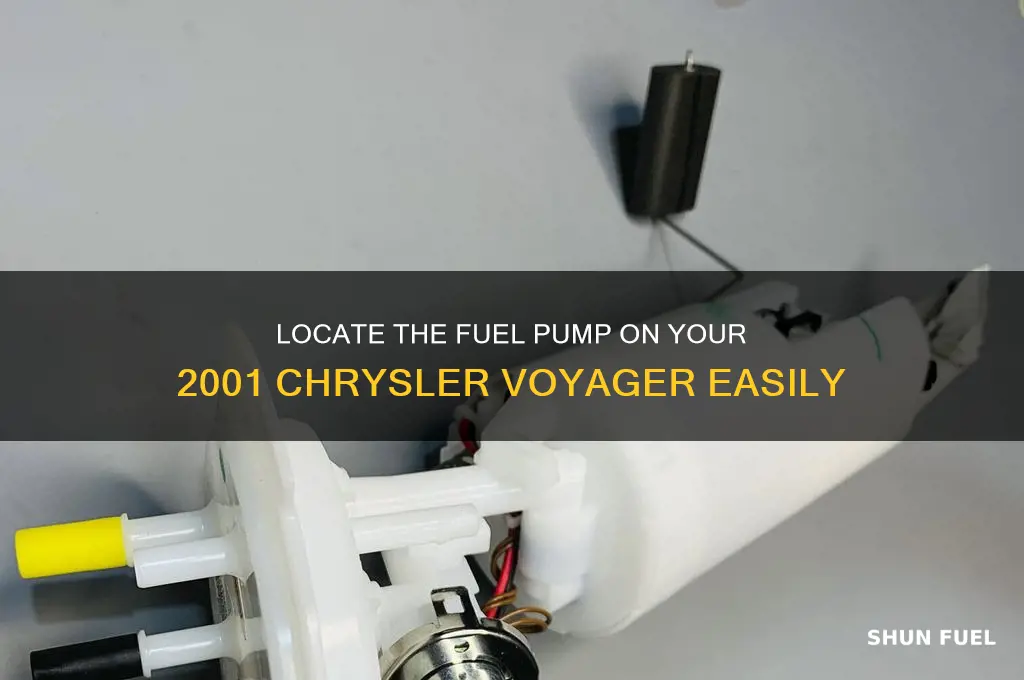

The fuel pump on a 2001 Chrysler Voyager is located inside the fuel tank, which is situated beneath the vehicle, typically near the rear passenger side. Accessing the fuel pump requires removing the fuel tank, a task that involves disconnecting the negative battery cable, relieving fuel system pressure, and safely lowering the tank. This process is best performed with the vehicle on a level surface and with proper safety precautions, such as wearing protective gear and ensuring the area is well-ventilated. Due to the complexity and potential hazards, consulting a repair manual or seeking professional assistance is recommended for those unfamiliar with the procedure.
Explore related products
What You'll Learn
Location of the fuel pump
The fuel pump on a 2001 Chrysler Voyager is located inside the fuel tank, a common placement in many modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This design choice also protects the pump from external damage and temperature extremes. To access the fuel pump, you’ll need to remove the fuel tank, which requires draining the fuel, disconnecting the tank lines, and lowering the tank from the vehicle. This process demands caution due to the flammable nature of fuel and the weight of the tank when full.
Analyzing the placement of the fuel pump in the fuel tank reveals both advantages and challenges. On the positive side, this location ensures the pump remains cooled by the surrounding fuel, extending its lifespan. However, it complicates replacement or repair, as the entire tank must be removed, a task that can be time-consuming and labor-intensive. For DIY enthusiasts, this setup may require additional tools, such as a jack or stands to support the tank during removal. Professional mechanics often have specialized equipment to streamline this process, making it a quicker job in a shop setting.
If you’re considering replacing the fuel pump yourself, follow these steps: First, relieve the fuel system pressure using the Schrader valve on the fuel rail. Next, disconnect the battery to prevent accidental ignition. Drain the fuel tank as much as possible to reduce spillage. Disconnect the fuel lines and electrical connectors, then secure the tank with a jack or stands before lowering it. Once the tank is accessible, remove the retaining ring and carefully lift out the fuel pump assembly. Installation is the reverse process, ensuring all connections are secure and the tank is properly sealed.
A comparative look at fuel pump locations in other vehicles highlights why the in-tank design is preferred. Older models often mounted the pump externally, typically near the engine or along the chassis. While this made repairs easier, it exposed the pump to heat and potential damage. The in-tank design, as seen in the 2001 Chrysler Voyager, addresses these issues but requires more effort for maintenance. For owners, understanding this trade-off can help in deciding whether to tackle the job themselves or seek professional assistance.
Finally, a practical tip for diagnosing fuel pump issues: If your Voyager struggles to start, stalls frequently, or sputters at high speeds, the fuel pump may be failing. Before assuming the pump is the culprit, check for simpler issues like a clogged fuel filter or faulty relay. If the pump is indeed the problem, factor in the cost of parts and labor, as replacing an in-tank pump can be more expensive than an external one. Regular maintenance, such as keeping the fuel tank above a quarter full to prevent pump overheating, can prolong its life and save you from unexpected repairs.
Wiring an Electric Fuel Pump: Step-by-Step Guide for DIY Enthusiasts
You may want to see also
Explore related products
Accessing the fuel pump
The fuel pump on a 2001 Chrysler Voyager is located inside the fuel tank, a common placement for many modern vehicles to protect the pump from external damage and maintain fuel pressure. This design, while advantageous for longevity, complicates access for maintenance or replacement. Unlike external pumps, which can often be reached without major disassembly, accessing the Voyager’s fuel pump requires removing the fuel tank itself, a task that demands careful planning and safety precautions.
Steps to Access the Fuel Pump:
- Relieve Fuel System Pressure: Before starting, disconnect the negative battery terminal to prevent electrical hazards. Then, locate the fuel pressure relief valve, typically near the fuel rail, and depress it to release pressure from the system. This step is critical to avoid fuel spray or fire risks during the process.
- Drain the Fuel Tank: Position a drain pan under the tank and remove the drain plug to empty the fuel. If the tank is not cooperating, use a siphon pump to remove as much fuel as possible. Residual fuel will still be present, so work in a well-ventilated area and have a fire extinguisher nearby.
- Remove the Fuel Tank: Support the tank with a jack or stand, then disconnect the fuel lines, electrical connectors, and straps holding it in place. Lower the tank carefully to avoid damaging the lines or surrounding components. Once removed, place the tank on a stable surface to access the pump assembly.
Cautions and Practical Tips:
Working with fuel systems carries inherent risks, including flammability and environmental hazards. Always wear safety goggles and nitrile gloves to protect against fuel exposure. Avoid using open flames or sparks near the work area, and ensure no one smokes nearby. If you’re unsure about any step, consult a repair manual or seek professional assistance. Additionally, consider replacing the fuel tank straps and filter while the tank is removed, as these components often degrade over time.
Testing Your Mercury Outboard Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Tools needed for replacement
Replacing the fuel pump on a 2001 Chrysler Voyager requires a specific set of tools to ensure the job is done efficiently and safely. The fuel pump is located in the fuel tank, which means you’ll need tools that can handle both the mechanical and electrical aspects of the replacement. Here’s a breakdown of the essential tools you’ll need, organized to guide you through the process step by step.
Step 1: Accessing the Fuel Tank
To begin, you’ll need a jack and jack stands to safely lift the vehicle and access the fuel tank. A wrench set, including both open-end and box-end wrenches, is crucial for loosening and tightening bolts. Additionally, a screwdriver set (both flathead and Phillips) will be necessary for removing any panels or covers obstructing access to the tank. For vehicles with plastic fasteners, a trim removal tool can prevent damage to the surrounding components. Always ensure the vehicle is on a level surface and the parking brake is engaged before lifting.
Step 2: Disconnecting Electrical Components
Once the fuel tank is accessible, you’ll need to disconnect the electrical connectors attached to the fuel pump. A fuel line disconnect tool is essential for safely releasing the fuel lines without causing leaks or damage. A multimeter can be used to test the electrical connections before and after disconnection, ensuring no faults are present. Electrical tape or dielectric grease may also be needed to protect connectors from corrosion during reassembly.
Step 3: Removing the Fuel Pump
Removing the fuel pump itself requires a locking fuel line disconnect tool to release the quick-connect fittings securely. A strap wrench or large channel locks can help grip and turn the fuel pump module without damaging it. For vehicles with a retaining ring, a retaining ring pliers set is necessary to remove and reinstall the ring properly. Always work in a well-ventilated area and use safety goggles to protect against fuel spills.
Cautions and Practical Tips
Before starting, relieve the fuel system pressure using a pressure tester to avoid accidental fuel spray. Keep a drain pan nearby to catch any residual fuel when disconnecting lines. If the fuel tank is rusted or corroded, a wire brush and rust penetrant can aid in loosening stubborn bolts. Finally, always refer to the vehicle’s service manual for torque specifications when reinstalling components to prevent over-tightening.
By gathering these tools and following these steps, you’ll be well-prepared to replace the fuel pump on a 2001 Chrysler Voyager with confidence and precision.
Understanding Chainsaw Fuel Pumps: Functionality and Operation Explained
You may want to see also
Explore related products
Symptoms of a faulty pump
A faulty fuel pump in a 2001 Chrysler Voyager can manifest in several ways, often mimicking other engine issues. One of the earliest and most common symptoms is difficulty starting the vehicle, especially after it has been sitting for a while. This occurs because the pump struggles to deliver sufficient fuel to the engine, leading to extended cranking times or a complete failure to start. If you notice your Voyager requires multiple attempts to ignite, the fuel pump may be the culprit.
Another telltale sign is a sudden loss of power during acceleration or while driving at high speeds. A failing fuel pump cannot maintain the necessary fuel pressure, causing the engine to sputter or stall under load. This symptom is particularly dangerous as it can leave you stranded or cause accidents if the vehicle unexpectedly loses power on the road. Pay attention to any hesitation or surging during acceleration, as these are red flags indicating potential pump failure.
Unusual noises from the fuel tank area, such as whining or buzzing, can also signal a malfunctioning fuel pump. These sounds often become more pronounced when the pump is under stress, such as during hard acceleration or when the fuel level is low. While some noise is normal, a significant increase in volume or a change in tone warrants immediate inspection. Ignoring these auditory cues can lead to complete pump failure, leaving your Voyager immobilized.
Lastly, a faulty fuel pump can trigger the check engine light, often accompanied by error codes related to fuel system pressure or delivery. Modern vehicles like the 2001 Chrysler Voyager rely on precise fuel-to-air ratios for optimal performance, and a failing pump disrupts this balance. If your check engine light comes on, use an OBD-II scanner to retrieve the codes and determine if the fuel pump is the source of the issue. Addressing this promptly can prevent further damage to the engine and ensure your vehicle remains reliable.
Mounting a Holley Electric Fuel Pump: Step-by-Step Guide for Enthusiasts
You may want to see also
Explore related products
Steps to replace the pump
The fuel pump on a 2001 Chrysler Voyager is located inside the fuel tank, a common placement for many vehicles to keep the pump cool and submerged in fuel. This design, while efficient, complicates replacement, requiring the removal of the tank. Before diving into the steps, ensure you have the necessary tools: a jack, jack stands, wrenches, screwdrivers, a new fuel pump module, and safety gear, including gloves and safety goggles. Always work in a well-ventilated area and relieve fuel system pressure before starting.
Begin by disconnecting the battery to prevent electrical accidents. Locate the fuel tank, typically beneath the rear seat or the vehicle’s underbody. Safely raise the vehicle using a jack and secure it on jack stands. Identify and disconnect the fuel lines, electrical connectors, and tank straps holding the fuel tank in place. Work methodically, as fuel lines can be stubborn and may require specialized tools for disconnection. Once detached, carefully lower the tank to access the fuel pump module.
With the tank removed, extract the fuel pump module by loosening the locking ring or retaining mechanism. This step varies by model, so consult the vehicle’s manual for specifics. Clean the tank’s interior around the pump opening to prevent debris from contaminating the new module. Install the replacement pump, ensuring the locking ring is secure and all gaskets are intact. Reattach the fuel lines and electrical connectors, double-checking for tightness and proper alignment.
Reinstall the fuel tank, securing it with the straps and ensuring all connections are tight. Lower the vehicle from the jack stands and reconnect the battery. Test the system by turning the ignition to the "on" position (without starting the engine) to pressurize the fuel lines. Check for leaks around the tank and connections. If no leaks are detected, start the engine and monitor for unusual noises or performance issues. This systematic approach ensures a safe and effective fuel pump replacement.
Understanding the Functionality of a Kawasaki Fuel Pump: A Comprehensive Guide
You may want to see also
Frequently asked questions
The fuel pump on a 2001 Chrysler Voyager is located inside the fuel tank, which is situated beneath the vehicle, typically near the rear passenger side.
To access the fuel pump, you’ll need to safely raise the vehicle, remove the fuel tank’s protective shield, and then lower the tank to access the pump assembly.
Yes, always relieve the fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards. Use proper safety equipment like gloves and safety goggles.
No, the fuel pump is an integral part of the fuel tank assembly, so the tank must be removed to replace the pump.
