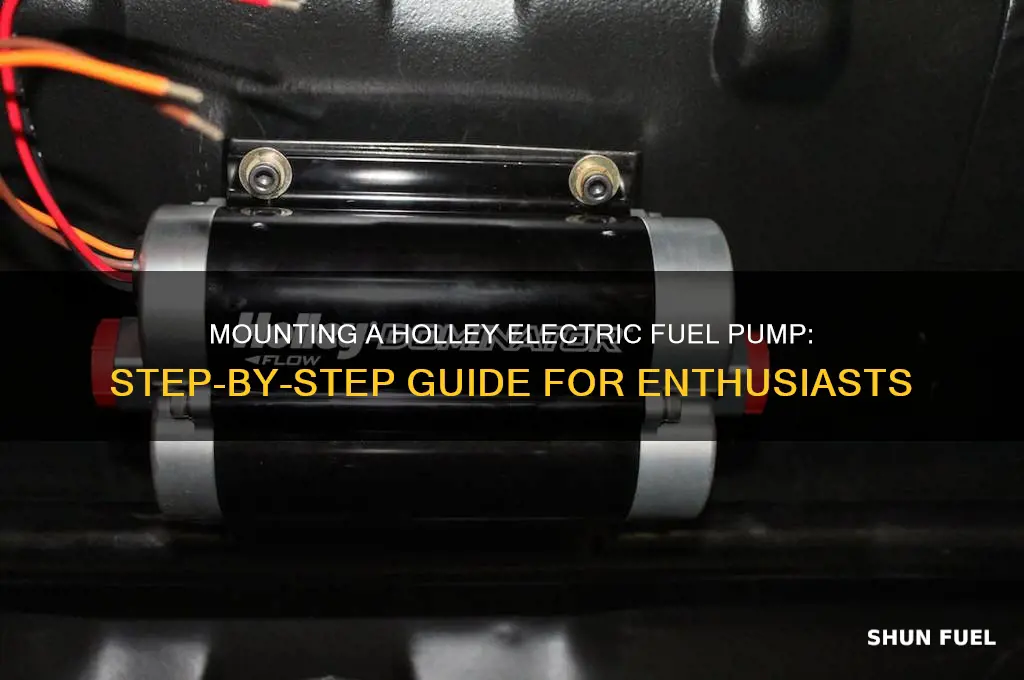

Mounting a Holley electric fuel pump is a crucial step in ensuring your vehicle’s fuel system operates efficiently and reliably. This process involves selecting the appropriate location for the pump, typically near the fuel tank or in-line with the fuel system, while ensuring it is securely mounted to avoid vibration or damage. Proper orientation is essential to prevent air pockets and ensure consistent fuel flow. Additionally, connecting the pump to a switched power source and grounding it correctly is vital for safe operation. Following Holley’s installation guidelines and using the recommended hardware will help maximize performance and longevity, making it a straightforward yet essential task for any fuel system upgrade.
| Characteristics | Values |
|---|---|
| Mounting Location | Away from exhaust, heat sources, and in a secure, vibration-free area. |
| Orientation | Pump inlet port facing downward to prevent airlock. |
| Fuel Line Connections | Use AN fittings or hose barbs with proper fuel-resistant hoses. |
| Electrical Connection | Connect to a switched 12V power source (e.g., fuel pump relay or ECU). |
| Grounding | Ensure a clean, secure ground connection to the chassis. |
| Fuel Filter | Install a pre-filter before the pump and a post-filter after the pump. |
| Pump Flow Direction | Ensure fuel flows from inlet to outlet as per Holley's instructions. |
| Mounting Hardware | Use rubber isolators or mounts to reduce vibration and noise. |
| Clearance | Maintain adequate clearance around the pump for airflow and maintenance. |
| Pressure Regulation | Use a fuel pressure regulator if required by your setup. |
| Safety Precautions | Work in a well-ventilated area, avoid sparks, and check for leaks. |
| Compatibility | Ensure the pump is compatible with your fuel type (e.g., gasoline, E85). |
| Wiring Gauge | Use appropriate gauge wiring (e.g., 10-12 AWG) for the pump's current draw. |
| Fuse Protection | Install a fuse in the power circuit to protect against shorts. |
| Testing | Test the pump for proper operation and leaks before finalizing the mount. |
Explore related products
What You'll Learn
Gather Tools and Materials
Before mounting a Holley electric fuel pump, ensure you have the right tools and materials to streamline the process. Start with a wrench set (typically 10mm and 12mm) for securing fittings, and pliers for manipulating hoses or clamps. A screwdriver set (flathead and Phillips) is essential for mounting brackets or electrical connections. For safety, include safety wire or zip ties to secure loose components and prevent vibrations. Don’t forget fuel-resistant hose compatible with your fuel type (e.g., ethanol-resistant for E85) and hose clamps to ensure leak-free connections. Lastly, a multimeter will help verify electrical continuity before powering the pump.
Analyzing the materials, the Holley electric fuel pump itself is the centerpiece, but its performance hinges on complementary components. Opt for AN fittings if your setup requires high-pressure compatibility, and consider a pre-filter to protect the pump from debris. Electrical materials like wire connectors and heat shrink tubing are critical for a reliable power connection. For mounting, a rubber isolator or anti-vibration pad can reduce noise and extend the pump’s lifespan. While these materials may seem minor, their quality directly impacts the pump’s efficiency and longevity.
From a practical standpoint, organizing your workspace is as important as the tools themselves. Lay out all materials in a logical order—pump, hoses, fittings, and electrical components—to avoid mid-installation delays. Measure and cut hoses to the correct length before starting, and pre-assemble fittings to save time. If working on a vehicle, ensure the fuel tank is empty or relieved of pressure to prevent spills or accidents. A funnel and rags are handy for cleanup, while a flashlight aids visibility in tight spaces. These small preparations can transform a cumbersome task into a smooth operation.
Comparatively, DIY enthusiasts often overlook the importance of fuel line routing. Unlike mechanical pumps, electric pumps require precise positioning to avoid overheating or fuel starvation. Use a tape measure to plan the route, ensuring the hose doesn’t kink or rub against moving parts. If mounting near the engine bay, consider heat shielding to protect the pump from excessive temperatures. While professional installations might use specialized tools like a hose cutter, a sharp utility knife can suffice for clean cuts. The goal is to balance precision with practicality, ensuring a setup that’s both functional and durable.
In conclusion, gathering the right tools and materials isn’t just about having what you need—it’s about anticipating challenges and optimizing efficiency. By investing in quality components and planning ahead, you’ll avoid common pitfalls like leaks, electrical faults, or premature pump failure. Treat this step as the foundation of your installation, and the rest of the process will follow seamlessly. Whether you’re a seasoned mechanic or a first-time installer, the right preparation ensures a Holley electric fuel pump that performs reliably for years to come.
Step-by-Step Guide to Removing Your Scirocco Fuel Pump Relay
You may want to see also
Explore related products
Locate Fuel Pump Mounting Spot
Choosing the right mounting location for your Holley electric fuel pump is critical for both performance and safety. The pump should be positioned as close to the fuel tank as possible to minimize the risk of vapor lock, a condition where fuel vaporizes in the lines, causing a loss of pressure and engine performance. Additionally, mounting the pump below the fuel tank level ensures a consistent fuel supply, as gravity aids in feeding fuel to the pump. Avoid areas prone to excessive heat, such as near the exhaust manifold or catalytic converter, as high temperatures can damage the pump and fuel lines.
Analyzing your vehicle’s layout is the next step in identifying the ideal mounting spot. Consider the fuel pump’s orientation—it should be mounted horizontally or with a slight downward tilt to prevent air pockets from forming inside. For in-line fuel pumps like Holley’s, ensure the inlet and outlet ports align with the fuel lines to avoid kinks or sharp bends, which can restrict flow. If your vehicle has a frame rail or chassis crossmember, these often provide sturdy mounting points, but verify they don’t interfere with suspension travel or other components.
A persuasive argument for prioritizing safety cannot be overstated. Mount the fuel pump in an area protected from road debris and potential impact in case of an accident. For example, mounting it inside the frame rails or within the trunk (for rear-mounted pumps) offers better shielding than exposed underbody locations. Use rubber isolators or vibration-damping mounts to secure the pump, reducing noise and stress on the unit. Remember, a poorly secured pump can become a hazard, especially in high-performance applications where vibrations are more pronounced.
Comparing mounting locations reveals that some spots are inherently better than others. For instance, mounting the pump near the fuel tank’s outlet is superior to placing it farther along the fuel line, as it reduces the length of suction required. If your vehicle has a return-style fuel system, position the pump centrally to balance pressure between the tank and engine. In contrast, for vehicles with a dead-head system, mounting the pump closer to the engine can improve fuel delivery efficiency. Always consult your Holley fuel pump’s specifications for clearance and orientation requirements.
Finally, a descriptive approach highlights the importance of accessibility for maintenance. Choose a mounting spot that allows easy removal and inspection of the fuel pump without disassembling major components. For example, mounting the pump on a removable bracket or panel in the trunk provides quick access for troubleshooting or replacement. Label the pump’s orientation (inlet/outlet direction) during installation to simplify future maintenance. By combining performance, safety, and practicality, you’ll ensure your Holley electric fuel pump operates reliably for years to come.
Testing Your Fuel Pump Inertia Switch: A Step-by-Step Guide
You may want to see also
Explore related products
Secure Pump with Brackets
Mounting a Holley electric fuel pump securely is critical to prevent vibration, leaks, and potential failure. Brackets serve as the backbone of this installation, ensuring the pump remains stable under the stresses of engine operation and road conditions. The right bracket setup not only anchors the pump but also positions it optimally for fuel flow and accessibility.
Analytical Perspective:
The choice of bracket material and design directly impacts the pump’s longevity. Steel brackets, while durable, add weight and may require rust prevention in humid climates. Aluminum brackets offer a lightweight alternative but demand careful torque management during installation to avoid stripping threads. Rubber-lined brackets reduce vibration transfer, a key factor in maintaining pump efficiency and minimizing noise. Analyzing your vehicle’s environment—off-road vs. highway use—will guide the selection of bracket type and mounting location.
Instructive Steps:
Begin by aligning the pump with the fuel line path, ensuring a straight run to the carburetor or fuel rail. Secure the bracket to the pump using the provided hardware, tightening bolts to 12–15 ft-lbs to avoid over-torquing. Position the bracket assembly on a flat, sturdy surface of the chassis or firewall, marking drill points for mounting holes. Pre-drill holes if necessary, then attach the bracket with stainless steel bolts and lock washers to prevent loosening over time. Double-check alignment and clearance before finalizing the installation.
Comparative Insight:
Unlike universal brackets, Holley-specific brackets are designed to match the pump’s dimensions and mounting points precisely, reducing guesswork. While generic brackets may save cost, they often require modification, risking improper fitment. Holley’s brackets also include pre-drilled holes for wiring and fuel lines, streamlining the installation process. For high-performance applications, consider adjustable brackets that allow fine-tuning of pump angle and height for optimal fuel delivery.
Practical Tips:
Always use threadlocker on bracket bolts to prevent vibration-induced loosening. If mounting near exhaust components, insulate the pump and bracket with heat shielding to avoid fuel vaporization. For vertical mounts, ensure the bracket supports the pump’s weight without sagging, which could strain fuel lines. Periodically inspect bracket integrity, especially after off-road use or high-vibration conditions, to catch potential issues early.
By prioritizing bracket selection and installation, you’ll ensure your Holley electric fuel pump operates reliably, contributing to consistent engine performance and peace of mind.
Kemso Fuel Pumps Review: Performance, Reliability, and Value Analysis
You may want to see also
Explore related products
Connect Fuel Lines Properly
Proper fuel line connections are critical to ensuring your Holley electric fuel pump operates efficiently and safely. Incorrectly connected lines can lead to leaks, reduced fuel pressure, or even pump failure. Start by identifying the inlet and outlet ports on your Holley pump—typically marked with arrows or labels. The inlet port draws fuel from the tank, while the outlet delivers it to the engine. Always use high-quality fuel line hoses rated for ethanol-blended fuels, as inferior materials can degrade over time. Secure connections with stainless steel or anodized aluminum fittings to prevent corrosion, especially in harsh environments.
When connecting the fuel lines, ensure a tight seal without over-tightening, as this can damage the fittings or warp the pump’s ports. Use a wrench or pliers with a cloth to protect the fittings, and torque to the manufacturer’s specifications. Apply thread sealant (like Teflon tape or Loctite 565) to threaded connections for added leak prevention. Double-check all connections before starting the engine, running your fingers along the lines to detect any dampness or fuel odor. A small leak under pressure can quickly escalate, so address any issues immediately.
Consider the routing of your fuel lines to minimize bends and kinks, which restrict flow and increase wear. Use fuel line clamps to secure the hoses to the chassis or firewall, ensuring they don’t rub against sharp edges or hot components. If your setup includes a fuel pressure regulator, position it downstream of the pump to maintain consistent pressure to the engine. For return-style systems, ensure the return line is properly connected to the fuel tank to prevent aeration and maintain proper fuel level.
Finally, test the system thoroughly before driving. Prime the pump by cycling the ignition switch to build pressure, then inspect for leaks again. Run the engine at idle and under load, monitoring for unusual noises or fluctuations in fuel pressure. Properly connected fuel lines not only safeguard your Holley pump but also optimize performance, ensuring your vehicle runs smoothly and reliably. Treat this step as the backbone of your fuel system installation—skimping here can undermine even the most advanced components.
Step-by-Step Guide: Removing Your Fuel Pump Cover Safely and Easily
You may want to see also
Explore related products
Wire Pump to Power Source
Connecting your Holley electric fuel pump to a power source is a critical step that demands precision and safety. Begin by identifying the pump’s power requirements, typically 12 volts for most automotive applications. Ensure your power source matches this specification to avoid damage or malfunction. Use a dedicated circuit with an appropriately rated fuse—usually 15 to 20 amps—to protect against overcurrent. This setup not only safeguards your pump but also prevents potential electrical hazards in your vehicle.
Next, select the correct gauge wire for the job. For most Holley electric fuel pumps, 14-gauge wire is sufficient, but verify this against the pump’s specifications. Longer wire runs may require thicker wire to minimize voltage drop. Strip the wire ends cleanly and connect them securely to the pump’s terminals, typically marked as positive (+) and negative (-). Use heat shrink tubing or electrical tape to insulate the connections, ensuring they are weatherproof and resistant to vibration.
Consider the power source’s location relative to the pump. If wiring directly to the battery, use a relay to switch the pump on and off with the ignition. This prevents the pump from running continuously, which can lead to overheating or unnecessary fuel pressure. Connect the relay’s control wire to the ignition switch, ensuring the pump activates only when the engine is running. This setup is both efficient and safe, aligning with best practices in automotive electrical systems.
Finally, test the wiring thoroughly before finalizing the installation. Turn the ignition on and listen for the pump’s priming cycle, a brief humming sound indicating proper operation. Check for voltage at the pump terminals using a multimeter to confirm power delivery. Inspect all connections for tightness and signs of overheating. A well-wired Holley electric fuel pump ensures reliable fuel delivery, contributing to the overall performance and longevity of your vehicle’s fuel system.
Fixing Your John Deere Fuel Pump: A Step-by-Step Repair Guide
You may want to see also
Frequently asked questions
You will need basic hand tools such as wrenches, screwdrivers, a drill (if mounting to a new surface), and a hose clamp for fuel line connections.
Mount the pump as close to the fuel tank as possible to minimize the risk of cavitation. Ensure it is in a location with good airflow to prevent overheating.
Use the provided mounting brackets or fabricate a secure bracket. Ensure the pump is firmly attached using bolts or screws, and avoid over-tightening to prevent damage.
Use a relay to protect the pump and ensure proper power delivery. Connect the pump directly to the battery or a switched power source, and use appropriate gauge wiring to handle the current draw. Always follow the manufacturer’s wiring diagram.
